Year |
2017 |
|---|---|
Make |
CMS |
Model |
ARES-4818-PX5-Z1200 |
Description |
CNC Router |
Reference # |
8070860 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

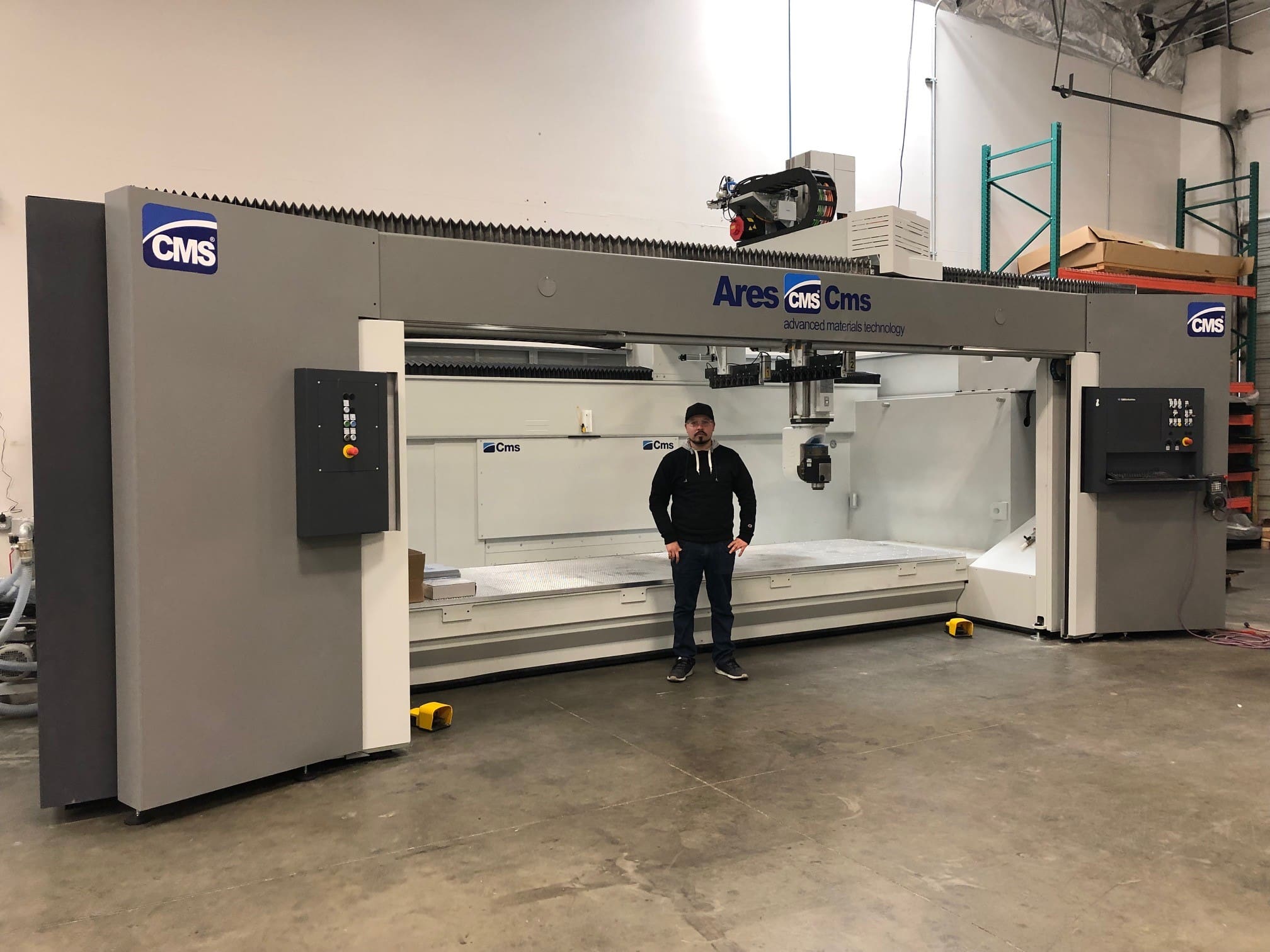

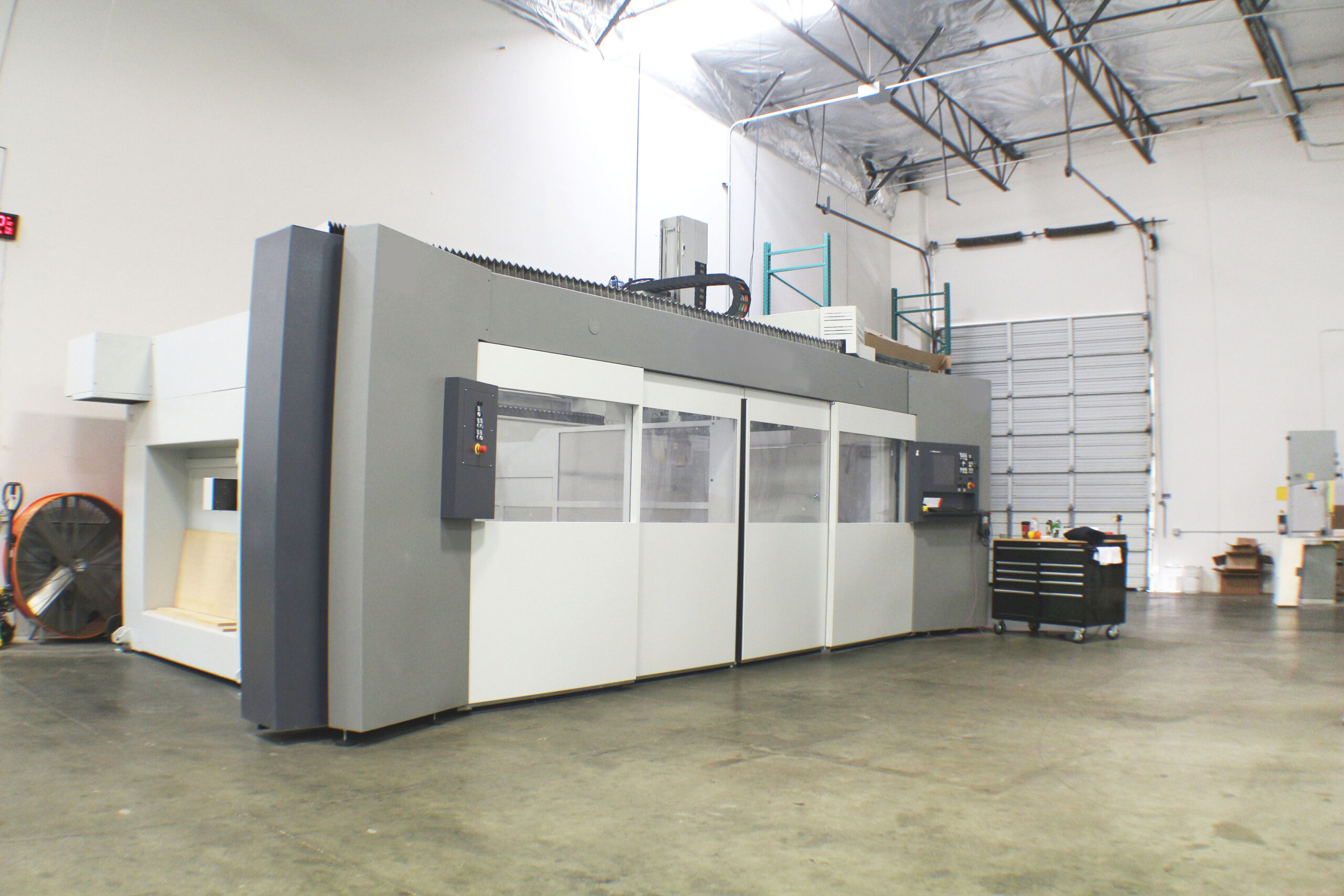

Used CMS ARES-4818-PX5-Z1200 (2017) CNC Router for Sale. This pre-owned CMS cnc router is located in The United States. If you have any questions regarding this CMS CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number of Axis |
5 |
|---|---|
| Table Width |
53.35" |
| Table Length |
191.34" |
| Table Style |
Fixed, Steelwork Flat Table Surface with Threaded Hole Grid at a 23.62” x 11.81” Pitch |
| Table Hold Down |
Vacuum Hold Down |
| Axes Strokes |
(X, Y & Z - AC Servo Drives) |
| X-Axis Travel |
4,800 mm (188.98") |
| Y-Axis Travel |
1,800 mm (70.87") |
| Z-Axis Travel |
1,200 mm (47.24") |
| B-Axis Travel |
+/- 120° |
| C-Axis Travel |
+/- 270° |
| Spindle |
PX5 20 Kw Universal Head |
| Spindle Horsepower |
Maximum Power (S6-60%) 22.3 Kw (29.9 HP) at 10,600 RPM |
| Max Revolution Speed |
24,000 RPM |
| Tool Changer |

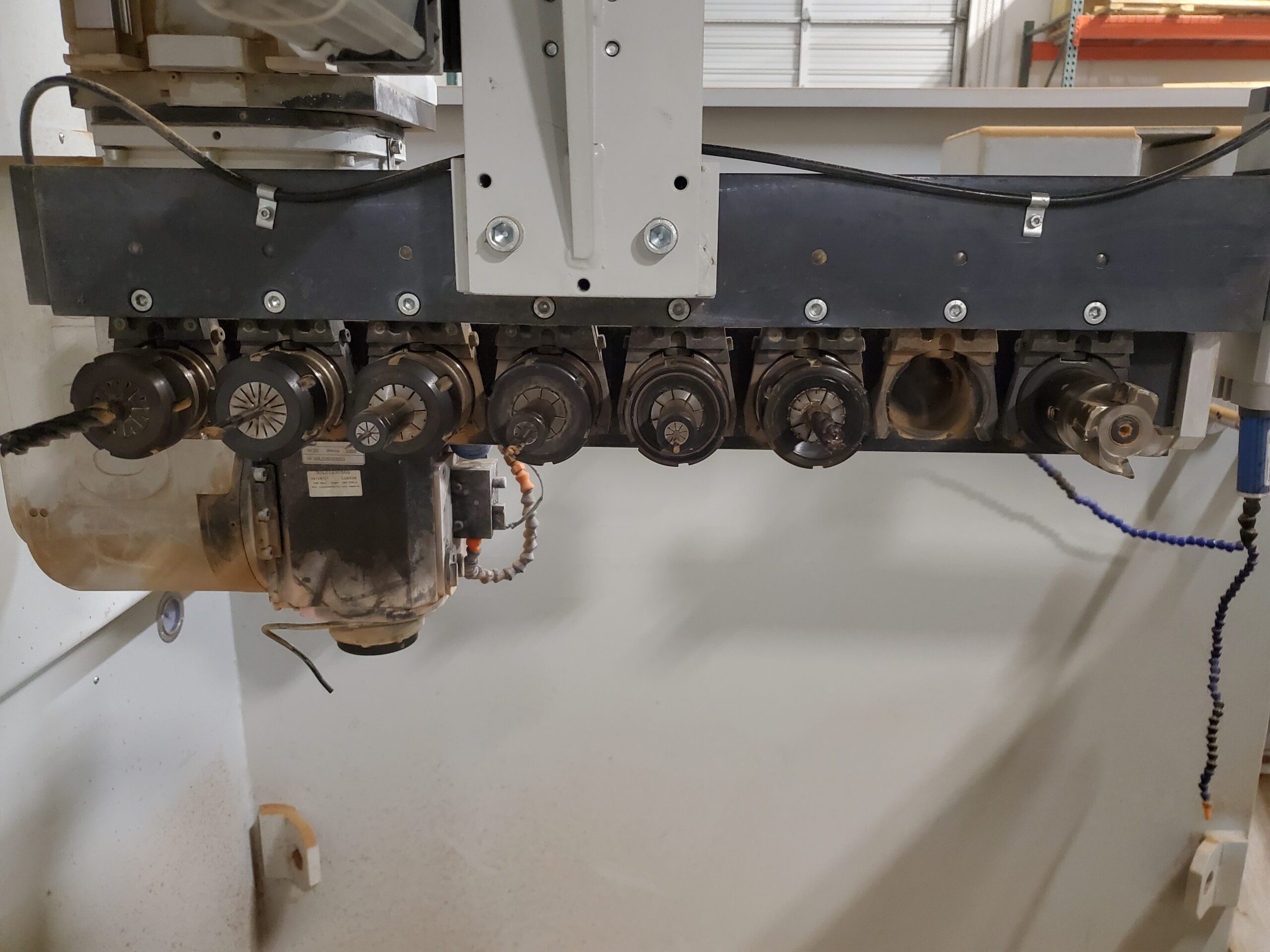

(8) Position Tool Magazine (HSK 63A) |
| Control |

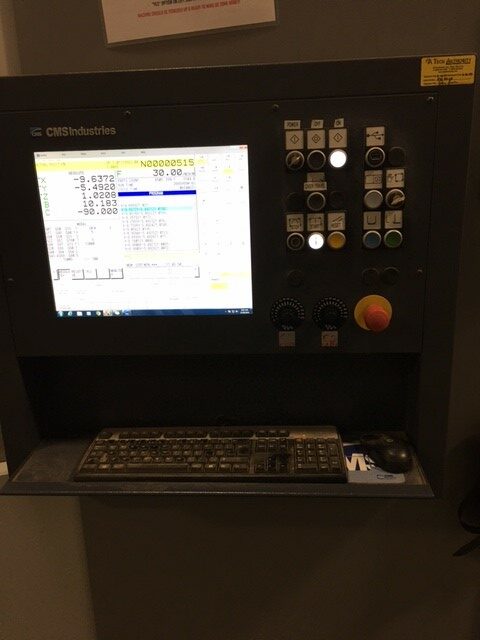

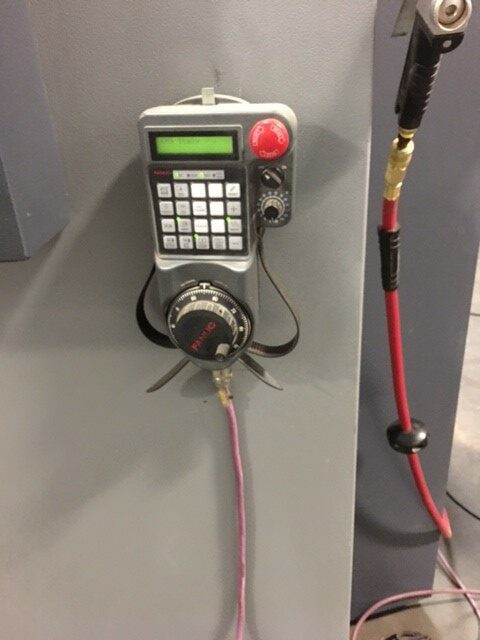

NC Fanuc 31i-B5 w/Fanuc Portable Keyboard |
| Hours on Machine |
2708 hrs |
Features
|
Renishaw NC4-F230 (Laser Device for Measuring Tool) |
