Year |
2017 |
|---|---|
Make |
American Kuhne |
Description |
Interchangeable Screw 3-D Filament System |
Reference # |
8072015 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

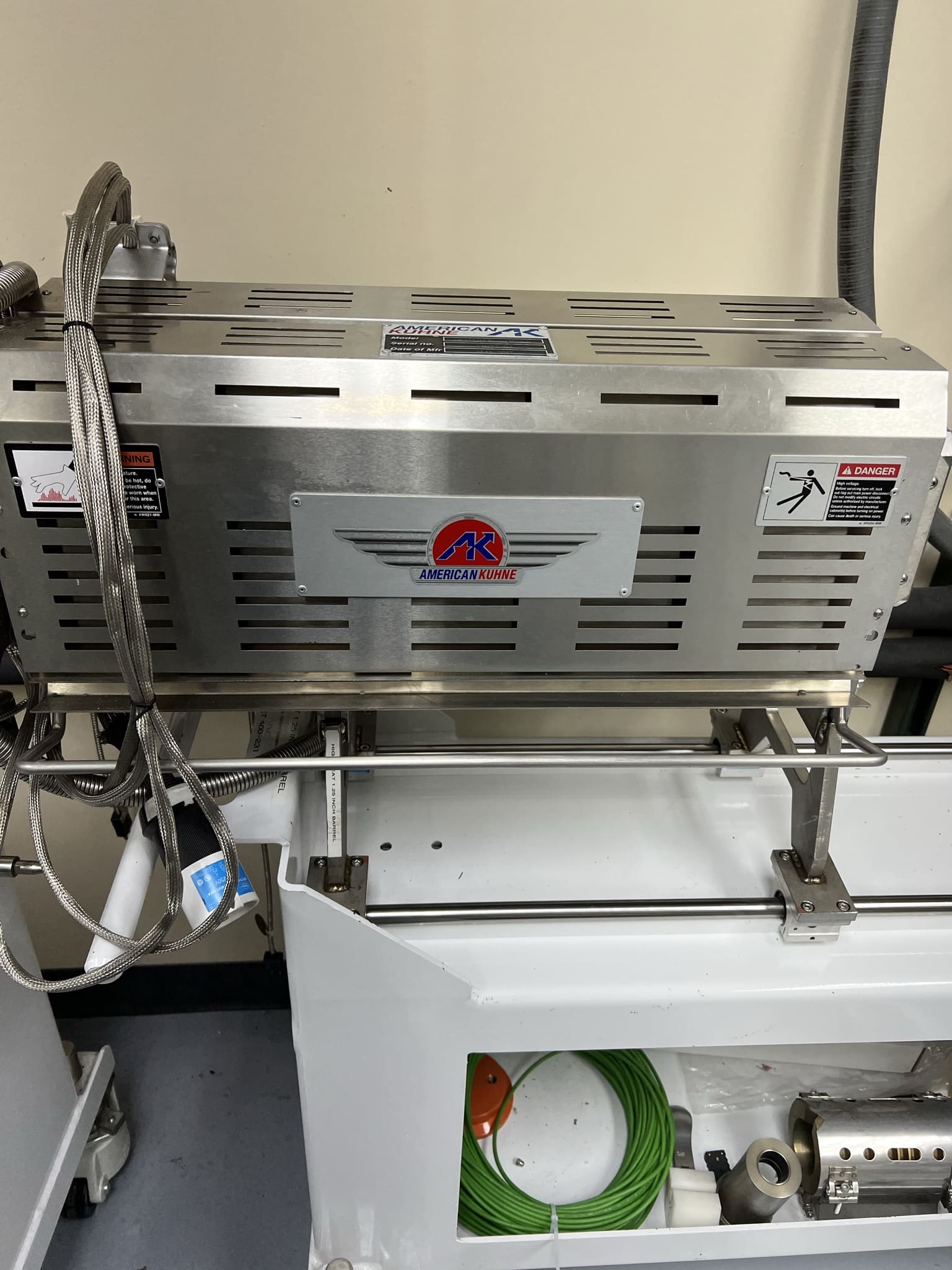

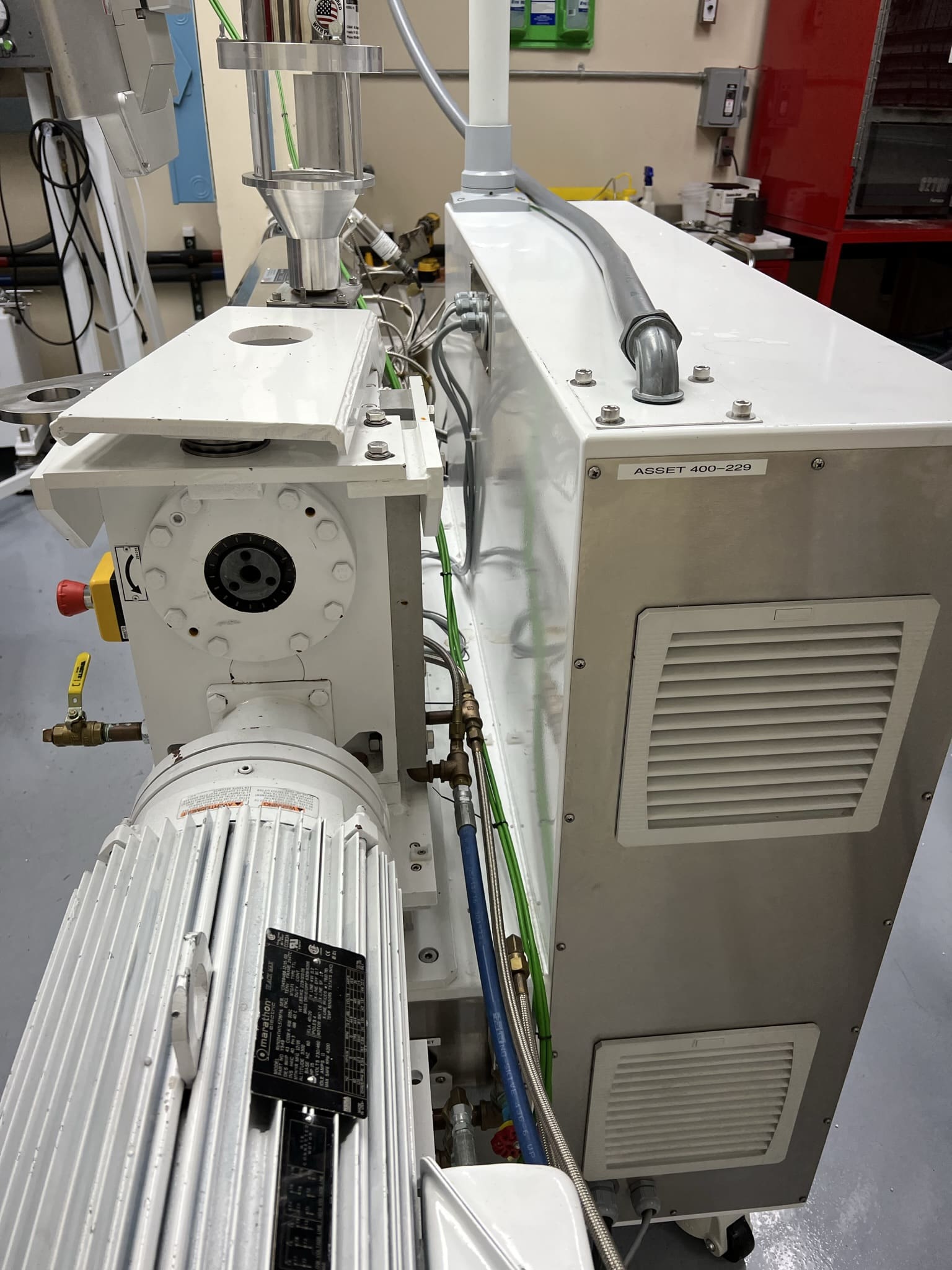

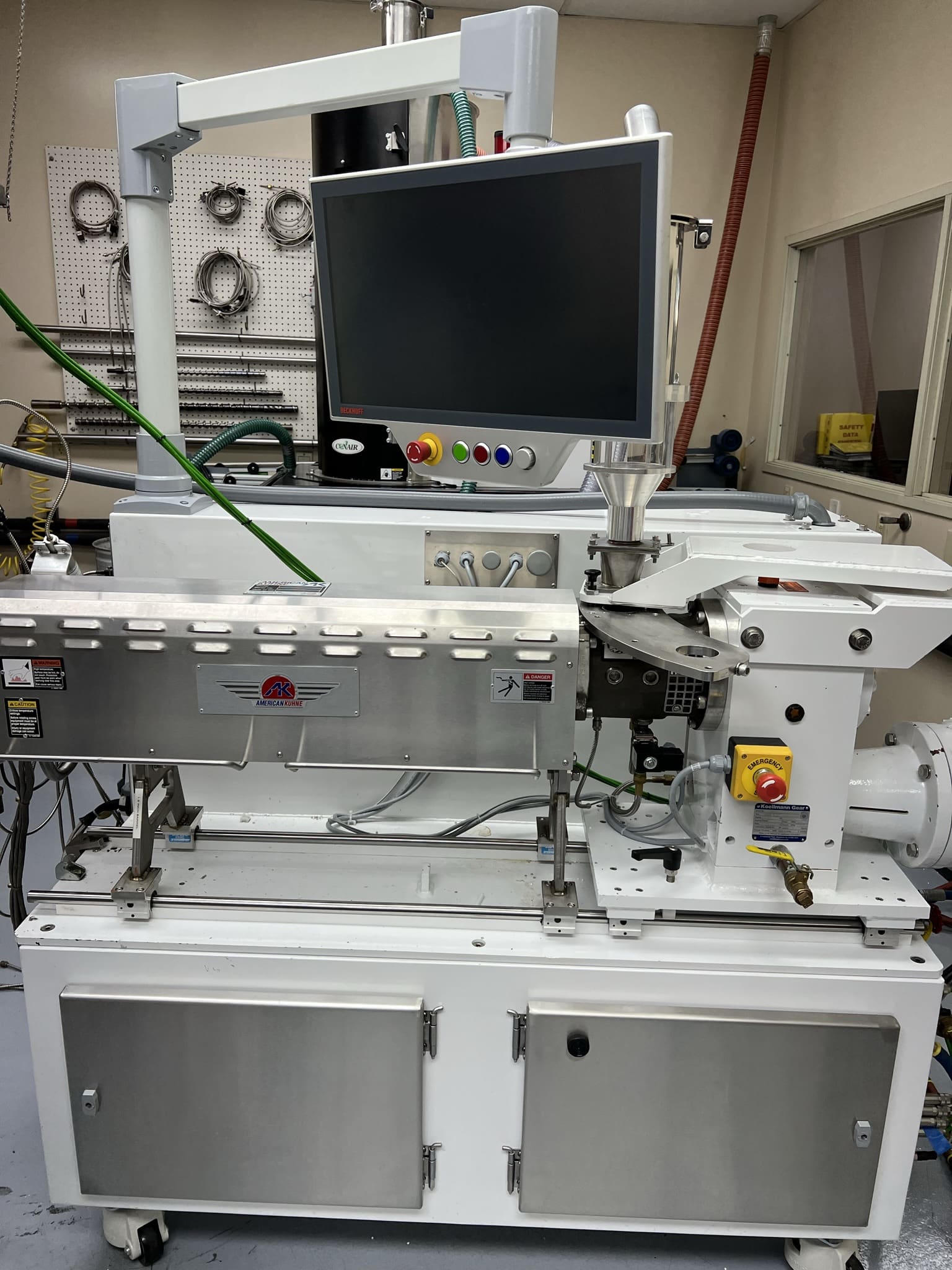

Used American Kuhne LRG COMP MOD (2017) Extruder for Sale. This pre-owned American Kuhne plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this American Kuhne Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
1.0", 1.25", 1.5" |
|---|---|
| L/D Ratio |
24:1 |
| Vented |
No |
| Air Cooled |
Yes |
| Material Ran |
Nylons, PPS, TPE |
| Barrel Material (All 3 Sizes) |
Xaloy 102 or Equivalent Barrel Liner |
| 1.0" Screw Design |
Steward Barrier Screw Designed for Pebax |
| 1.25" Screw Design |
Metering Screw for PPS |
| 1.50" Screw Design |
Steward Barrier Screw Designed for Pebax & TPE |
| Control |
Beckhoff Navigation Control System |
| Horsepower |
15 HP |

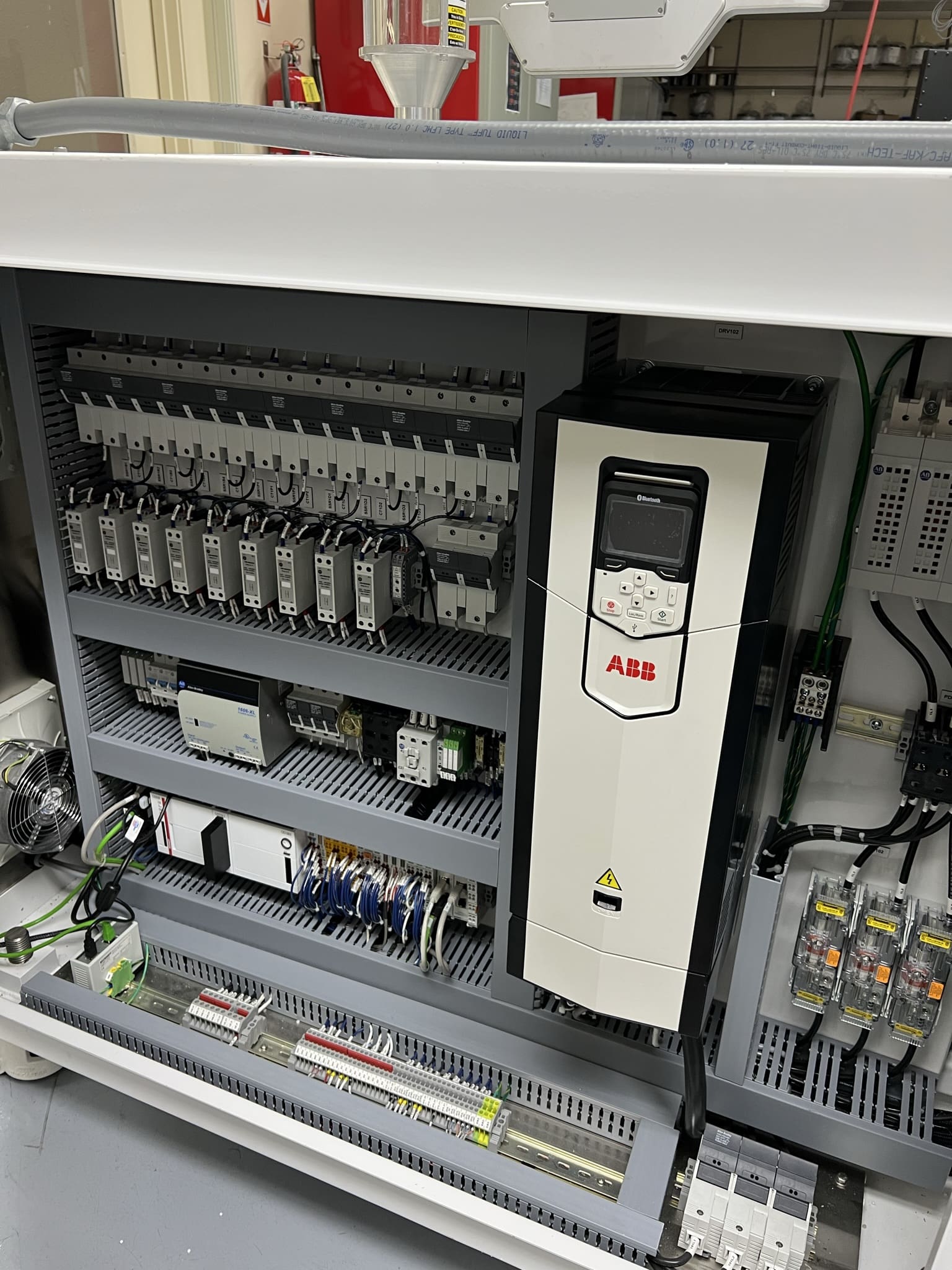

| Drive |
15 HP AC Vector Drive |
| Barrel Zones |
3 |
| Die Zones |
3 |
| Electrical Requirements |
240v-3ph-60hz |
| Zumback OD/ID/Wall Measurement and Control System |

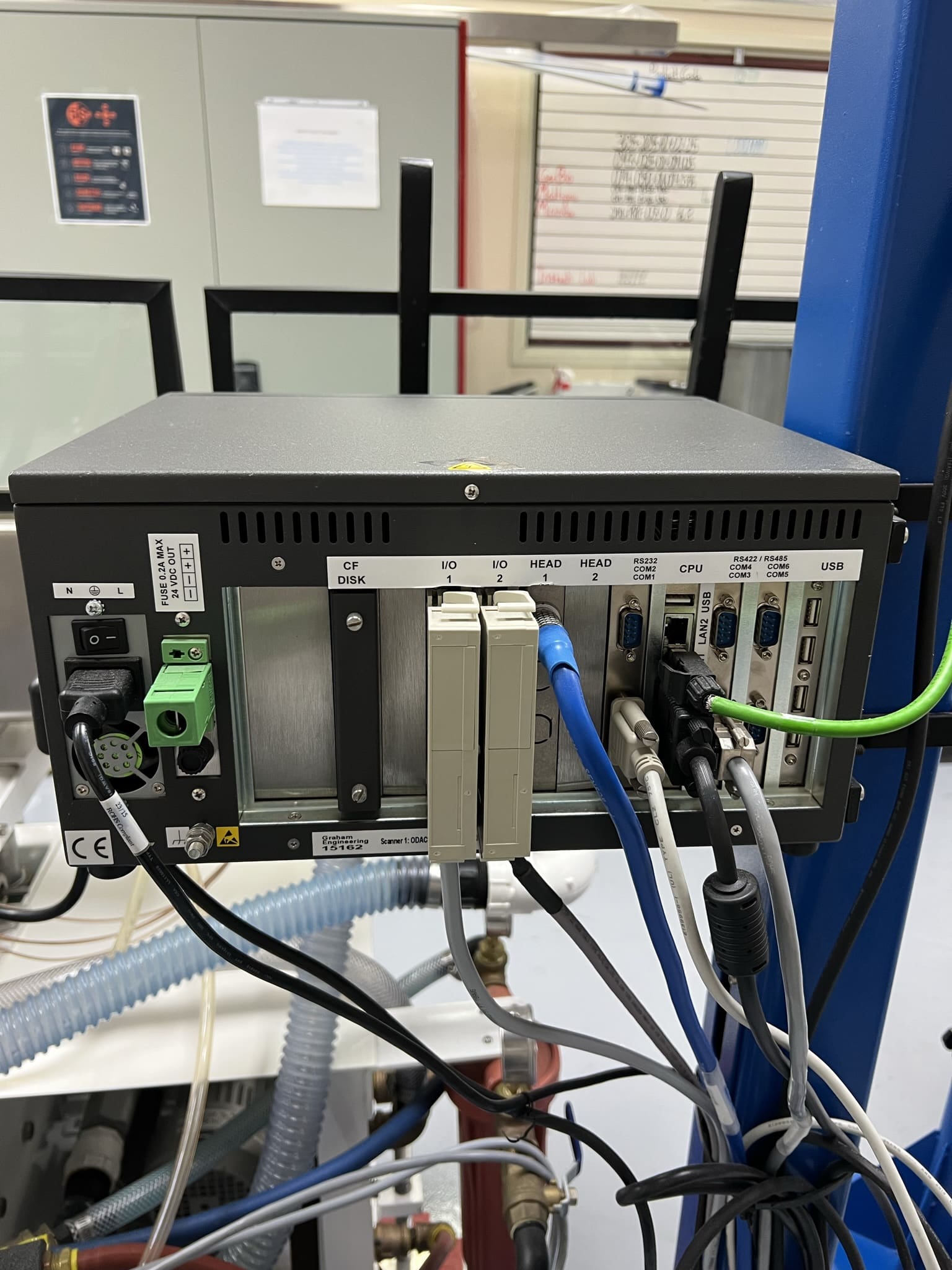

USYS IPC-1e Industrial Processor with Touchscreen, USYS IPC-1 Touchscreen Mounting Options, UMAC CI Ultrasonic Signal Processor, UMAC A10 Transducer Scanner with Guides, ODAC 13 Trio Scanner (To Be Mounted on Downstream) |
| Downstream Plus Additional Items Includes |

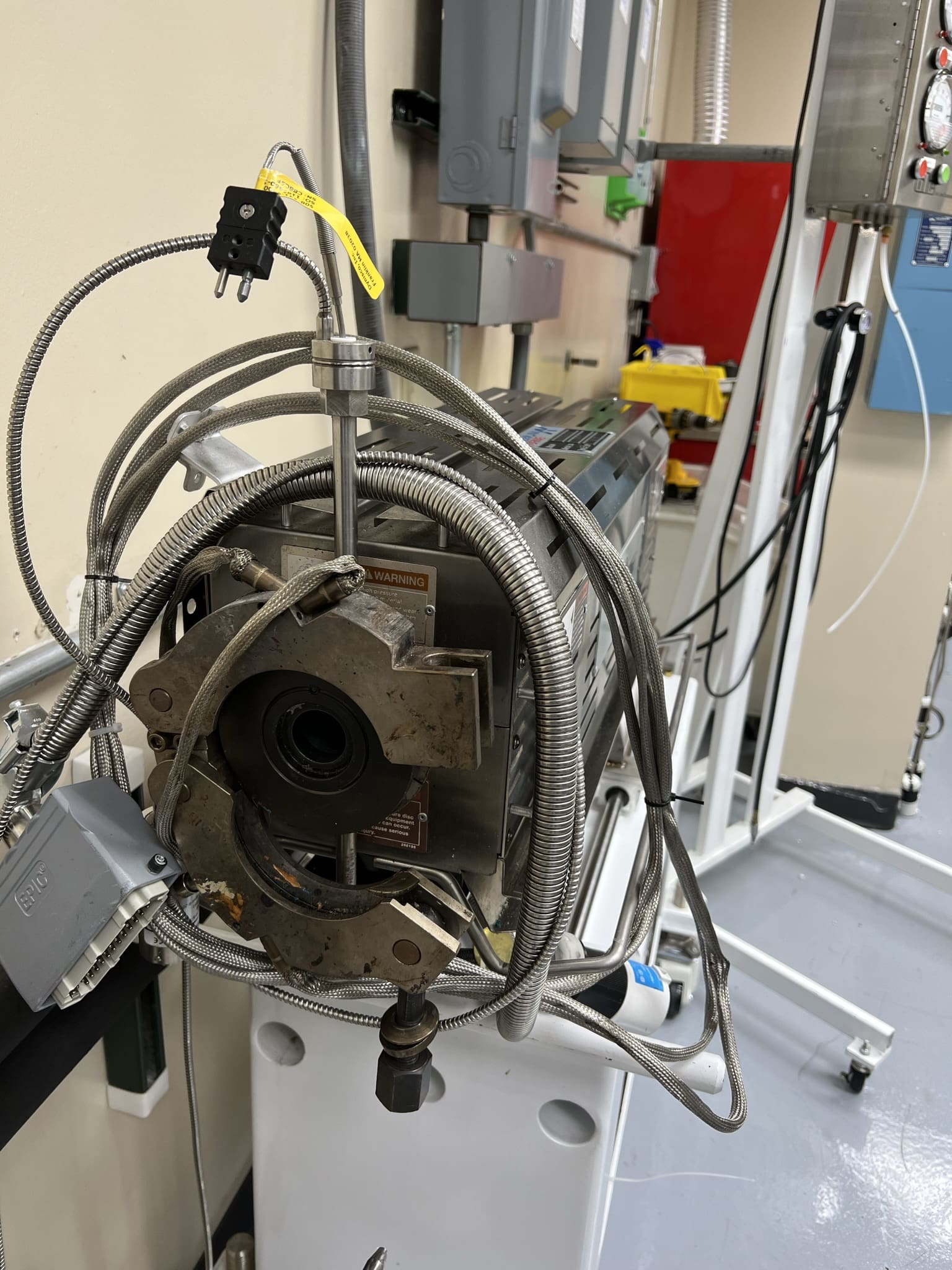

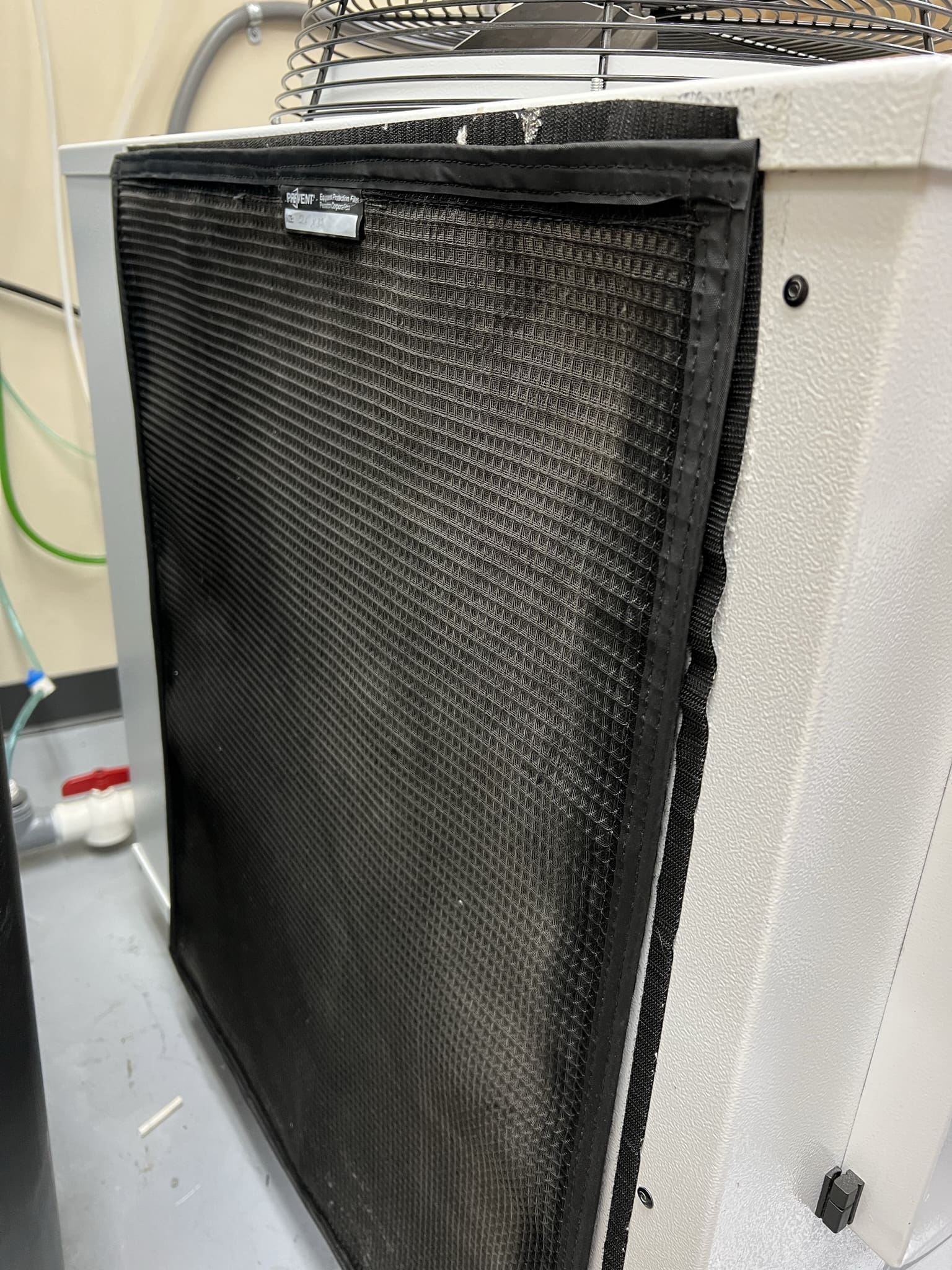

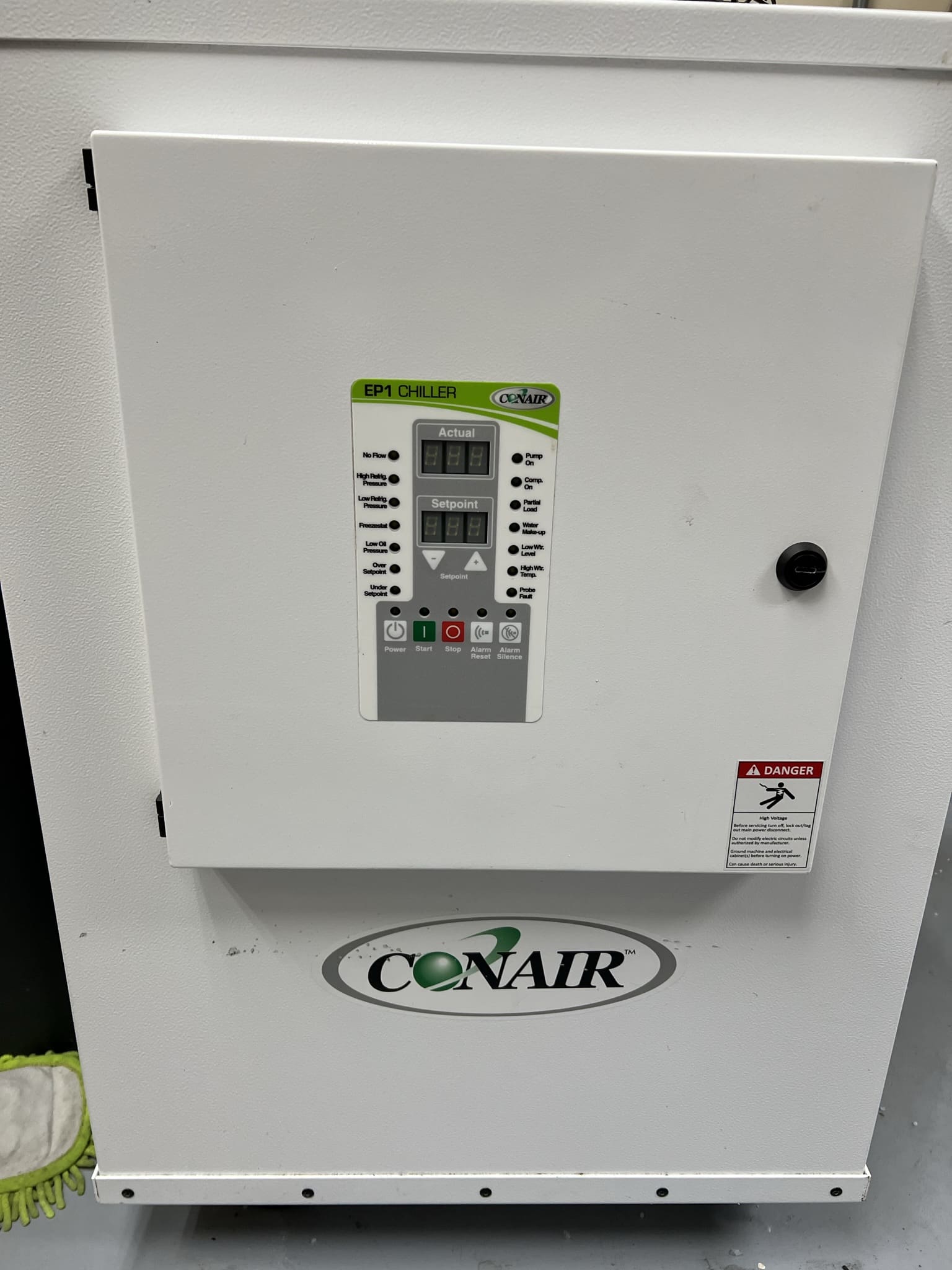

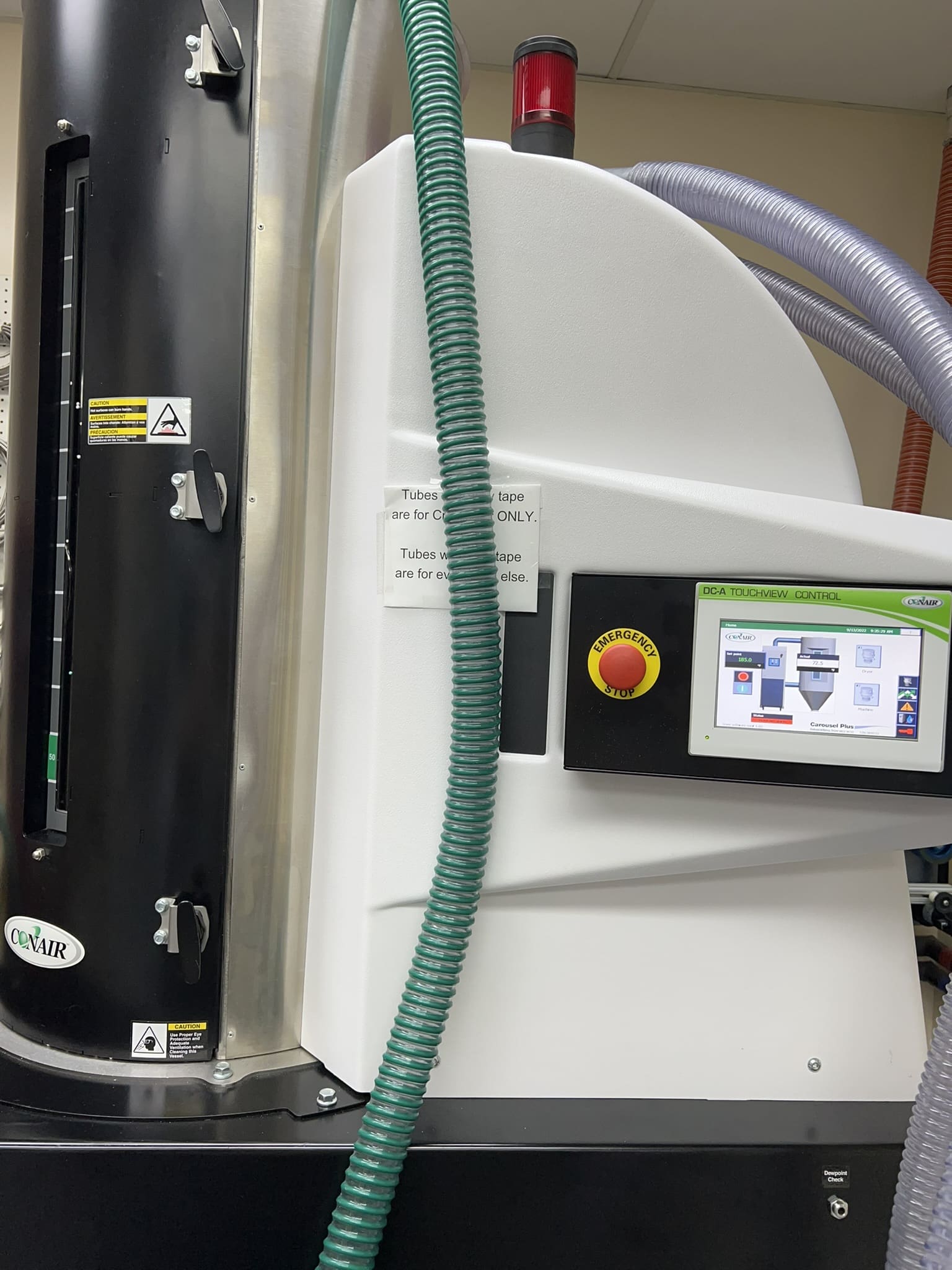

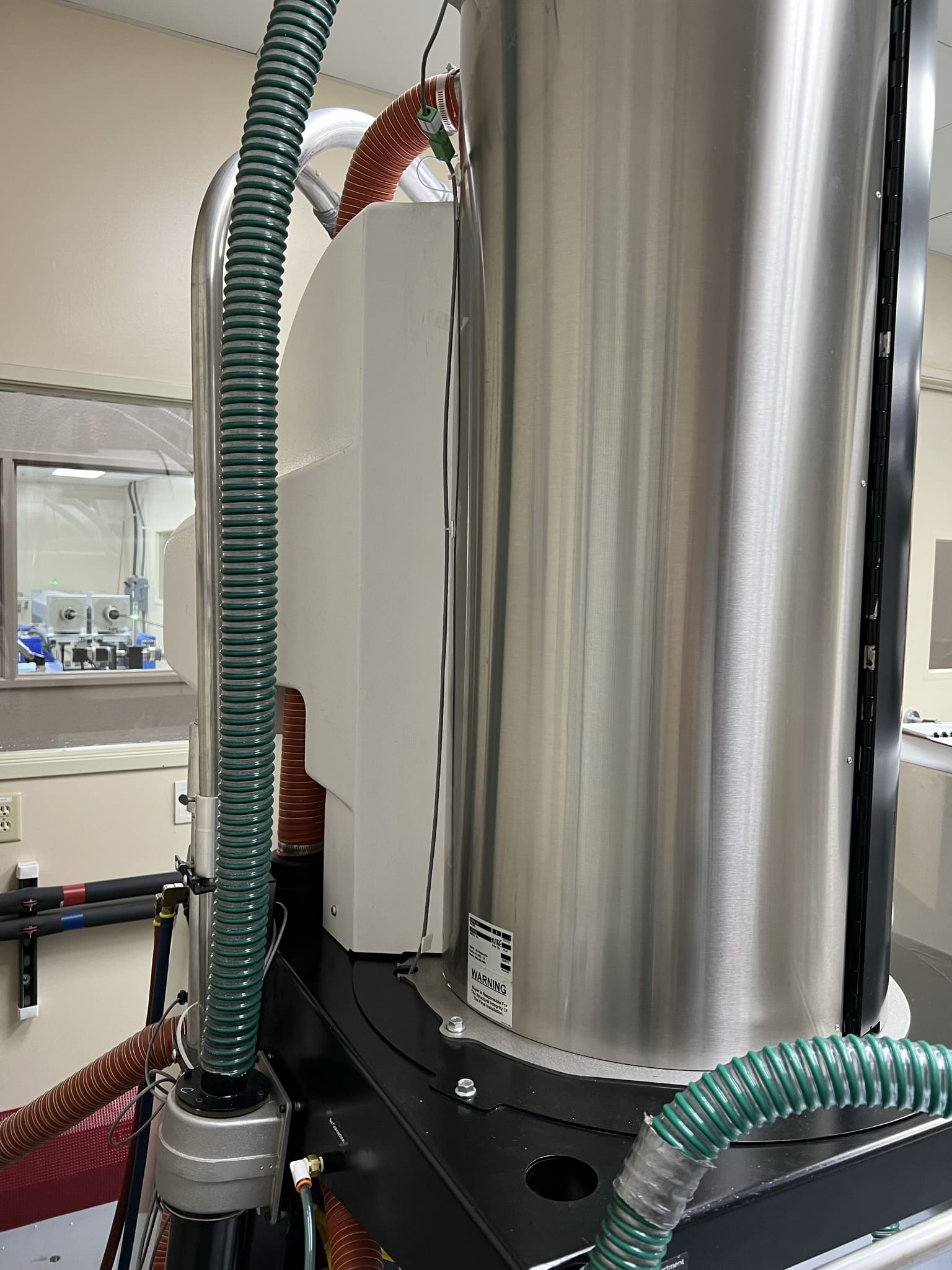

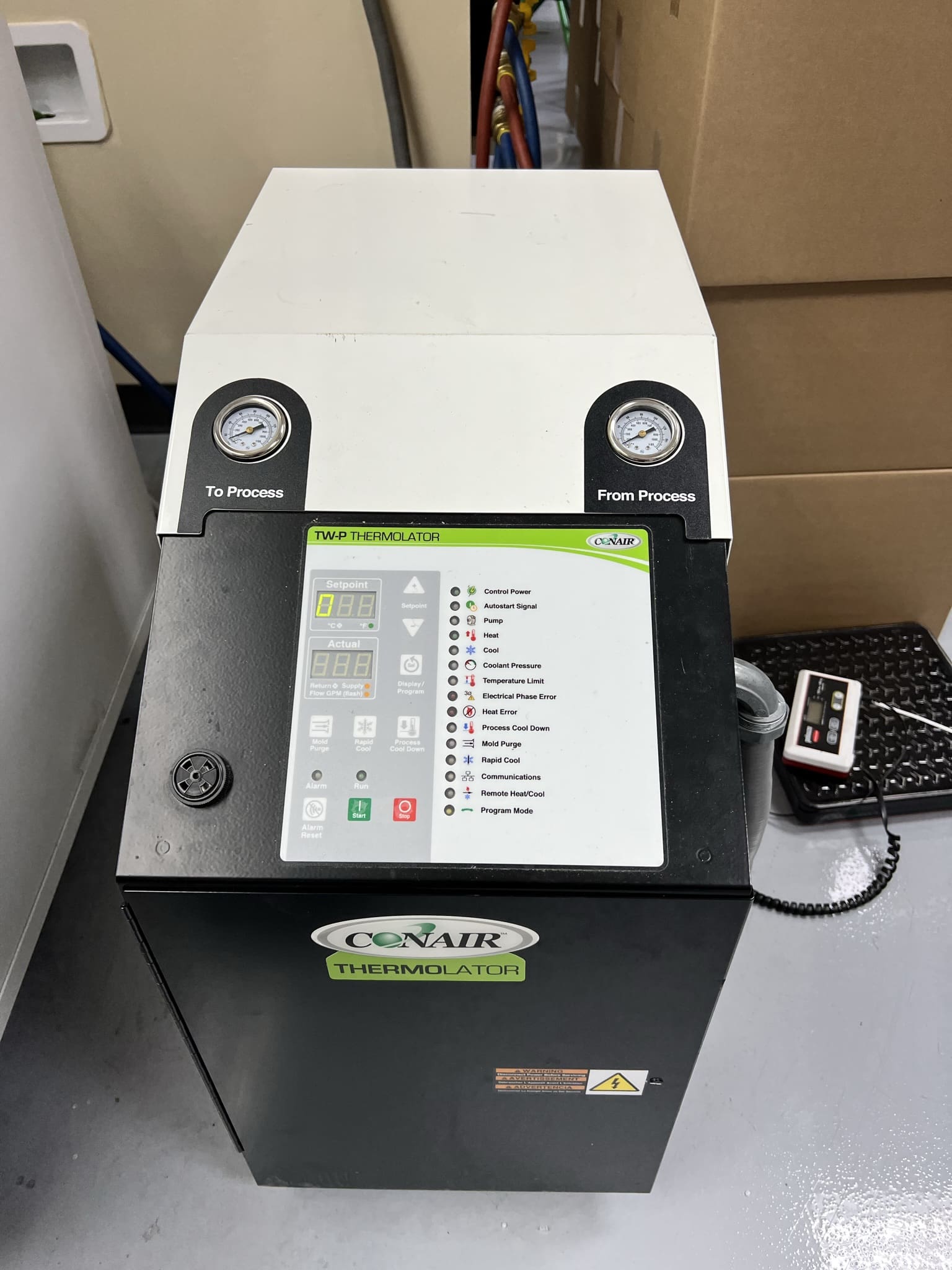

AK-u-Tube, Inline Die Head With Two Sets Of 1-Lumen Tooling, AK-u-Tube CH-100 Crosshead Die With Two Sets Of 1-Lumen Tooling, MDCW-50 Carousel Floor Mounted Dryer System, 11' Vacuum Sizing Tank W/ 8" x 8" Upper Tank Cross Section, Trough for Ultrasonic Wall Unit (Catcher Tank), 2-Ton Air Cooled Portable Chiller, Model TW Water Temperature Control Unit, OLC MicroAir II Air Pressure Controller, Model MDL 2-12 / SCS-1L Medline Puller Cutter (42" Centerline Height), Conair MTAC410 Conveyor With Blow-Off |
Features
|
Stainless Steel Feed Section with Full Surrounded Water Jacket |
Touch Screen Control |
|
Interchangeable Screw/Barrel and Heater Band Enclosure |
