Year |
2016 |
|---|---|
Make |
Mazak |
Model |
HCN-4000III |
Description |
CNC Horizontal Machining Center |
Reference # |
8075446 |
Price |
Activate Pricing |

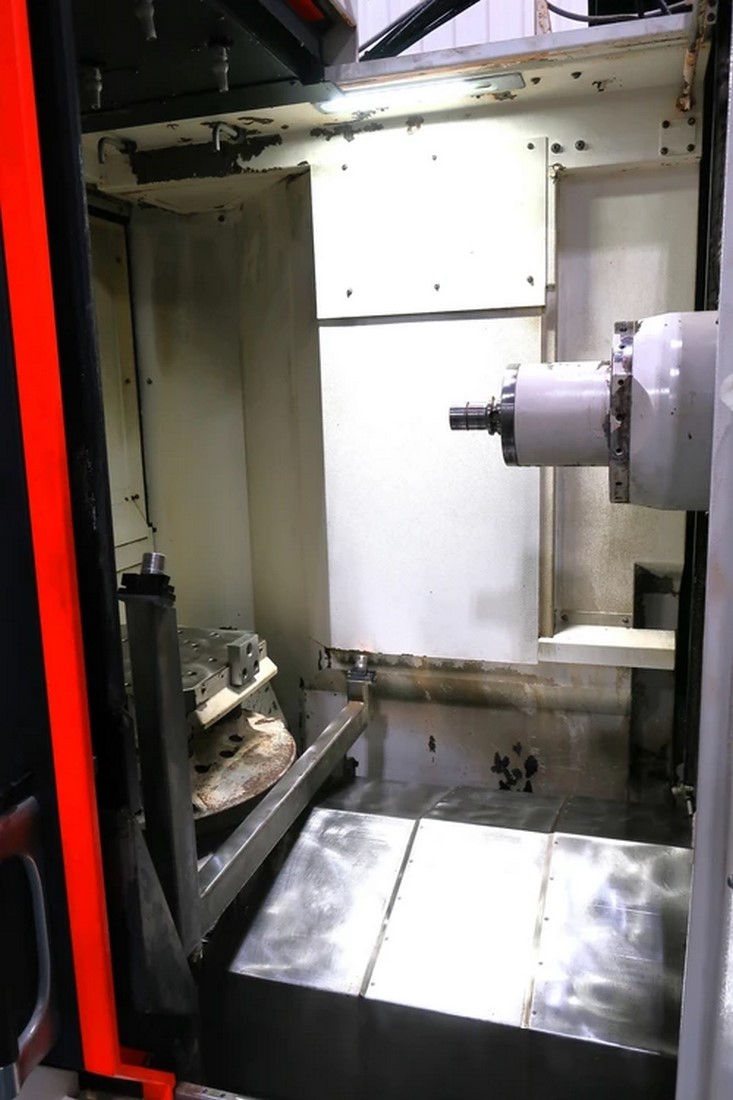

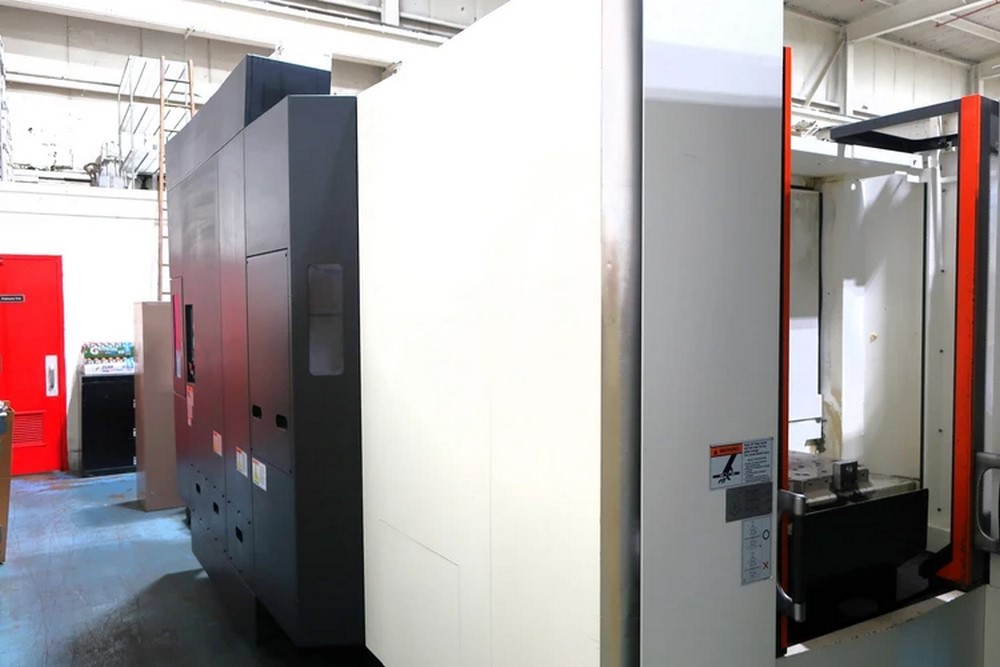

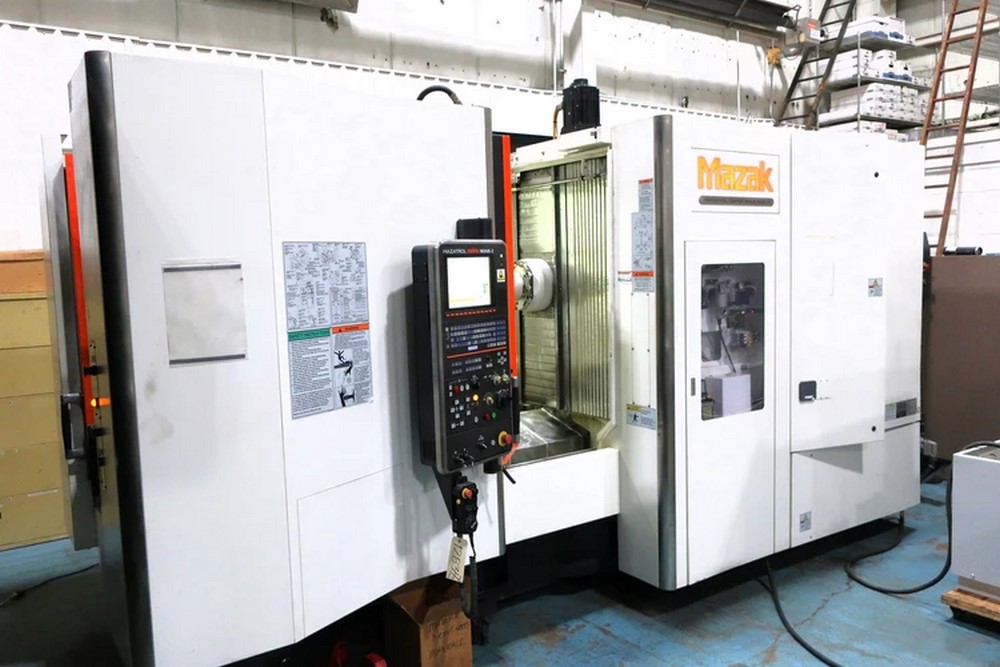

Used Mazak HCN-4000III (2016) CNC Horizontal Machining Center for Sale. This 400 mm pallet machine has a 15.74″ x 15.74″ pallet with full 4th axis pallet indexing, 22″ of X-axis travel and 25.2″ in both Y and Z. The 25/23 HP spindle runs to 18,000 RPM with a CAT 40 taper, served by a 60-tool ATC and run from a Mazatrol Matrix Nexus 2 control. Equipped with chip conveyor, high pressure and flood coolant systems, enclosed coolant and splash cover, ball screw coolers on X/Y/Z, spindle chiller with absolute positioning system, roller guides, background tool path check, EIA/ISO code input, safety cover for the 2-pallet changer and work light. Overall 87″ x 207″ x 106.8″, 23,584 lbs. Available for inspection under power. See more CNC horizontal machining centers and Mazak machines, Activate Pricing, or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.74" x 15.74" |
| X-Axis Travel |
22" |
| Y-Axis Travel |
25.2" |
| Z-Axis Travel |
25.2" |

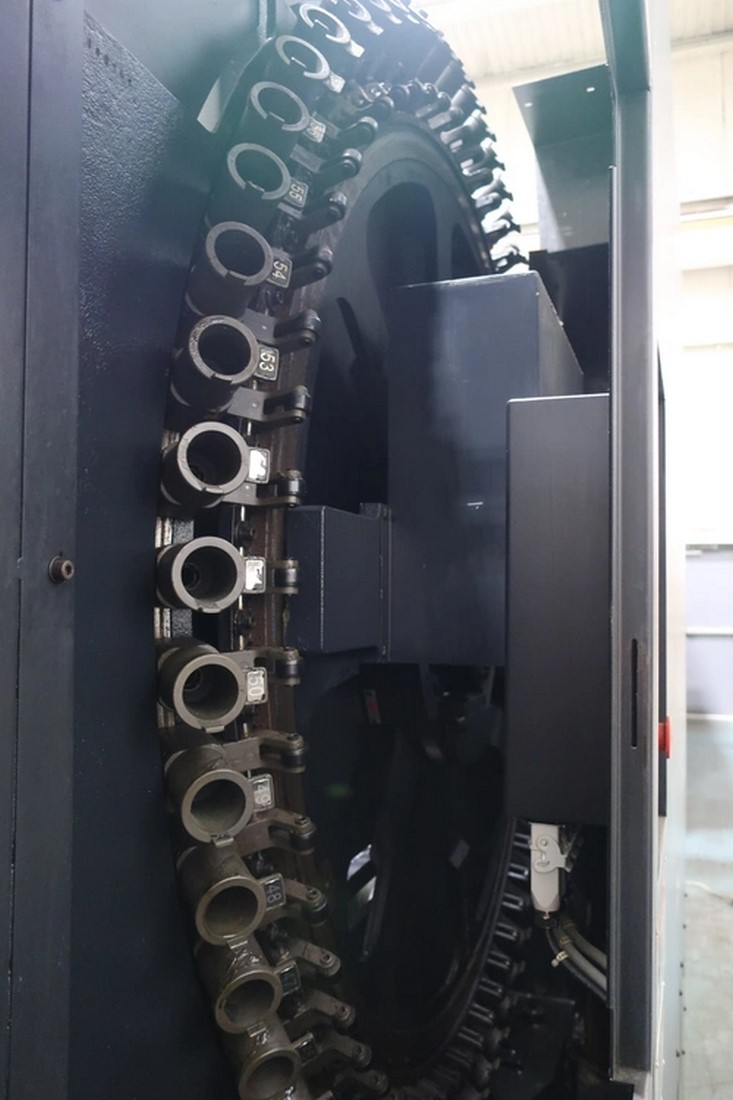

| Tool Magazine Capacity |
60 ATC |

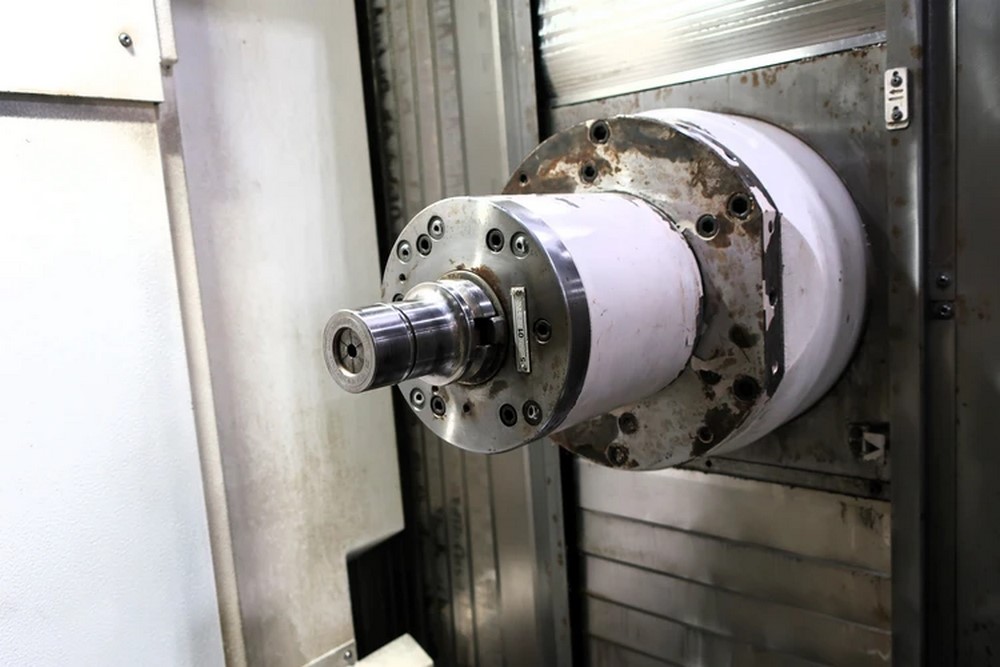

| Spindle Speed |
18,000 RPM |
| Spindle Taper |
CAT 40 |

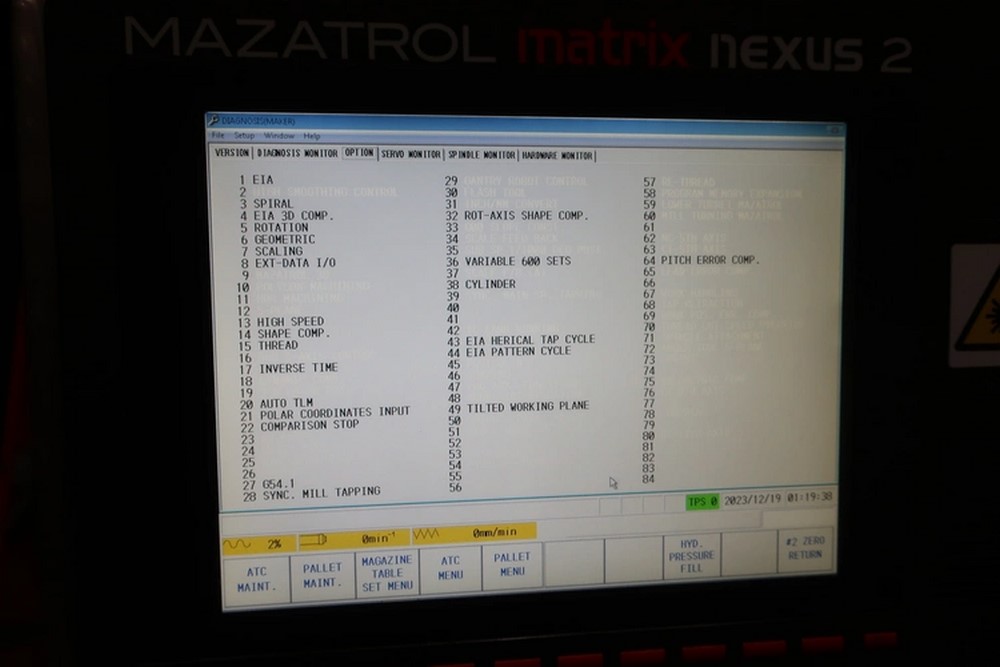

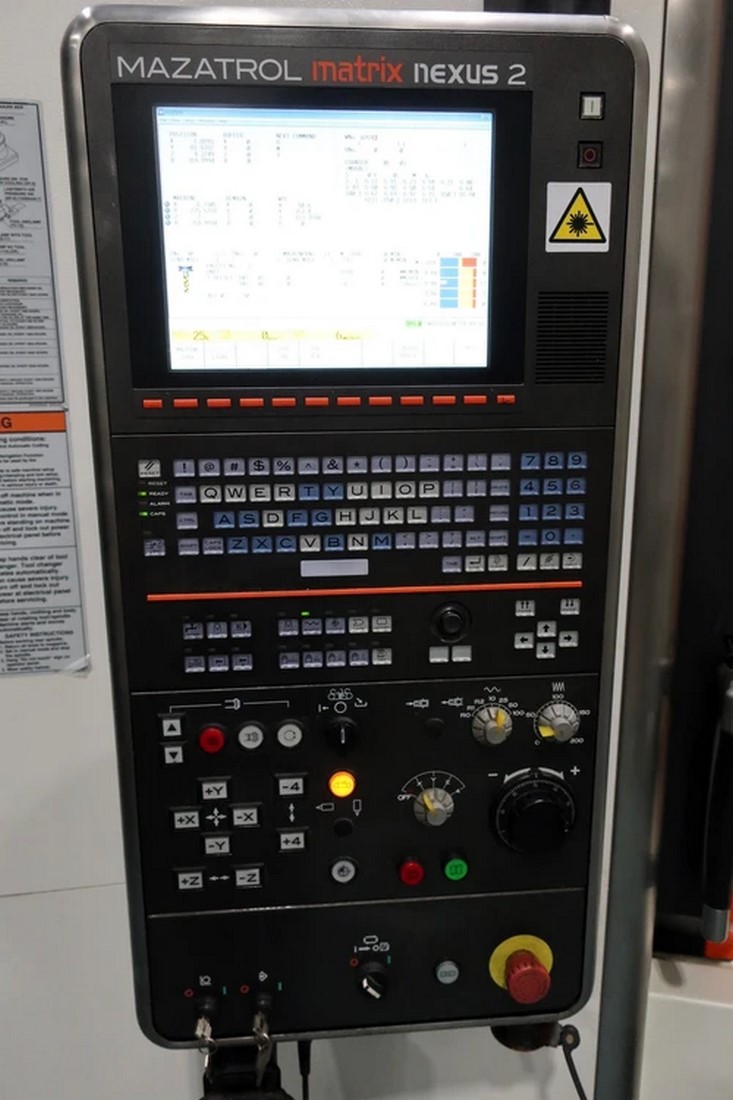

| Control |
Mazatrol Matrix Nexus 2 |

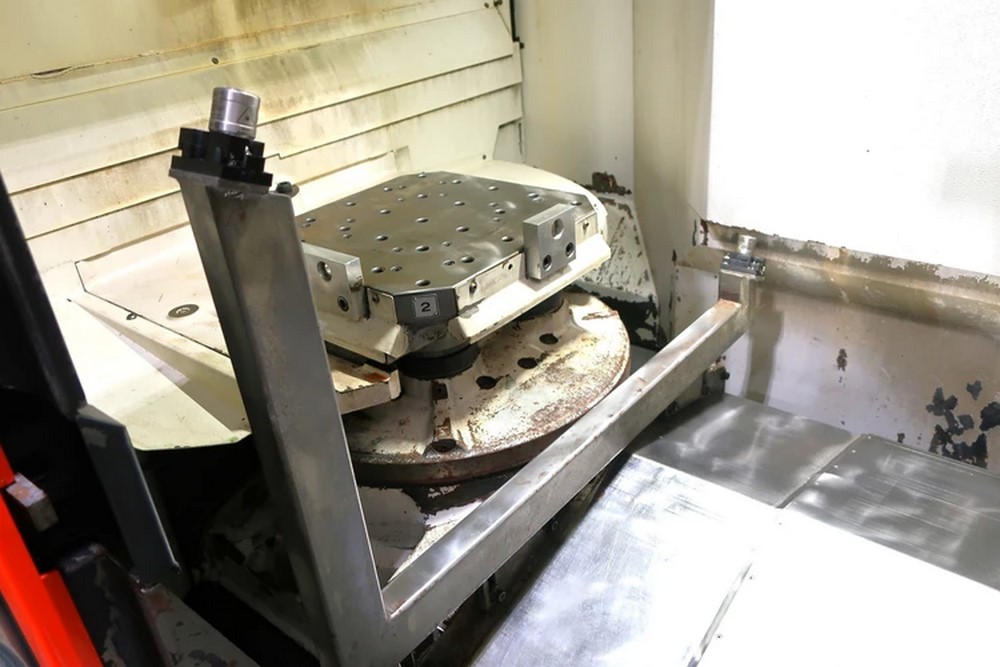

| Pallet Indexing |
Full 4th Axis |
| Spindle Motor |
25/23 HP |
| Chip Removal |
Chip Conveyor |
| Coolant |
High Pressure Coolant System |
| Machine Dimensions |
87" x 207" x 106.8" |
| Machine Weight |
23,584 Lbs |
Features
|
Coolers for Ball Screw (X/Y/Z-Axis) |
Enclosed Coolant and Splash Cover |
|
Mazak Standard Color (F Whites/s Black) |

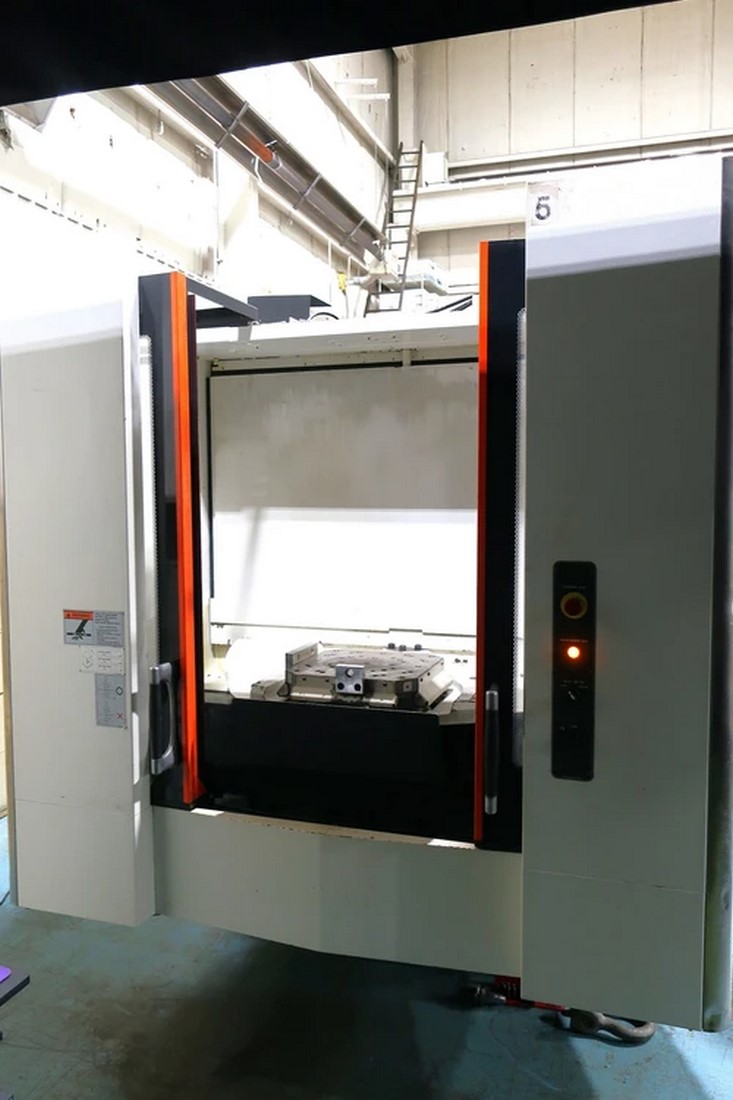

Safety Cover for 2 Pallet Changer |
|

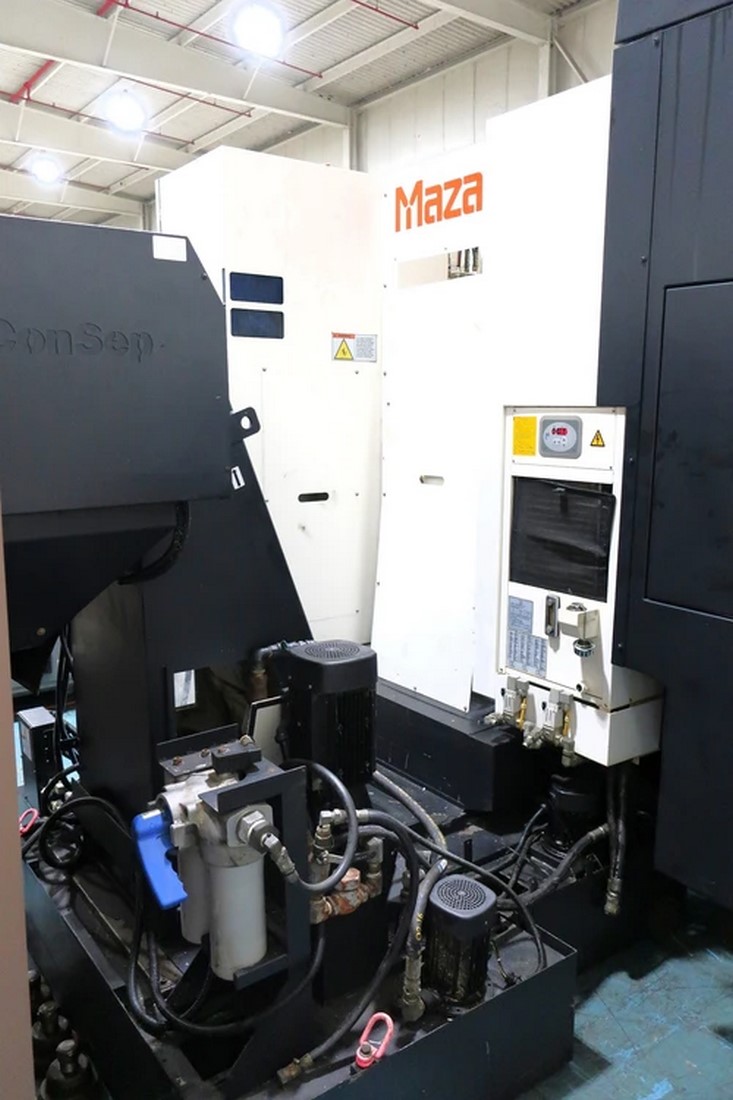

Spindle Chiller Unit / Absolute Positioning System |
Standard Tap Pallet (w/o Edge Locators) |
|
Background Tool Path Check |
EIA/ISO Code Input Function |
|
Roller Guides |
Work Light |
|
Flood Coolant System |
