Year |
2016 |
|---|---|
Make |
Battenfeld - Cincinnati |
Model |
Complete Sheetline |
Description |
Extruder |
Reference # |
8068439 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications

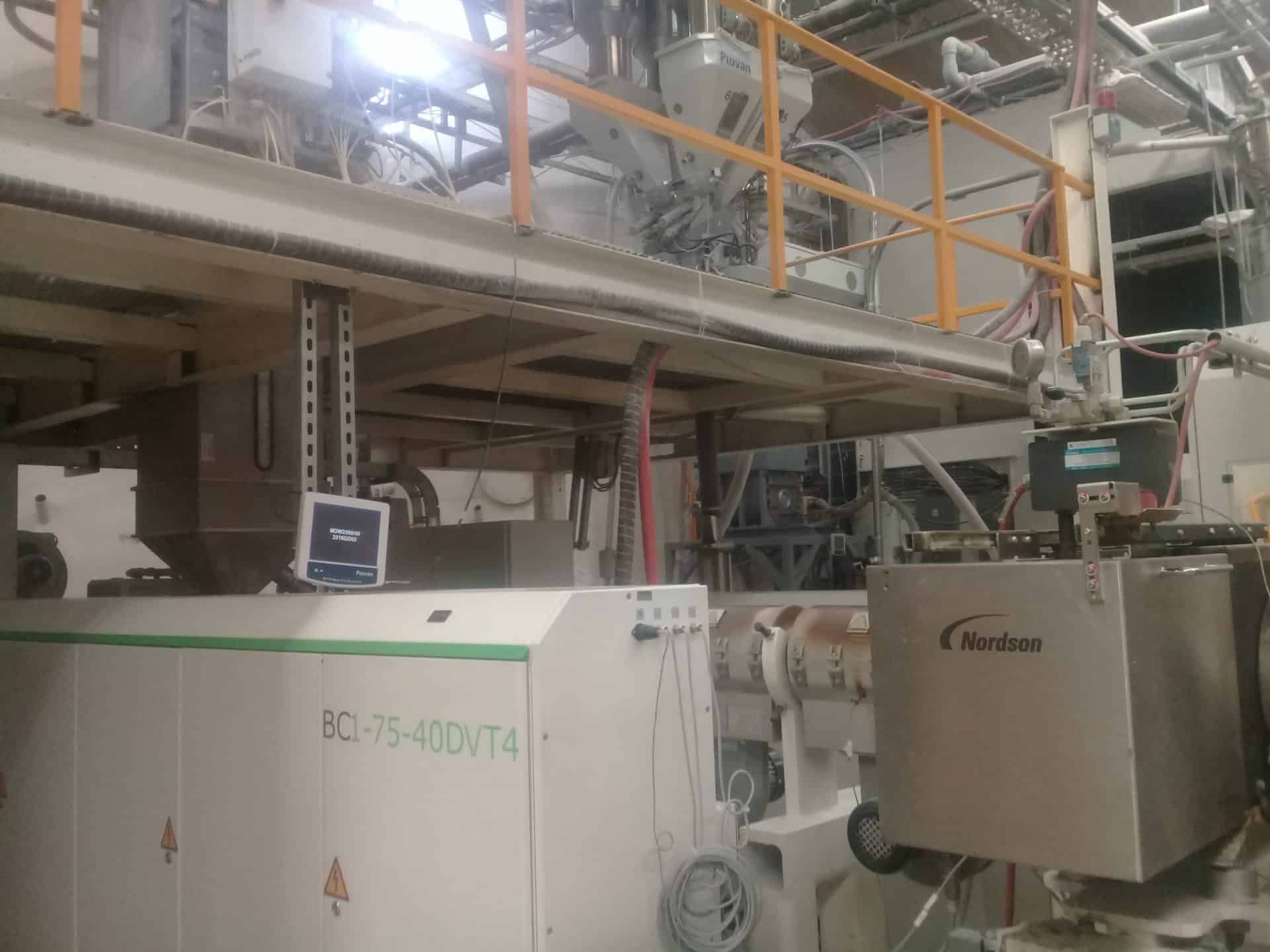

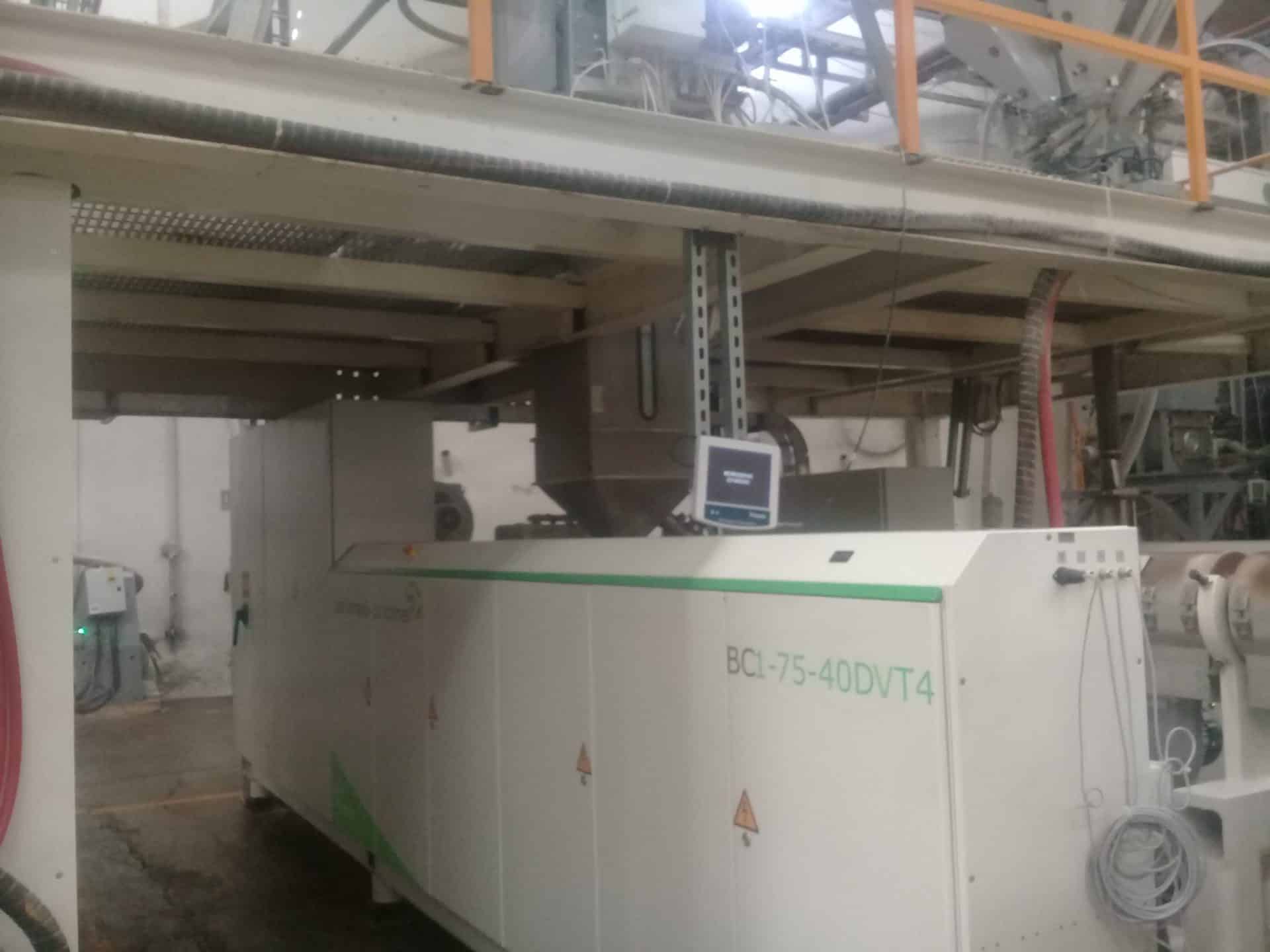

| Main Extruder |
Battenfeld - Cincinnati |
|---|---|
| Screw Size |
75mm (2.95) |
| L/D Ratio |
40:1 |
| Vented |
Yes |
| Air Cooled |
Yes |
| Co-Extruder |
Battenfeld - Cincinnati |
| Screw Size |
75mm (2.95) |
| L/D Ratio |
34:1 |
| Vented |
Yes |
| Cooled |
Air |
| High RPM Screw |
For High Output (600 kg/hr PP) |
| KW / Horsepower |
135 KW / 181 HP |
| Drive |
Knodler FZ600.2-Z-A-ED 6075 |
| Controller |
B&R |
| Downstream Die |
62" Wide (Die is a Multilayer, Could be ABA or AB) |

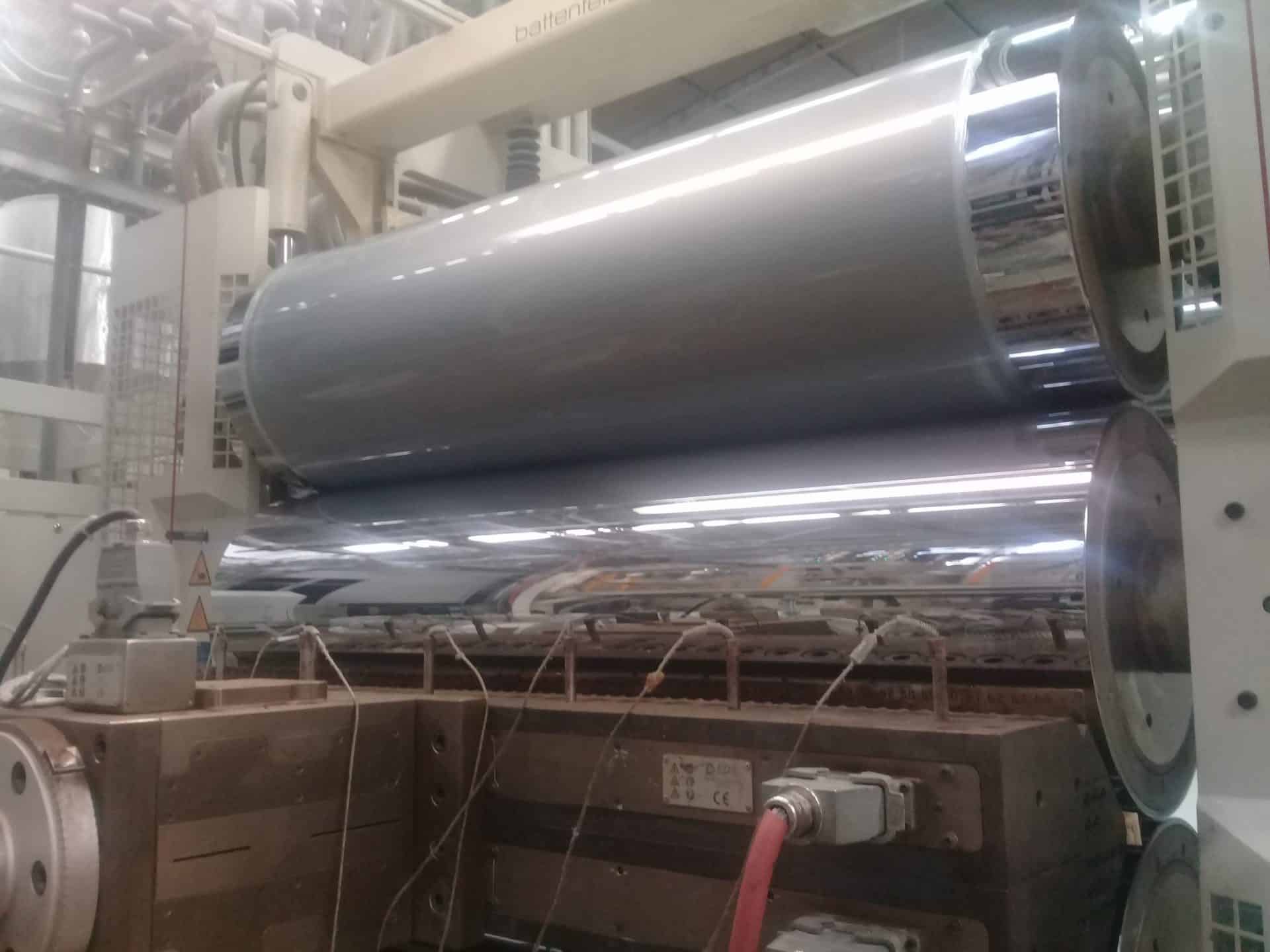

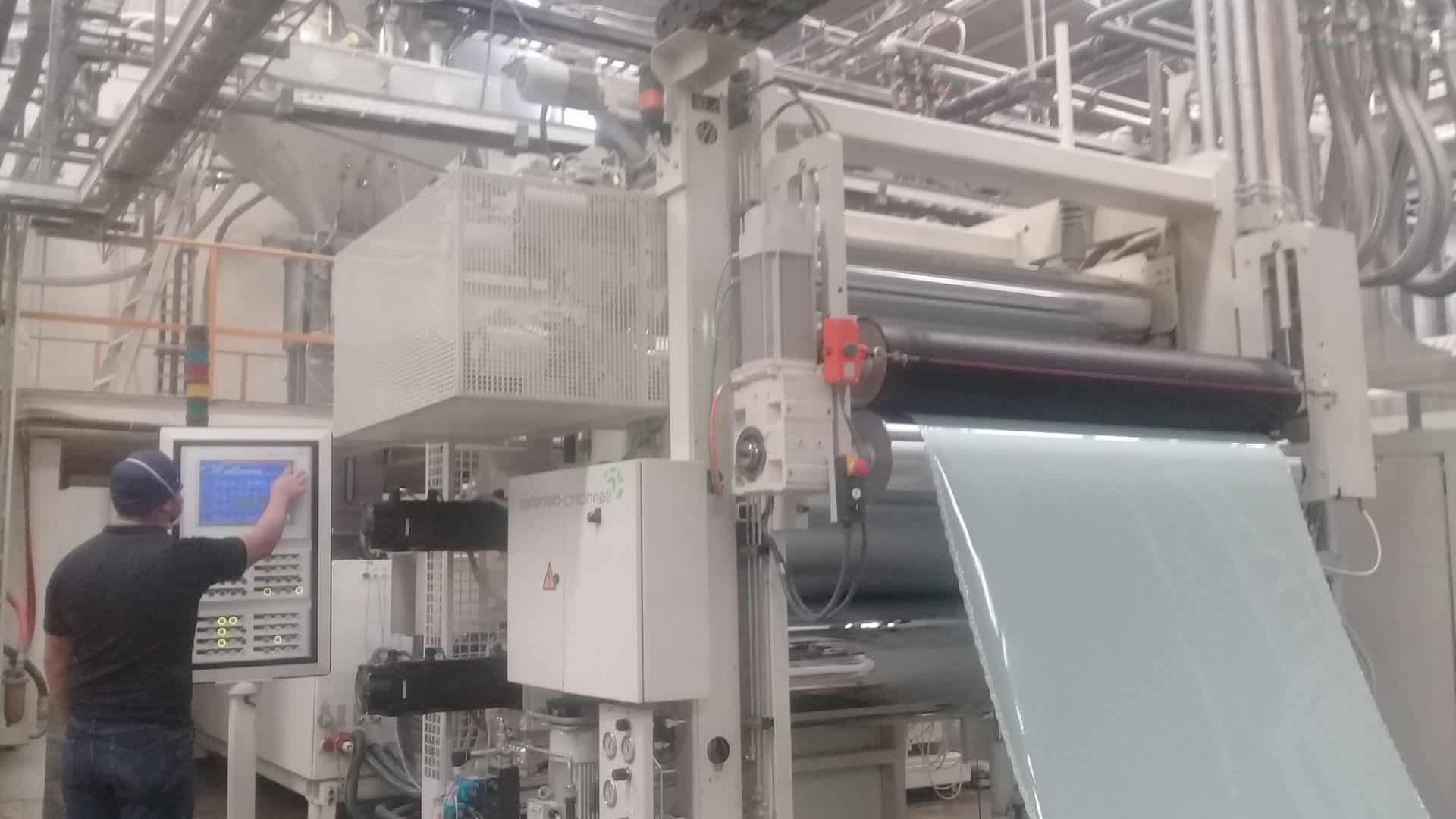

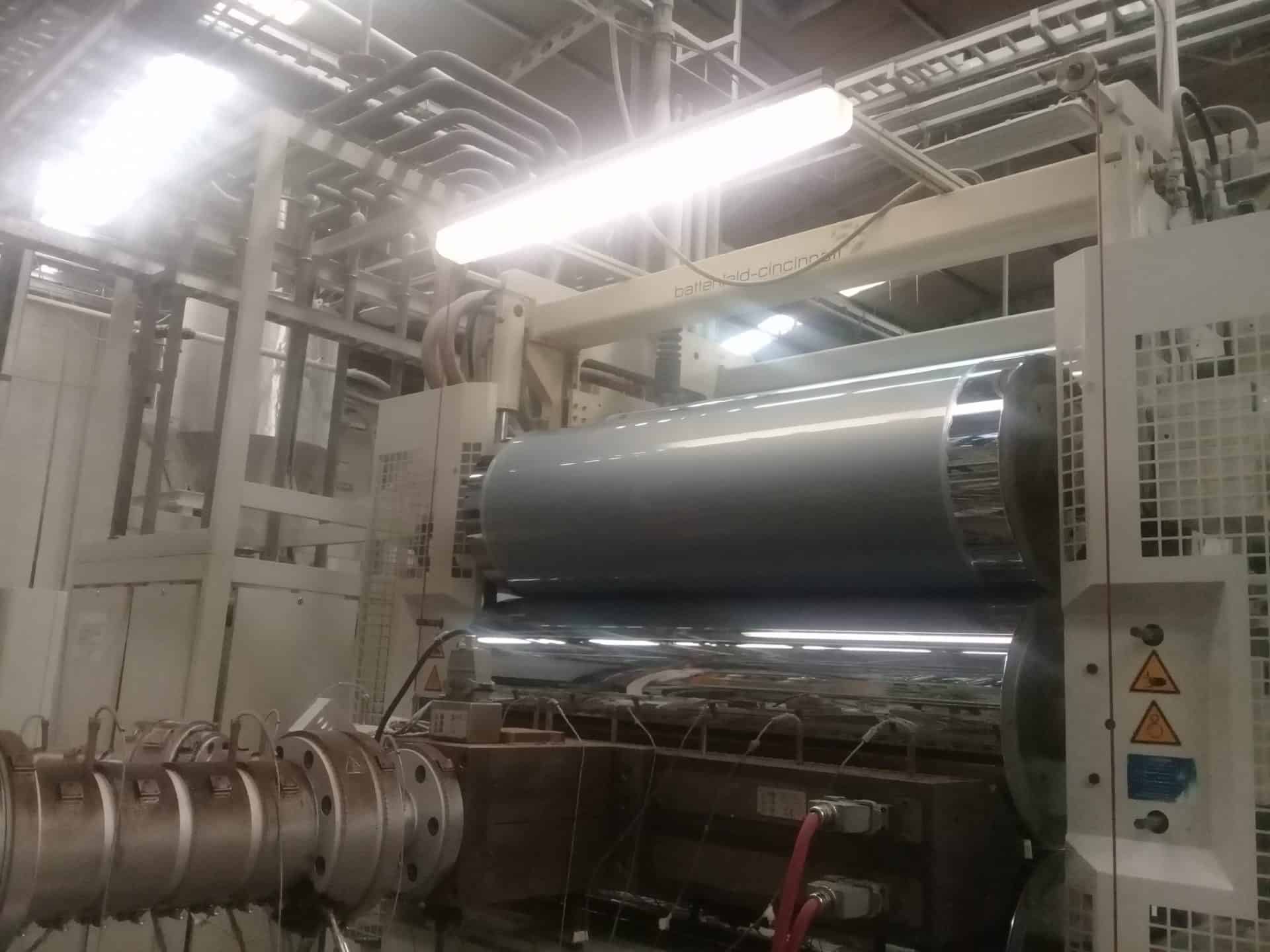

| Battenfeld - Cincinnati Chill Roll Stack |
Width 1650 mm - Diameter 500mm/500mm/500mm |
| Downstream Inches |
Width 64" - Diameter 19.6"/19.6"/19.6" |
| Downstream Drives |
Individual Variable Frequency Drives KEB (2-Additional Rolls with Temp Control) |
| Gear Pump |
Nordson |
| Note |
System is in line with Brown Thermoformer |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
