Year |
2015 |
|---|---|
Make |
Hyundai Wia |
Model |
L300LC |
Description |
CNC Lathe |
Reference # |
8069071 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
12" |
|---|---|
| Bar Capacity |
3.54" |
| Swing |
29.5" |
| Turning Diameter |
22" |
| Spindle Speed |
3,000 RPM |
| Control |
Fanuc 0i-TD |
| Distance Between Centers |
52" |

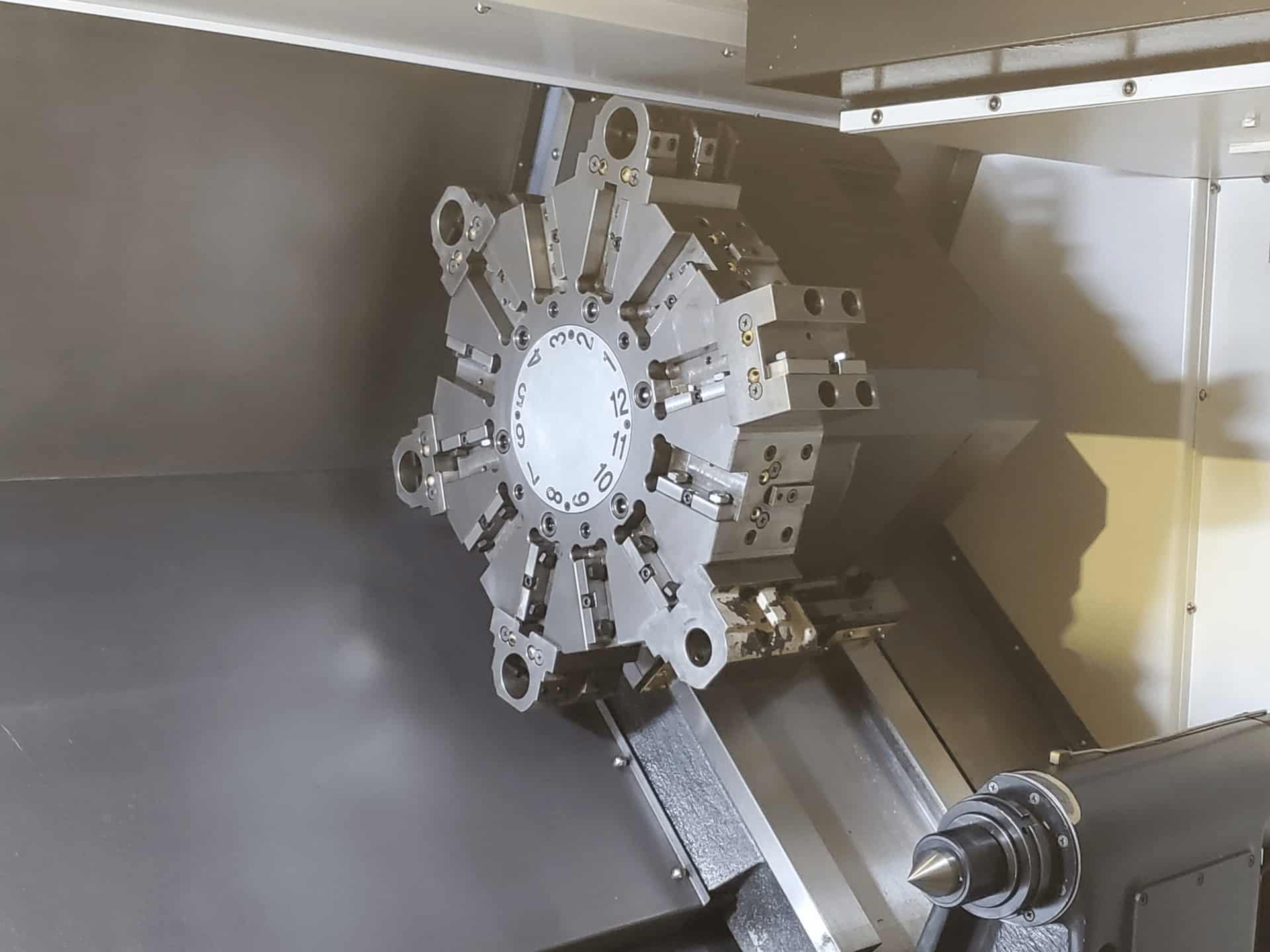

| Turret |
12 Station |
| Chip Removal |
Chip Conveyor |
| X-Axis Travel |
14" |
| Z-Axis Travel |
53.1" |
| Horsepower |
35 HP |
| Max Bar Work Diameter |
3.54" |
| Spindle Bore |
4.02" |
| Rapid Traverse X Axis |
787 IPM |
| Rapid Traverse Z Axis |
945 IPM |
| Tool Size (Square Shank) |
1" |
| Tool Size (Round Shank) |
2" |
| Torque |
810'/lbs |
| Bed |
45 Degree |
| Coolant System |
43 PSI |
| Tailstock Quill Diameter |
3.9" |
| Tailstock Quill Travel (Programmable) |
4.7" |
| Weight |
16,755 lbs |
| Tailstock Body Travel with Turret Manual Clap |
53.1" |
| Note |
Steady Rest Not Included |
Features
|
Auto Tool Presetter |
Samwoo Kitagawa Chuck |
|
2 Step Gear Head |
Tool setter |
|
Work Light |
A2-11 Spindle Nose |
|
A2-8 Spindle Nose |
Box Way |
|
MT # 5 Taper Head |
*
