Year |
2017 |
|---|---|
Make |
Akira Seiki |
Model |
SL20 |
Description |
CNC Lathe |
Reference # |
8078730 |
Price |
Activate Pricing |

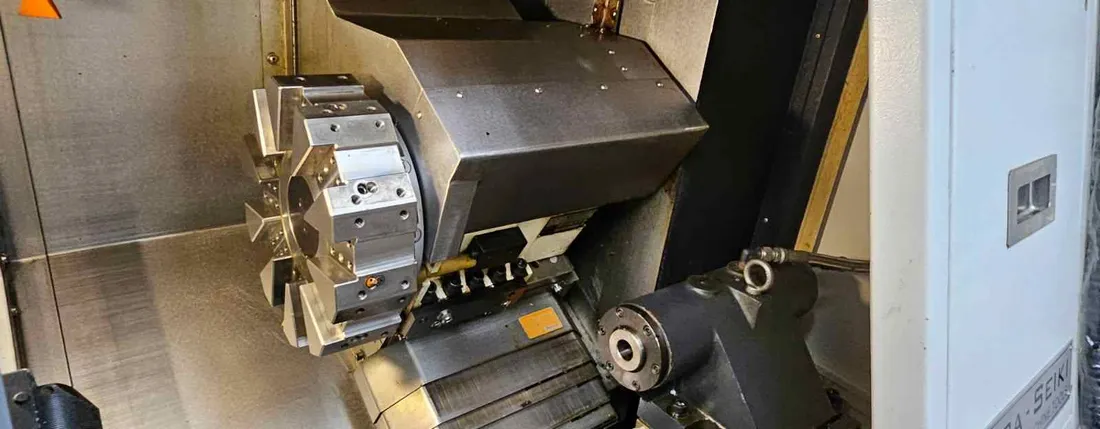

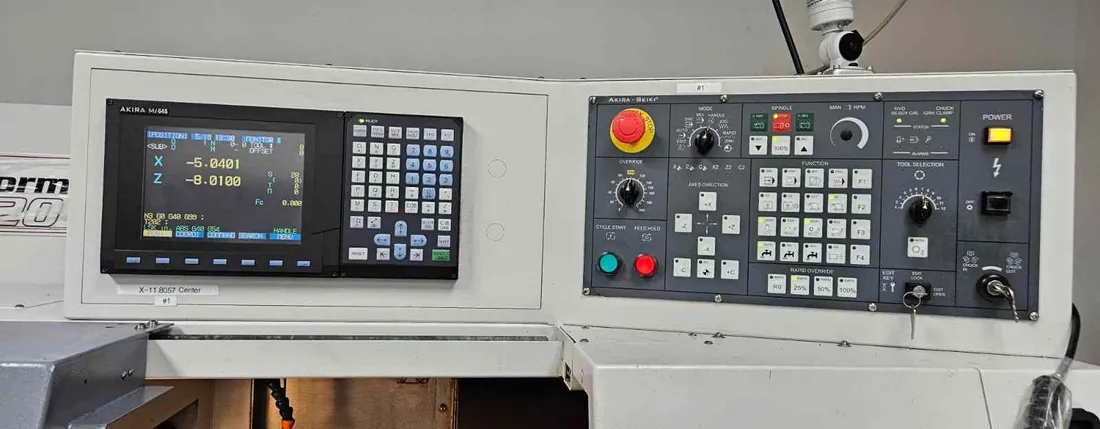

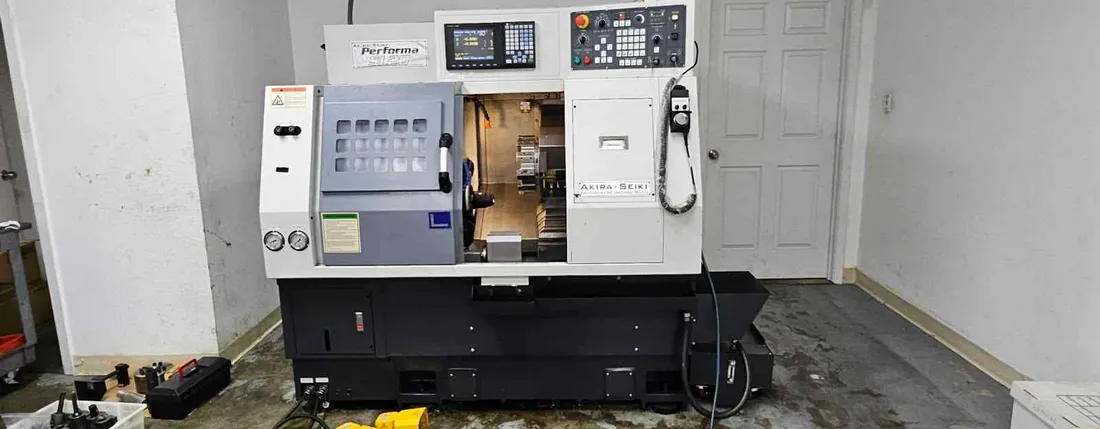

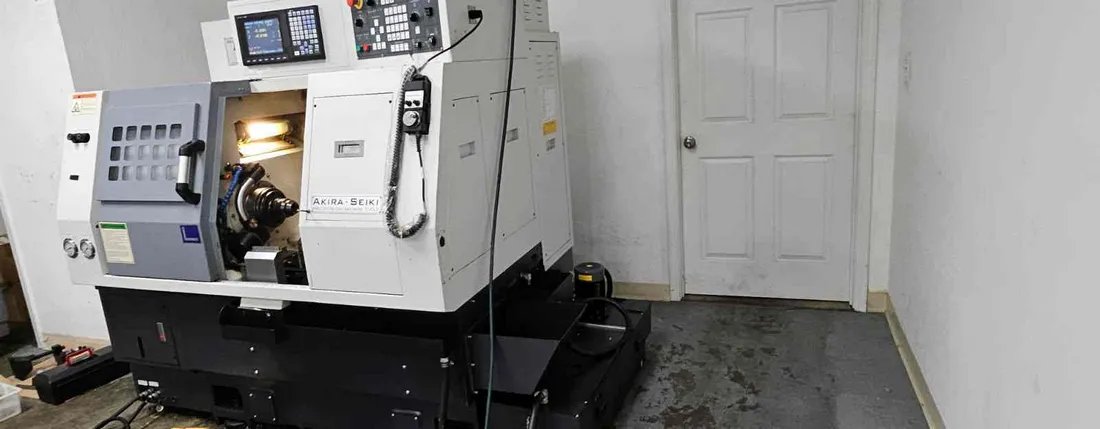

Used Akira Seiki SL20 (2017) CNC Lathe for Sale. This turning center is fitted with an Akira Mi645 control and a 20 HP spindle motor rated to 6,000 RPM. It has a 6″ chuck, 1.77″ bar capacity, 17.7″ swing and 11.4″ turning diameter, with 13″ distance between centers. Travels measure 5.9″ in X and 13.8″ in Z, and tooling is carried on a 10 station turret. Equipped with a 5C collet nose, tailstock and parts catcher. The machine can be seen under power for an inspection by appointment. See more machines of this type among our used CNC lathes, or Activate Pricing to view figures. Request a Quote for full details and availability.
Specifications
| Chuck Size |
6" |
|---|---|
| Bar Capacity |
1.77" |
| Swing |
17.7" |
| Turning Diameter |
11.4" |
| Spindle Speed |
6,000 RPM |
| Control |
Akira Mi645 |
| Distance Between Centers |
13" |
| Turret |
10 Station |
| X-Axis Travel |
5.9" |
| Z-Axis Travel |
13.8" |
| Spindle Motor |
20 HP |
Features
|

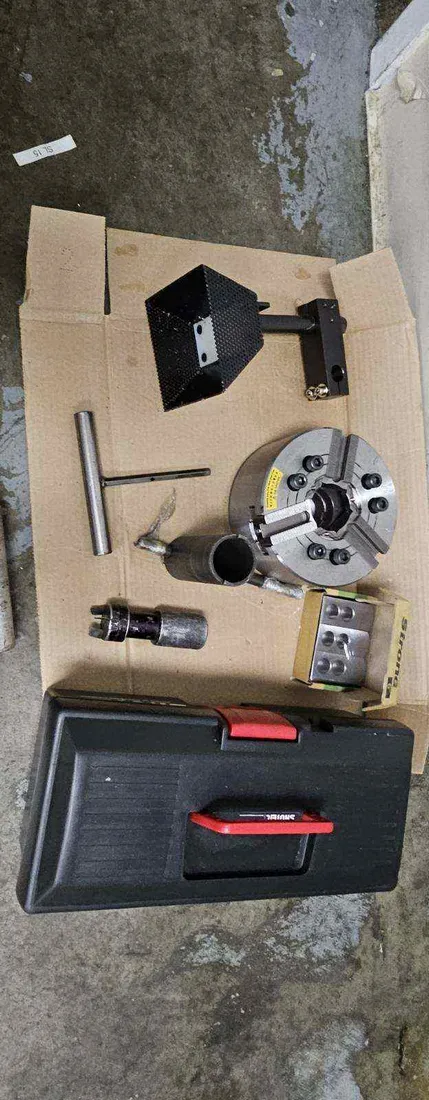

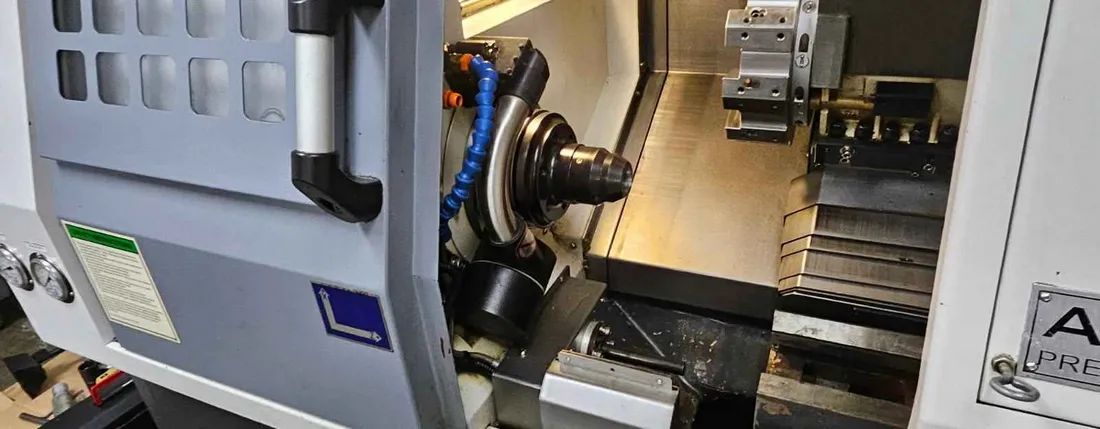

5C Collet Nose |
Tailstock |
|
Parts Catcher |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
