Year |
2023 |
|---|---|
Make |
Eurotech |
Model |
TTL-66-66-T1Y-T2Y |
Description |
CNC Lathe |
Reference # |
8078492 |
Price |
Activate Pricing |

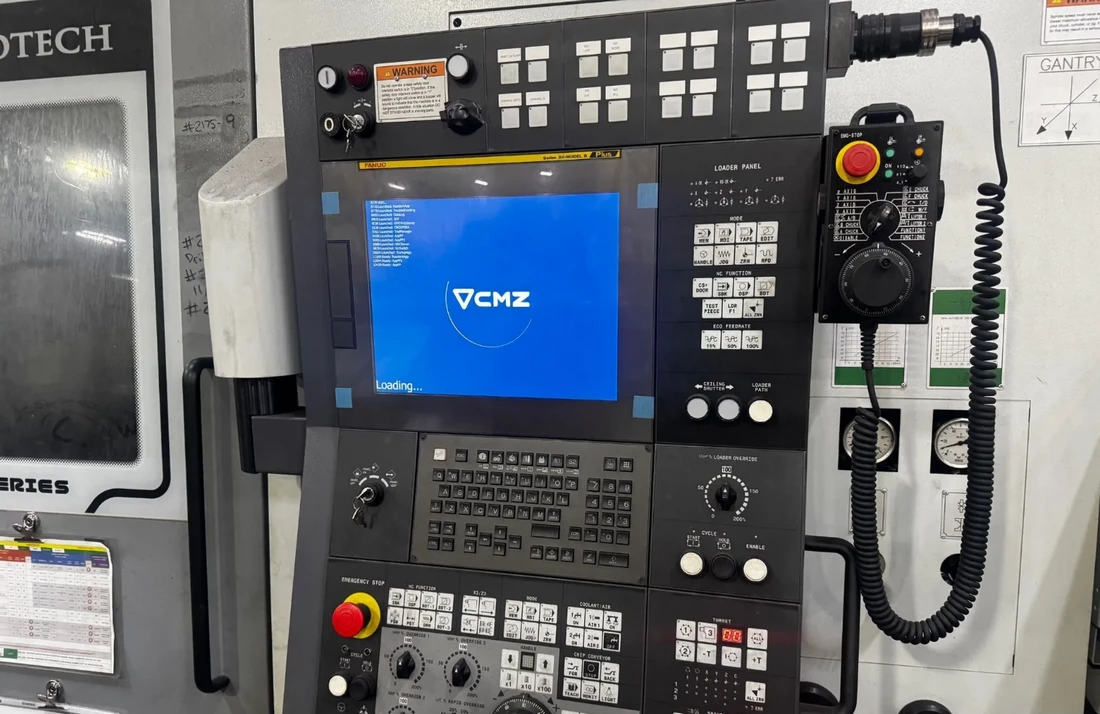

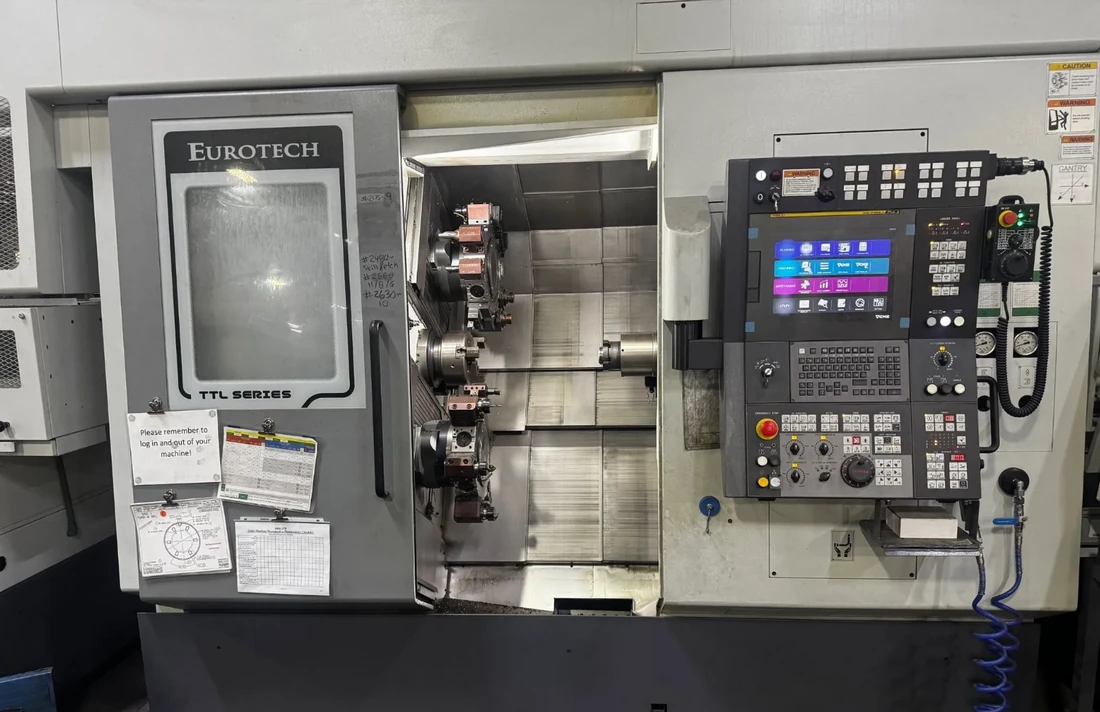

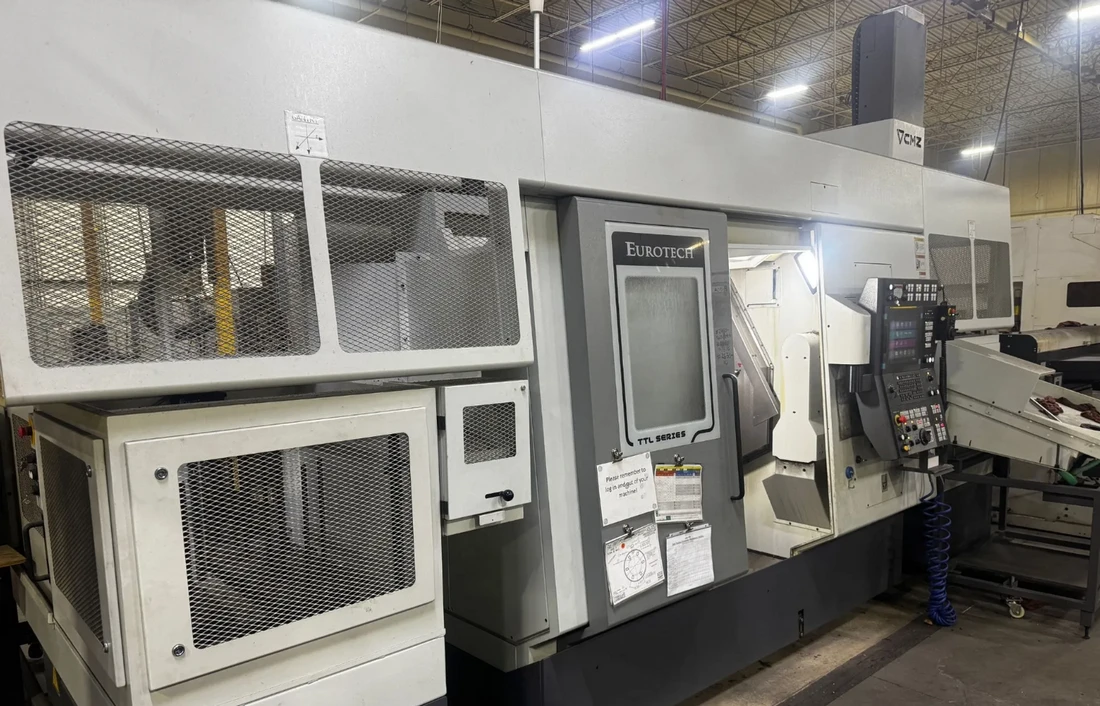

Used Eurotech TTL-66-66-T1Y-T2Y (2023) CNC Lathe for Sale. This twin-spindle machine runs a Fanuc 31iT control with Fanuc iHMI software, a 15″ color monitor, and G Codes Type A. Capacities include an 8″ chuck, 2″ bar capacity, 9.45″ swing, 9.5″ turning diameter, and 20.28″ distance between centers, with a 47.6 HP spindle motor and 4,000 RPM spindle speed. It carries a 12-position turret with C-axis live tooling and Y-axis, plus a sub spindle. Equipped with a GL20-II 3-axis CNC gantry loader with side loading, servo 2 x 180° dual gripper swivel head, SMW-Autoblock BB-D 210 3-jaw chucks on left and right spindles, Unimag barfeed interface, MP Systems variable rate HP coolant, coolant through left spindle, tool life and load monitoring, mist collector, and transformer. Available for inspection under power. See more CNC lathes or Activate Pricing and Request a Quote.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2" |
| Swing |
9.45" |
| Turning Diameter |
9.5" |
| Spindle Speed |
4,000 RPM |
| Control |
Fanuc 31iT |
| Distance Between Centers |
20.28" |
| Spindle Motor |
47.6 HP |

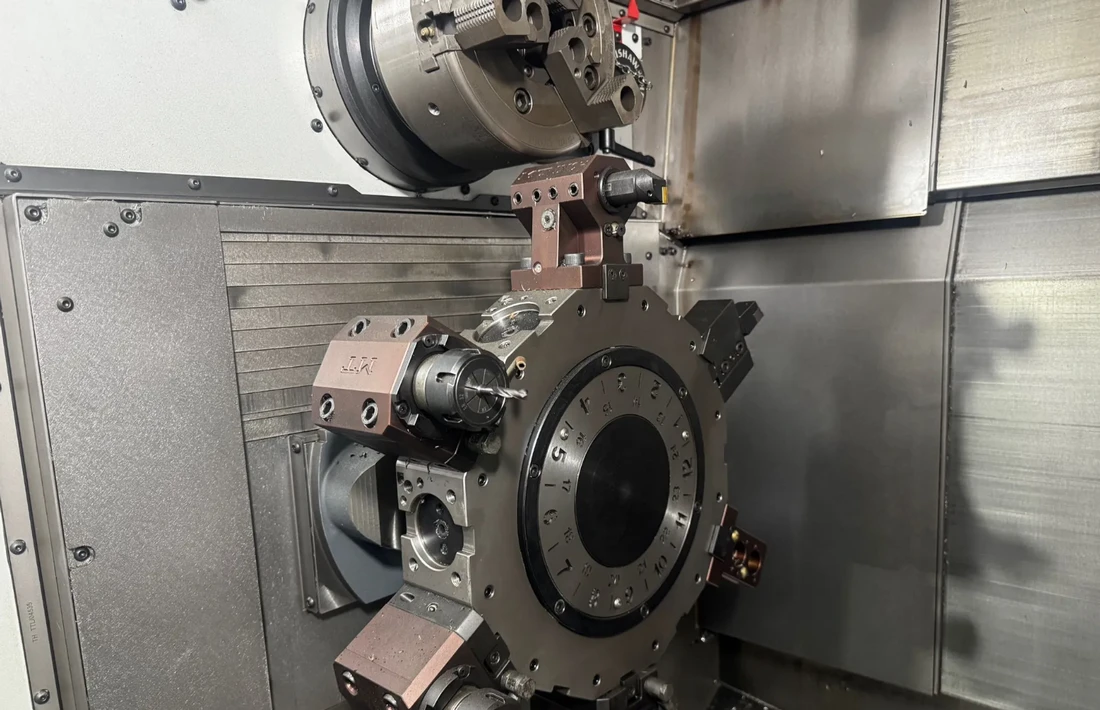

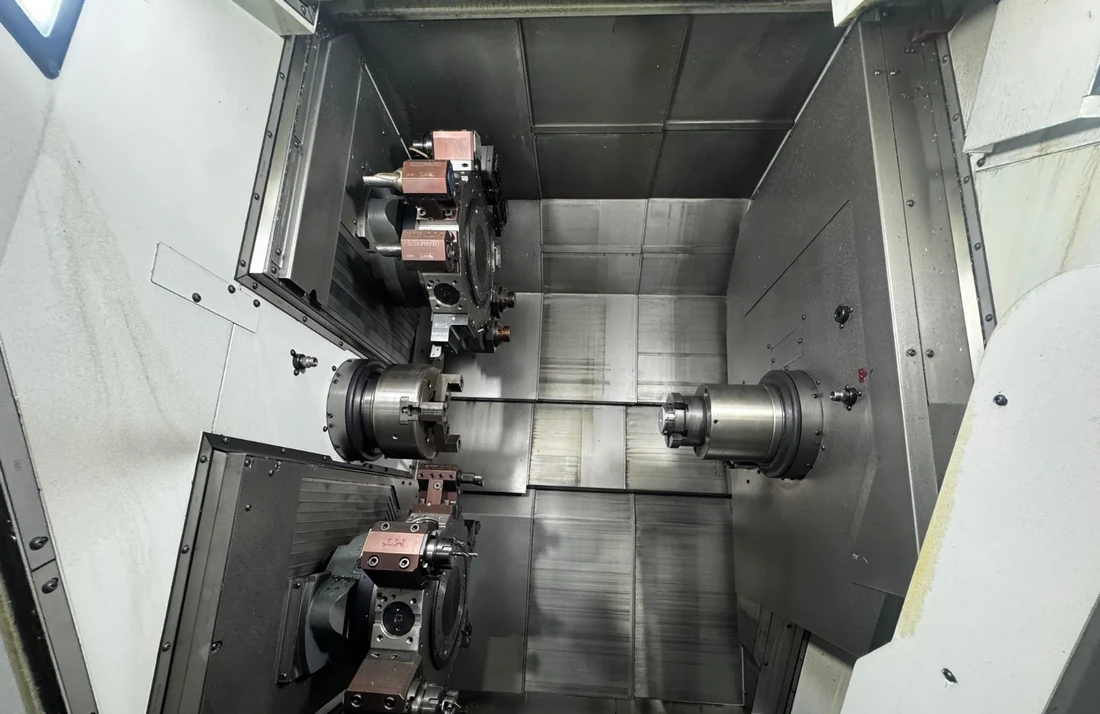

| Turret |
12 Position |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
Features
|
Barfeed Interface - Unimag |
Coolant Through Left Spindle |
|

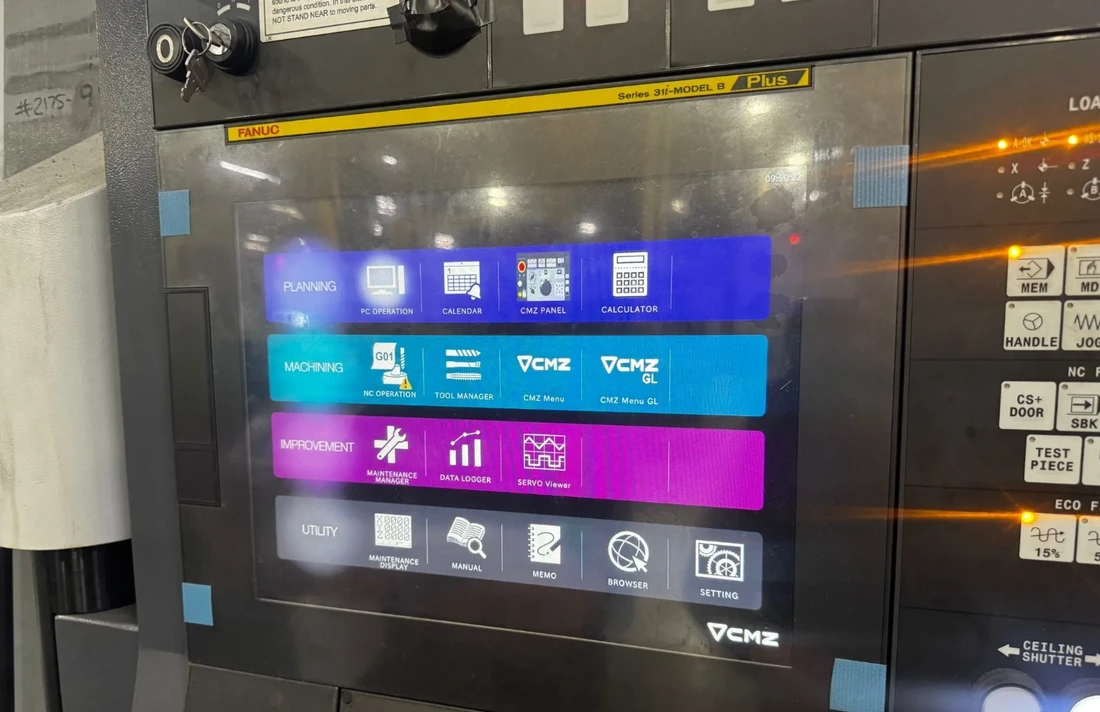

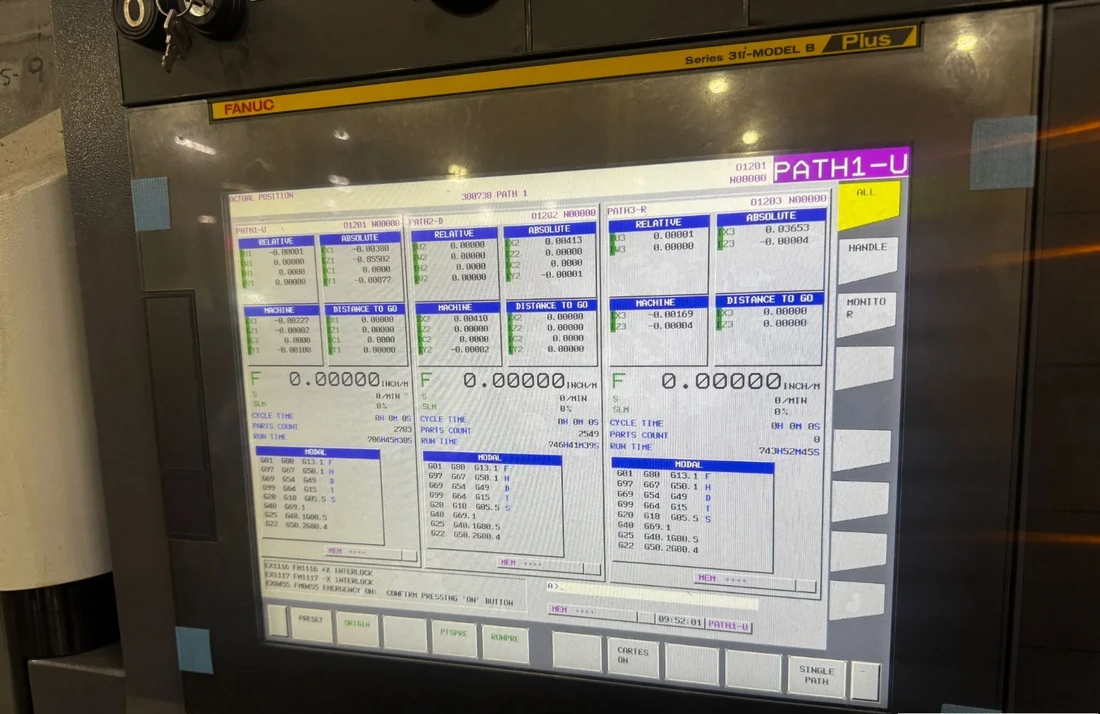

Fanuc iHMI Software |
G Codes Type A in Fanuc |
|
Gantry Covers |

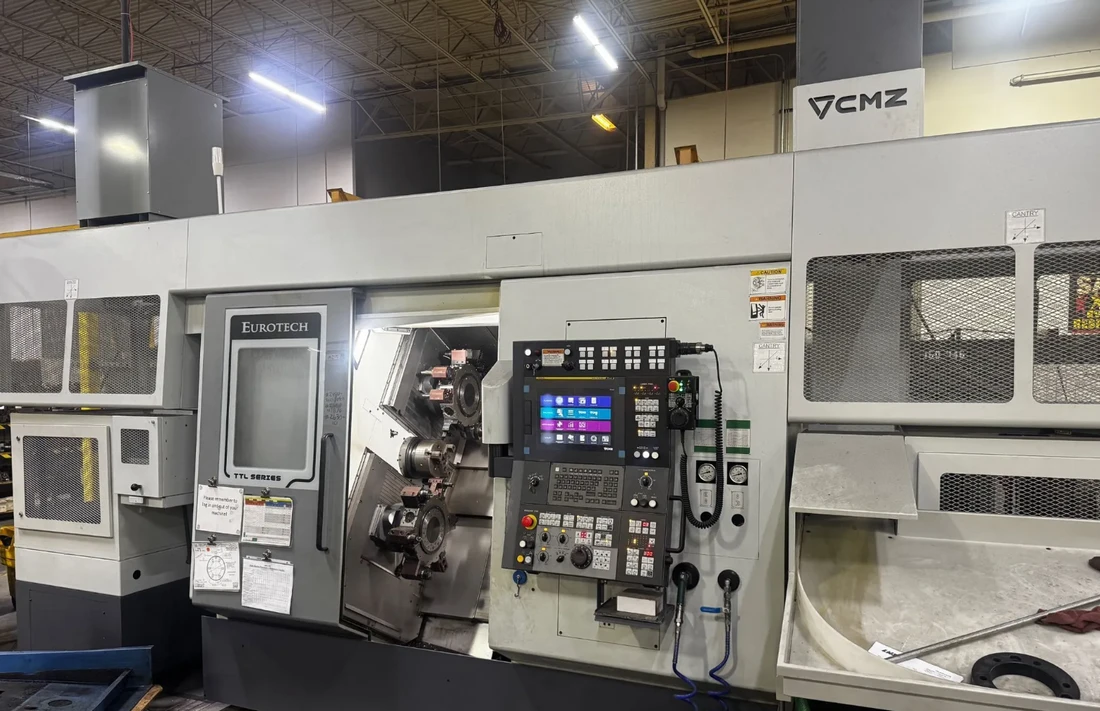

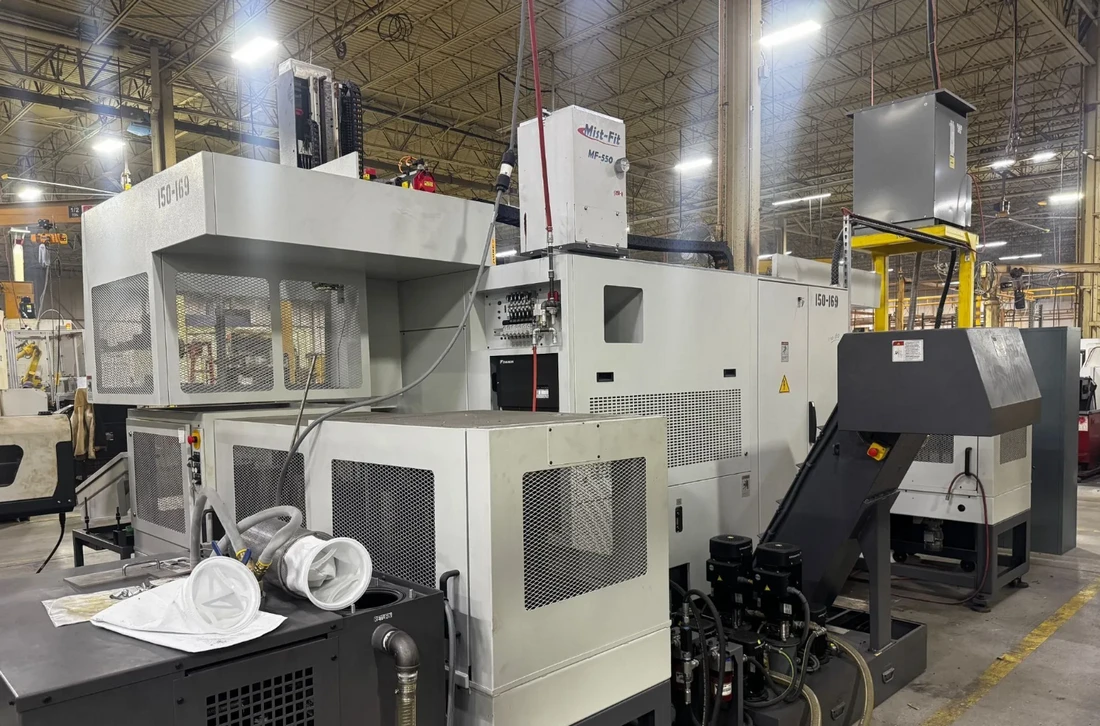

GL20-II 3-Axis CNC Gantry Loader Side Loading |
|

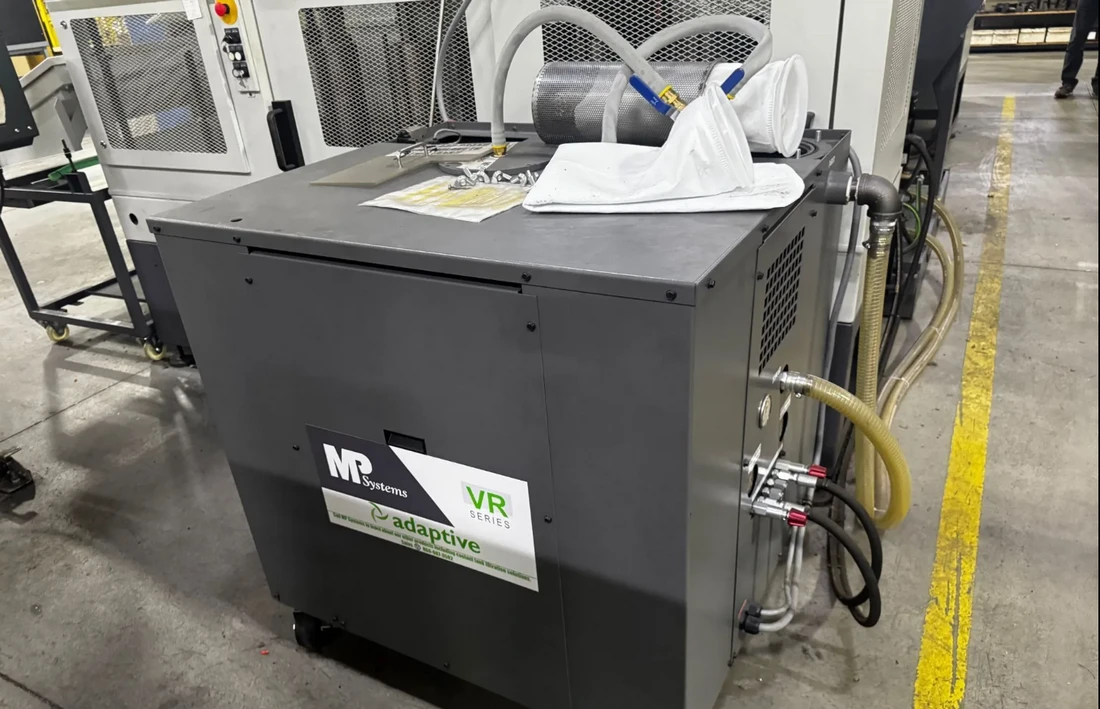

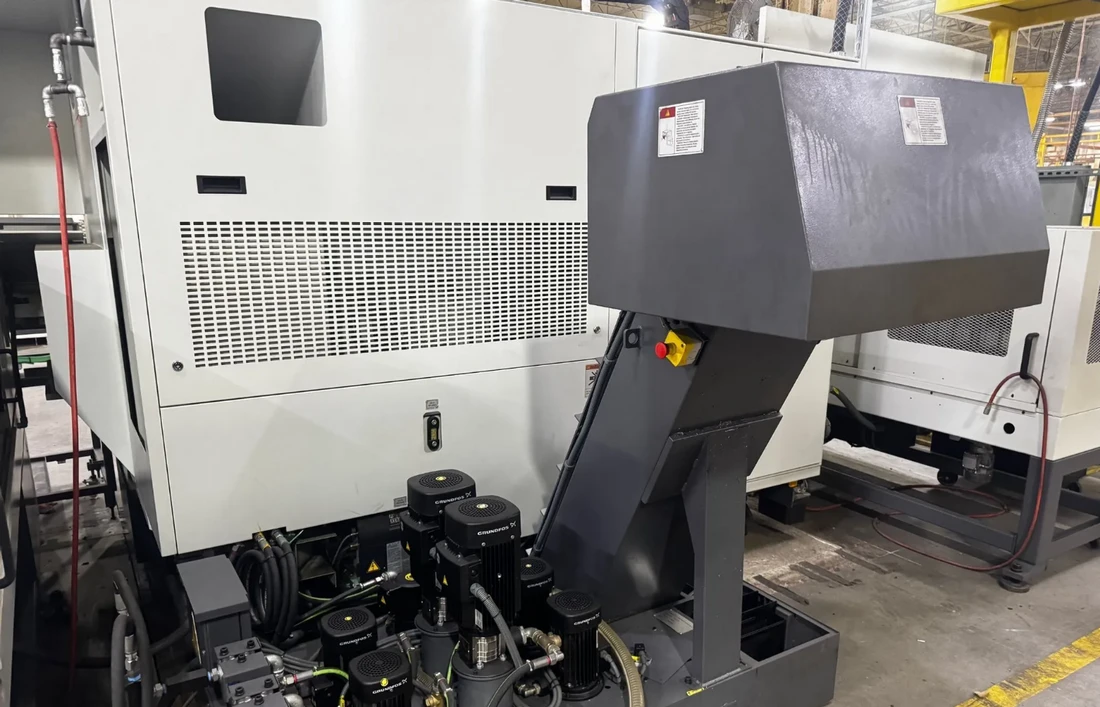

MP Systems Variable Rate HP Coolant System |
Pallet with Auto-Centering Rods |
|
Removeable Tool Pre-Setter |
Servo 2 x 180° Dual Gripper Gantry Swivel Head |
|

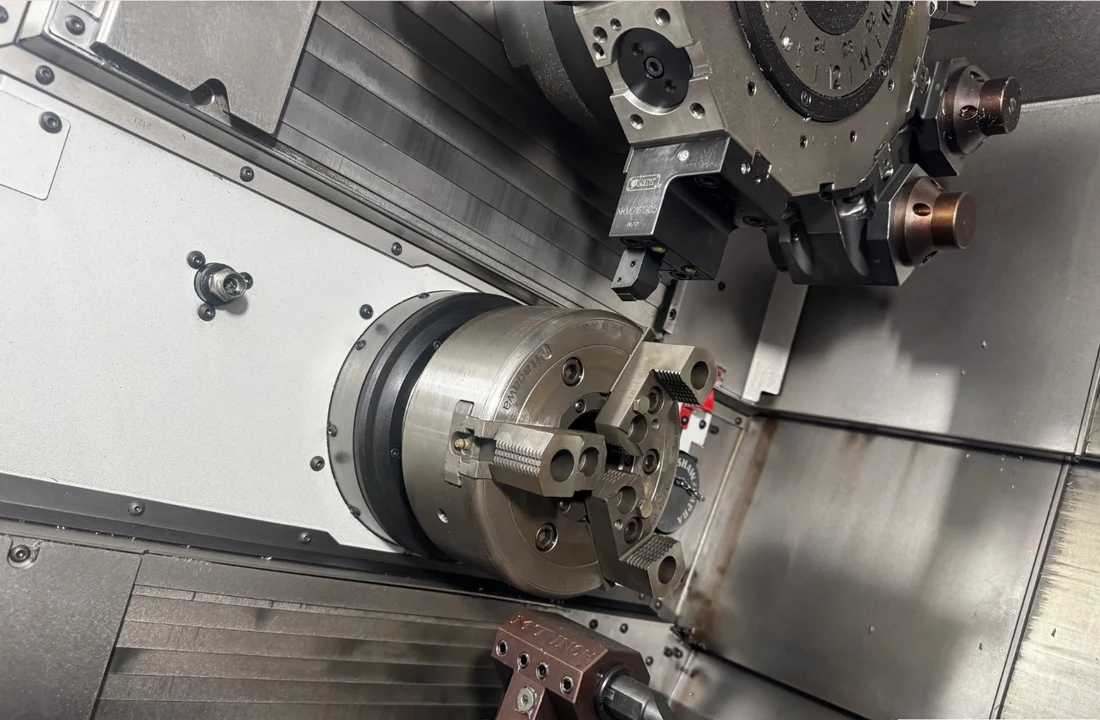

SMW-Autoblock BB-D 210 3-Jaw Chuck L/R Spindles |
Test Piece Chute and Table |
|
Tool Life Management Function |
Tool Load Monitoring Function |
|
15" Color Monitor |
Mist Collector |
|

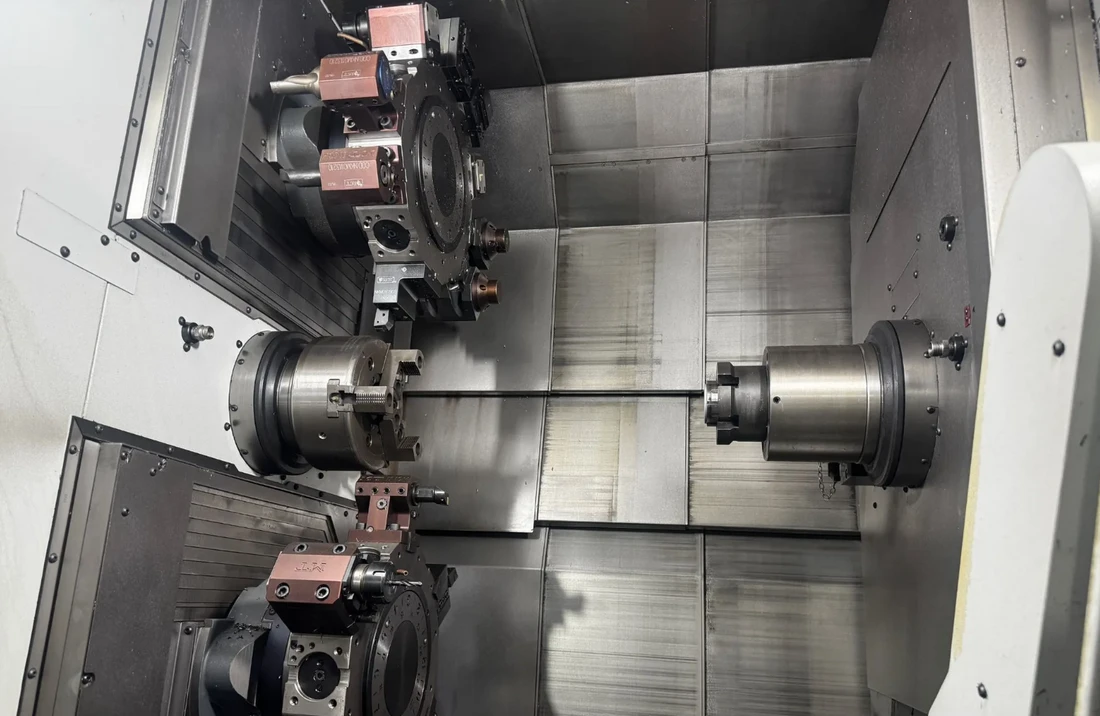

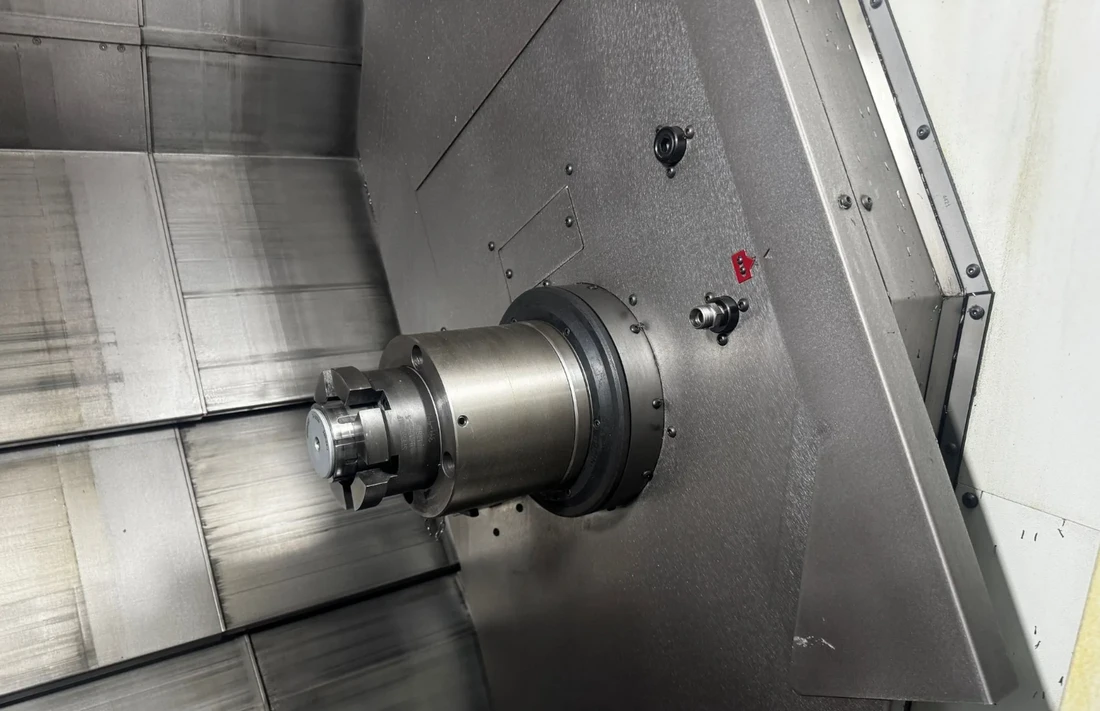

Sub Spindle |
Transformer Included |
|
Interface for Mist Collector |
Machine Status Lights |
