Year |
2015 |
|---|---|
Make |
Haas |
Model |
TM-2P |
Description |
CNC Vertical Machining Center |
Reference # |
8074445 |
Price |
Activate Pricing |

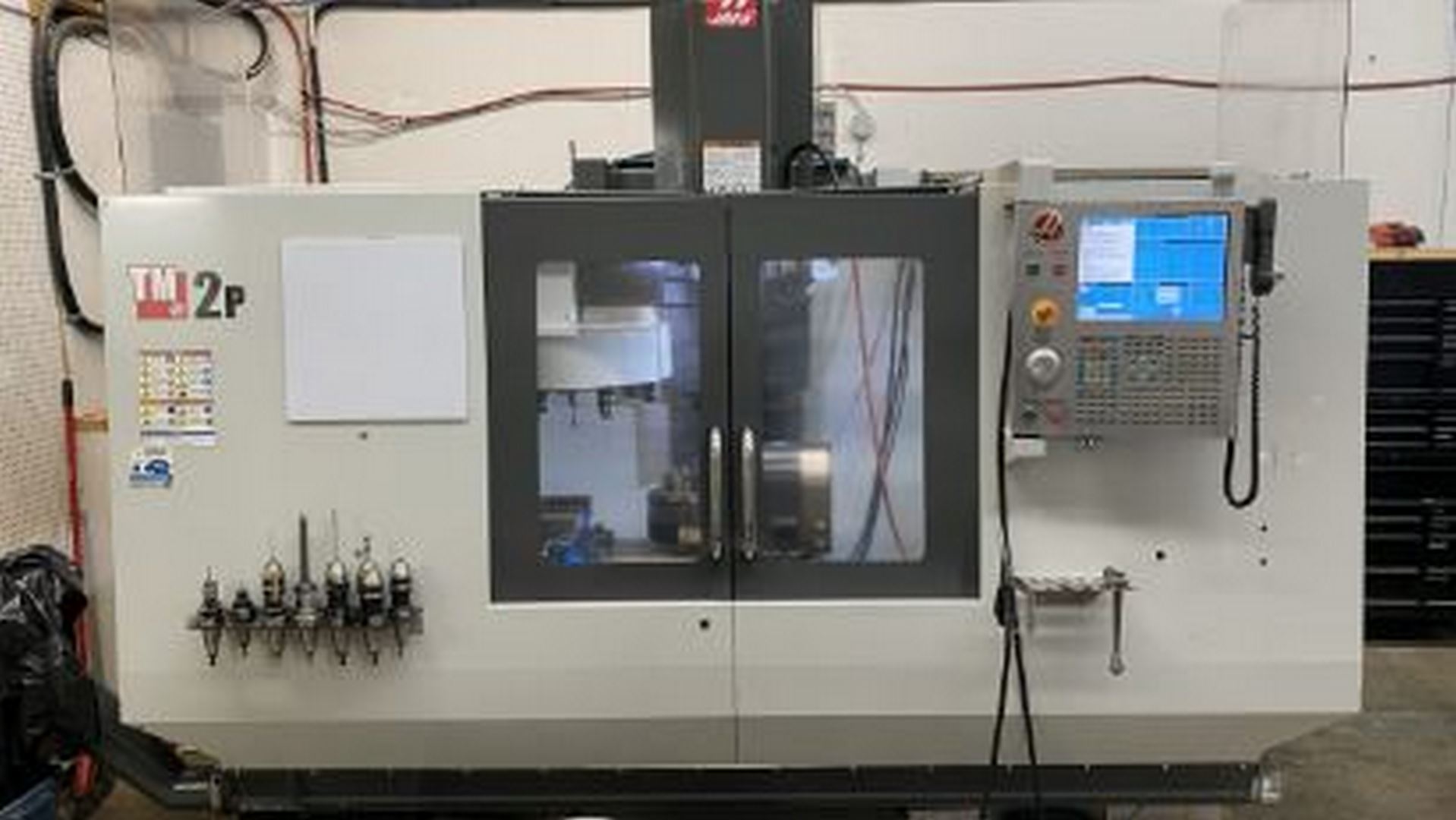

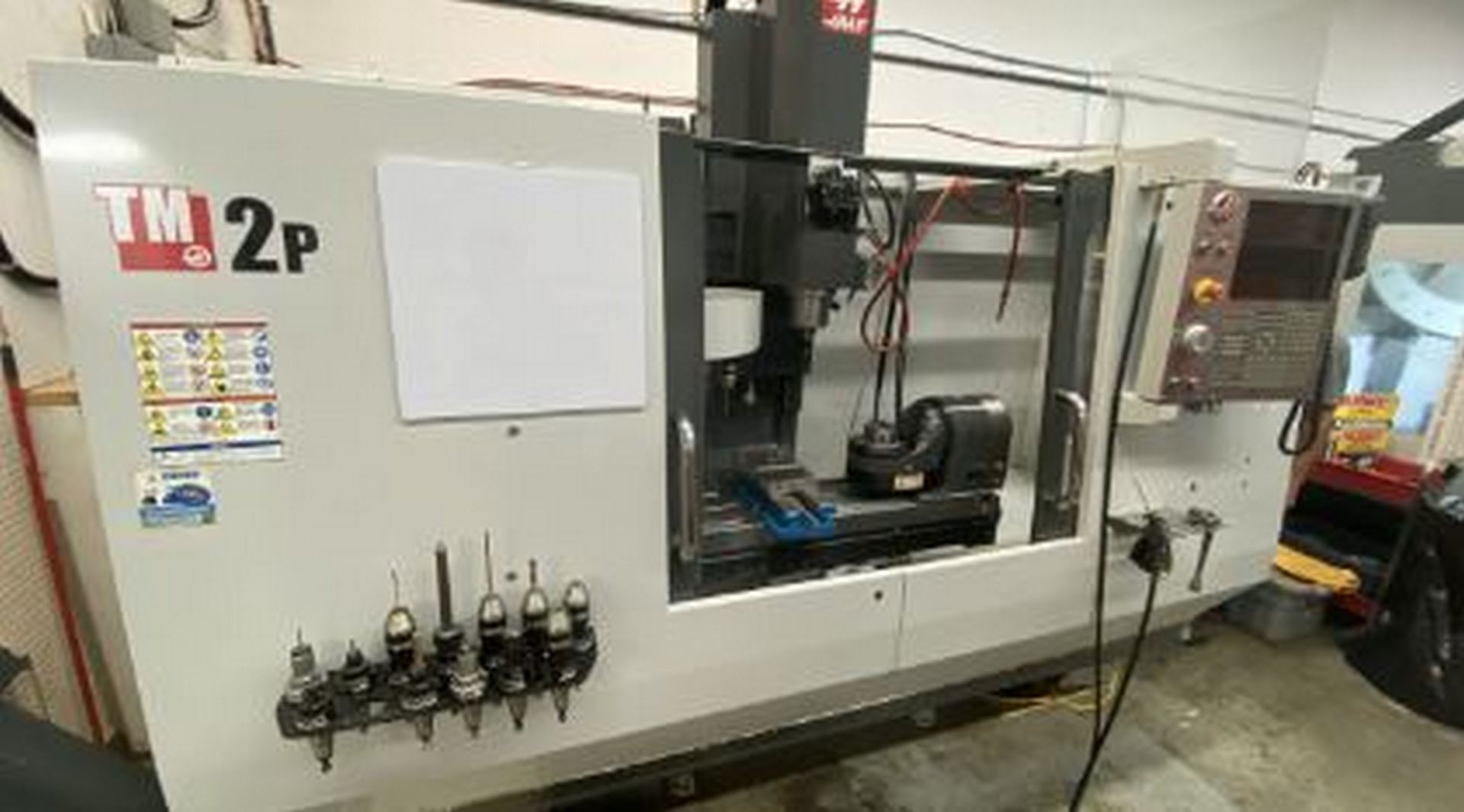

Used Haas TM-2P (2015) CNC Vertical Machining Center for Sale. This toolroom mill offers 40″ of X-axis travel, 16″ in Y and 16″ in Z, with a CAT 40 spindle taper driven by a 7.5 HP motor to 6,000 RPM. It carries a 20-station ATC and runs the Haas CNC control with Intuitive Part Programming. Equipment includes a 5th axis trunnion table and TRT100, 4th axis ready wiring, chip auger, programmable coolant with high flow coolant pump, rigid tapping, spindle orientation, remote jog handle, and an early power failure detection module. The machine can be seen under power for an inspection. Browse more CNC vertical machining centers or other Haas equipment, Activate Pricing, and Request a Quote. This machine is located in Canada.
Specifications
| X-Axis Travel |
40" |
|---|---|
| Y-Axis Travel |
16" |
| Z-Axis Travel |
16" |
| Spindle Speed |
6,000 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
7.5 HP |
| Tool Magazine Capacity |
20 ATC |
| Control |
Haas CNC |
| Chip Removal |

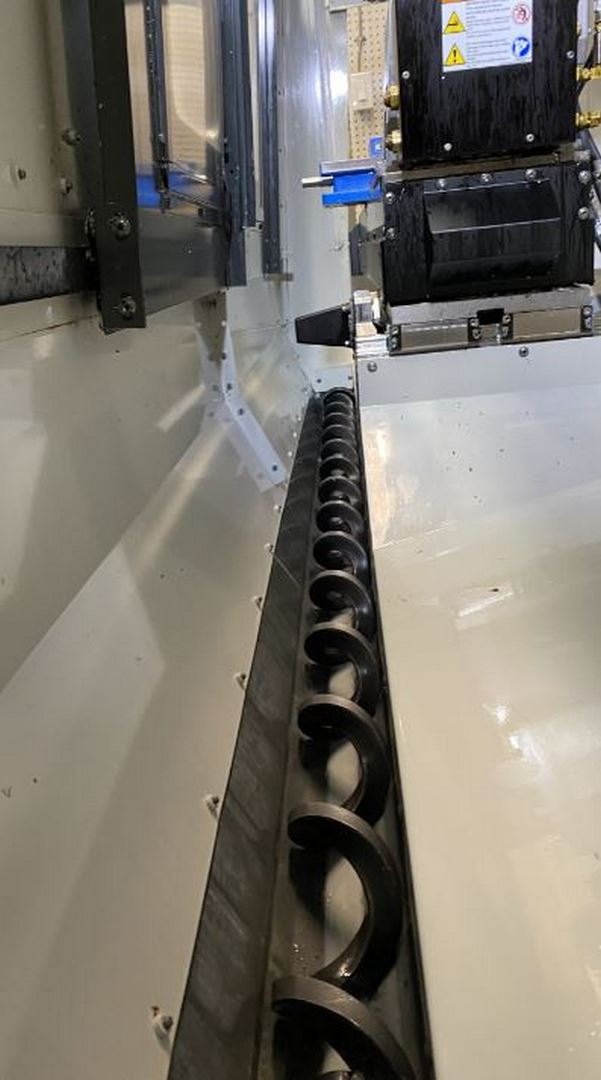

Chip Auger |
| Additional Axis |
4th Axis Ready, 5th Axis Trunnion Table |
| Coolant |
Programmable Coolant |
Features
|
Intuitive Part Programming |
TRT100 |
|
Early Power Failure Detection Module |
Remote Jog Handle |
|
Rigid Tapping |
Spindle Orientation |
|
High Flow Coolant Pump |
