Year |
2019 |
|---|---|
Make |
Milltronics |
Model |
VM-6030 |
Description |
CNC Vertical Machining Center |
Reference # |
8078832 |
Price |
Activate Pricing |

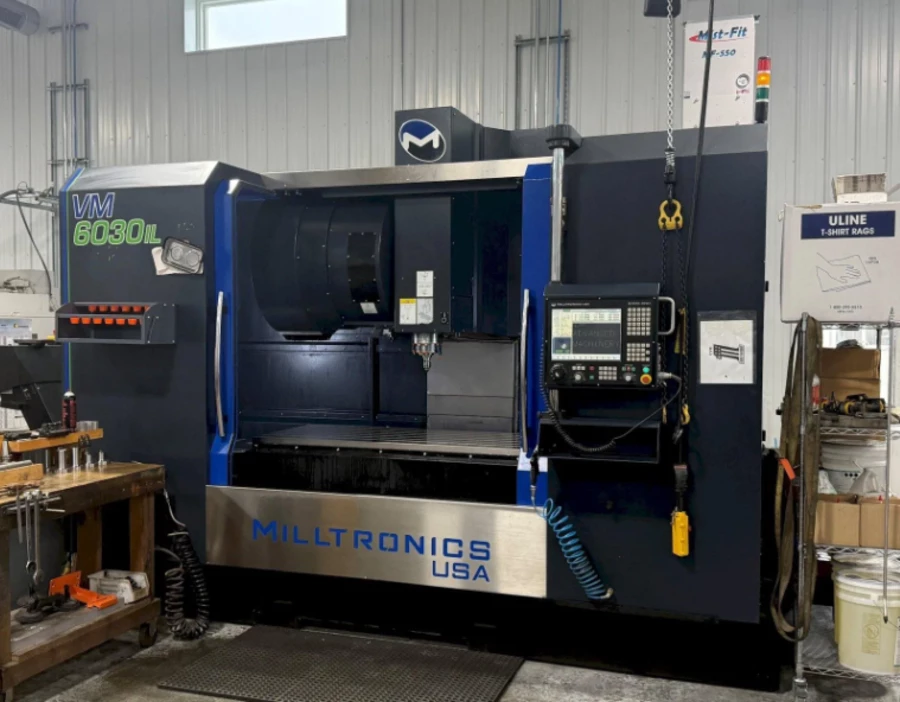

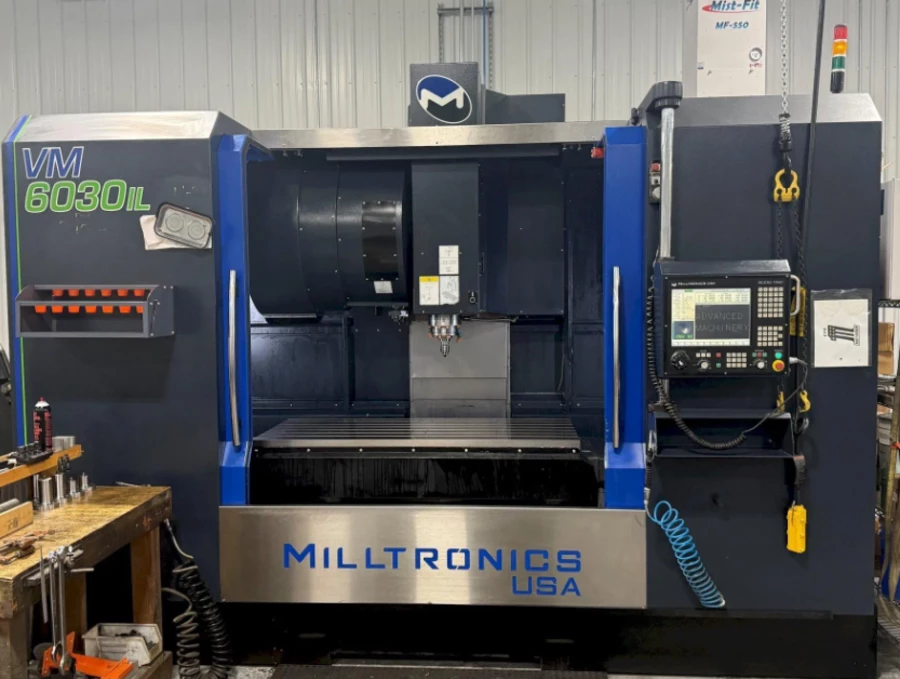

Used Milltronics VM-6030 (2019) CNC Vertical Machining Center for Sale. This machine offers 60″ of X-axis travel, 30″ in Y and 24″ in Z, with a 15,000 RPM CAT 40 spindle driven by a 35/25 HP motor and a 24-position ATC. Control is the Milltronics 9000 Series CNC with a 15″ color LCD touch screen, 120 GB solid state hard drive, DXF file import, solid model graphic display and rest machining cycle. Also equipped with CAT 40 Big Plus dual contact, linear roller guide way construction, rigid tapping, spindle chiller, spindle air purge, spindle load meter, automatic lubrication, chip conveyor, chip wash down, flood coolant, a Mist Fit MF-550 mist collection unit, full enclosure with side doors and dual work lights. Available to see under power for inspection. See more CNC vertical machining centers and Milltronics machines, then Activate Pricing or Request a Quote.
Specifications
| X-Axis Travel |
60" |
|---|---|
| Y-Axis Travel |
30" |
| Z-Axis Travel |
24" |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
35/25 HP |
| Tool Magazine Capacity |
24 ATC |
| Control |
Milltronics 9000 Series CNC Control |
| Chip Removal |
Chip Conveyor |
| Coolant |
Flood Coolant |
Features
|
120 GB Solid State Hard Drive |
15" Color LCD Touch Screen Display |
|
CAT 40 Big Plus Dual Contact |
Chip Wash Down |
|
Dual Enclosure Work Lights |
DXF File Import |
|
Full Enclosure with Side Doors |
Linear Roller Guide Way Construction |
|
Mist Fit Model MF-550 Mist Collection Unit |
Rest Machining Cycle |
|
Solid Model Graphic Display |
Spare "M" Function |
|
Rigid Tapping |
Spindle Air Purge |
|
Spindle Chiller |
Spindle Load Meter |
|
Automatic Lubrication |
