Year |
2015 |
|---|---|
Make |
Doosan |
Model |
Puma 800LM |
Description |
CNC Lathe |
Reference # |
8078653 |
Price |
Activate Pricing |

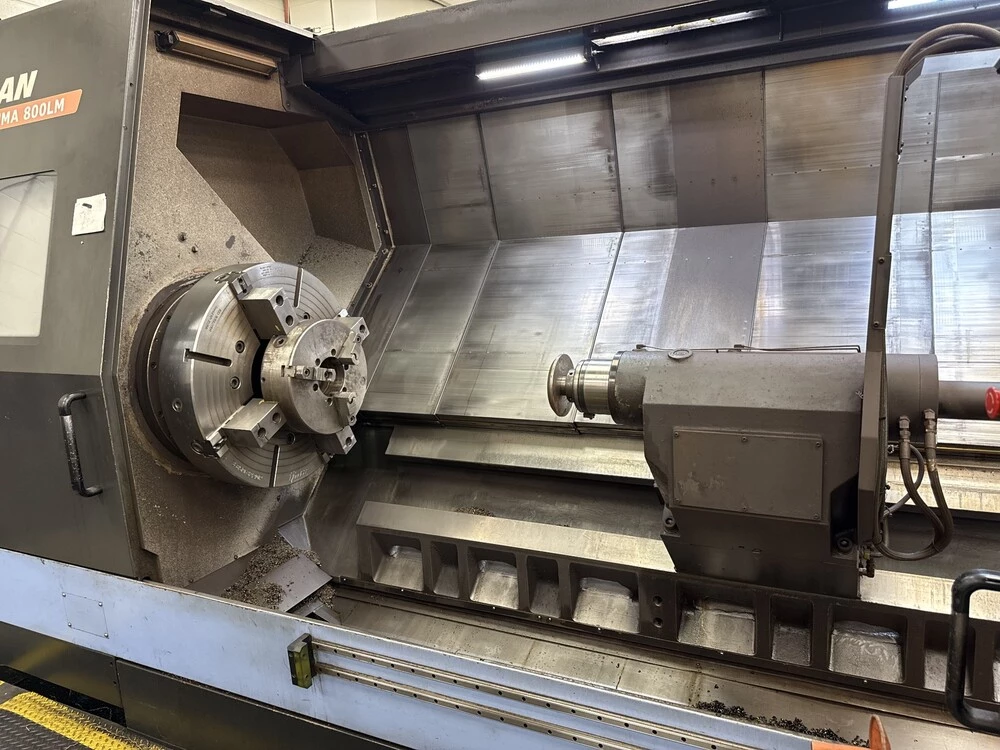

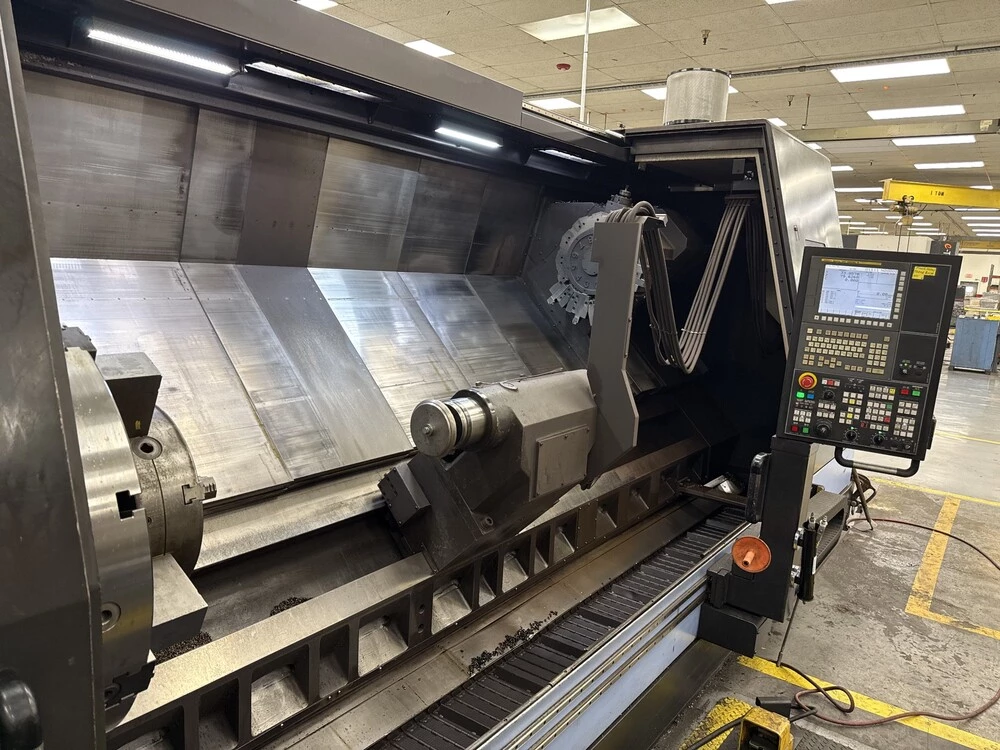

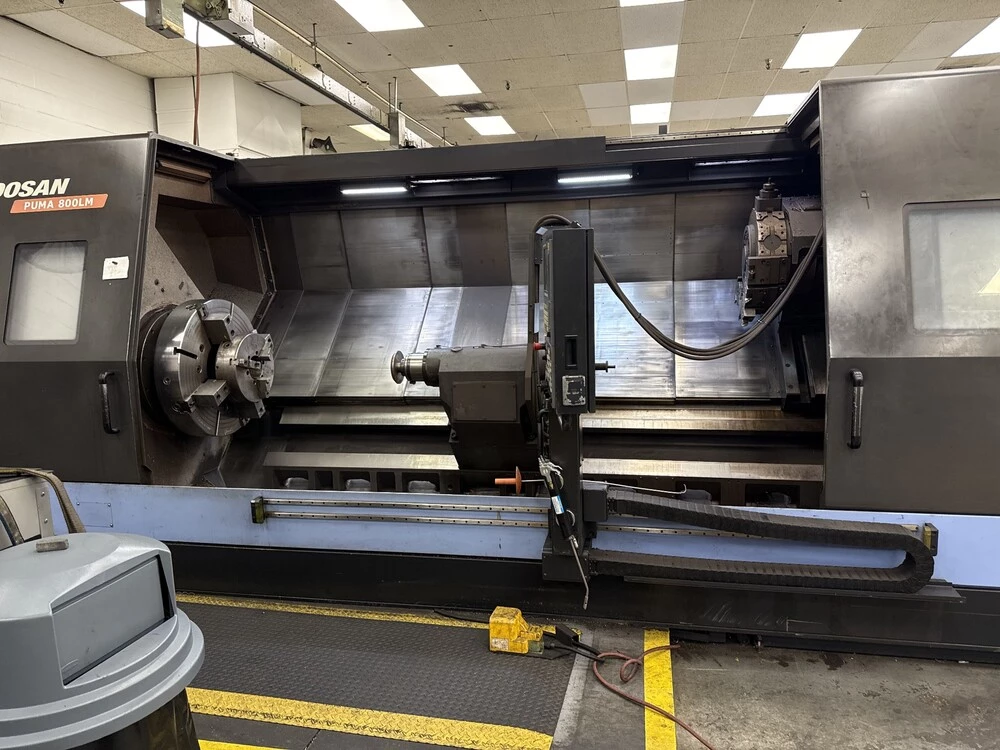

Used Doosan Puma 800LM (2015) CNC Lathe for Sale. This large-capacity turning center runs a Fanuc 32i Model B control with a 32″ chuck, 12.6″ bar capacity, 40.55″ swing and 35.4″ turning diameter. Distance between centers is 126″. The 60 HP main spindle turns to 750 RPM, with a 12 station turret, C-axis live tooling driven to 3000 RPM, and a chip conveyor for removal. It is equipped with a brand new RIP manual steady rest and a programmable tailstock. The machine can be seen under power for an inspection. See more used CNC lathes or browse our Doosan inventory. Use Activate Pricing to view the figure, then Request a Quote and we will follow up with details.
Specifications

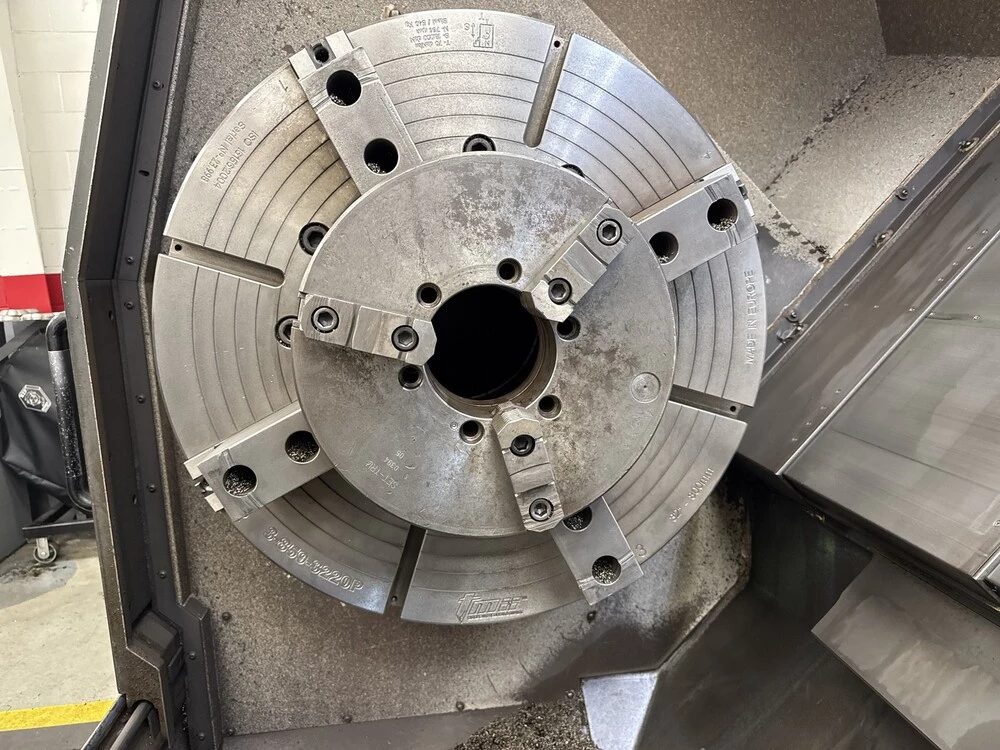

| Chuck Size |
32" |
|---|---|
| Bar Capacity |
12.6" |
| Swing |
40.55" |
| Turning Diameter |
35.4" |
| Spindle Speed |
750 RPM |

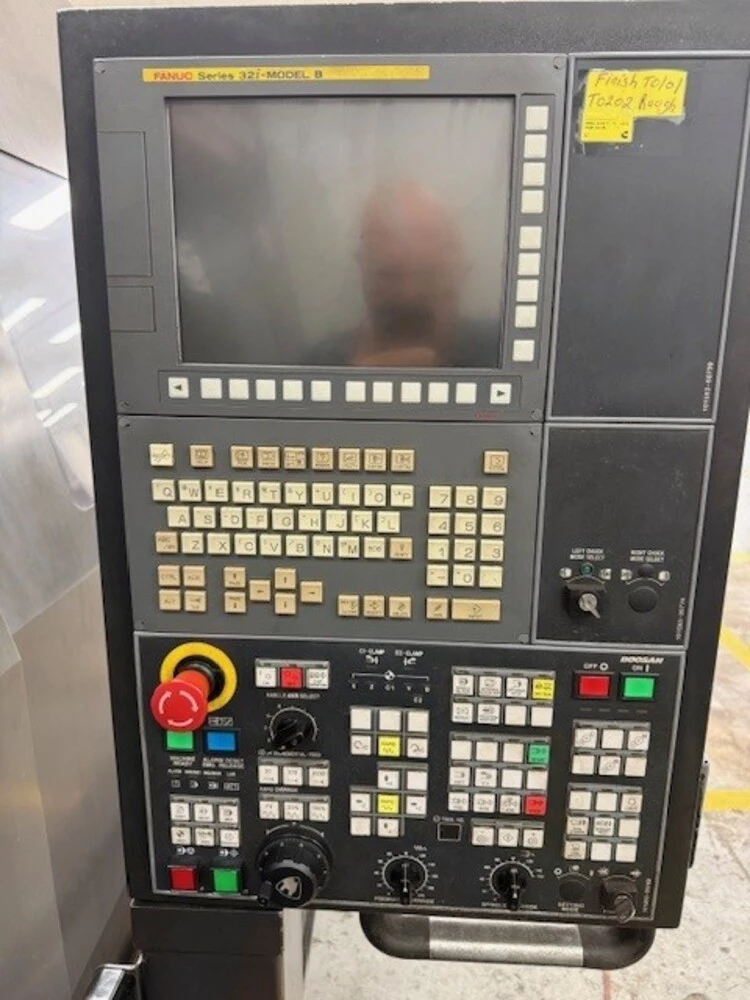

| Control |
Fanuc 32i Model B |
| Distance Between Centers |
126" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
| Main Sindle Motor |
60 HP |
| Rotary Spindle Speed |
3000 RPM |
Features
|

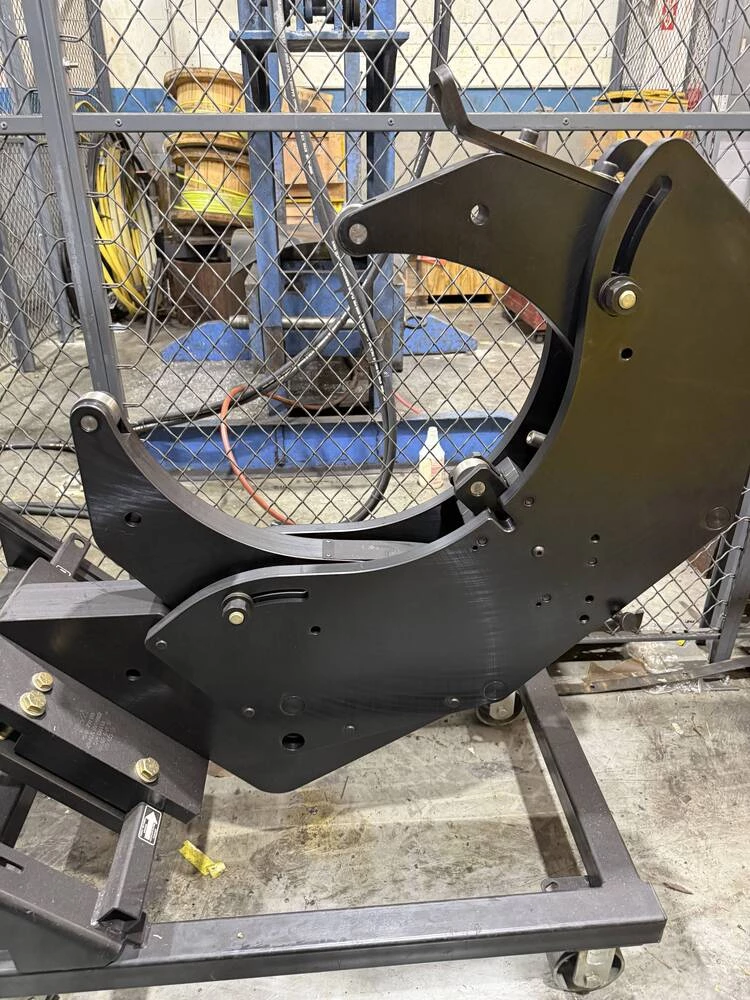

Brand New RIP Manual Steady Rest |

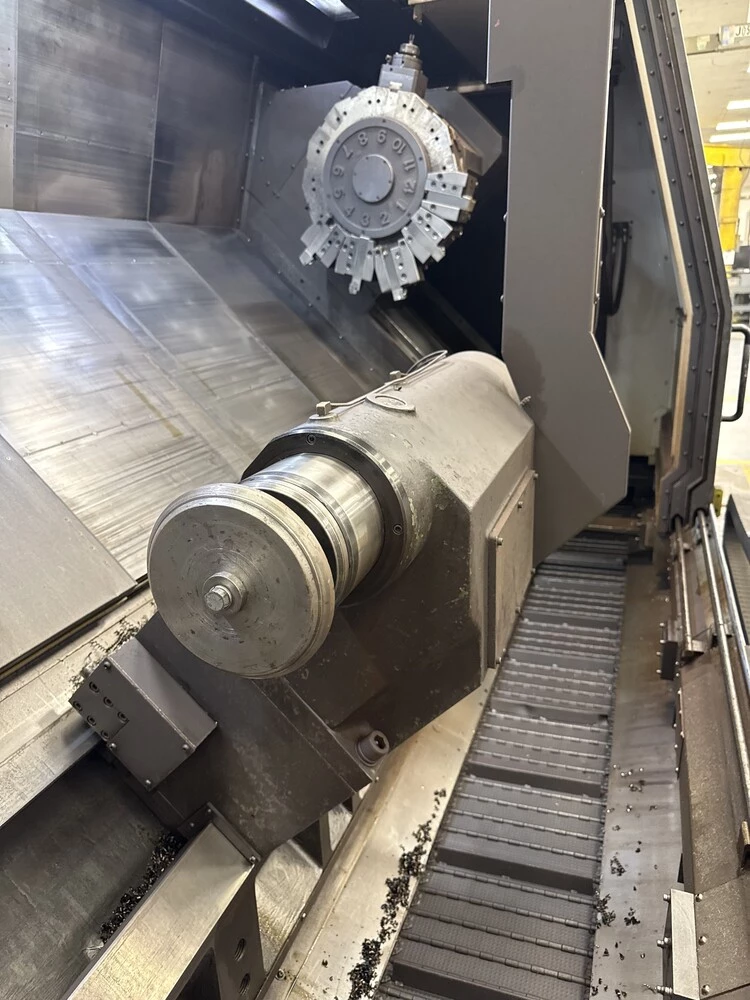

Programmable Tailstock |
