Year |
2002 |
|---|---|
Make |
Okuma |
Model |
Impact LU45 |
Description |
CNC Lathe |
Reference # |
8075357 |
Price |
Activate Pricing |

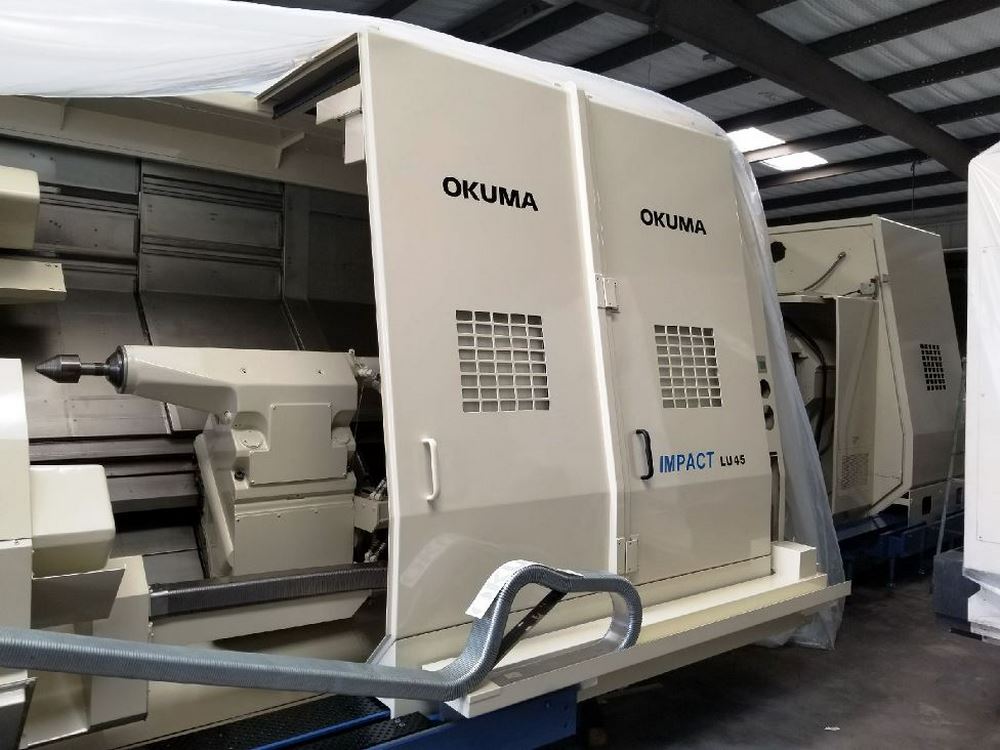

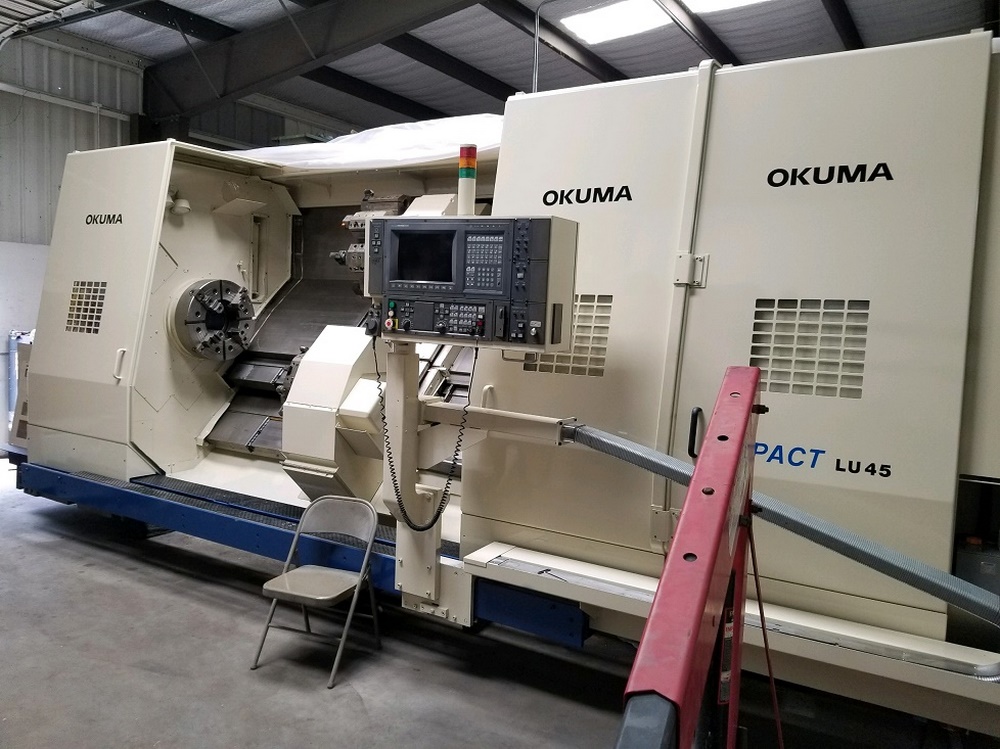

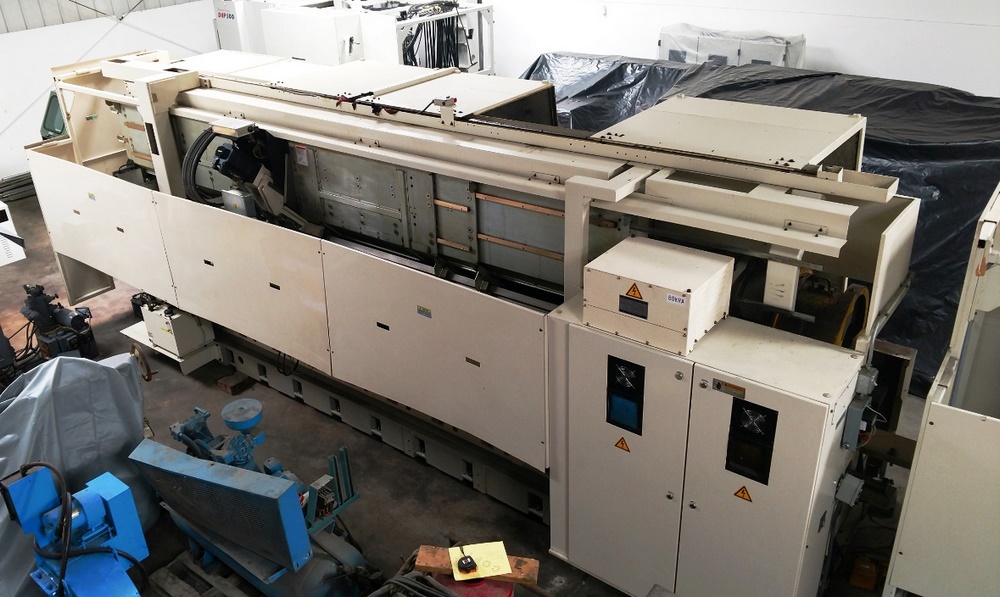

Used Okuma Impact LU45 (2002) CNC Lathe for Sale. This dual-turret machine runs an OSP-E100L control with conventional 2-axis programming steps and language, with the OSP making conversions for the lower turret and machining executed in the order of P-codes (P1-Pn) as assigned by the programmer. Specifications include a 24″ chuck, 10.23″ bar capacity and spindle bore, 33″ swing, 23/18″ turning diameter, 121″ distance between centers, 120″ Z-axis and 26″ X-axis travel, 900 RPM spindle speed, A-2-20 spindle nose, 5.12″/MT No. 5 quill, and a 50 HP/60 HP (cont./30 min) main motor on 220/480/3/60. Twelve turret stations, chip conveyor, follow rest on the lower turret, and (2) 24″ Noble 4-jaw F&R chucks with 12.5″ bore. Weight is 56,217 lbs. Available for inspection under power. See more used CNC lathes and Okuma machines, then Activate Pricing or Request a Quote.
Specifications
| Chuck Size |
24" |
|---|---|
| Bar Capacity |
10.23" |
| Swing |
33" |
| Turning Diameter |
23/18" |

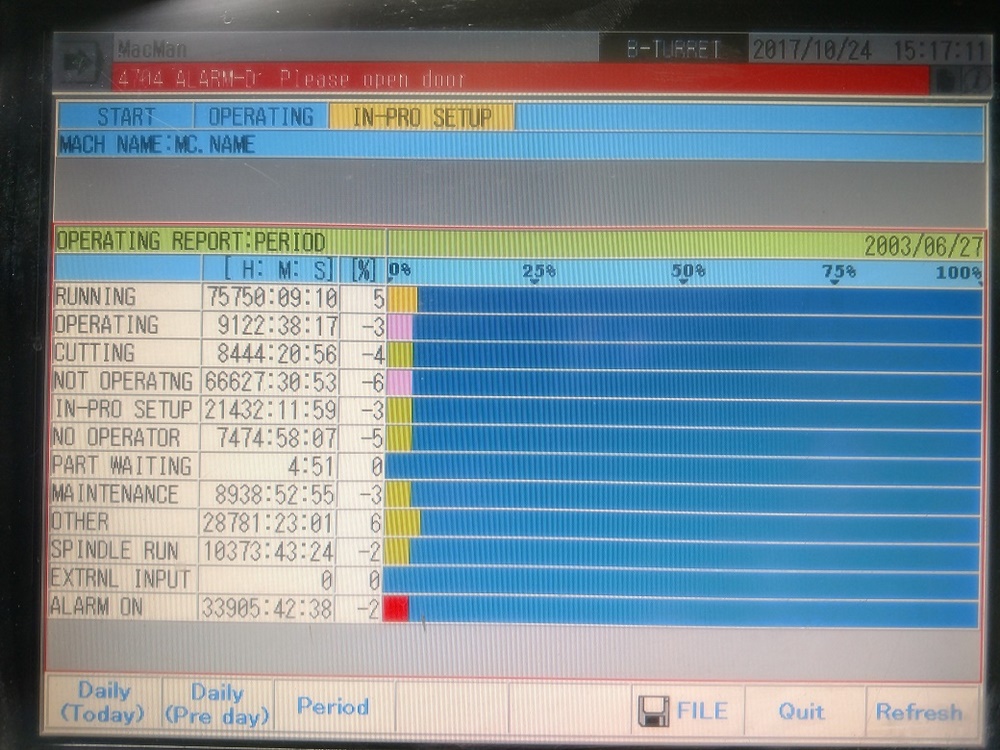

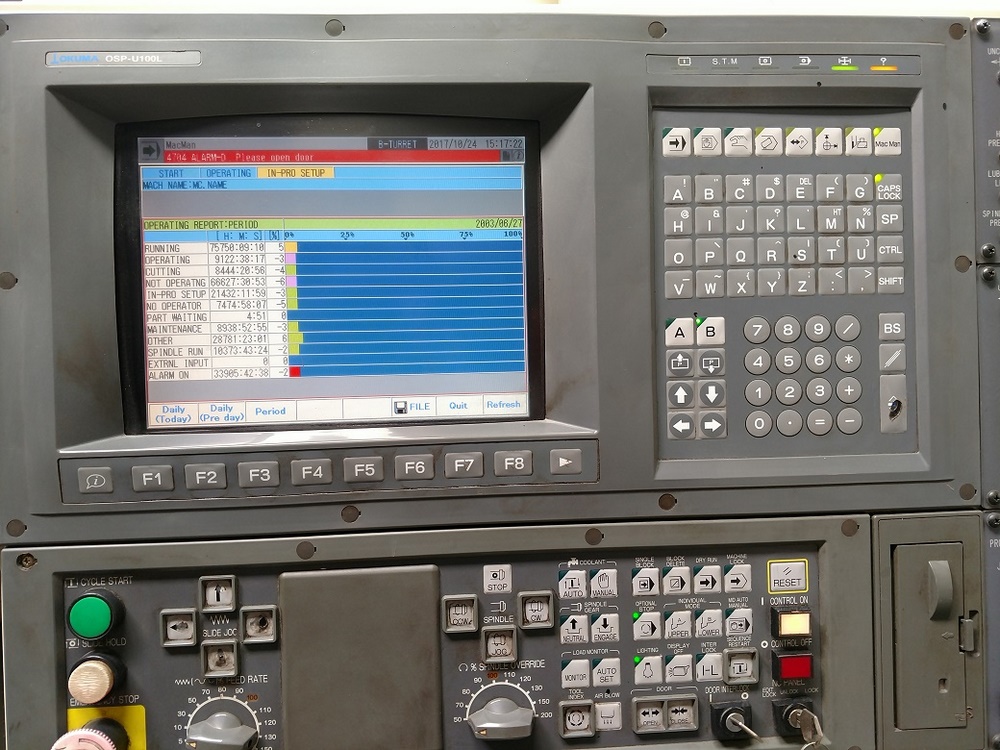

| Control |
OSP-E100L |
| Distance Between Centers |
121" |
| Chip Removal |
Chip Conveyor |
| Z-Axis Travel |
120" |
| X-Axis Travel |
26" |

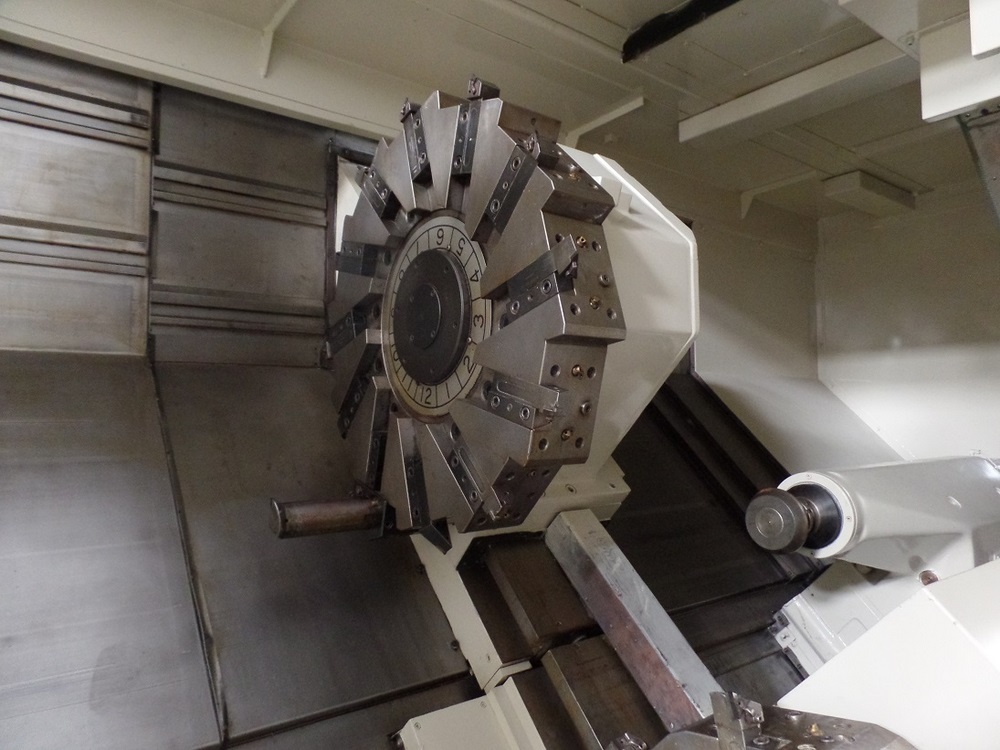

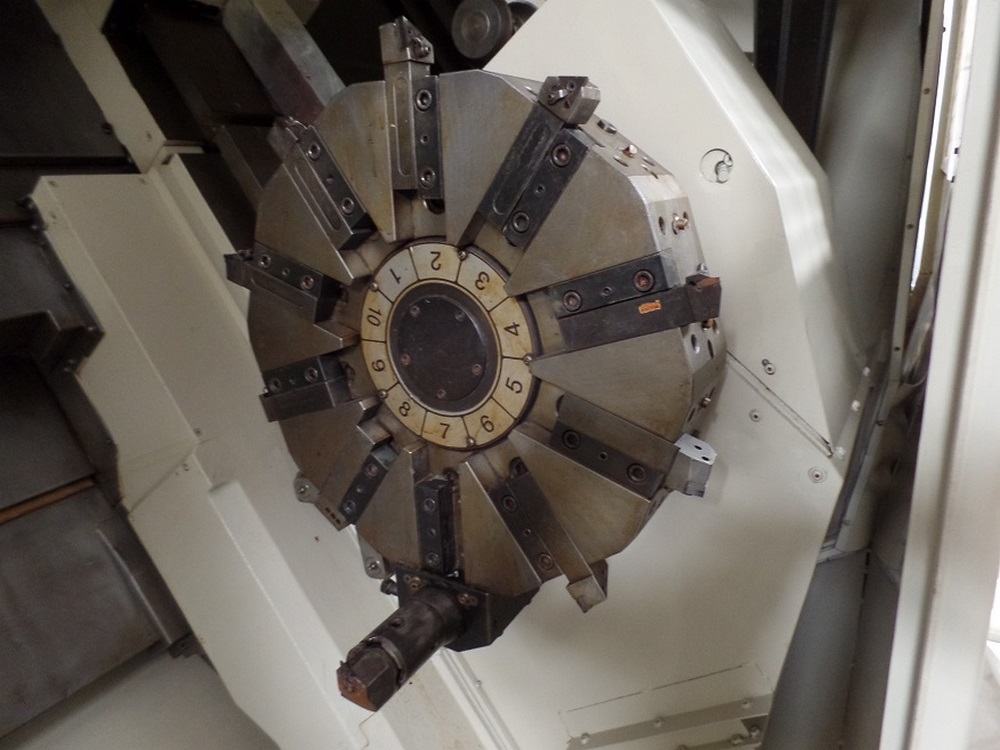

| Turret Stations |
12 Stations |
| Follow Rest |
Yes, on the lower turret |
| Spindle Bore |
10.23" |
| Spindle Nose |
A-2-20 |

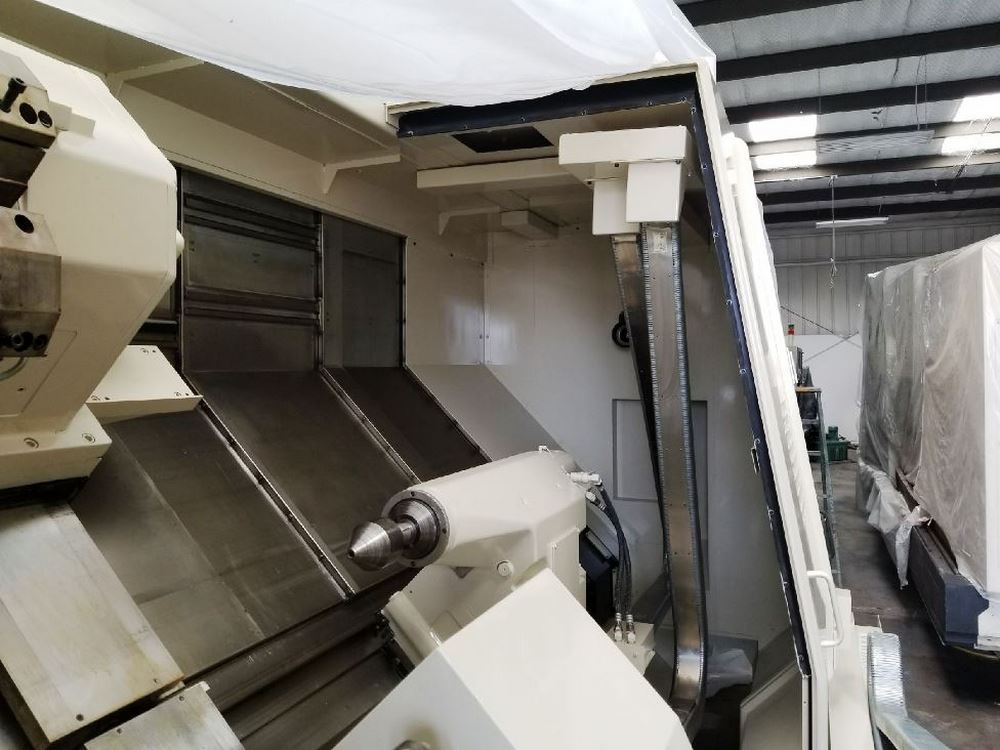

| Quill Diameter |
5.12"/MT No. 5 |
| Spindle Speed |
900 RPM |
| Main Motor |
50 HP/60 HP (Cont./30 Min) |
| Power Requirement |
220/480/3/60 |
| Programming |
Conventional 2-Axis Programming Steps and Language/Conventional 2-Axis Programming Steps and Language/OSP Makes Conversions for Lower Turret/Machining is Executed in the Order of “P-codes” (P1-Pn) as Assigned by the Programmer |
| Machine Weight |
56,217 Lbs |
Features
|

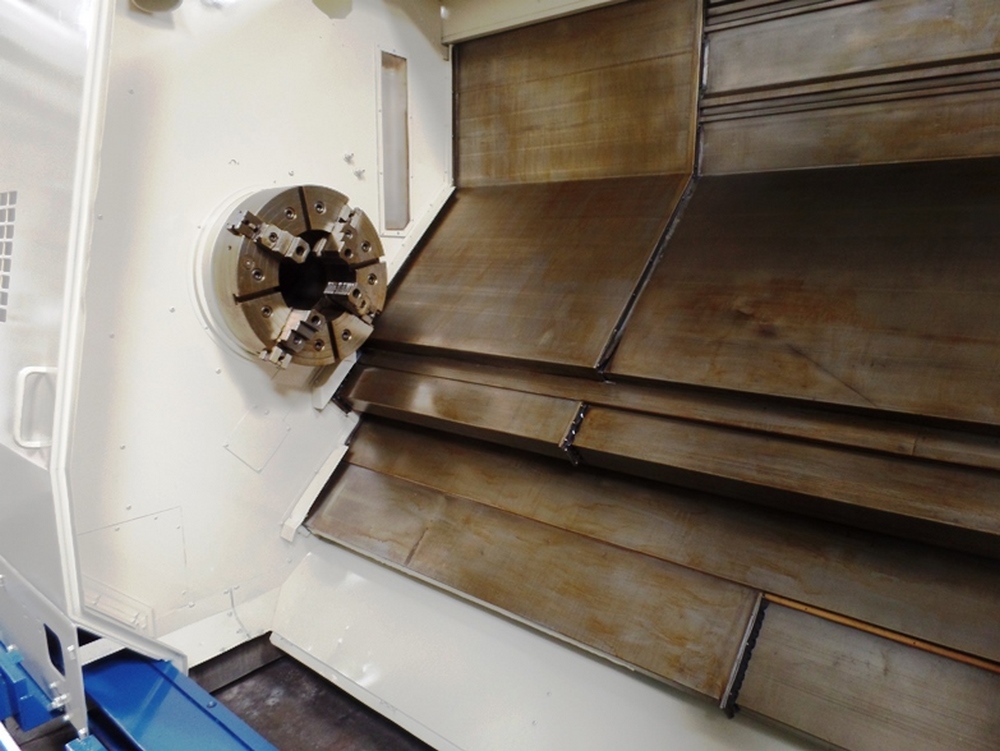

(2) 24” Noble 4-Jaw F&R with 12.5” Bore |

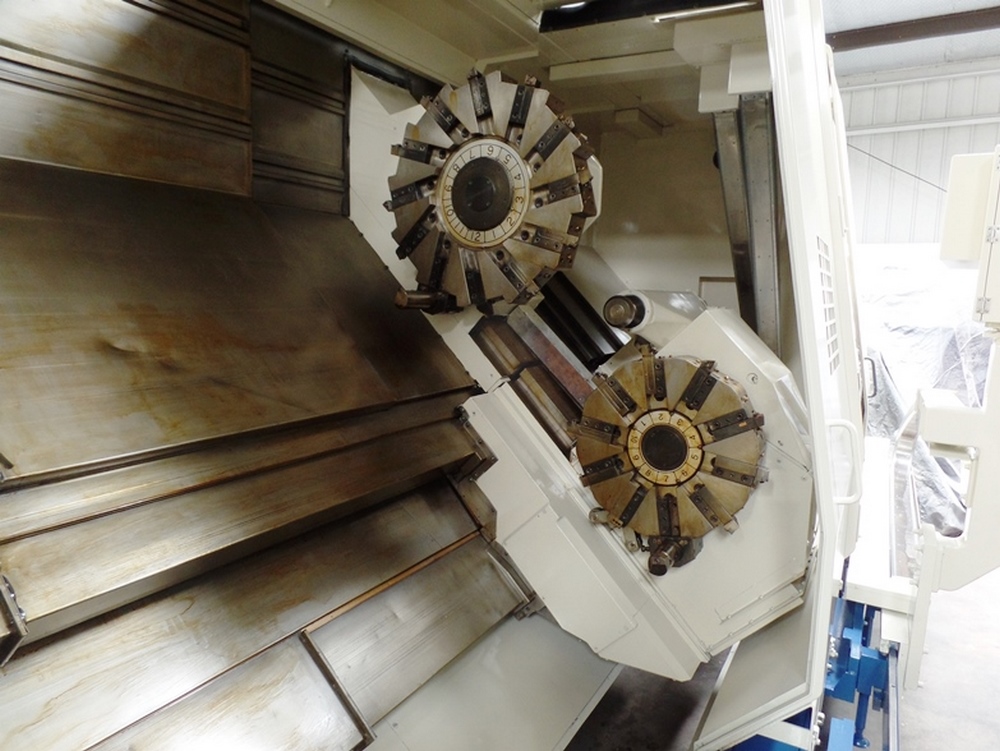

Dual Turret |
