Year |
2015 |
|---|---|
Make |
Amada |
Model |
AE2510NT |
Description |
22 Ton Turret Punch |
Reference # |
8073674 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

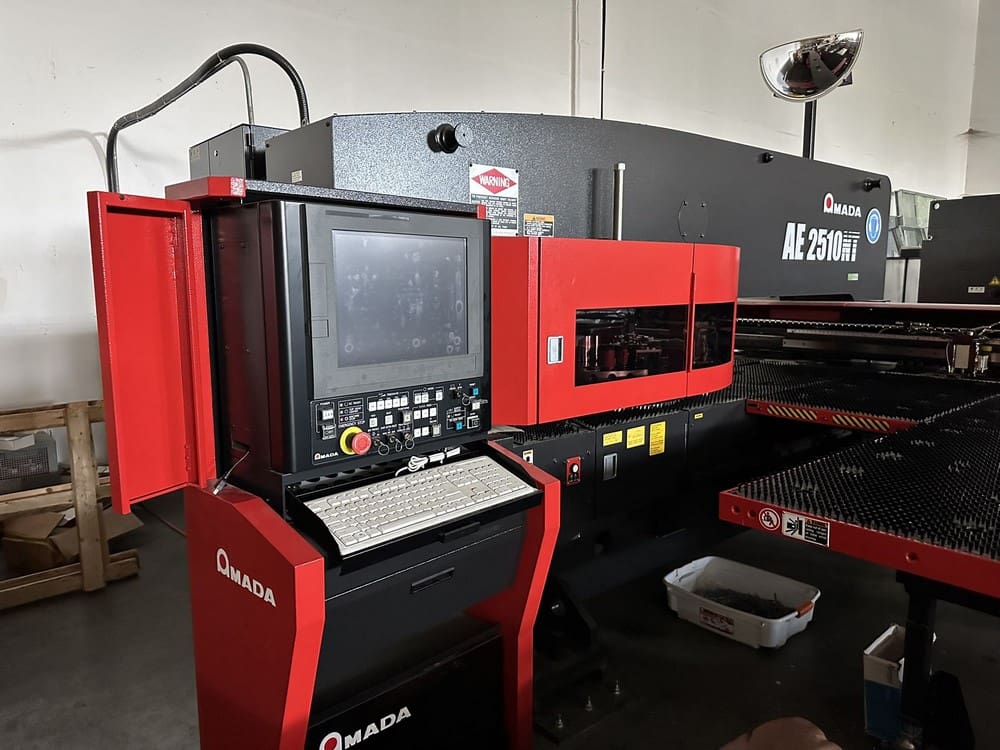

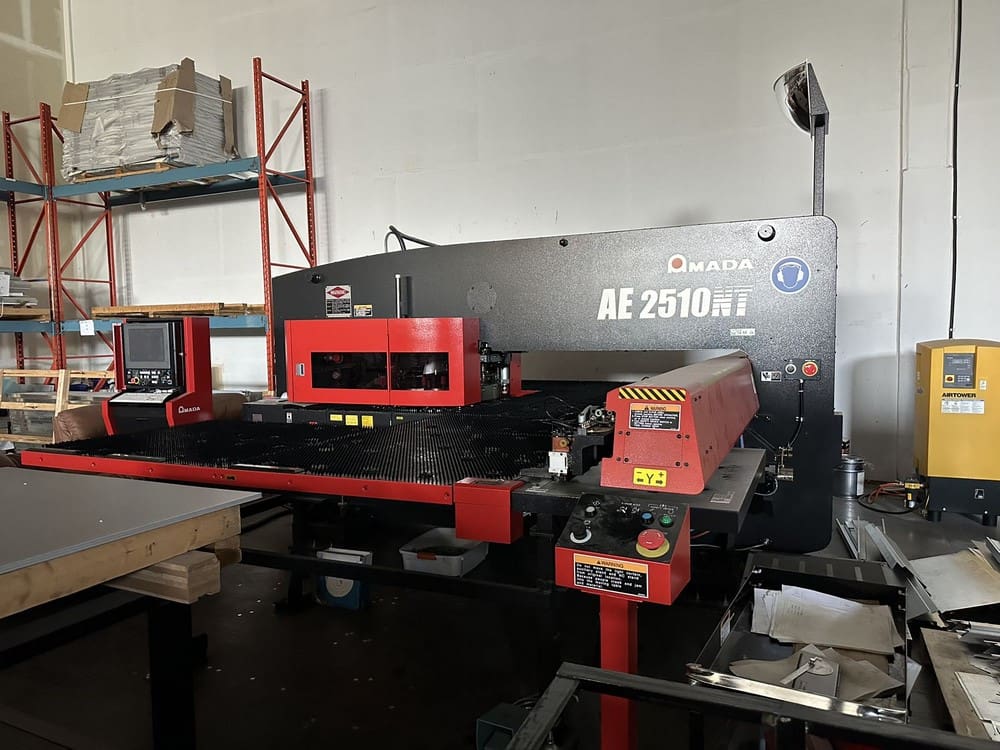

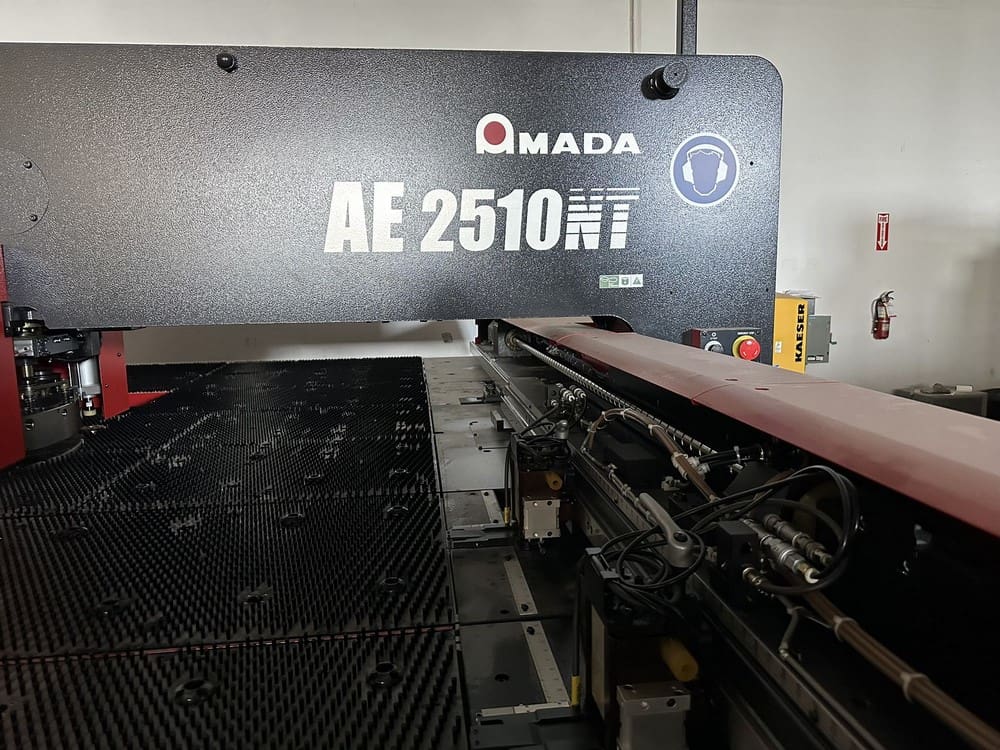

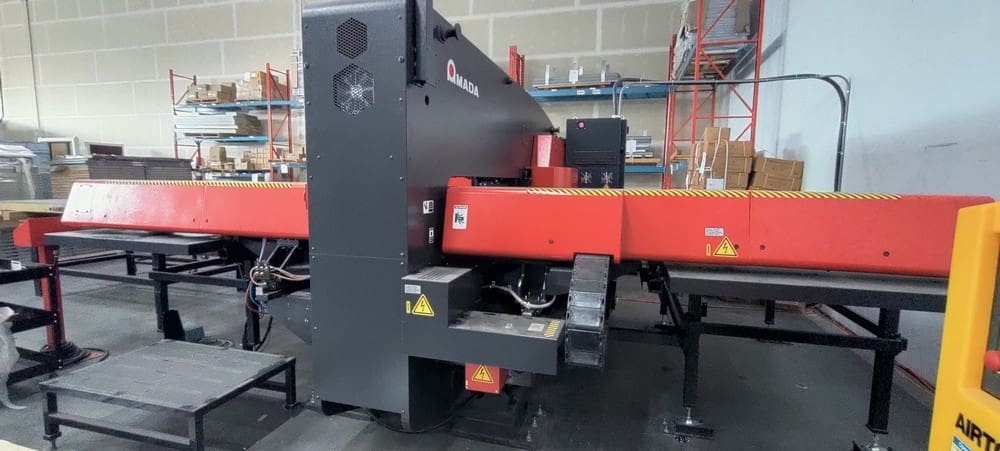

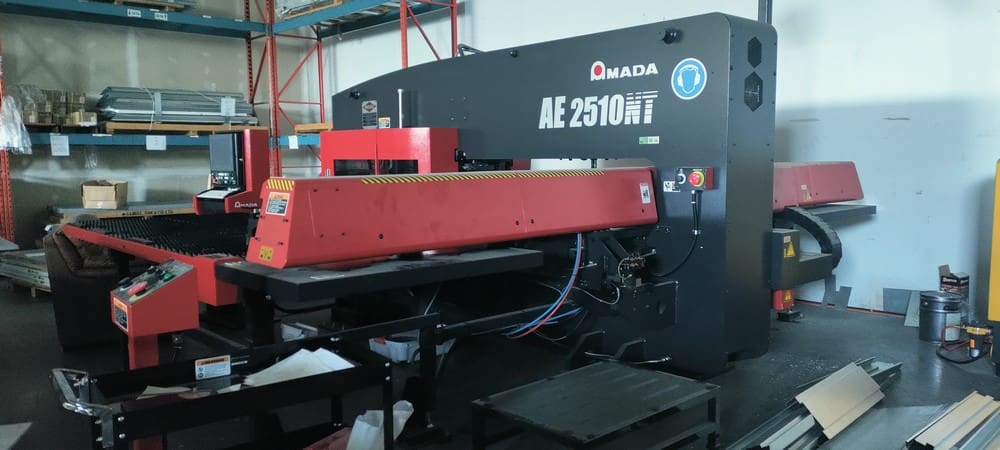

Used Amada AE2510NT (2015) Turret Punch for Sale. This pre-owned Amada turret punch is located in Canada. If you have any questions regarding this Amada Turret Punch, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
50" |
| Sheet Length |
98" |
| Y-Axis Travel |
98" |
| Turret Stations |
58 Stations/2 AI (Auto Indexing) |
| Throat Depth |
52" |
| Max Sheet Size without Repositioning |
50" x 196" |
| Auto-Index Rotation Speed |
60 RPM |
| Max Sheet Weight |
110 Lbs (F1) / 330 Lbs (F4) |
| Thickest Material |
0.187" |
| X/Y Nibbling Hit Rate (0.080” Pitch) (0.2” Stroke) |
745/410 HPM X/Y |
| X/Y Table Positioning Speed |
3,937/3,150 IPM |
| Marking Hit Rate (0.197”Pitch) (0.055” Stroke) |
1,800 HPM |
| Turret Rotation Speed |
30 RPM |
| Control |
Amada AMNC/PC |
| Type of Turret Tooling |
Thick |
| Power Requirement |
200/208/3ph/60 |
| Machine Weight |
28,660 Lbs |
