Year |
2014 |
|---|---|
Make |
Northwood |
Model |
SJ-270-D |
Description |
7' x 24' CNC Saw Waterjet |
Reference # |
8076621 |
Price |
Activate Pricing |

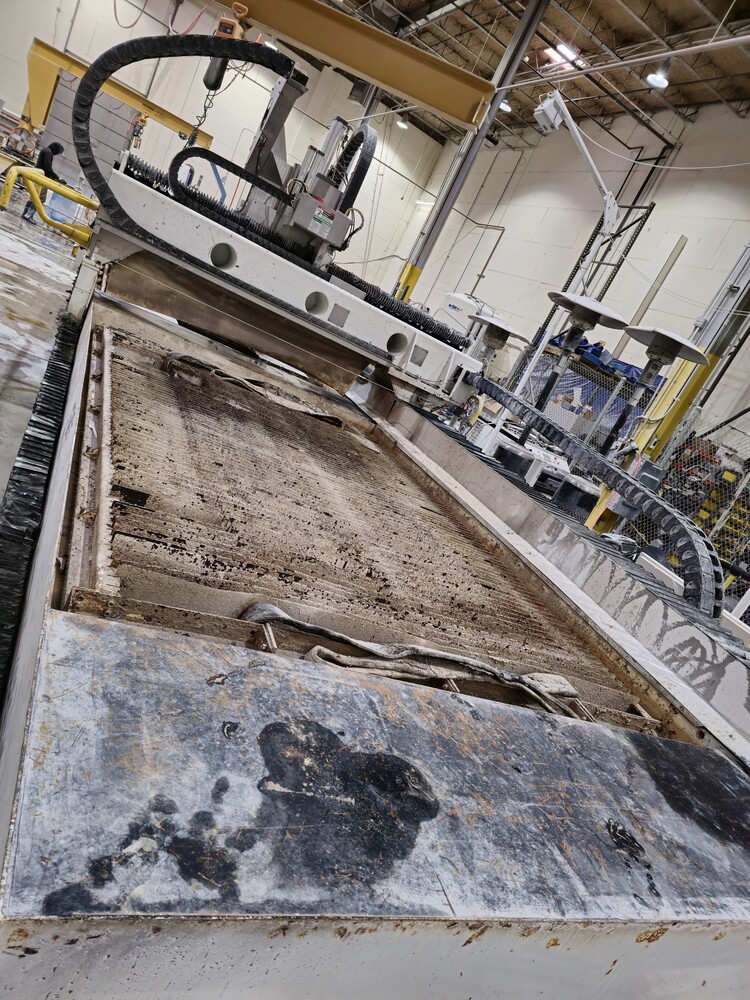

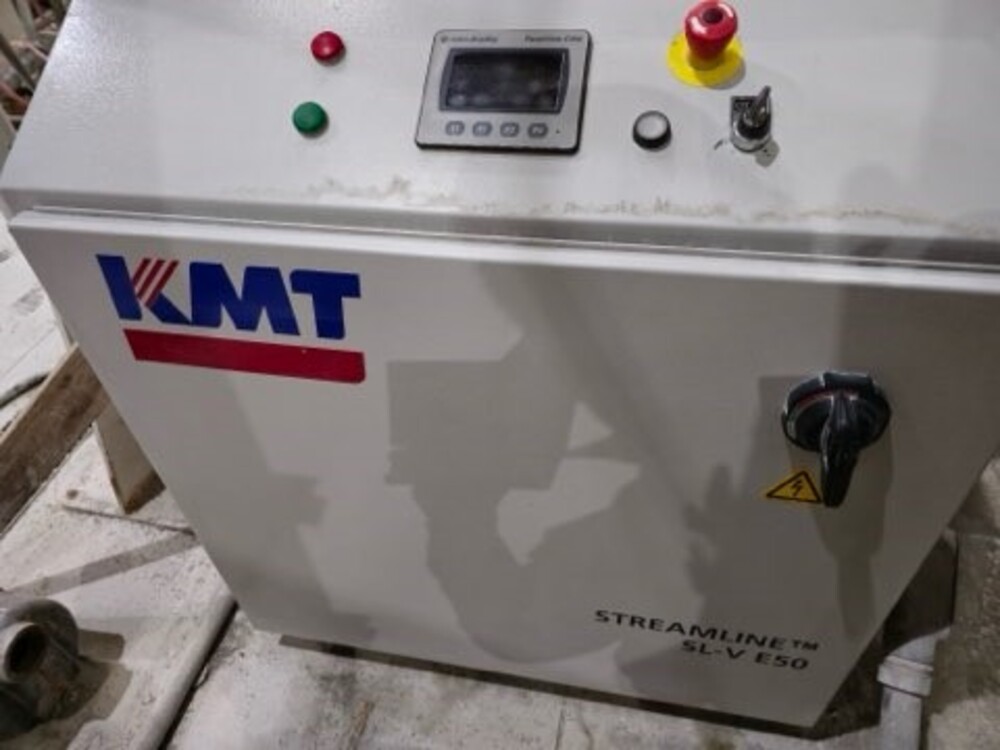

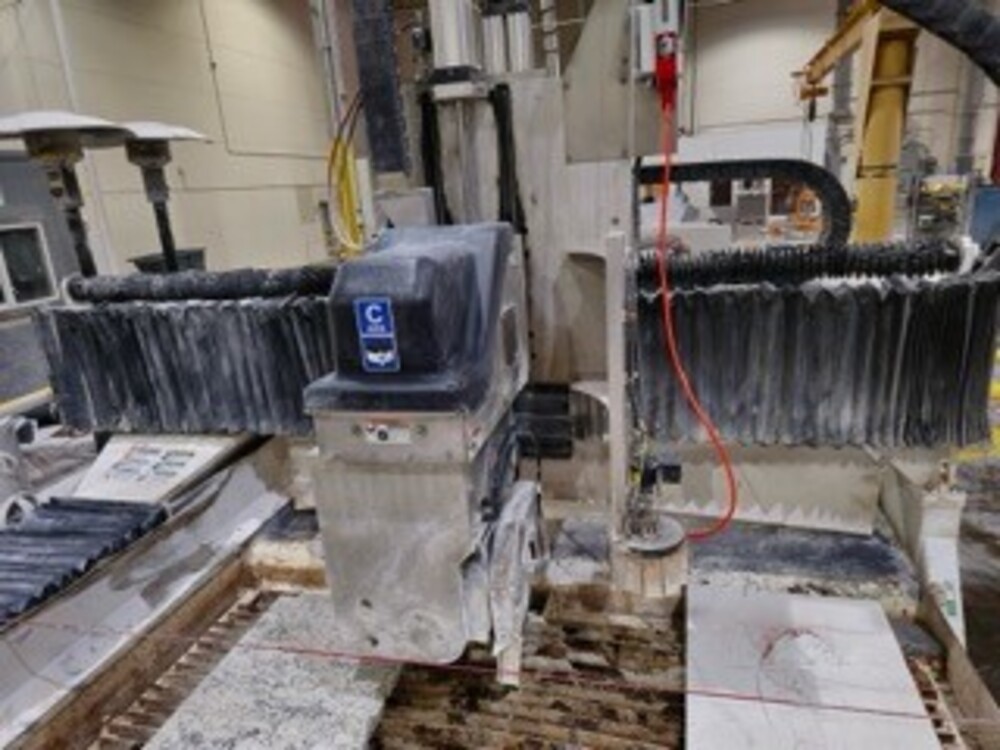

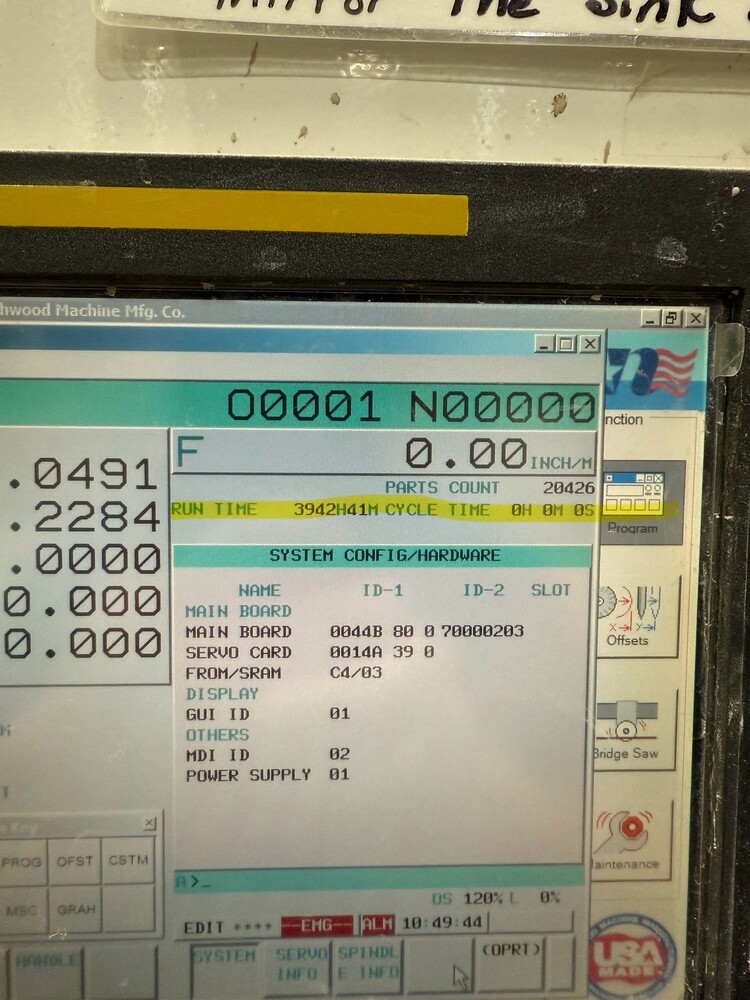

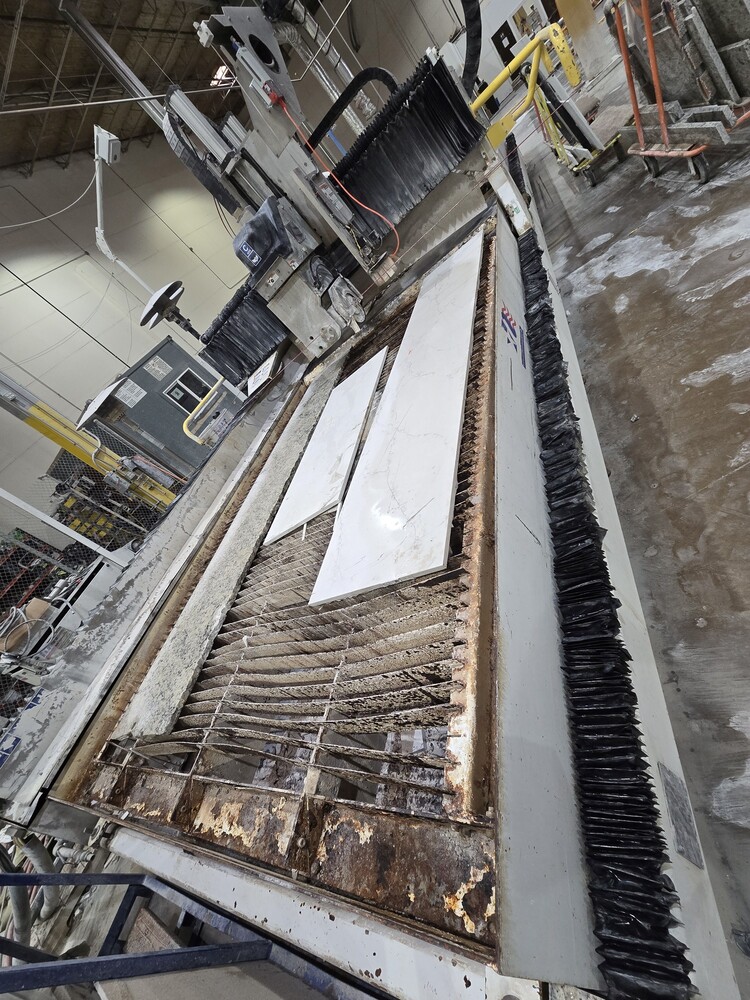

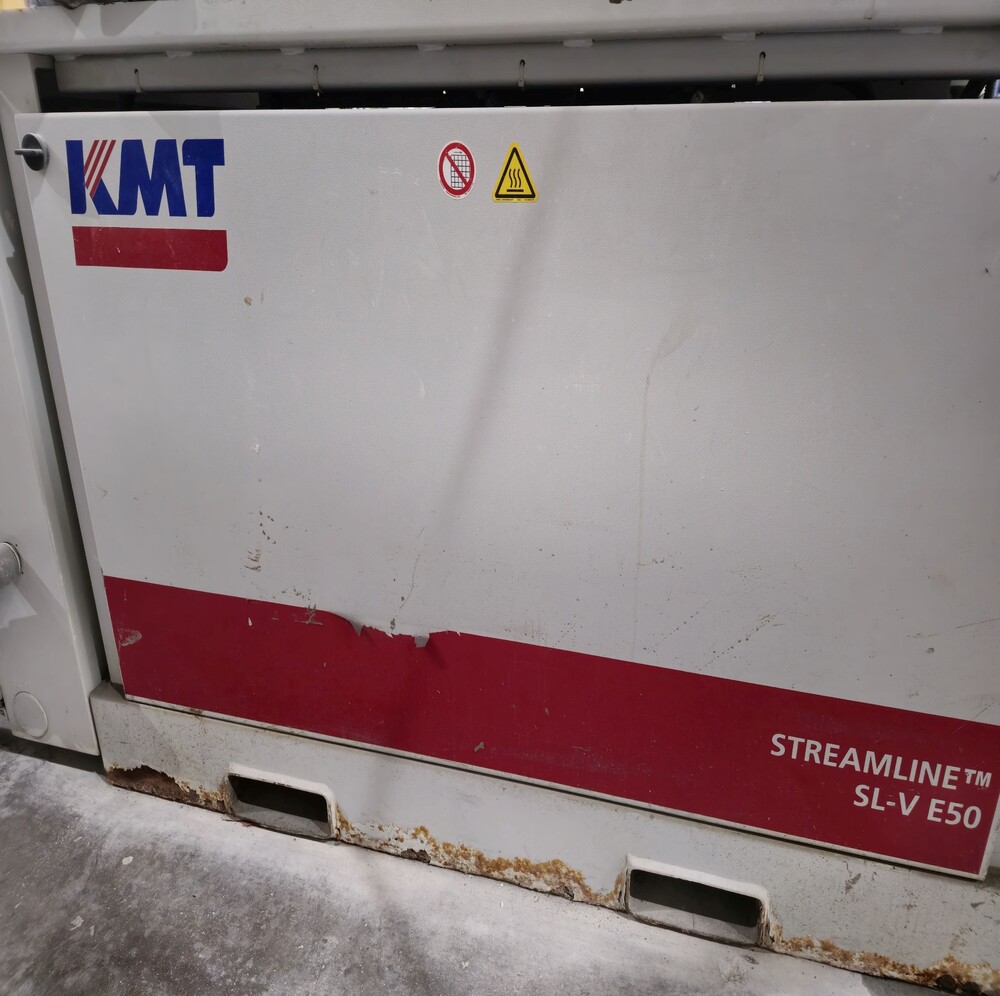

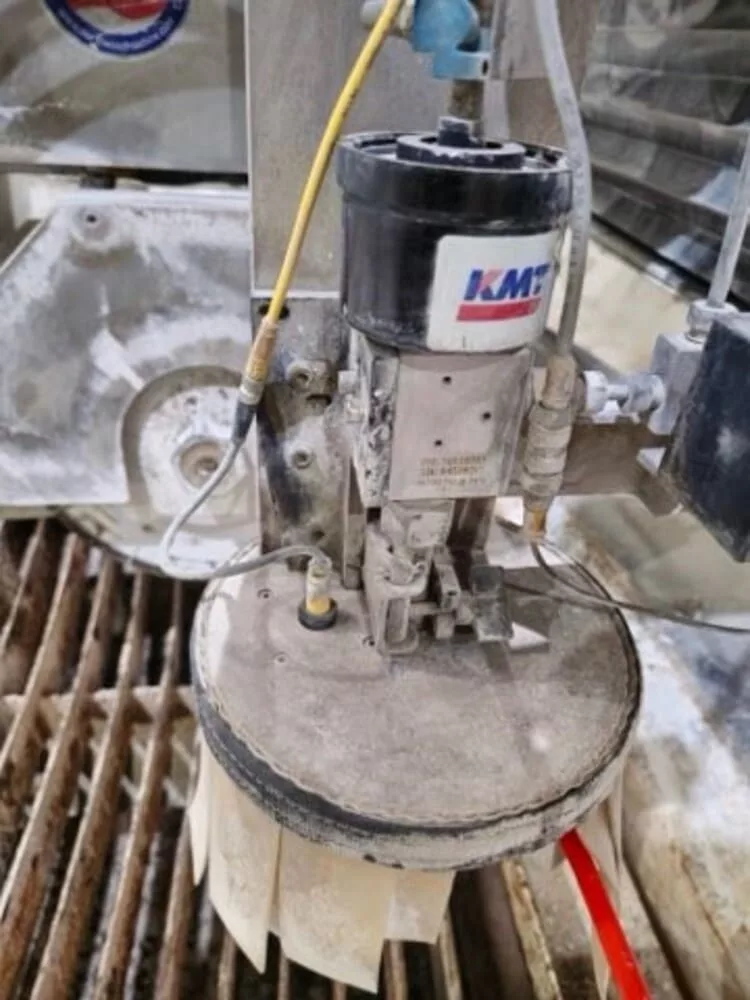

Used Northwood SJ-270-D (2014) Waterjet for Sale. This machine has a 7′ x 24′ double table with 180″ x 88″ X/Y axis travel and 12″ of Z-axis travel, running on a Fanuc 0iMD control with FANUC servo control system and ball screw. It includes a 360 degree programmable C-axis saw and a 48 degree programmable miter servo tilt saw, plus solenoid-actuated dual-side flood coolant for the saw blade. Power comes from a 50 HP KMT Streamline SL-V E50 pump rated to 60,000 PSI max cutting pressure, on 480/3/50-60. Also equipped with garnet system, bar code reader, mounted camera system with calibration, remote machine control diagnostics, conduit wire-hose management, industrial air hookup with filtration, cleanout-system ready tanks and drain connections, and StoneVision Fabrication Software with AlphaCAM. Can be seen under power for an inspection. See more used waterjets, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
7' |
|---|---|
| Table Length |
24' |
| Control |
Fanuc 0iMD |
| Pump |
50 HP |
| Max Cutting Pressure |
60,000 PSI |
| Power Requirement |
480/3/50-60 |
| X / Y Axis Travel |
180" x 88" |
| Z-Axis Travel |
12" |
| C-Axis |
360 Degree Programmable C-Axis Saw |
| B-Axis |
48 Degree Programmable Miter Servo Tilt Saw |
Features
|
Bar Code Reader for Quickly Loading Work Programs |
Cleanout-System Ready Tanks and Drain Connections |
|
Conduit Wire-Hose Management System for All Floor Cabling |
Double Table |
|
FANUC Servo Control System and Ball Screw |
Garnet System |
|
Industrial Air Hookup with Particulate Filter and Coalescing Filter with Auto-Drains |
Mounted Camera System and Calibration Means for Taking Accurate Slab Photos |
|
Remote Machine Control Diagnostics |
Single/Industrial/Fused/Lockable/Disconnect for all Incoming Power |
|
Solenoid-Actuated Dual-Side Flood Coolant for Saw Blade |
StoneVision Fabrication Software & AlphaCAM |
|
KMT Streamline SL-V E50 Pump |
