Year |
2008 |
|---|---|
Make |
Flow |
Model |
Mach 3 4020b |
Description |
6' x 13' CNC Waterjet |
Reference # |
8075274 |
Price |
Activate Pricing |

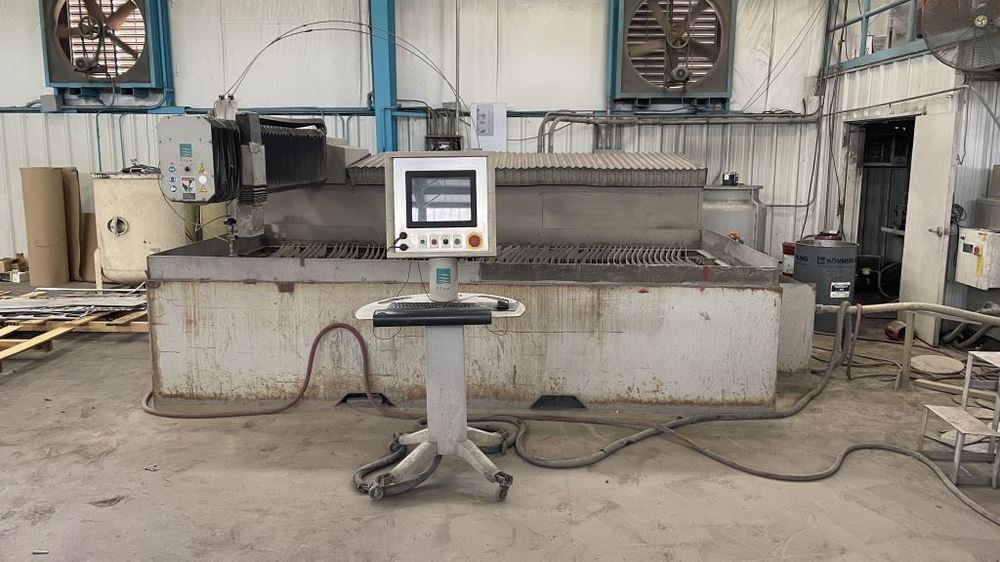

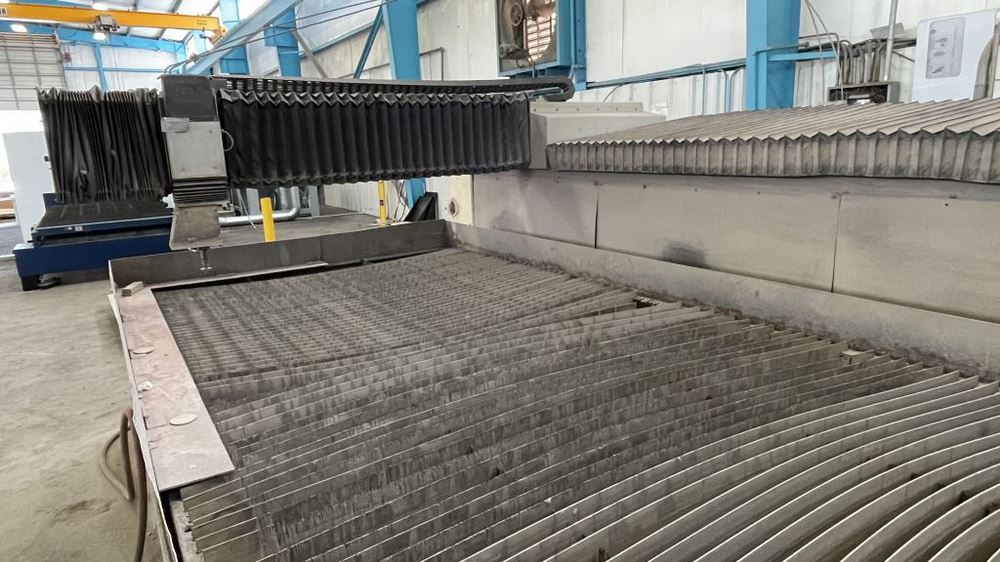

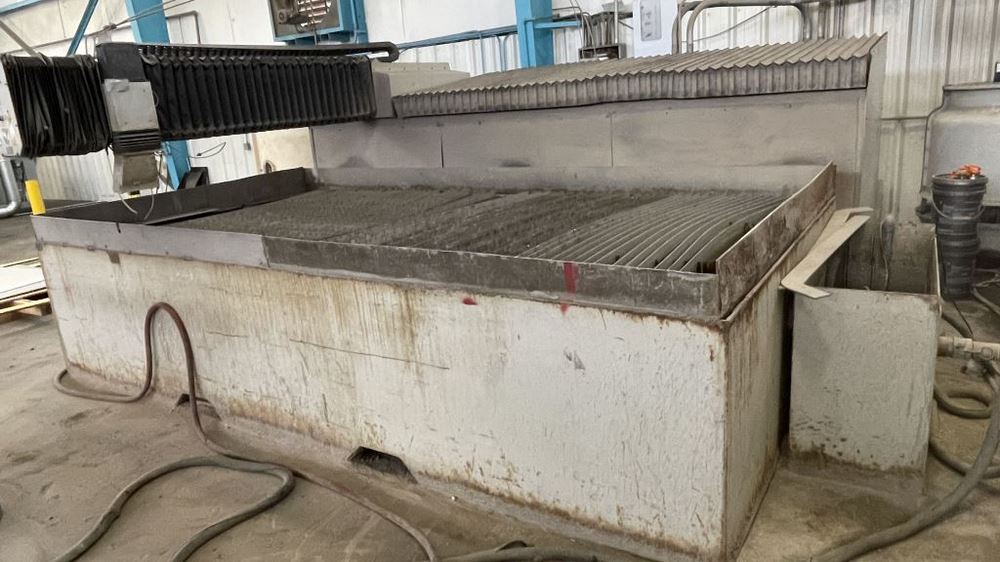

Used Flow Mach 3 4020b (2008) Waterjet for Sale. This machine has a 6′ wide by 13′ long table and runs on the Flow PC based control. It is driven by a 100 HP pump with a maximum cutting pressure of 94,000 PSI. Equipped with (1) spare GeoBrick, chiller, garnet hopper and straight cutting head. The hydraulic oil pumps were replaced in 2023 and the top intensifier was rebuilt in 2023. The machine can be seen under power for an inspection. See more machines of this type on our used waterjets page, or browse other Flow equipment. Activate Pricing to view the asking price, or Request a Quote and we will follow up with details.
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
13' |

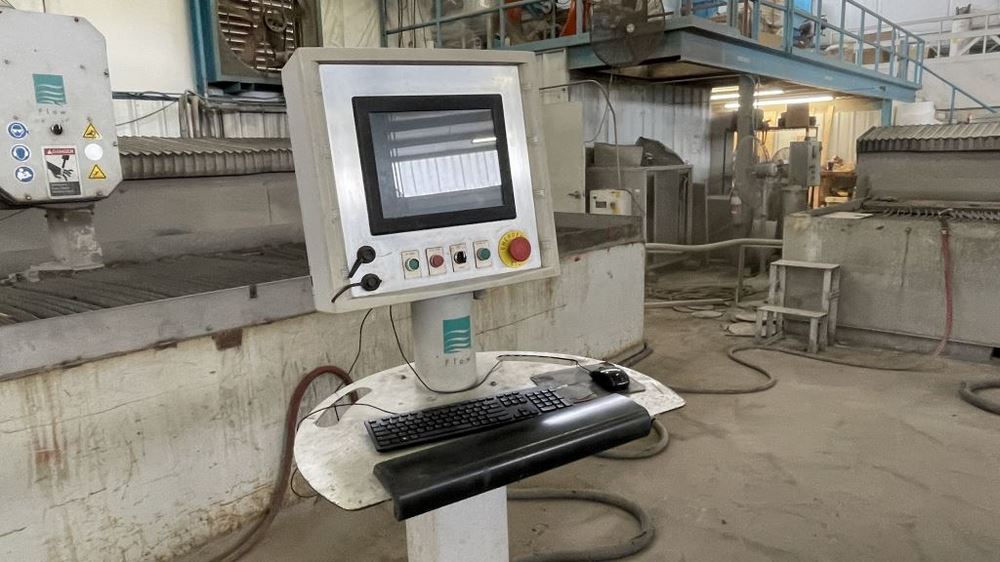

| Control |
Flow PC Based |
| Pump |
100 HP |
| Max Cutting Pressure |
94,000 PSI |
Features
|
(1) Spare GeoBrick |
Hydraulic Oil Pumps Replaced (2023) |
|
Top Intensifier Rebuilt (2023) |

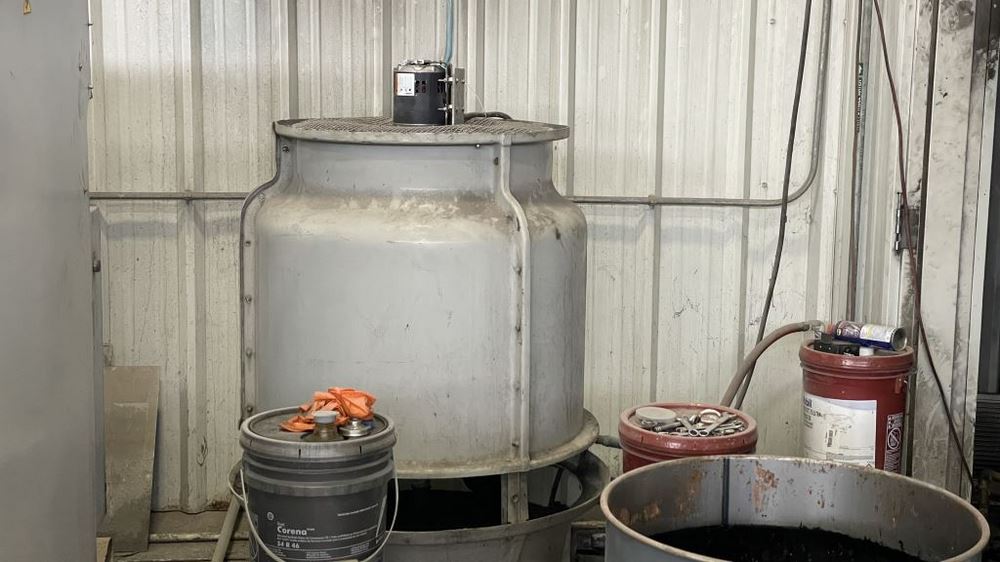

Chiller |
|
Garnet Hopper |

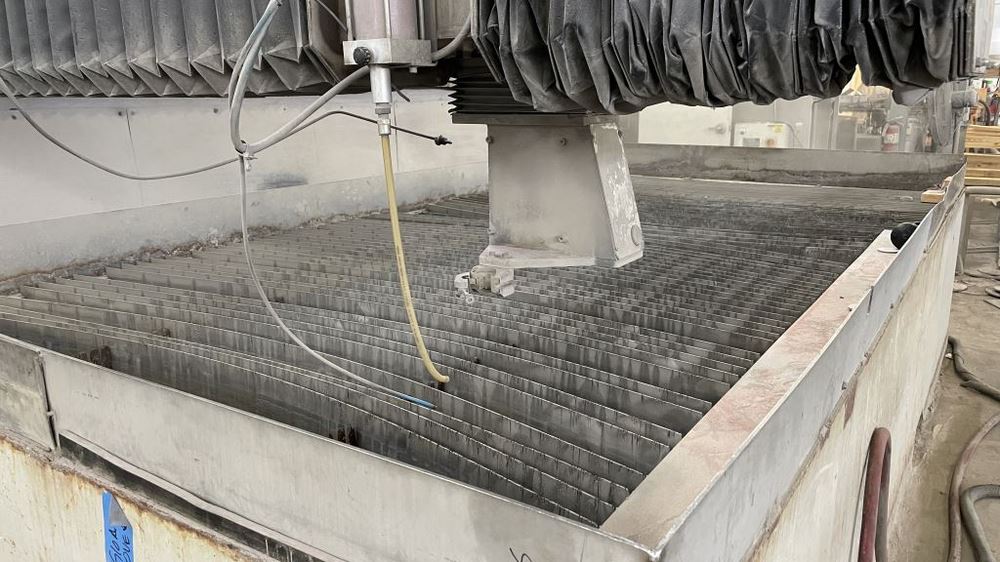

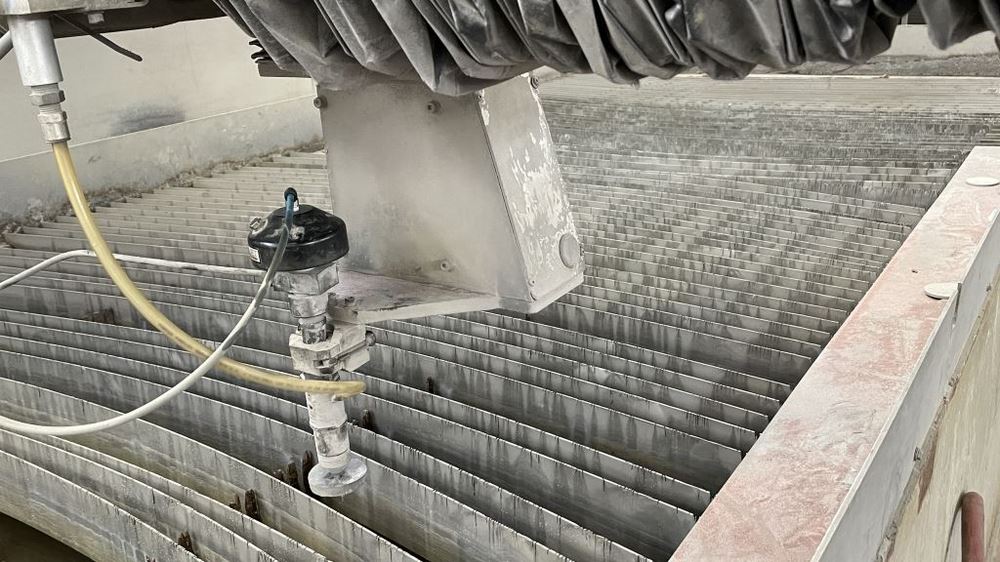

Straight Cutting Head |
