Year |
2012 |
|---|---|
Make |
Flow |
Model |
Mach 3 4020b |
Description |
6.6' x 13.1' CNC Waterjet |
Reference # |
8078408 |
Price |
Activate Pricing |

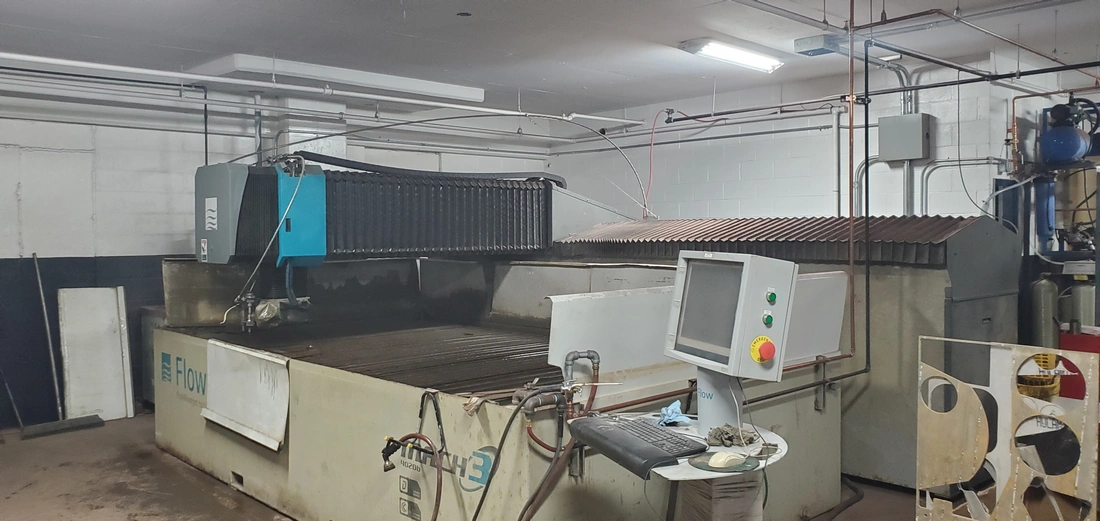

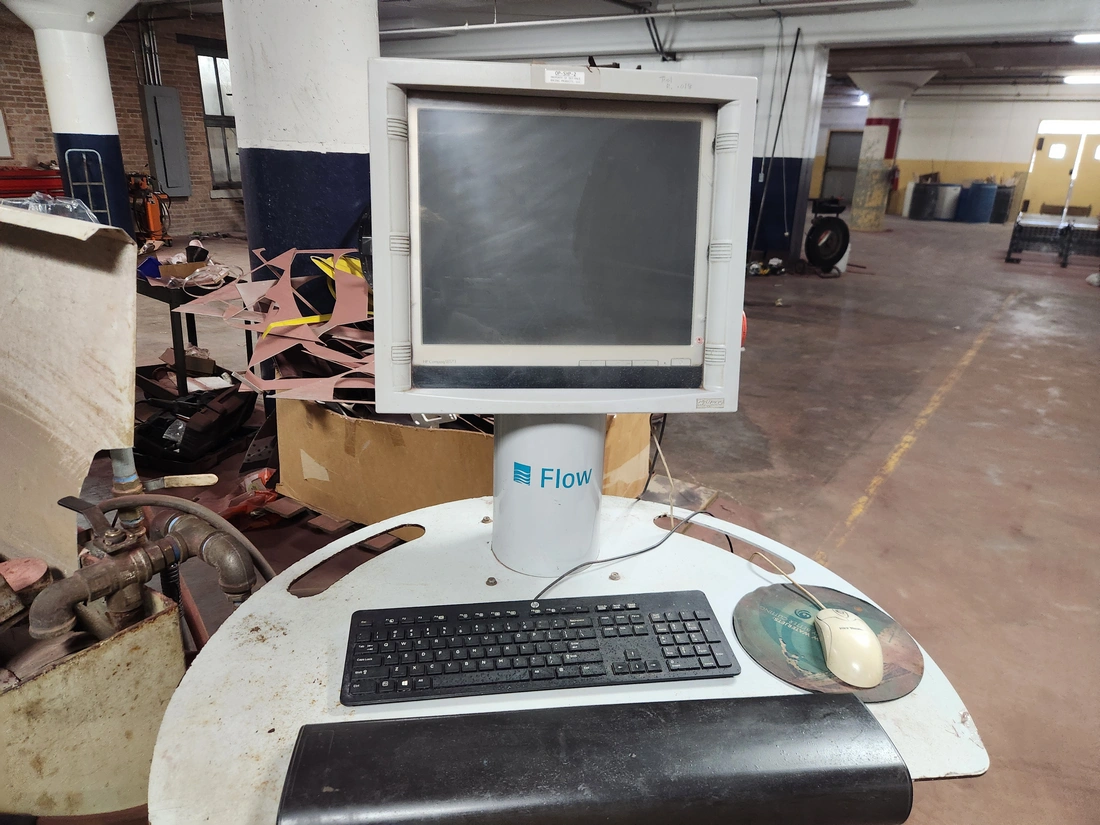

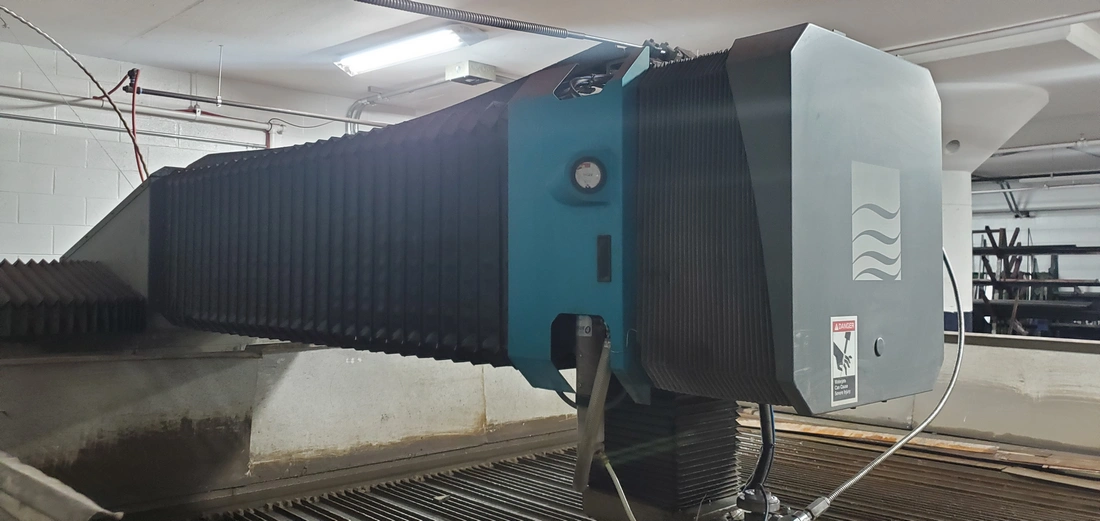

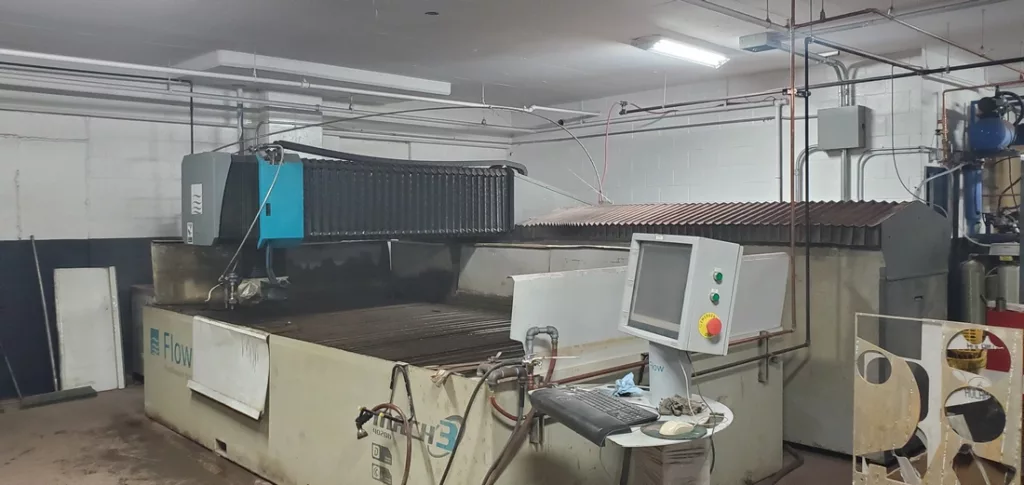

Used Flow Mach 3 4020b (2012) Waterjet for Sale. This machine offers a 6.6′ x 13.1′ table with an 8′ x 14′ tank, running on a Flow PC based control. Cutting is handled by a 50 HP intensifier pump with a maximum cutting pressure of 87,000 PSI. Equipped with a standard cutting head, abrasive hopper, chiller unit and reverse osmosis system. Power requirement is 460/3/60. Approximate dimensions are 480″ x 104″ x 72″ with an approximate weight of 15,000 lbs. The machine can be seen under power for an inspection by appointment. See more used waterjets or browse our other Flow equipment. Activate Pricing to view the figure, or Request a Quote and we will follow up with details.
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
13.1' |
| Control |
Flow PC Based |
| Pump |
50 HP |
| Max Cutting Pressure |
87,000 PSI |
| Power Requirement |
460/3/60 |
| Tank Size |
8' x 14' |
| Approx Dimensions |
480" x 104" x 72" |
| Approx Weight |
15,000 Lbs |
Features
|

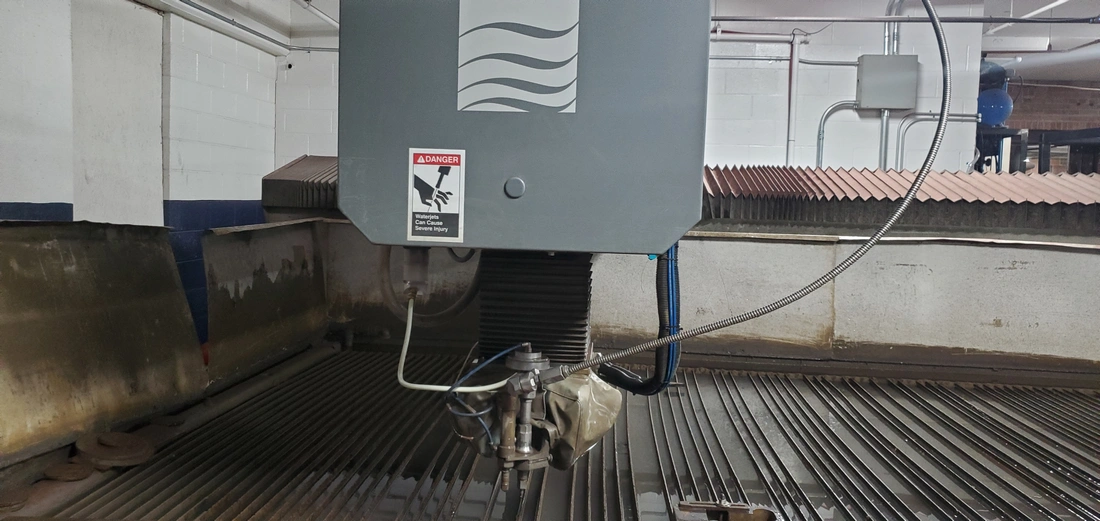

Standard Cutting Head |

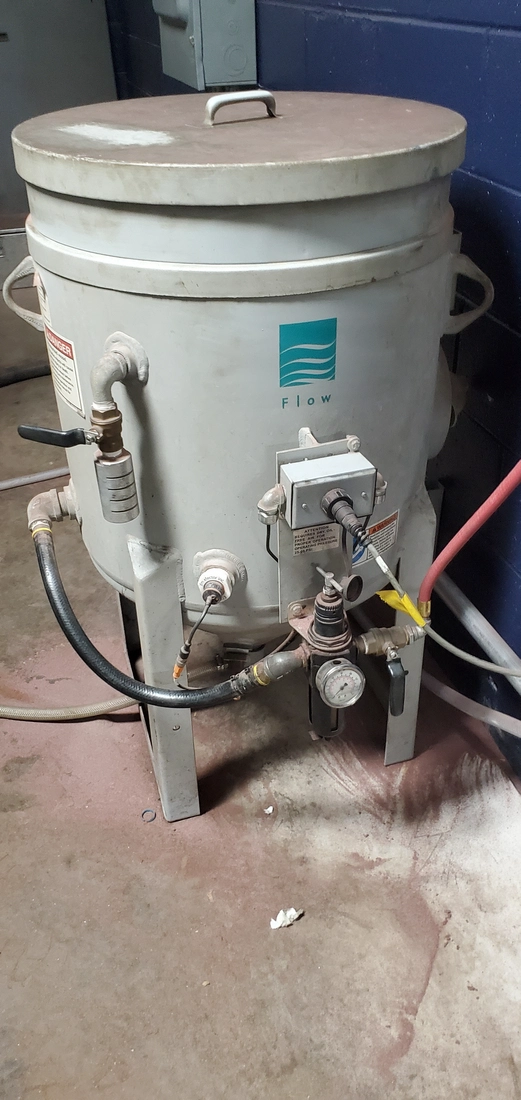

Abrasive Hopper |
|
Chiller Unit |
Reverse Osmosis System |
|

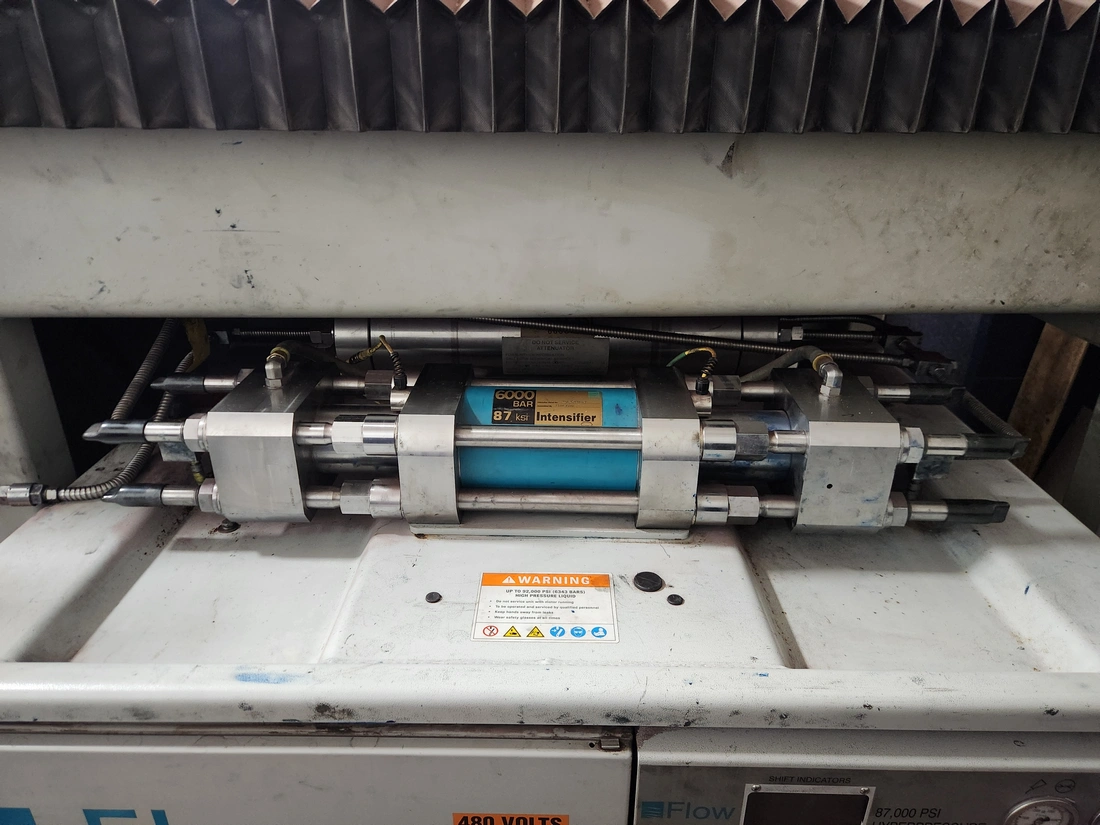

50 HP Intensifier Pump |
