Year |
2013 |
|---|---|
Make |
Mori Seiki |
Model |
NTX 1000/SZ |
Description |
CNC Lathe |
Reference # |
8071850 |
Price |
$199,500 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Mori Seiki NTX 1000/SZ (2013) CNC Lathe for Sale. This pre-owned Mori Seiki CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mori Seiki Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
14.57" |
| Turning Diameter |
14.57" |
| Spindle Speed |
5,000 RPM |

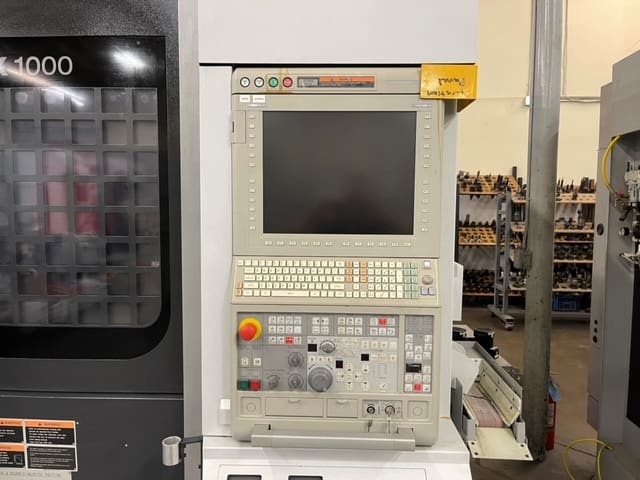

| Control |
Fanuc F31 iB5 |
| Distance Between Centers |
35" |
| Turret |
76 Position |
| Turret Tool Stations |
10 |
| Maximum Turning Length |
16.6" |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
Yes |
| Sub Spindle Speed |
6,000 RPM |
| Sub Spindle Through Hole Diameter |
1.50" |
| Sub Spindle Speed |
6,000 RPM |
| Tool Spindle |
12,000 RPM |
| X-Axis Travel |
15" |
| Y-Axis |
4.1" |
| Z-Axis Travel |
18.1" |
| X2 Travel |
6.1" |
| Z2 Travel |
24" |
| B-Axis |
120 Degree |
| Rapid Traverse Tool Spindle (XY) |
1,574 IPM |
| Rapid Traverse Tool Spindle (Z) |
1,968.5 IPM |
| Rapid Traverse Turret (X2/Z2) |
787.4 IPM/1,417.3 IPM |
| Rapid Traverse Sub Spindle |
1,417 IPM |
| Chip Removal |
Chip Conveyor |
| Floor Space Dimensions |
100” x 106” x 94.4” Tall |
| Machine Weight |
19,800 Lbs |
Features
|
Auto Tool Presetter |

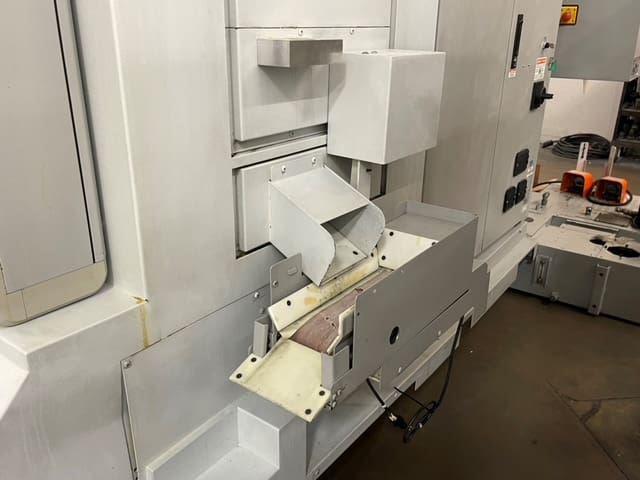

Parts Catcher |
|
Capto C5 Tool Spindle Shank |

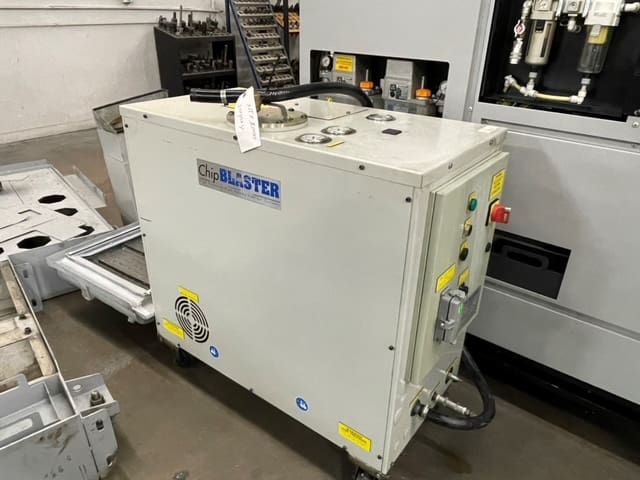

Chip Blaster High Pressure Coolant |
