Year |
2013 |
|---|---|
Make |
Mitsubishi |
Model |
MWX3-612 |
Description |

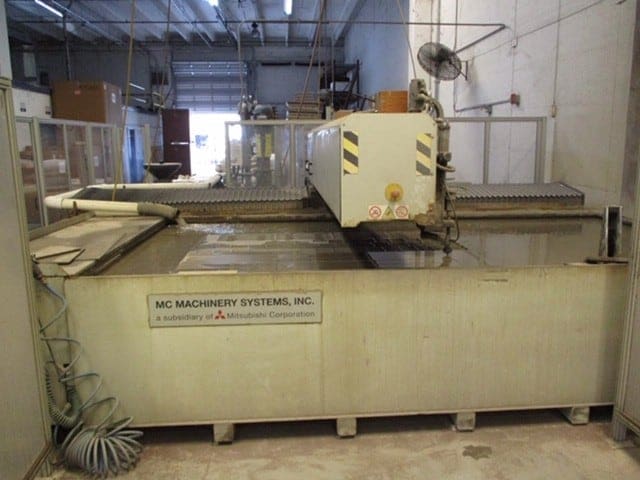

6' x 12' Bevel Head CNC Waterjet |
Reference # |
8069853 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
12' |
| Control |
Mitsubishi M720 |
| Pump |
40 HP |
| Max Cutting Pressure |
55,000 PSI |
| Power Requirement |
480/3/60 |
| Max Sheet Size |
6.8' x 12.75' |
| Machine Weight |
20,000 lbs |
Features
|
15" Waterproof Touch Screen Roll Around Controller |
670 lbs Abrasive Hopper |
|
Abrasive Metering System Manally Adjust By Dial |
True Shape Nesting |
|
USB Flash Memory |
Automatic Z Axis Touch Probe And Programmable |
|
Bevel Head Option |
Cantilever Bridge Style with Parking Area for Loading and Unloading Sheets |
|
Ethernet Connection |
Full Color Graphics |
|
Independent Worktank |
Metamation CAD/CAM Software |
|
Mitsubishi CNC Controller M720 With Keyboard |
Worktank Access on 3 Sides |
*
