Year |
2013 |
|---|---|
Make |
Doosan |
Model |
Lynx 220C |
Description |
CNC Lathe |
Reference # |
8072170 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

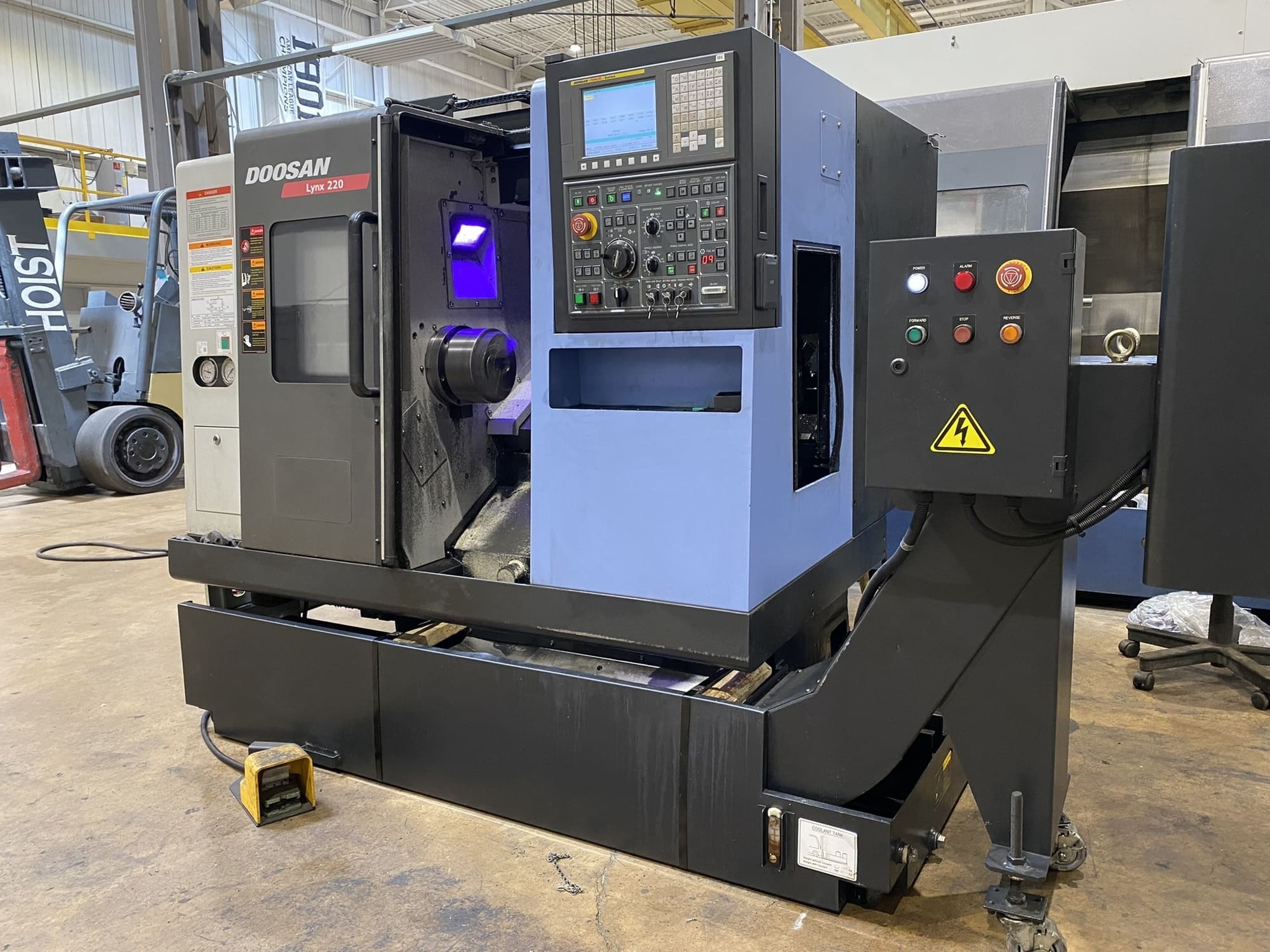

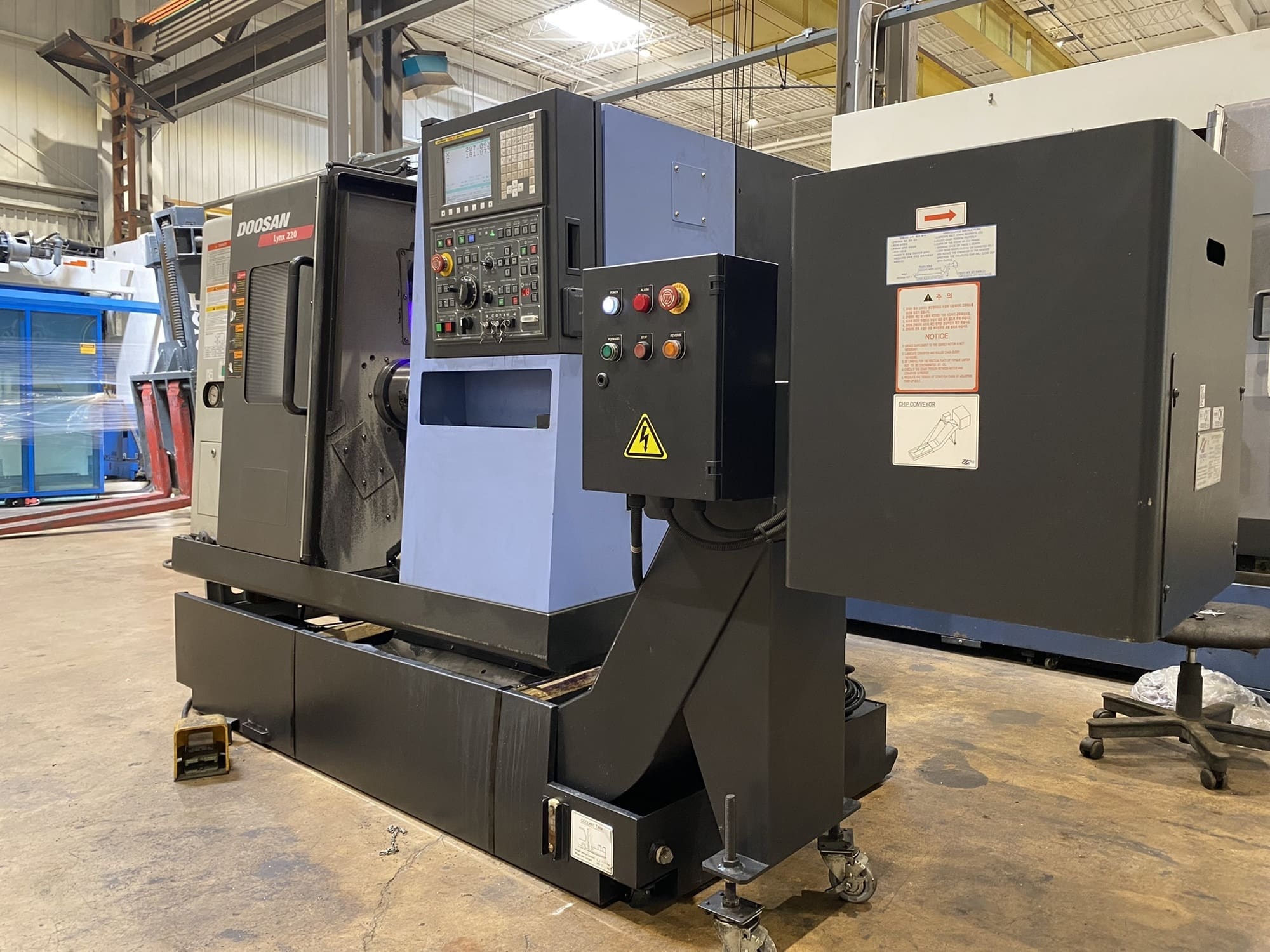

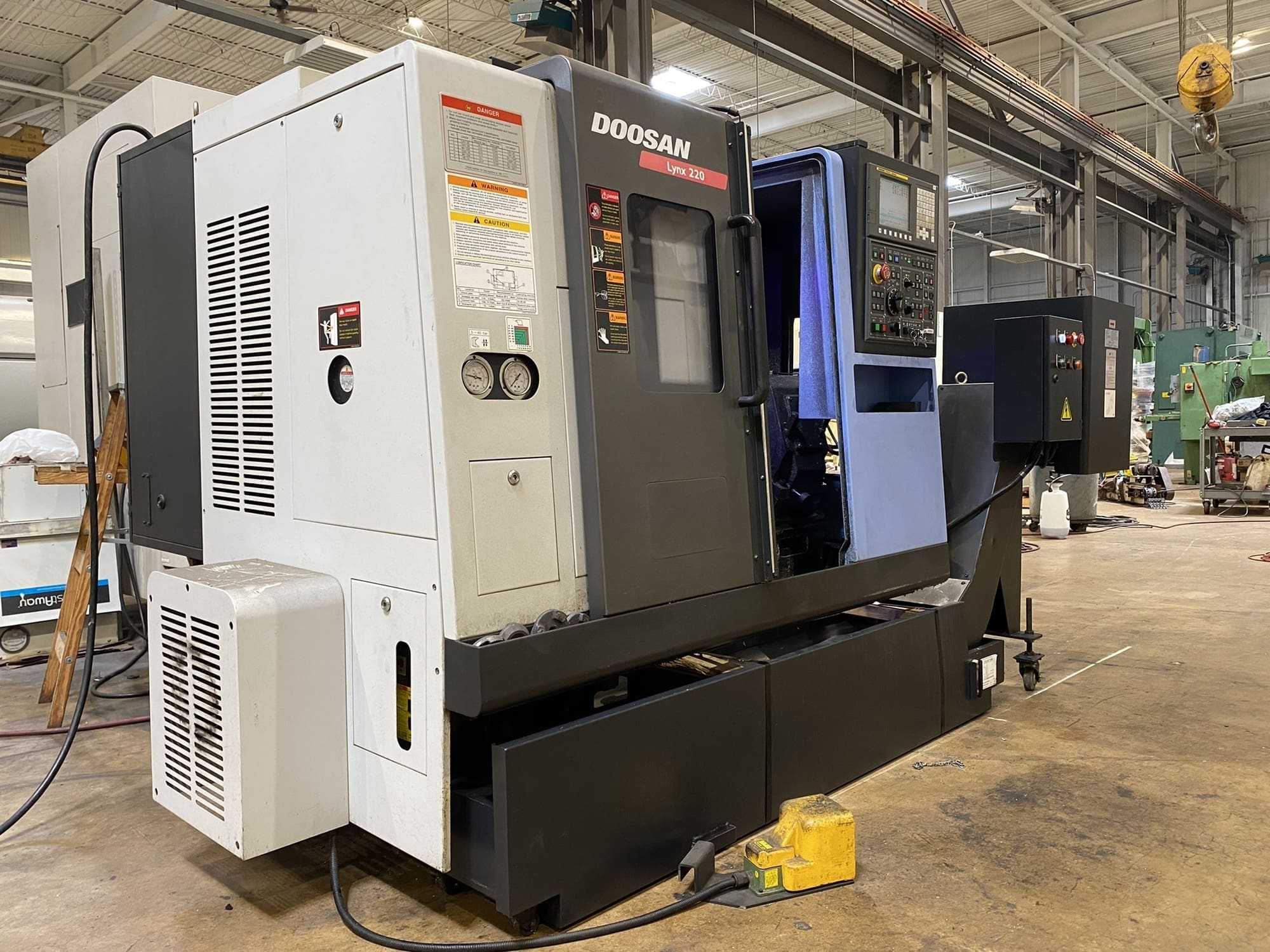

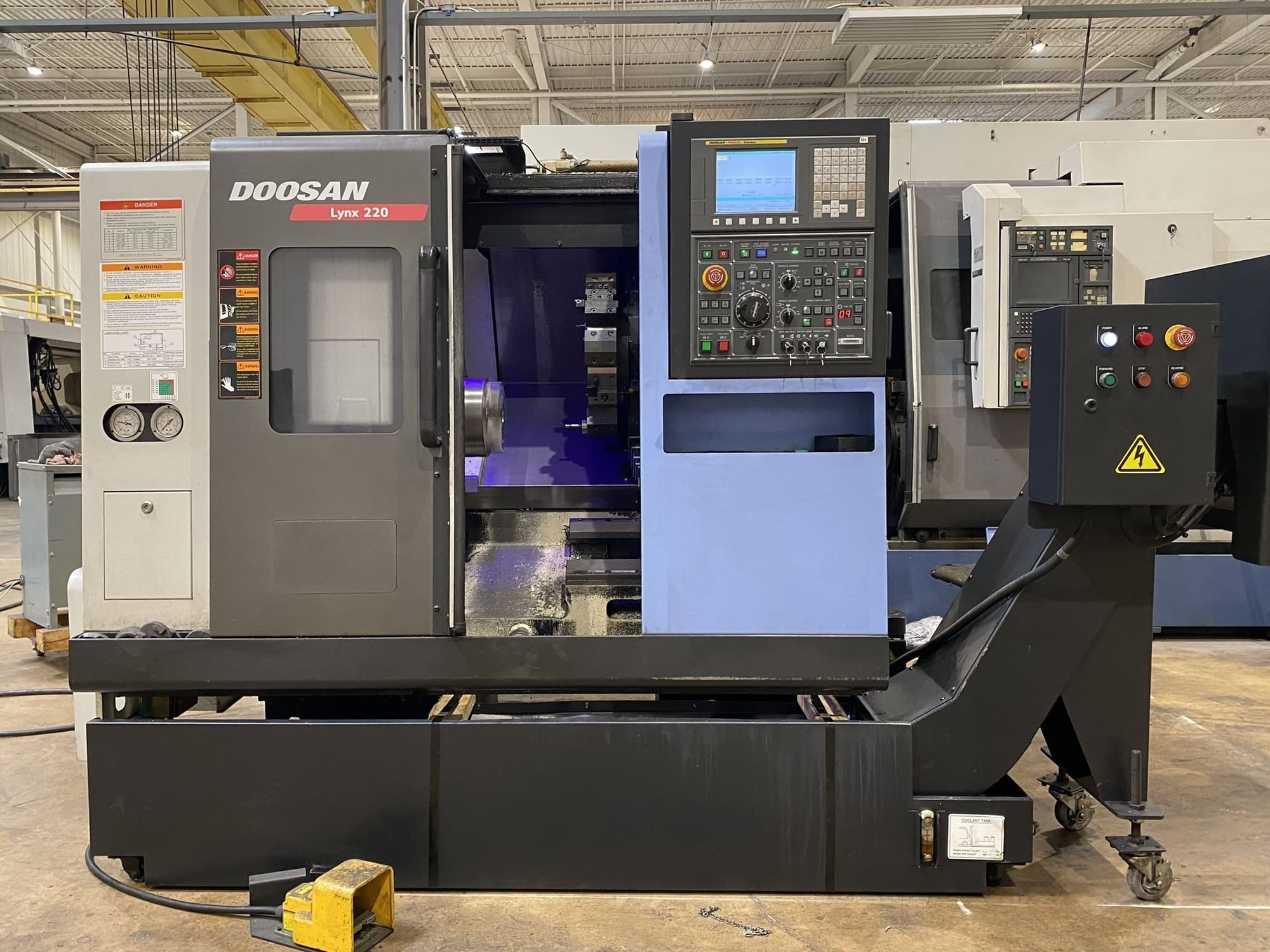

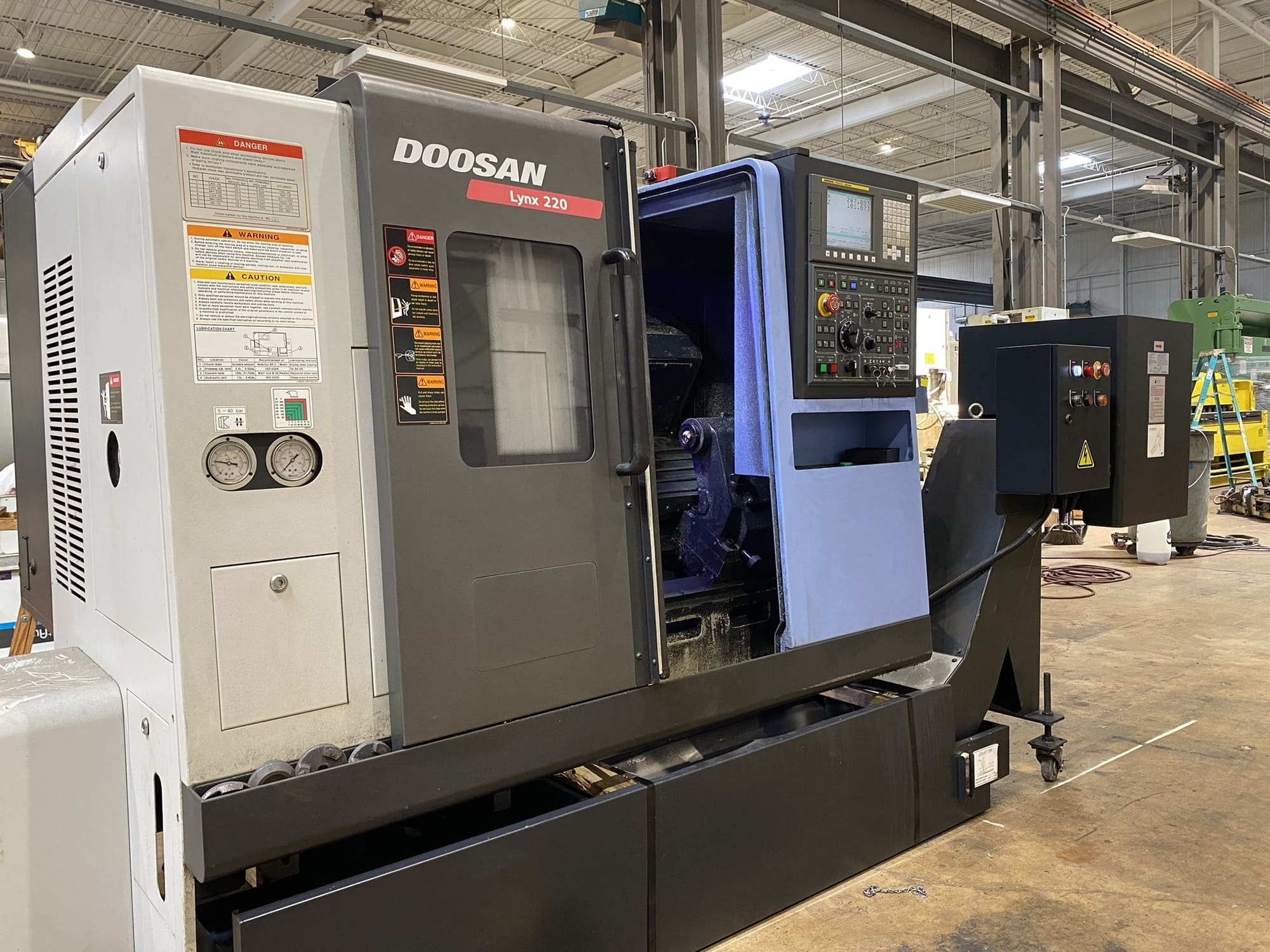

Used Doosan Lynx 220C (2013) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
1.8" |
| Swing |
20.1" |
| Turning Diameter |
12" |
| Spindle Speed |
6,000 RPM |

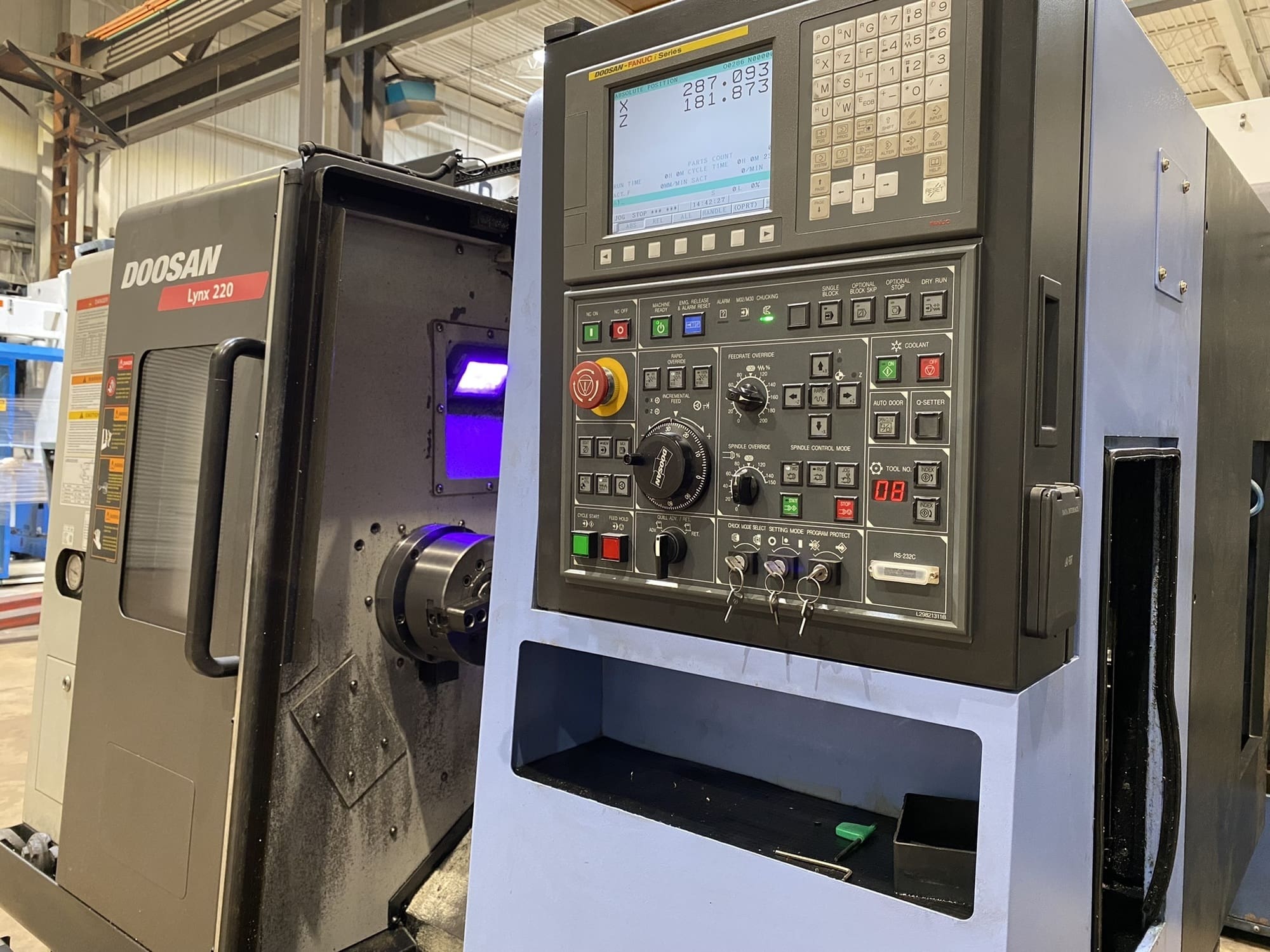

| Control |
Fanuc 0iTB |
| Distance Between Centers |
12.7" |

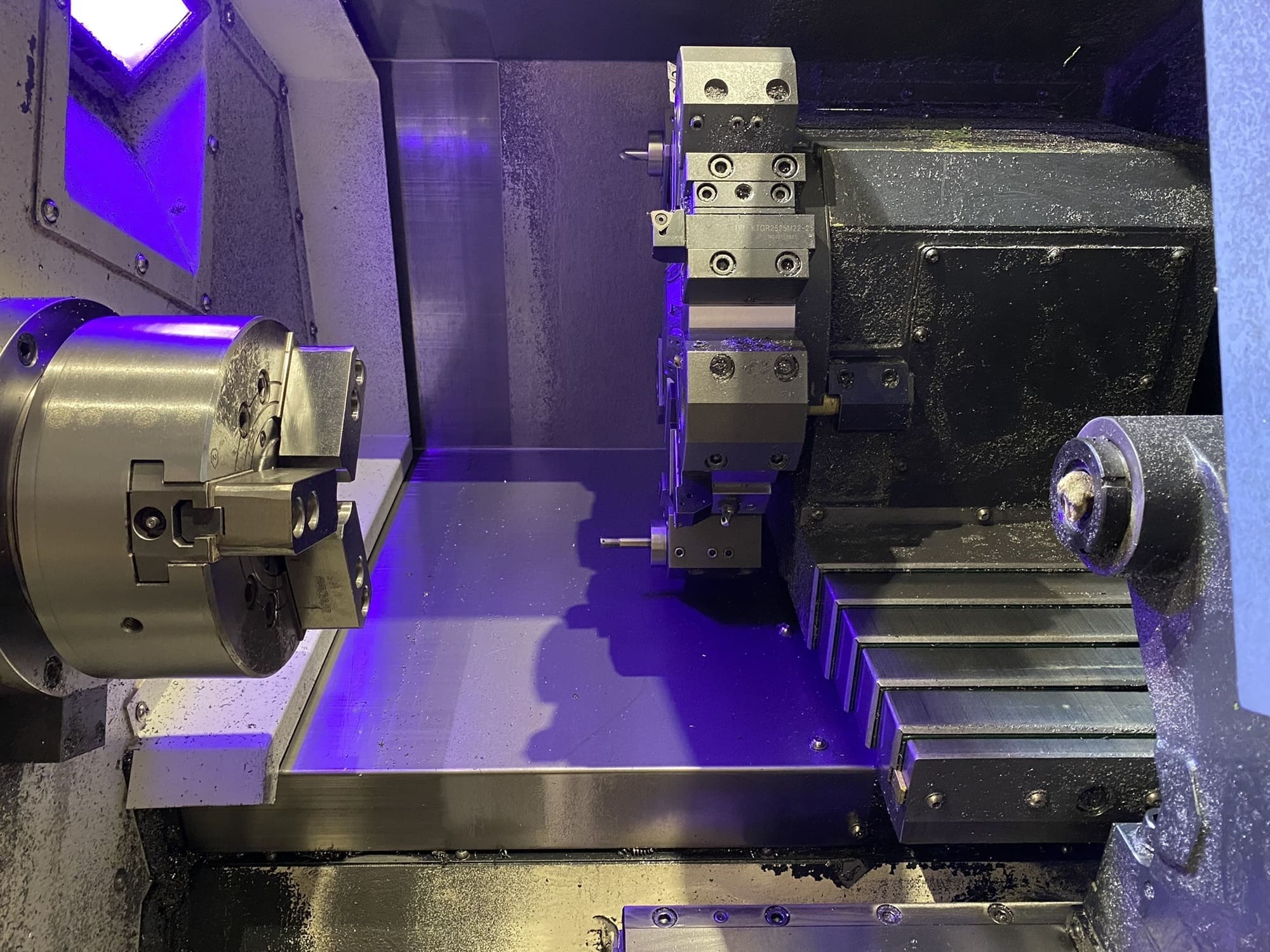

| Turret |
12 Station |
| Chip Removal |
Chip Conveyor |
| X-Axis Travel |
6.51" |
| Z-Axis Travel |
13" |
| Rapid Traverse X/Z |
790/945 IPM |
| Quill DIameter |
2.6" |
| Quill Travel |
2.1" |
| Spindle Motor |
20 HP |
| Power Requirement |
220/3/60 |
| Machine Dimensions |
61" x 66" x 61" |
| Machine Weight |
7,030 Lbs |
Features
|
Hydraulic Chuck |
Programmable Tailstock |
|
Spindle Orientation |
A2-6 Spindle Nose |
|
MT#4 Quill Taper |
