Year |
2013 |
|---|---|
Make |
BLM |
Model |
Adige LT8 |
Description |
CNC Fiber Tube Laser |
Reference # |
8073524 |
Price |
Activate Pricing |

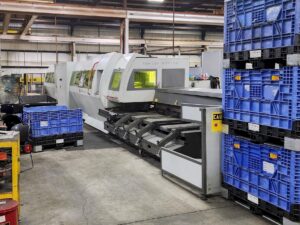

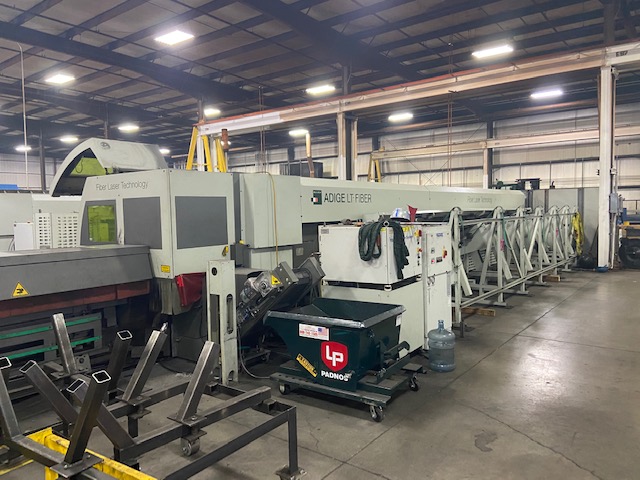

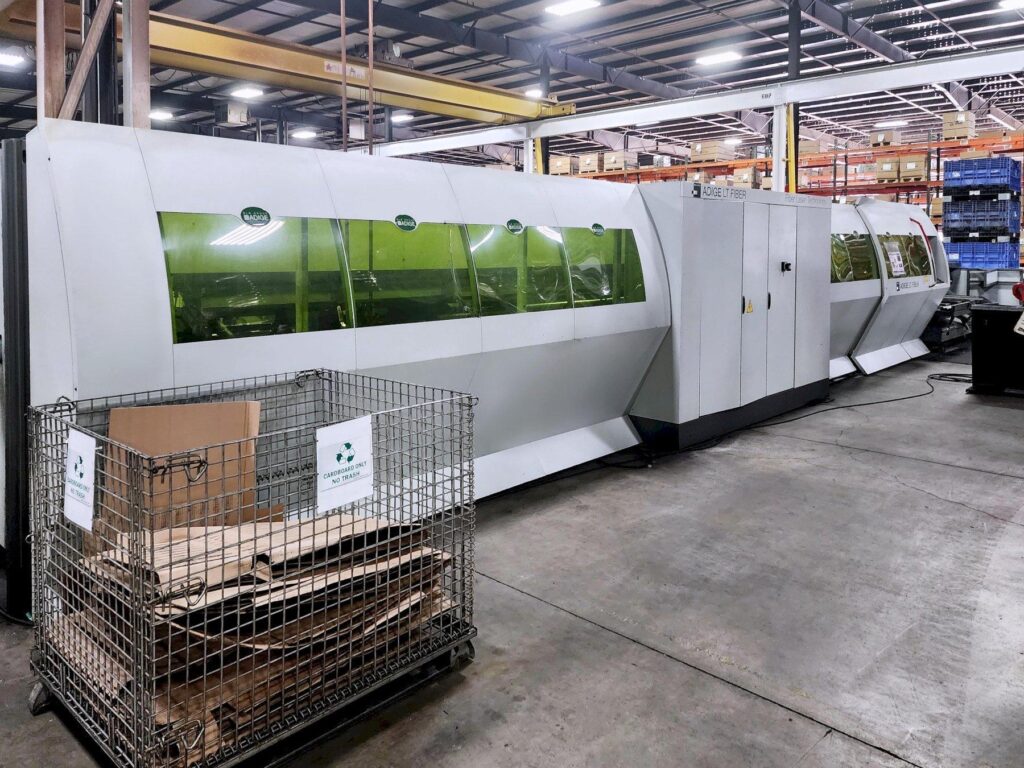

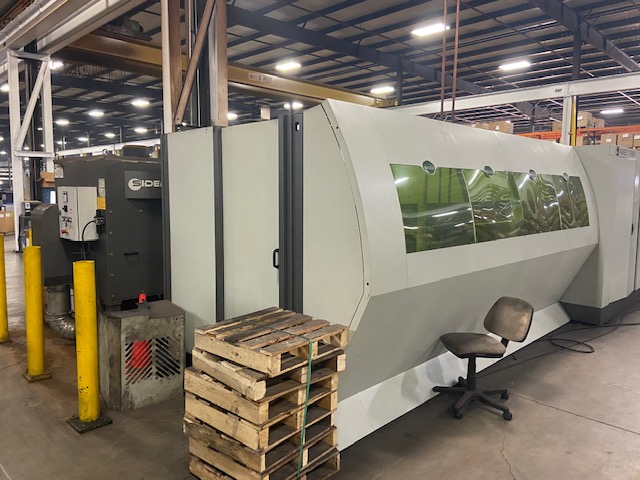

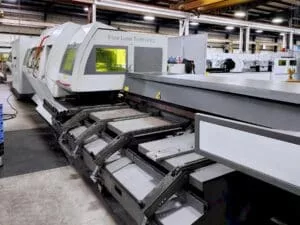

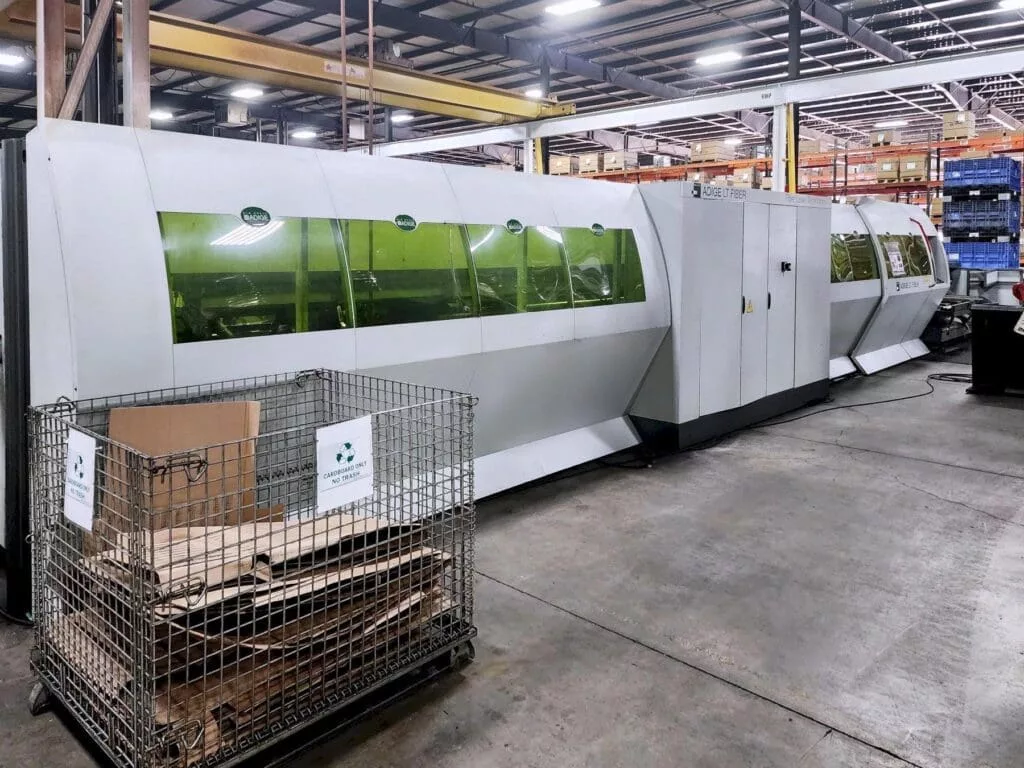

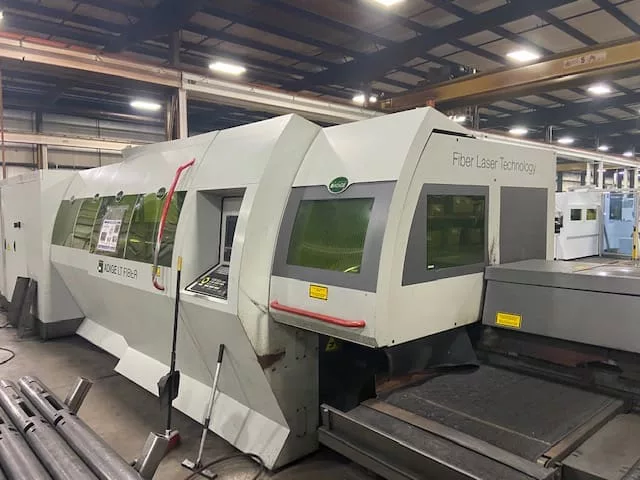

Used BLM Adige LT8 (2013) Laser for Sale. This tube laser is built around a PG YSL-C2000 fiber laser rated at 2,000 watts max wattage, with a compact multimode fiber laser system, Precitec AK-HP-SSL focusing head and closed loop chiller. Cut capacity is 0.5″ x 4.7″, with rounds at 0.5″ x 5.5″, rectangular at 0.5″ x 0.39″ and special shapes at 0.5″ x 0.3″ / 5.5″ x 5.5″. Bar length runs from a 10’6″ minimum (3.2 meter) to 27’10” maximum (8.5 meter), with max part length of 14’7″ front and 9’8″ rear. Equipped with an 8.5M rear automatic bundle loader, 4.5M finished part unloader, unloading parts collection table, rear scrap conveyor, dust collector, weld seam detector optical device, delicate tube handling option and rubber and nylon guards. Available to view under power for inspection. See more used laser cutting machines, then Activate Pricing and Request a Quote.
Specifications
| Max Wattage |
2,000 |
|---|---|
| Cut Capacity |
0.5" x 4.7" |
| Cut Capacity Rounds |
0.5" x 5.5" |
| Cut Capacity Rectangular |
0.5" x 0.39" |
| Cut Capacity Special Shapes |
0.5" x 0.3" / 5.5" x 5.5" |
| Max Bar Length (8.5 Meter) |
27'10" |
| Min Bar Length (3.2 Meter) |
10'6" |
| Max Part Length (4.5 Meter) |
14’7” Front / 3.0m – 9’8” Rear |
Features
|
4.5M Finished Part Unloader |
8.5M Rear Automatic Bundle Loader |
|
Closed Loop Chiller |
Compact Multimode Fiber Laser System |
|
Delicate Tube Handling Option |
PG YSL-C2000 Fiber Laser |
|

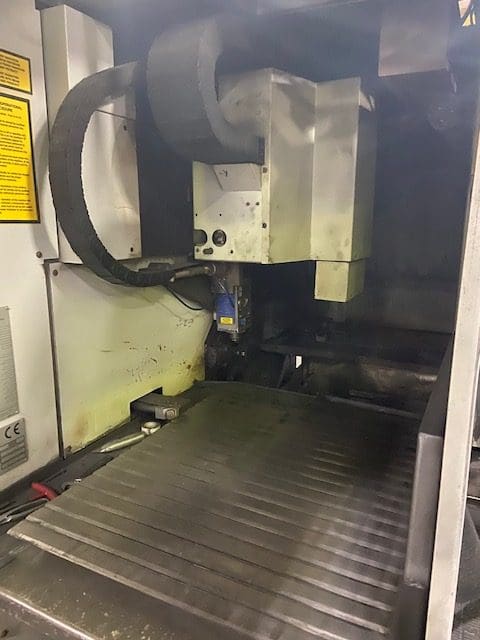

Precitec AK-HP-SSL Focusing Head |
Rear Scrap Conveyor |
|
Rubber and Nylon Guards (For Minimizing Tube Marring During Feeding) |
Unloading Parts Collection Table |
|
Weld Seam Detector Optical Device (For Welding Seam-Line Identification and Orientation) |
Dust Collector |
