Year |
2018 |
|---|---|
Make |
Trumpf |
Model |
Trulaser Weld 5000 |
Description |
Fiber Robotic Laser Welding Cell |
Reference # |
8078614 |
Price |
Activate Pricing |

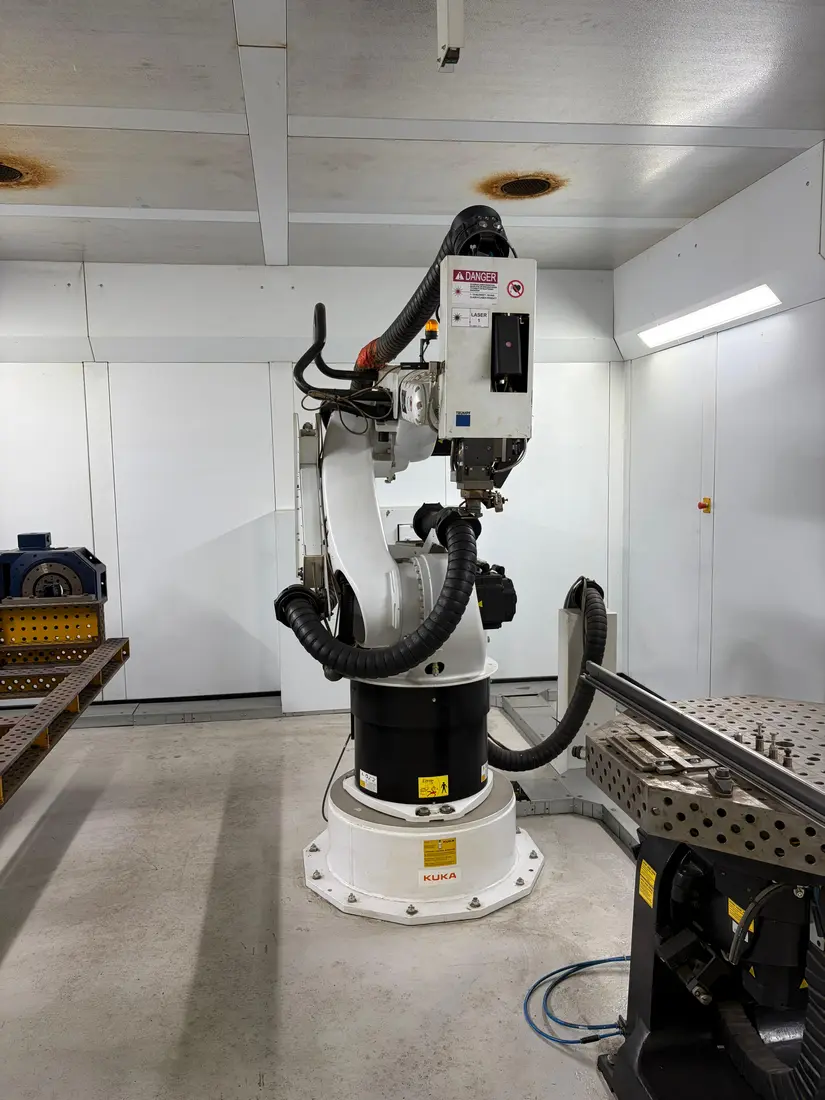

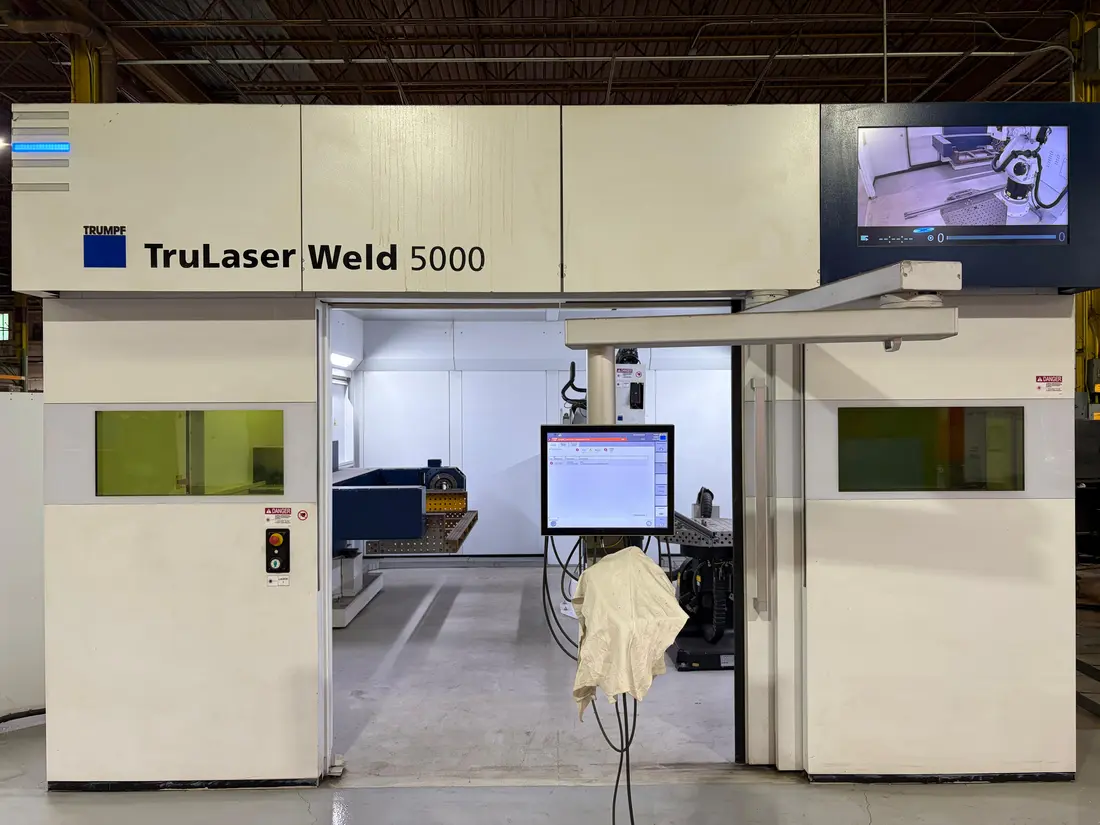

Used Trumpf Trulaser Weld 5000 (2018) Laser for Sale. This 6-axis laser welding cell is powered by a Trumpf TruDisk 3002 fiber engine with a max wattage of 3,000 and offers repeatability of +/- 0.002″. Max work area measures 78.74″ x 39.37″ x 47.24″, with a nominal carrying capacity of 154 lbs and max loading of 881 lbs. Equipped with a dual station table with rotational axis and stepped ladder frame, tilt table, Teachline control, Weldline module, Fusionline, welding optic, CNC programmable shielding gas nozzle, linear and aerator nozzles, argon connection for shielding gas, nitrogen shielding gas supply, status monitor with data package, dust collector unit, safety enclosure with one window in each front cabin element, and chiller. See photos for more specs. Available for inspection under power. Browse more Trumpf machines and used laser cutting machines, then Activate Pricing or Request a Quote.
Specifications
| Max Wattage |
3,000 |
|---|---|
| Nominal Carrying Capcity |
154 Lbs |
| Repeatability |
+/- 0.002" |
| Max Work Area |
78.74" x 39.37" x 47.24" |
| Max Loading |
881 Lbs |
Features
|
6 Axes |
Argon Connection For Shielding Gas |
|
CNC Programmable Shielding Gas Nozzle |

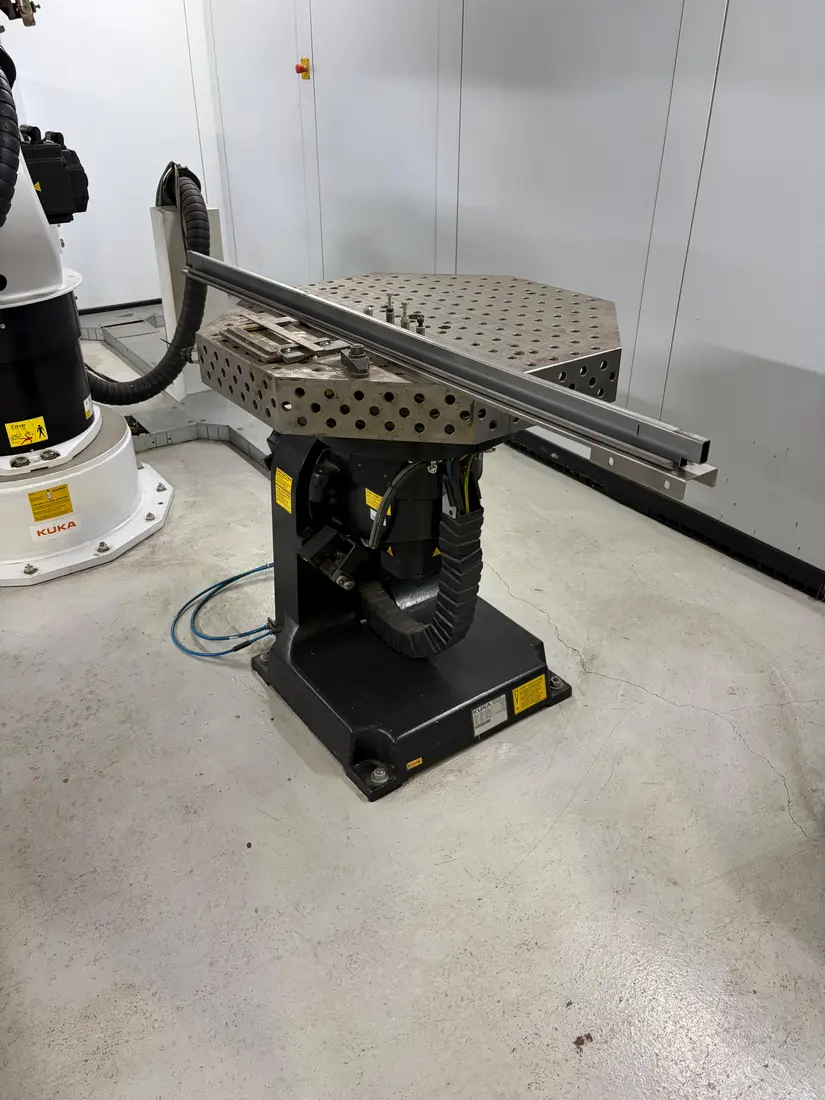

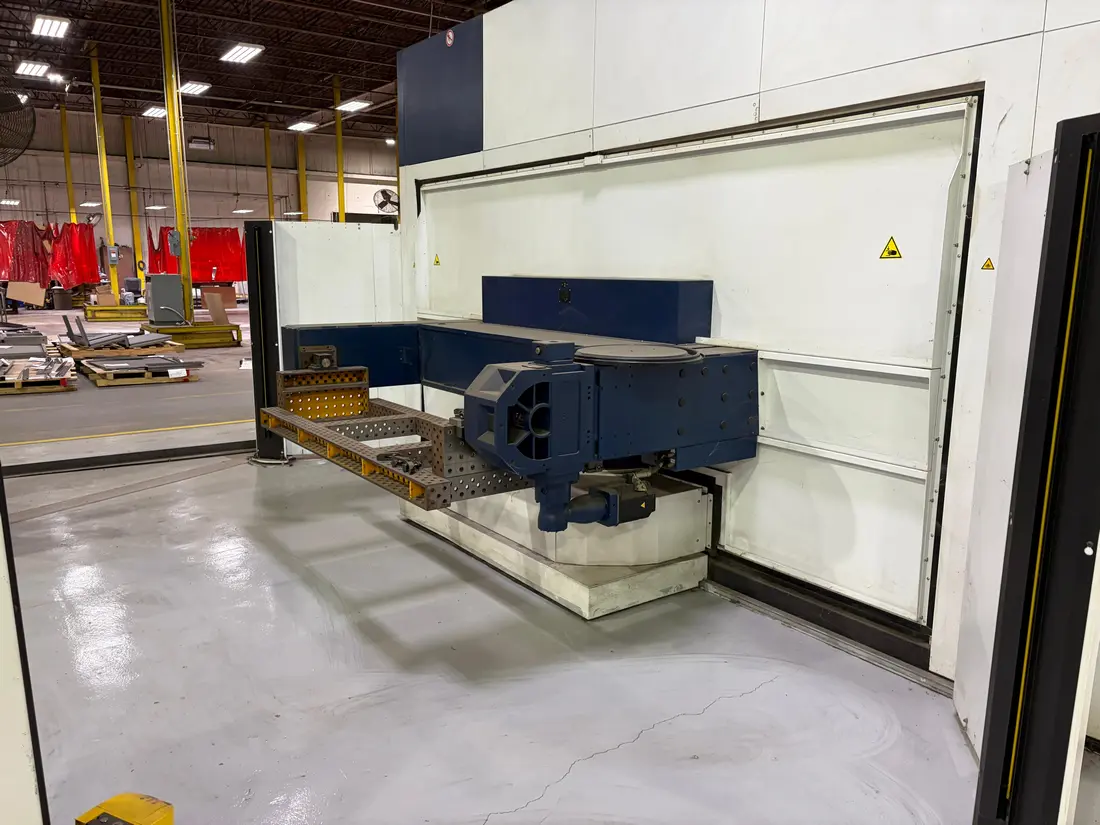

Dual Station Table with Rotational Axis with Stepped Latter Frame |
|

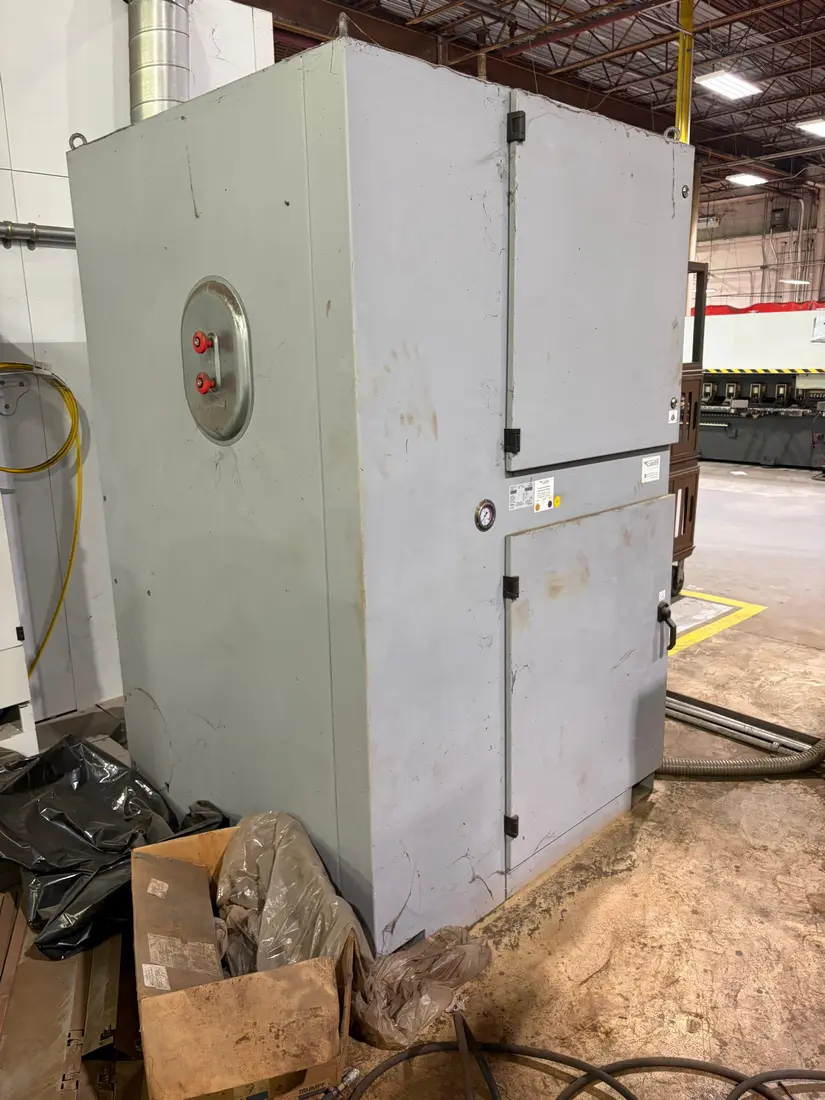

Dust Collector Unit |
Fusionline |
|
Linear Nozzle and Aerator Nozzle |
One Window In Each Front Cabin Element |
|
Shielding Gas Supply - Nitrogen |
Status Monitor With Data Package |
|
Teachline Control |
Tilt Table |
|
Trumpf Trudisk 3002 Fiber Engine |
Welding Optic |
|
Weldline Module |
Safety Enclosure |
|
Chiller Included |

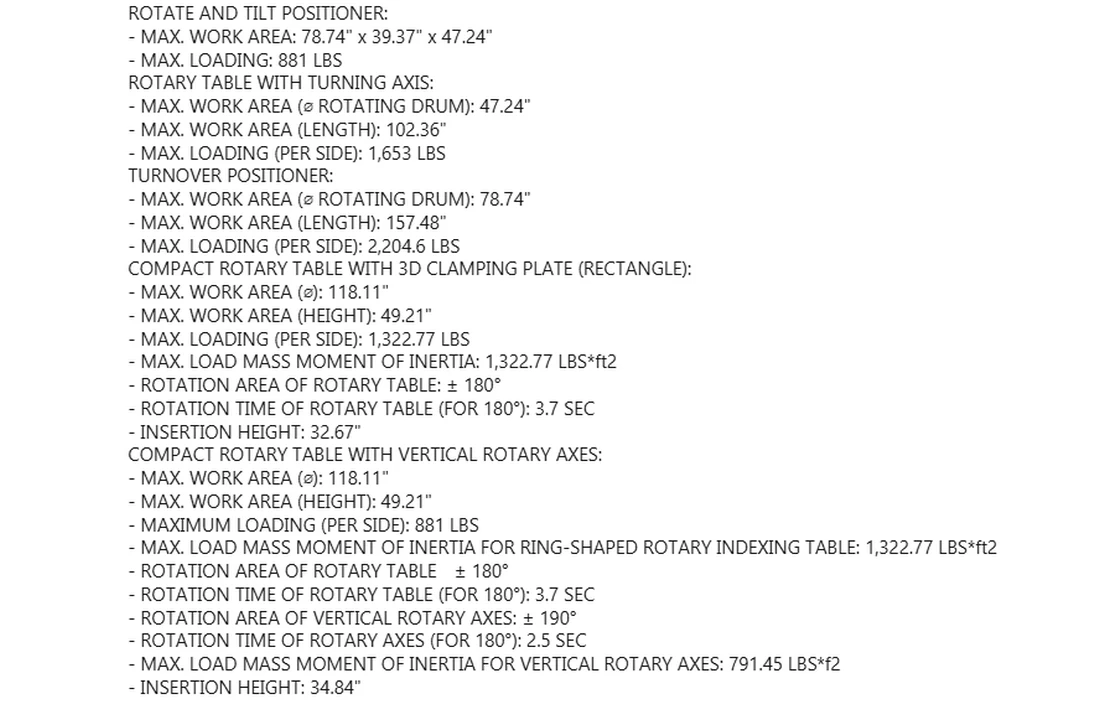

See Photos for More Specs |
