Year |
2013 |
|---|---|
Make |
Accuway |
Model |
UV-100 |
Description |
CNC Vertical Turret Lathe |
Reference # |
8077733 |
Price |
Activate Pricing |

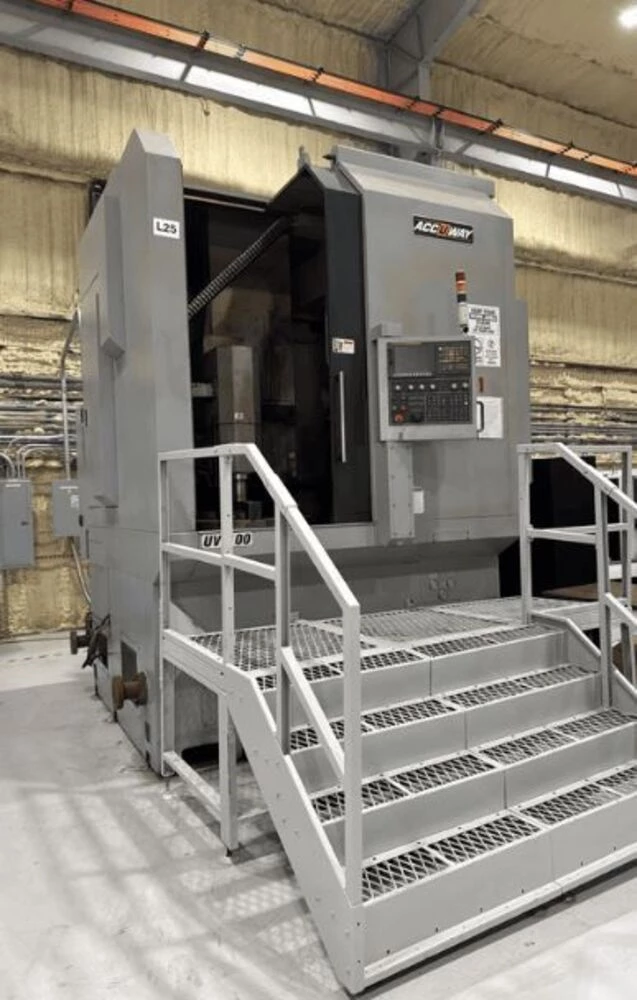

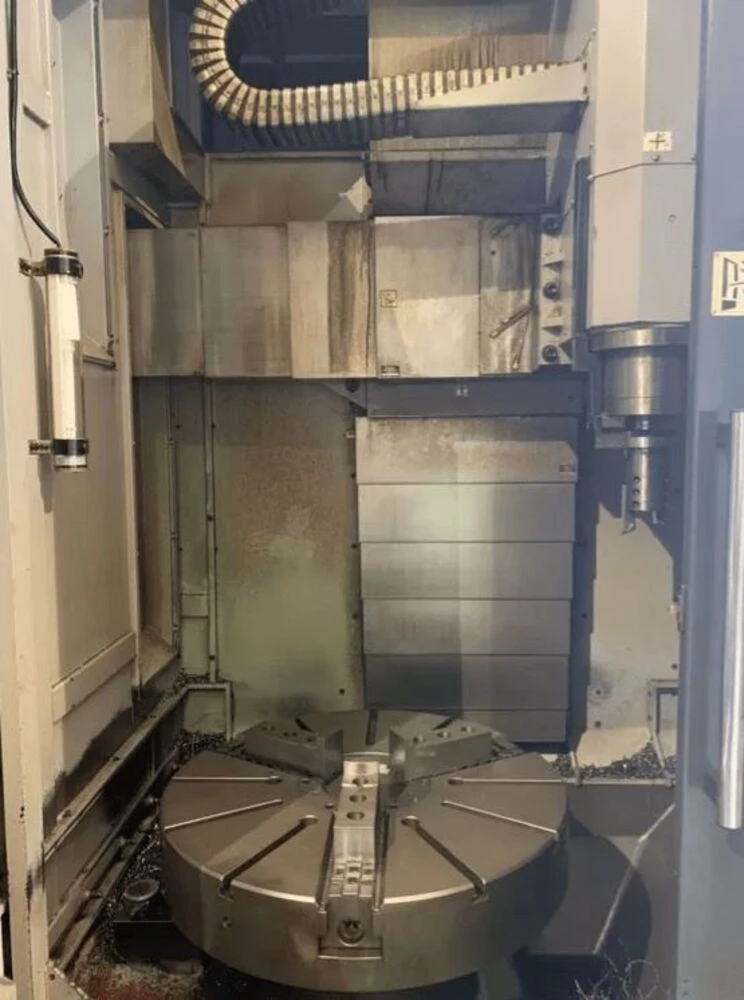

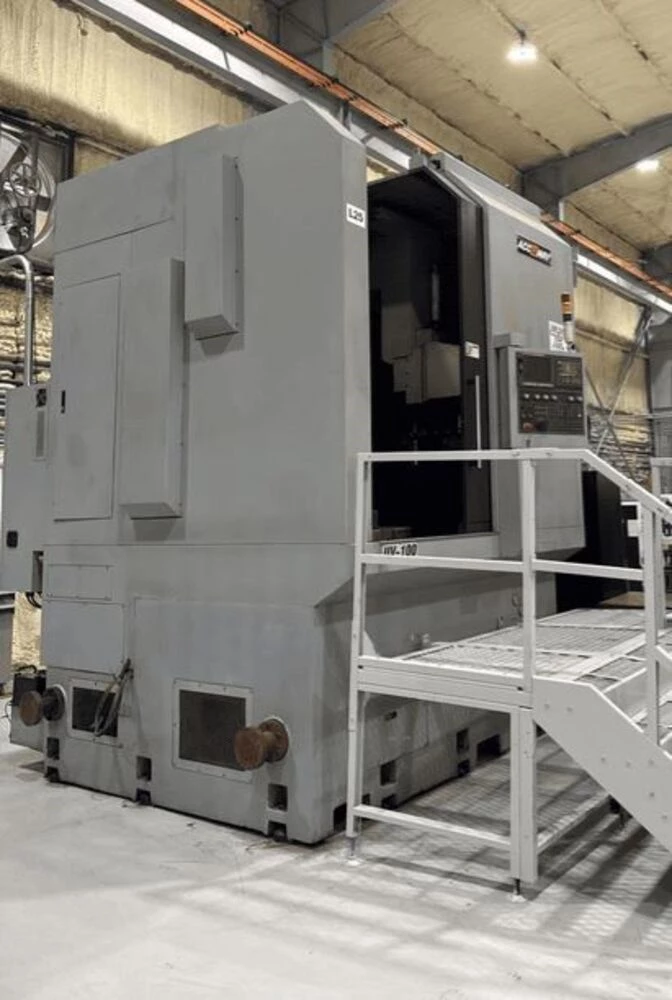

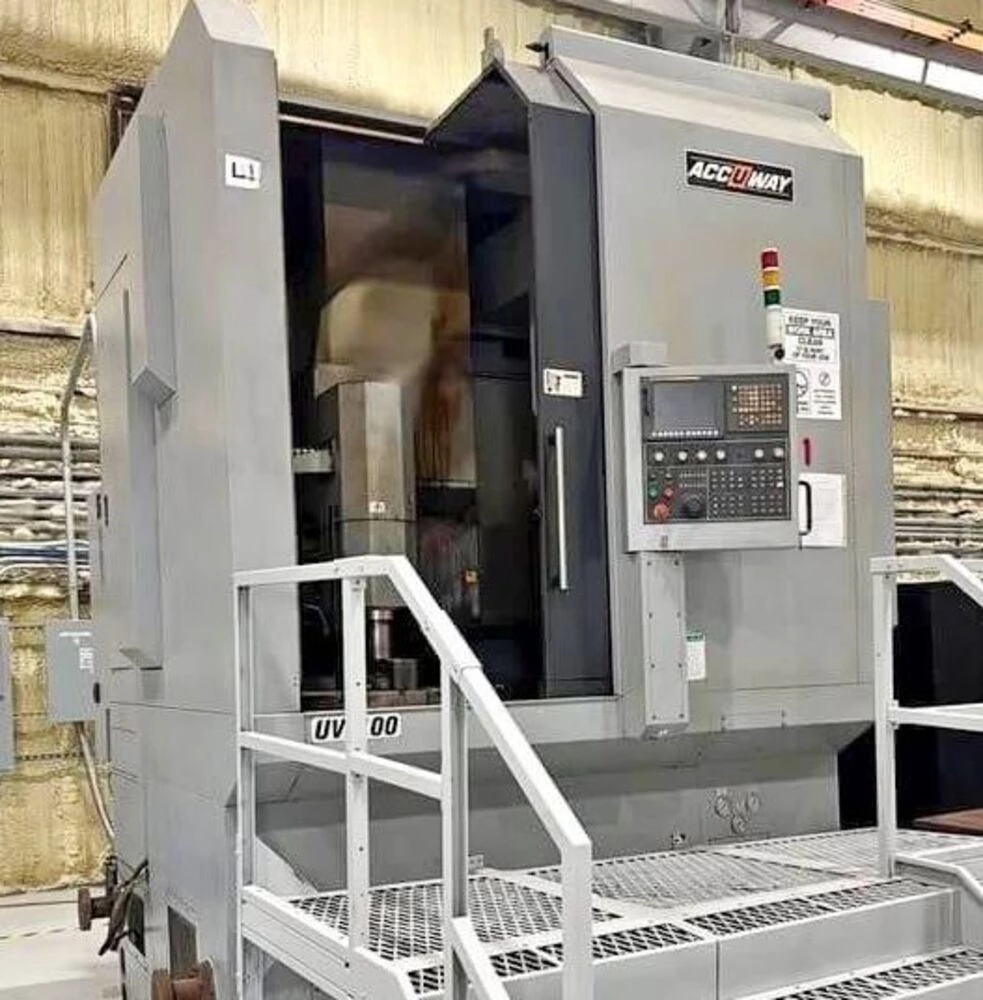

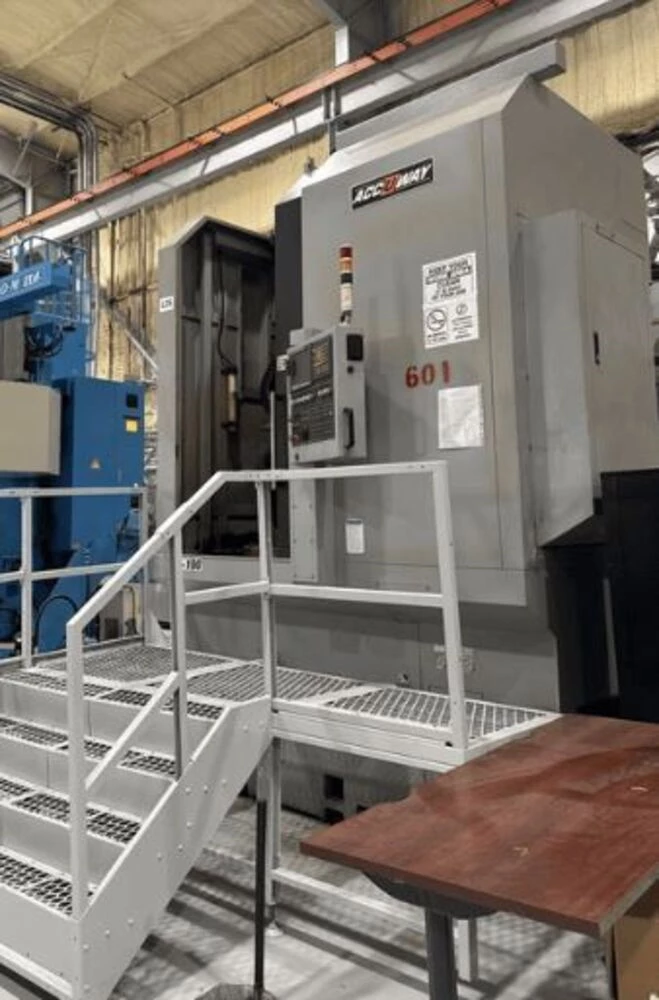

Used Accuway UV-100 (2013) CNC Lathe for Sale. This vertical turning lathe is fitted with a Fanuc control and a 10.4″ colored LCD monitor. It carries a 40″ chuck size, 43″ swing, 39″ turning diameter and a spindle speed of 1,200 RPM. A 12 station turret with C-Axis live tooling and BT50 tooling is included, along with a single chain type chip conveyor and chip cart. Additional equipment consists of a 4-bar coolant system, Auto Strong V-240 40″ 3-jaw chuck, hydraulic chuck and cylinder, hydraulic power supply unit, heat exchanger for the electric cabinet, RJ-45 interface, stainless steel way covers, three-color warning light and lubrication system. The machine can be seen under power for an inspection. Browse more used CNC lathes, then Activate Pricing or Request a Quote. This machine is located in Illinois.
Specifications
| Chuck Size |
40" |
|---|---|
| Swing |
43" |
| Turning Diameter |
39" |
| Spindle Speed |
1,200 RPM |
| Control |
Fanuc |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
Features
|
10.4" Colored LCD Monitor |
4-Bar Coolant System |
|
Auto Strong V-240 40" 3-Jaw Chuck |
BT50 |
|
Heat Exchanger for Electric Cabinet |
Hydraulic Chuck and Cylinder |
|
Hydraulic Power Supply Unit |
Live Tool |
|
RJ-45 Interface |
Single Chain Type Chip Conveyor and Chip Cart |
|
Stainless Steel Way Covers |
Three-Color Warning Light |
|
Lubrication System |
