Year |
2012 |
|---|---|
Make |
Peddinghaus |
Model |
Liberator |
Description |
Robotic Cutting Beam Cope |
Reference # |
8075947 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

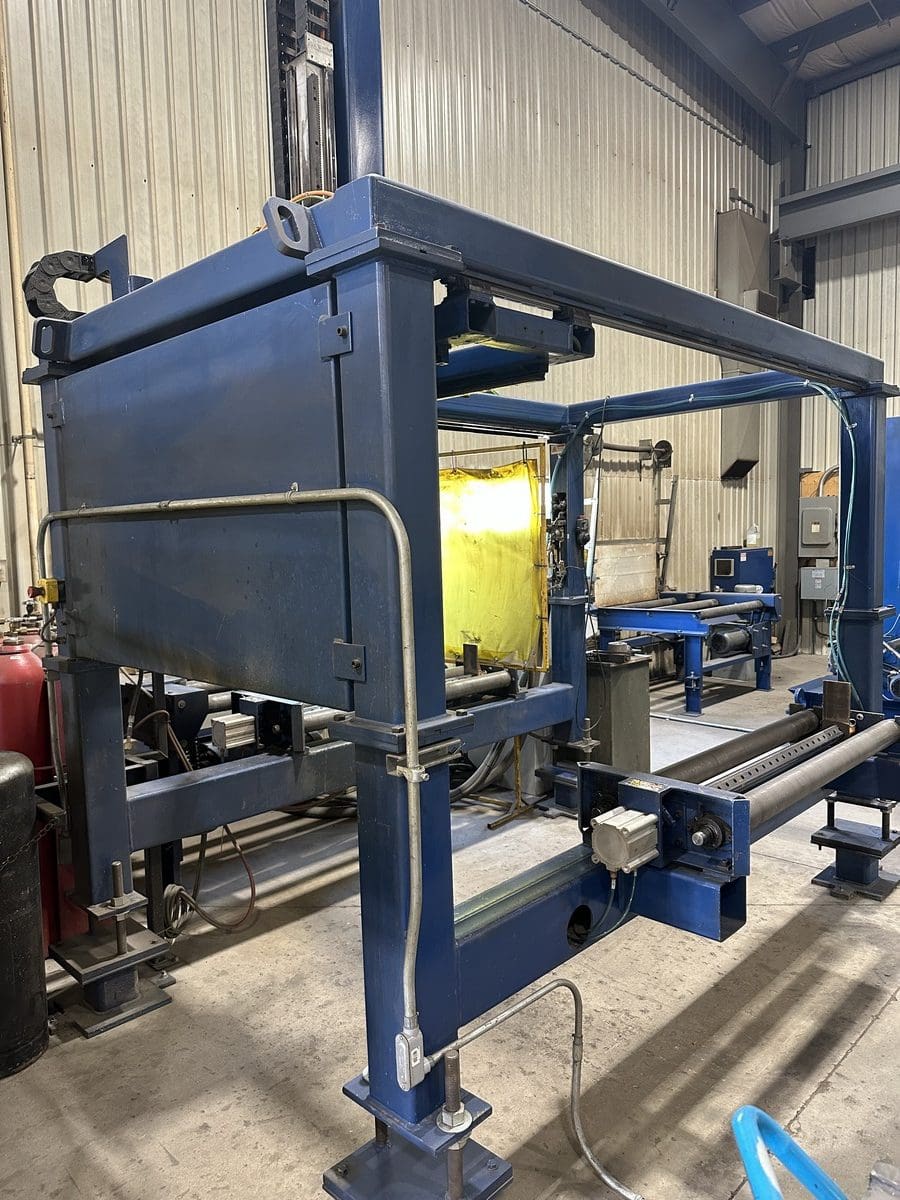

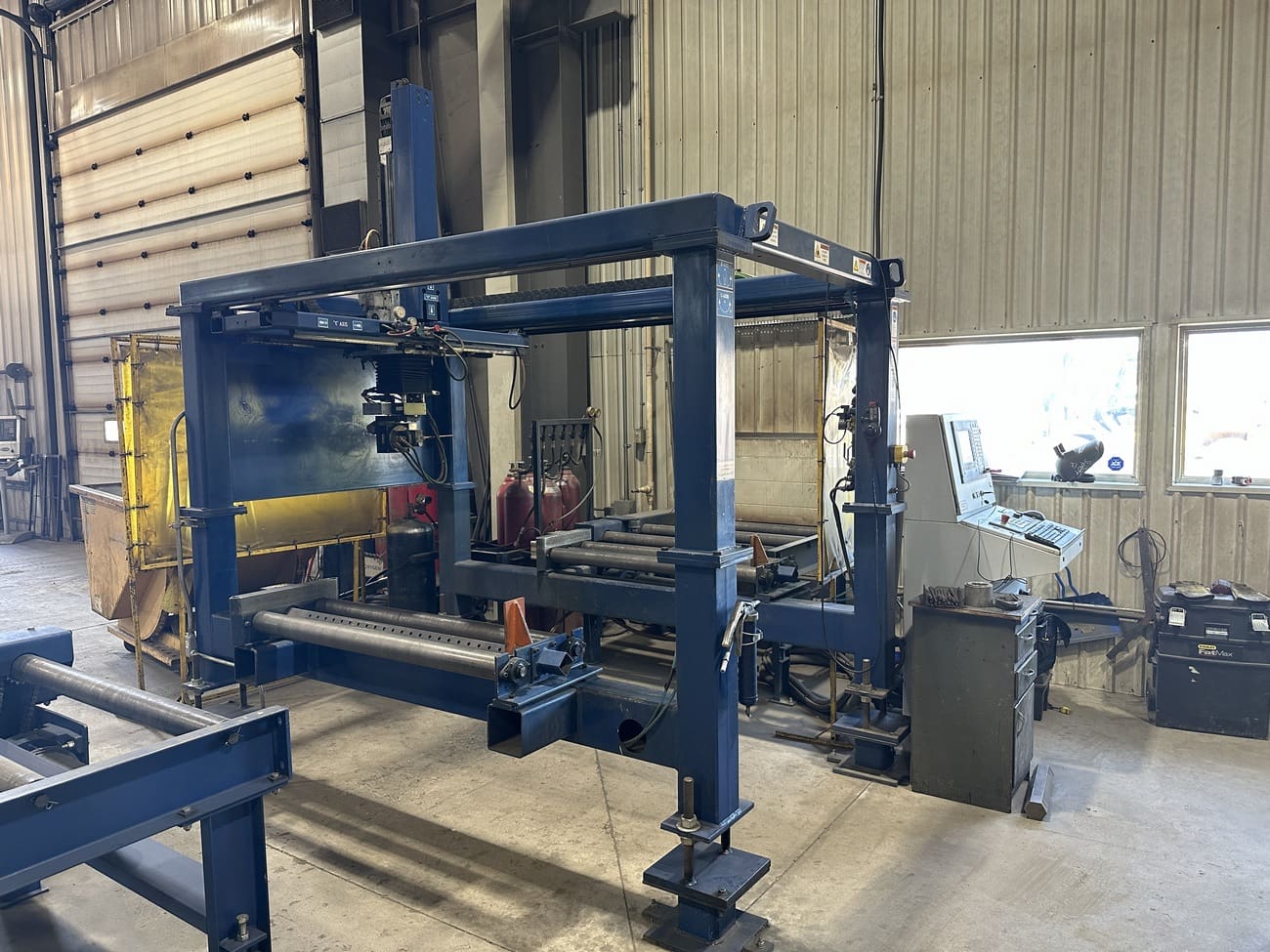

Peddinghaus Liberator
Specifications

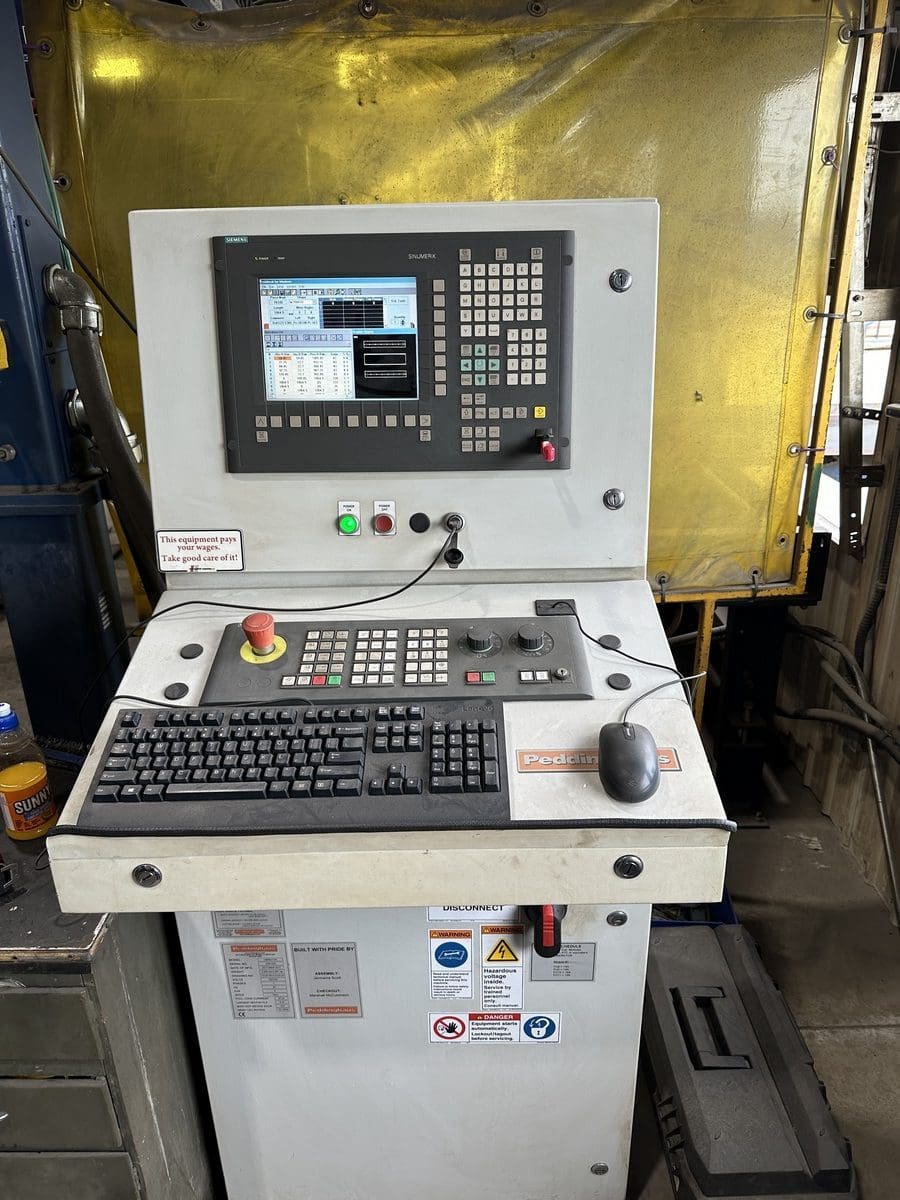

| Control |
Siemens 840D CNC |
|---|---|
| Max Profile Size |
44" x 24" |
| Max Plate Width |
48" |
| Flange Bevels |
+/- 45 Degrees |
| Web Bevels |
+/- 45 Degrees (External Only) |
| Max Material Thickness |
6" |
| Max Thickness |
10" |
| Traverse Speed |
100 - 400 IPM |
| Cutting Speed |
7 - 30 IPM |
| X-Axis Travel |
46" |
| Y-Axis Travel |
76" |

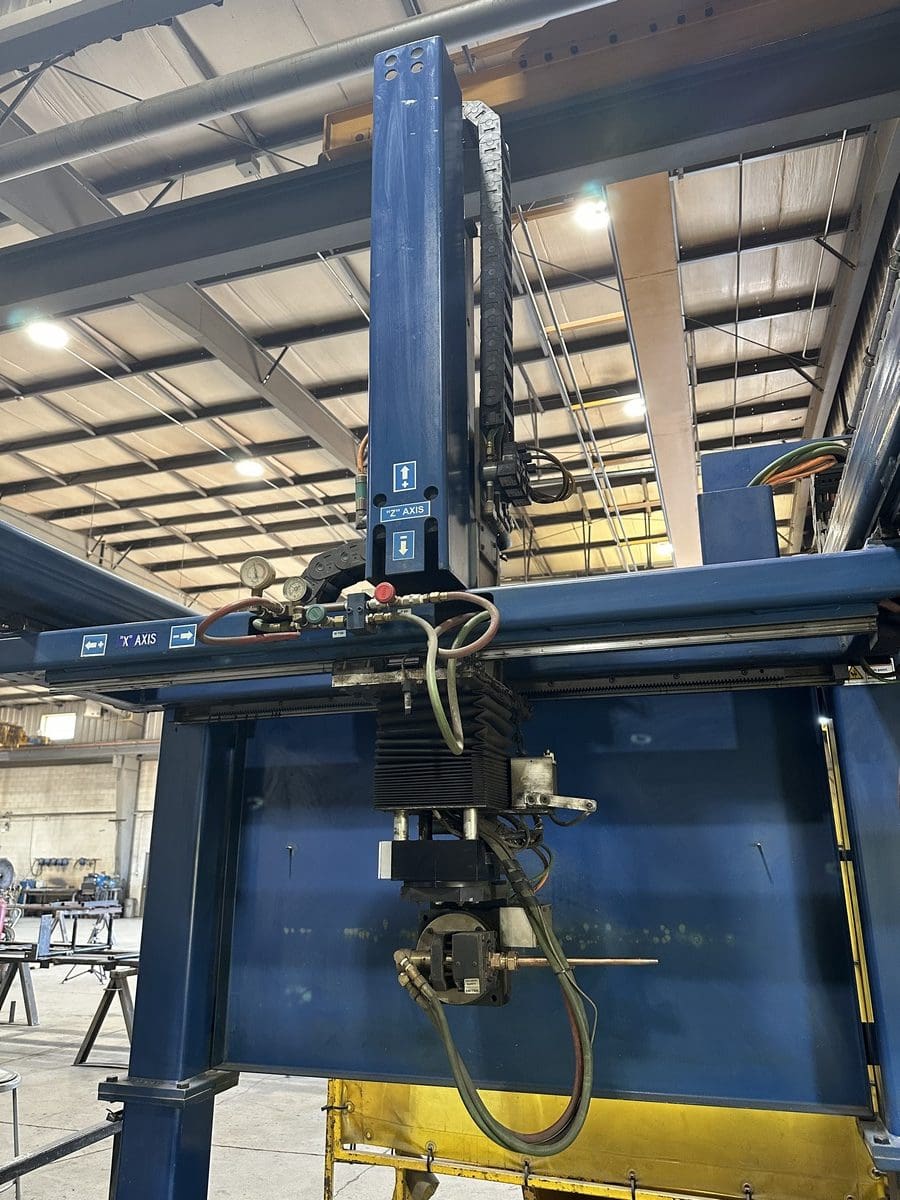

| Z-Axis Travel |
30" |
| B/C-Axis |
270 Degrees |
| Repeatability of X, Y & Z |
+/- .001" |
| Cutting with Oxy-Fuel |
+/- .06255" |
| Note |
Enable you to make any type of cut on beams, channels, angels, plates, and rectangular tubes. |
Features
|

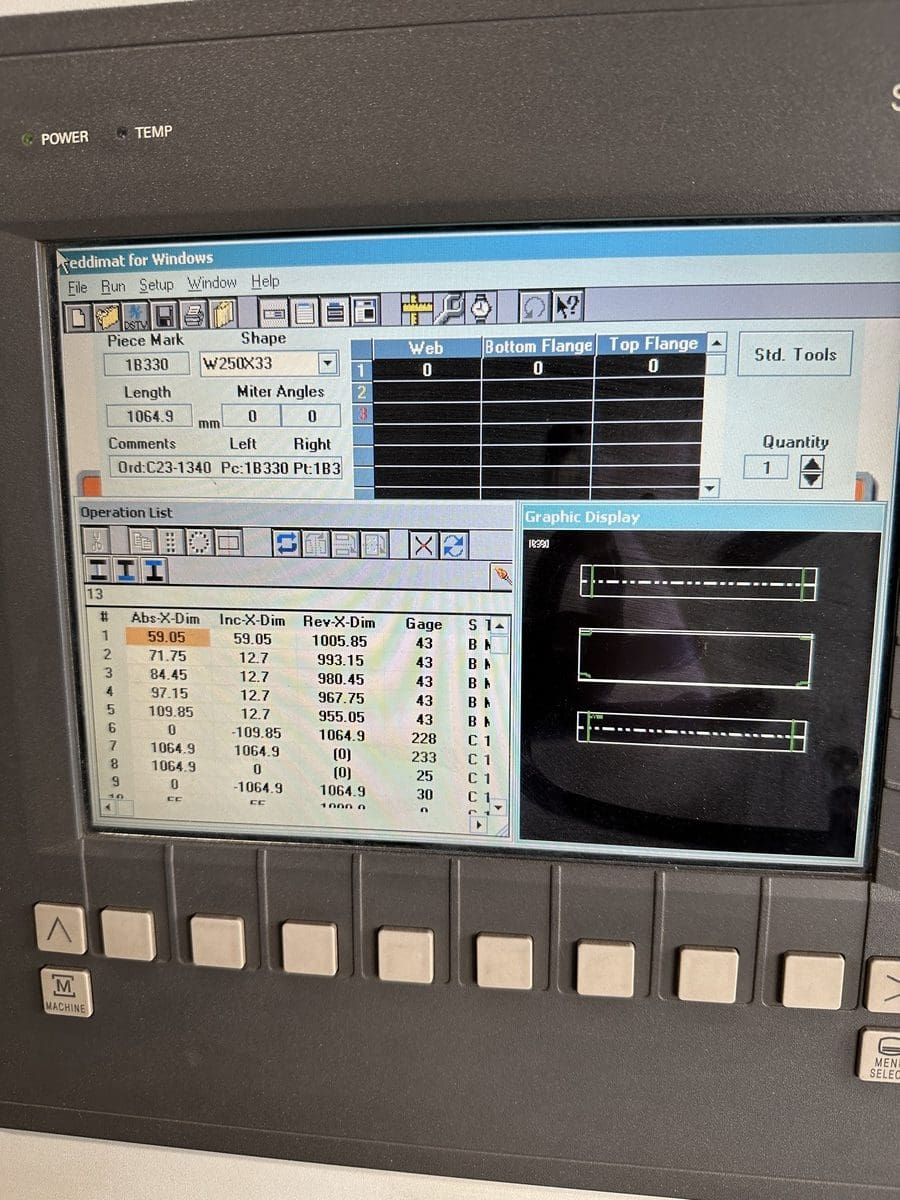

Programmed Cuts |
