Year |
2012 |
|---|---|
Make |
Haitian |
Model |
VE-1900-580C |
Description |
215 Ton 12.63 oz Electric Injection Molding Machine |
Reference # |
8078145 |
Price |
Activate Pricing |

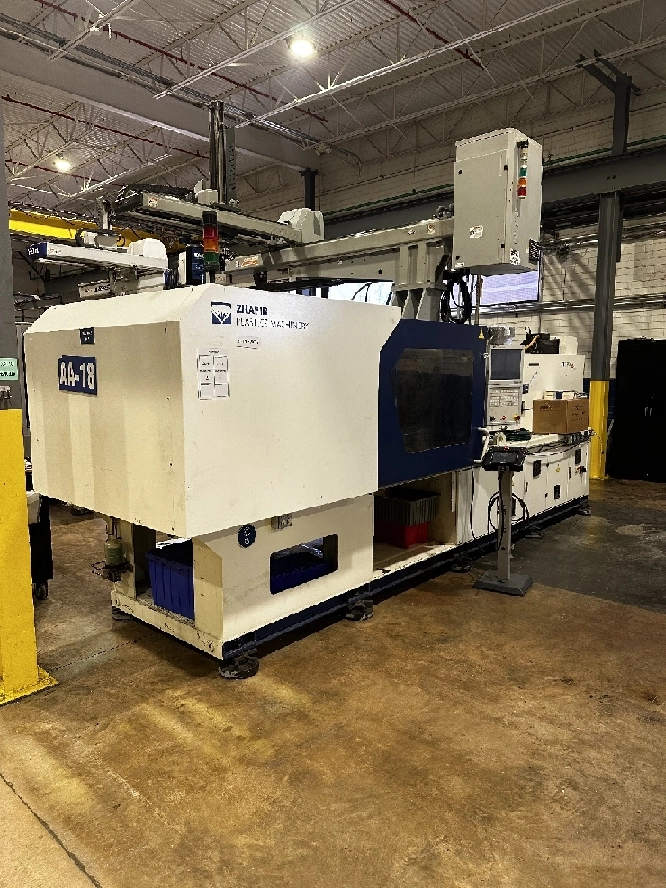

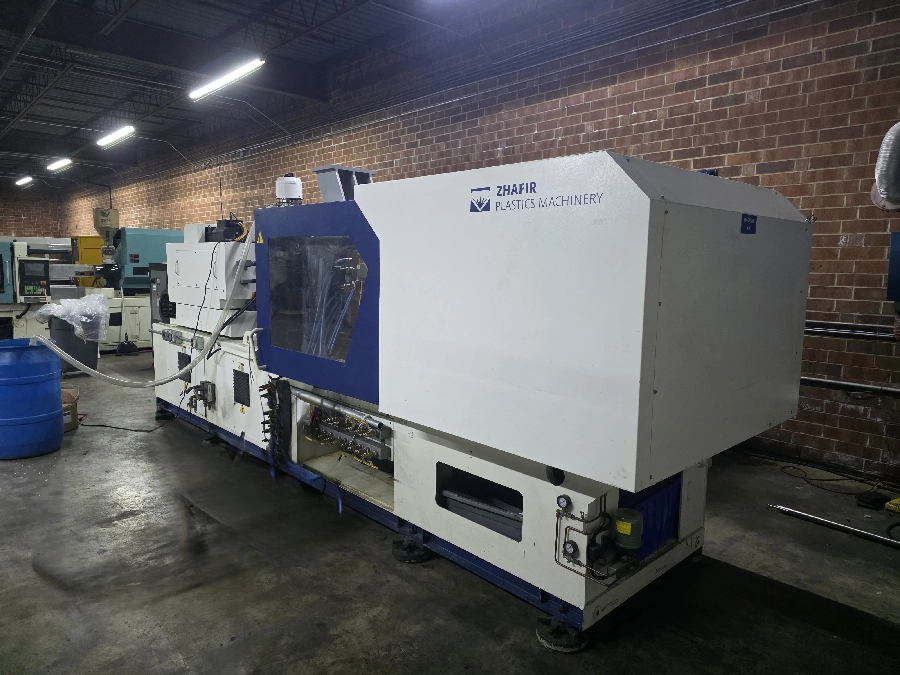

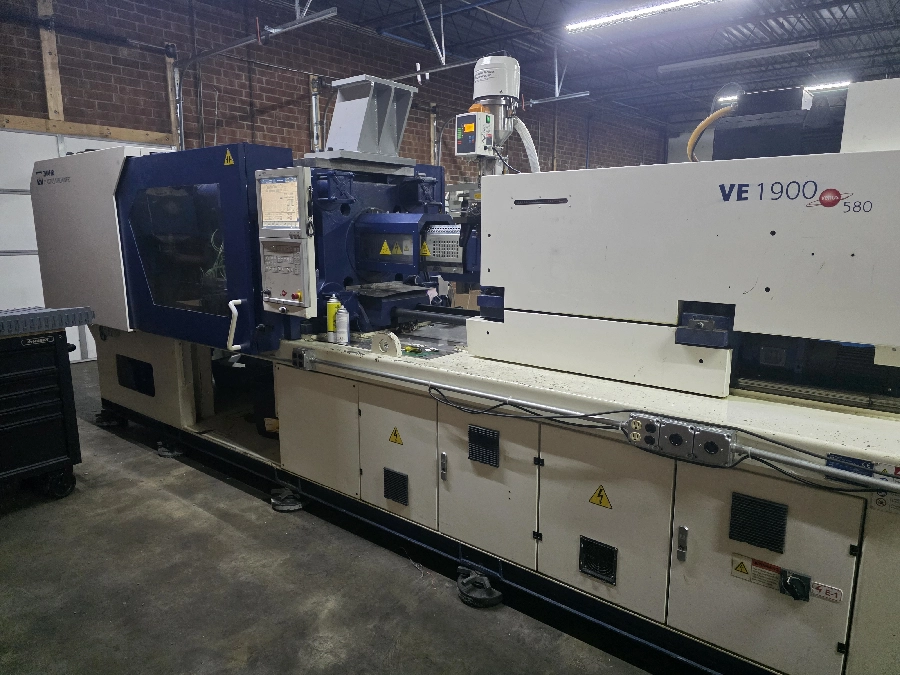

Used Haitian VE-1900-580C (2012) Injection Molding Machine for Sale. This all-electric press is rated at 215 Ton clamping force with a 12.63 oz shot size. Tie bar spacing measures 22.44″ x 20.47″, with platen size of 33.66″ x 31.89″ and an 18.5″ clamp stroke. Minimum and maximum mold height are 7.87″ and 21.65″ respectively. The machine is equipped with air blow and a robot interface, and includes a 2016 Max BWD8-1300P robot. The press can be seen under power for a full inspection prior to purchase. See additional stock in our plastic injection molding machines category. Use Activate Pricing to view the current asking price, or Request a Quote and one of our representatives will follow up with details. This machine is located in North Carolina.
Specifications
| Capacity |
215 Ton |
|---|---|
| Shot Size |
12.63 oz |
| Tie Bar Spacing |
22.44" x 20.47" |
| Platen Size |
33.66" x 31.89" |
| Clamp Stroke |
18.5" |
| Min /Max Mold Height |
7.87"/21.65" |
Features
|
2016 Max BWD8-1300P Robot Included |
Air Blow |
|
Robot Interface |
