Year |
2011 |
|---|---|
Make |
Toyoda |
Model |
FH400J |
Description |
CNC Horizontal Machining Center |
Reference # |
8072820 |
Price |
Activate Pricing |

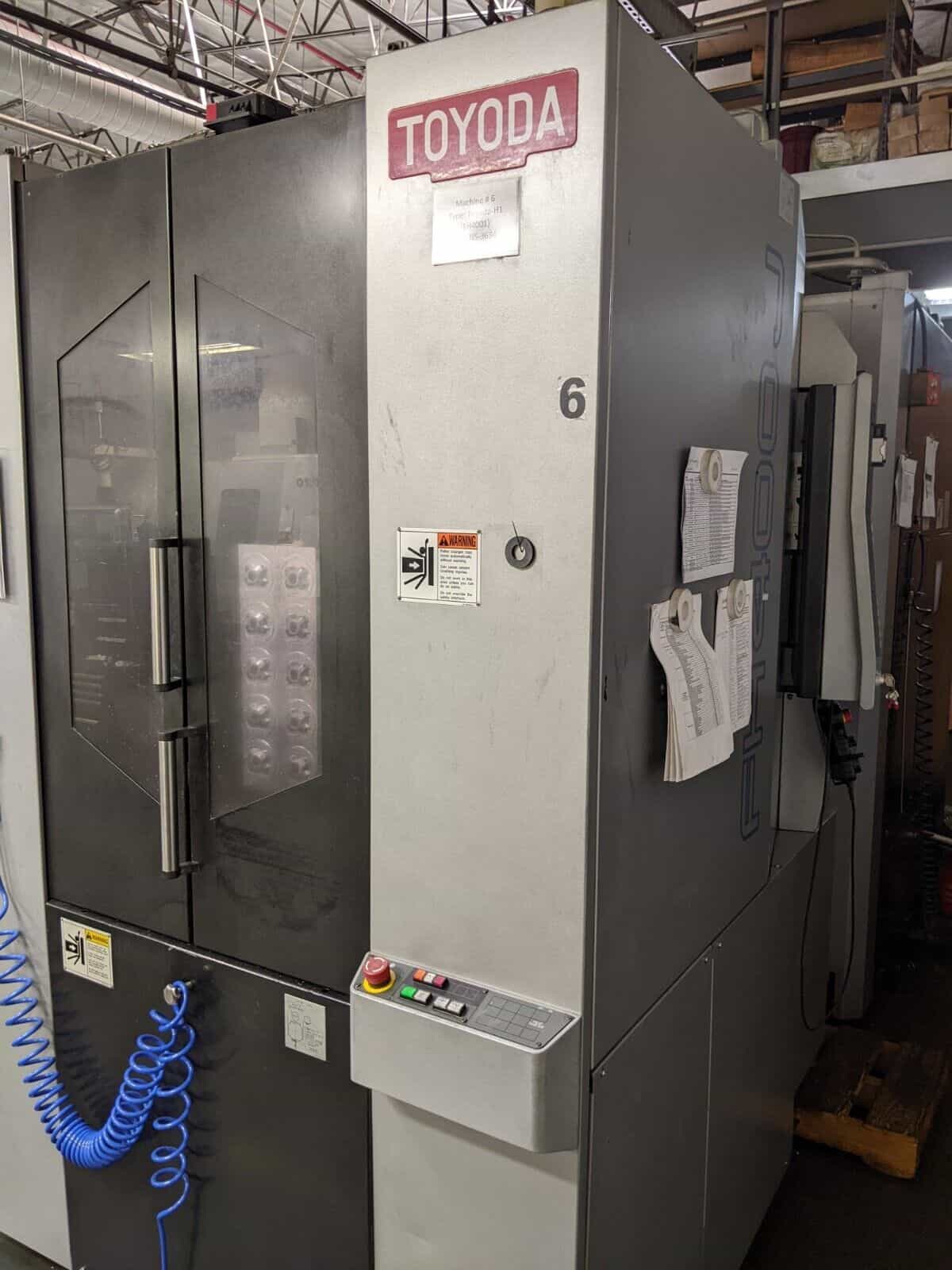

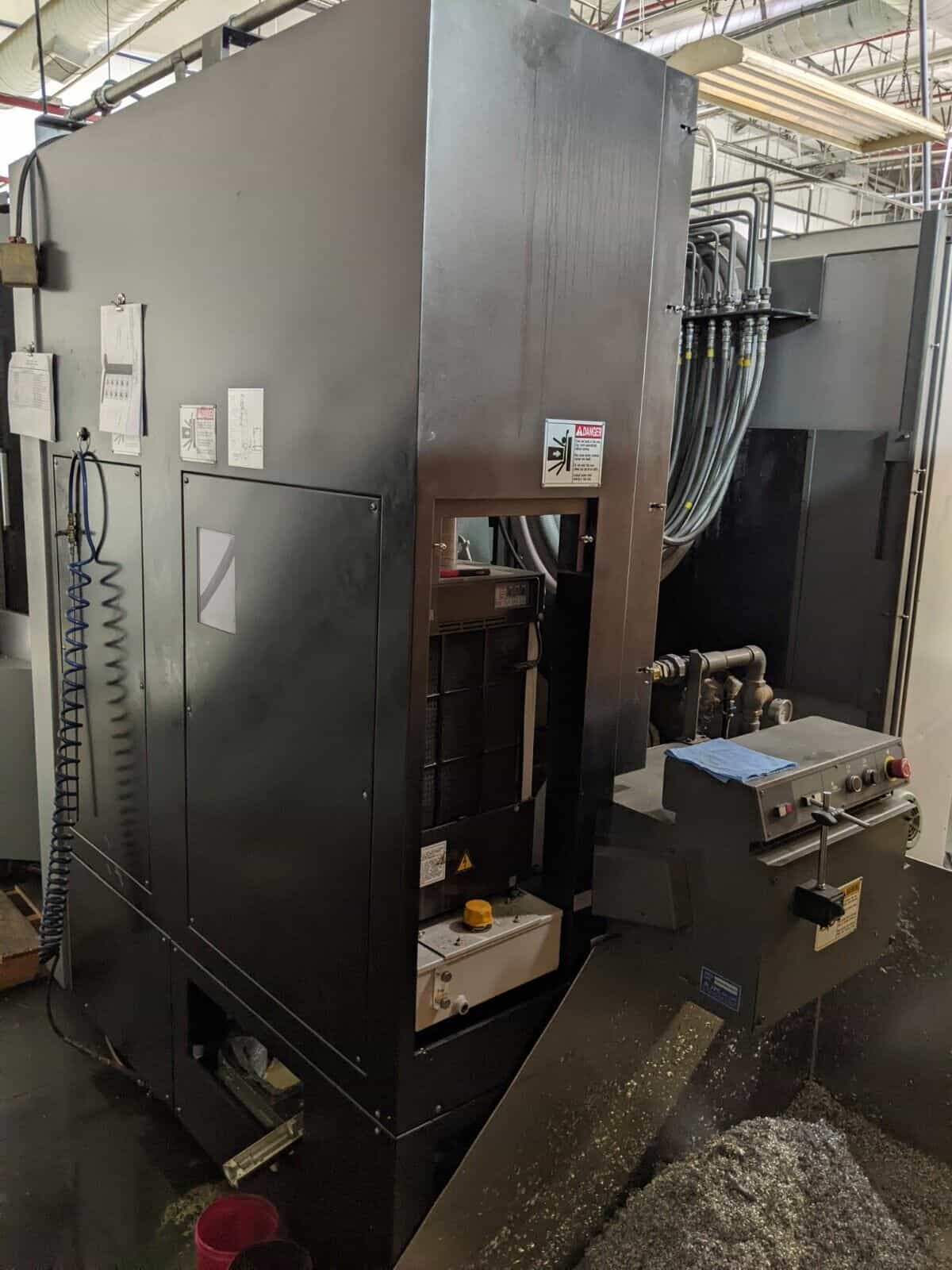

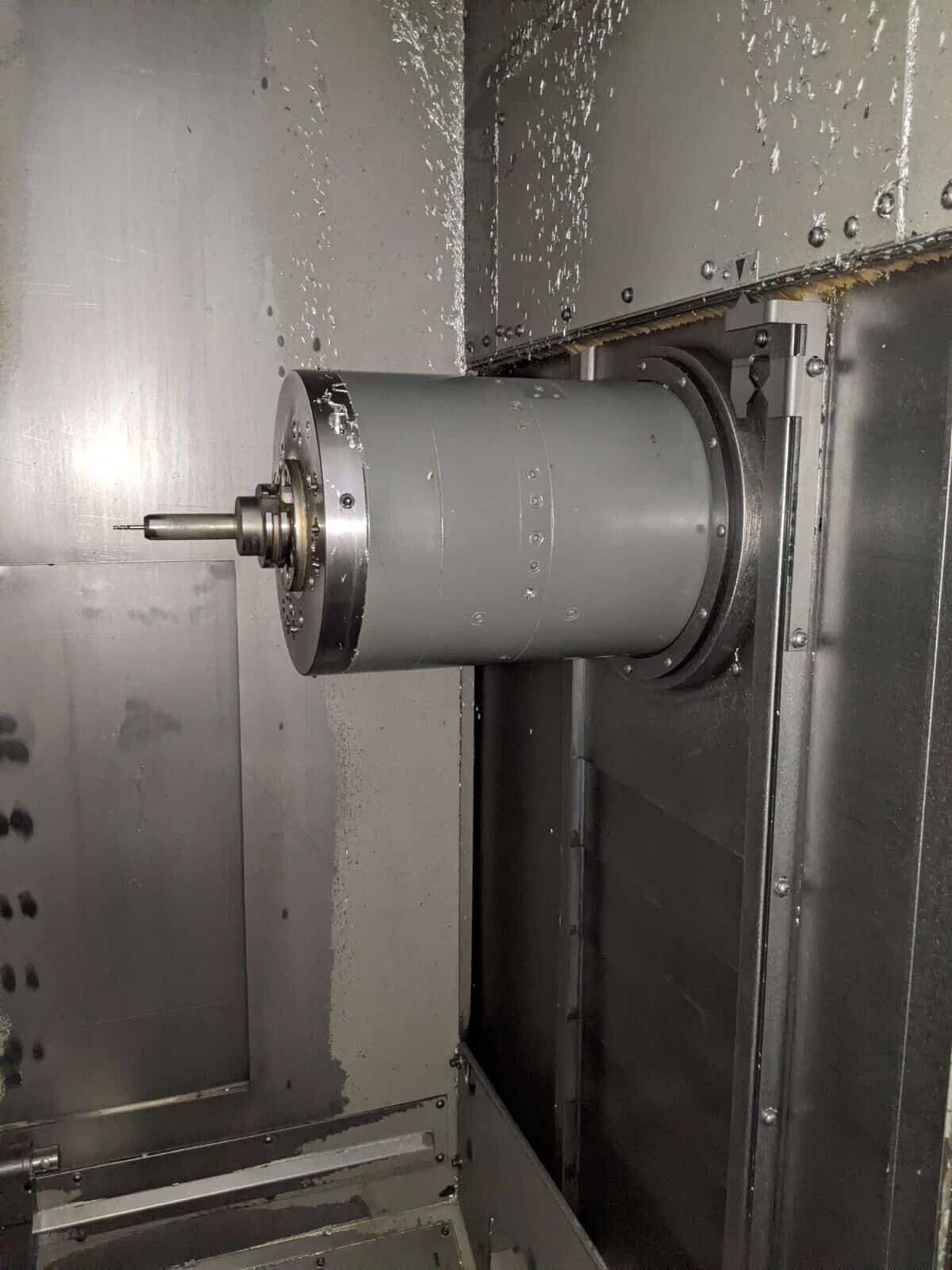

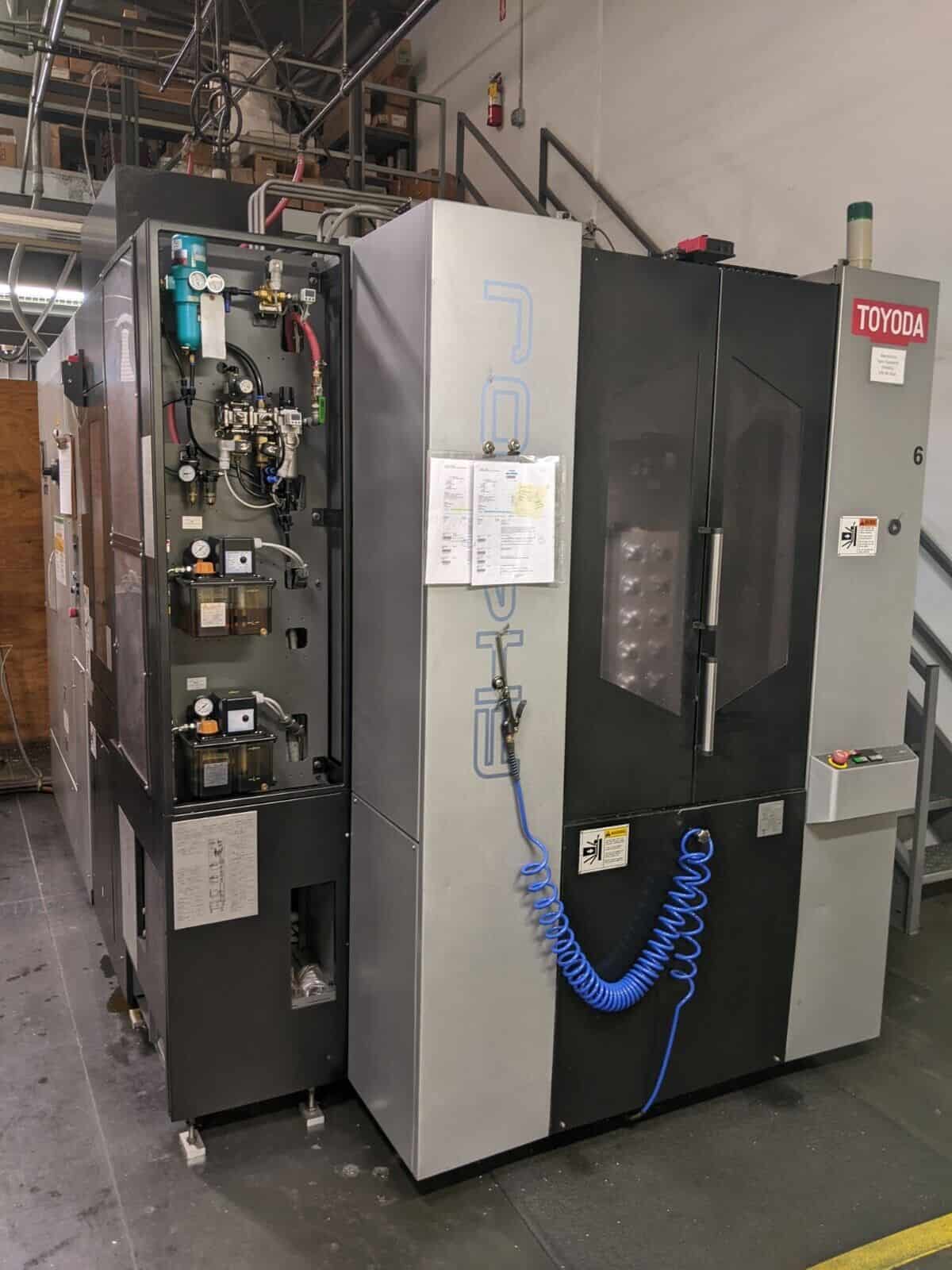

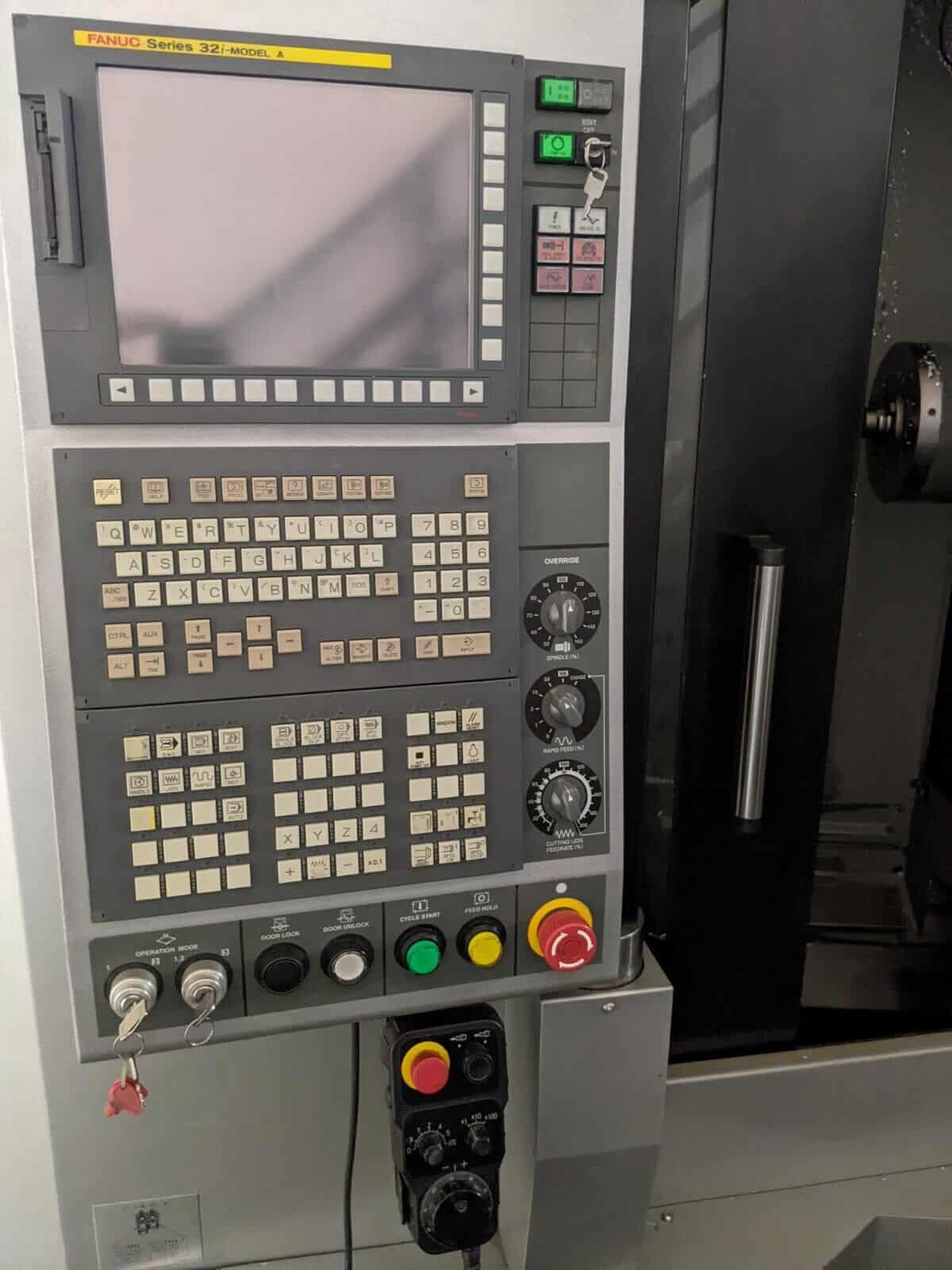

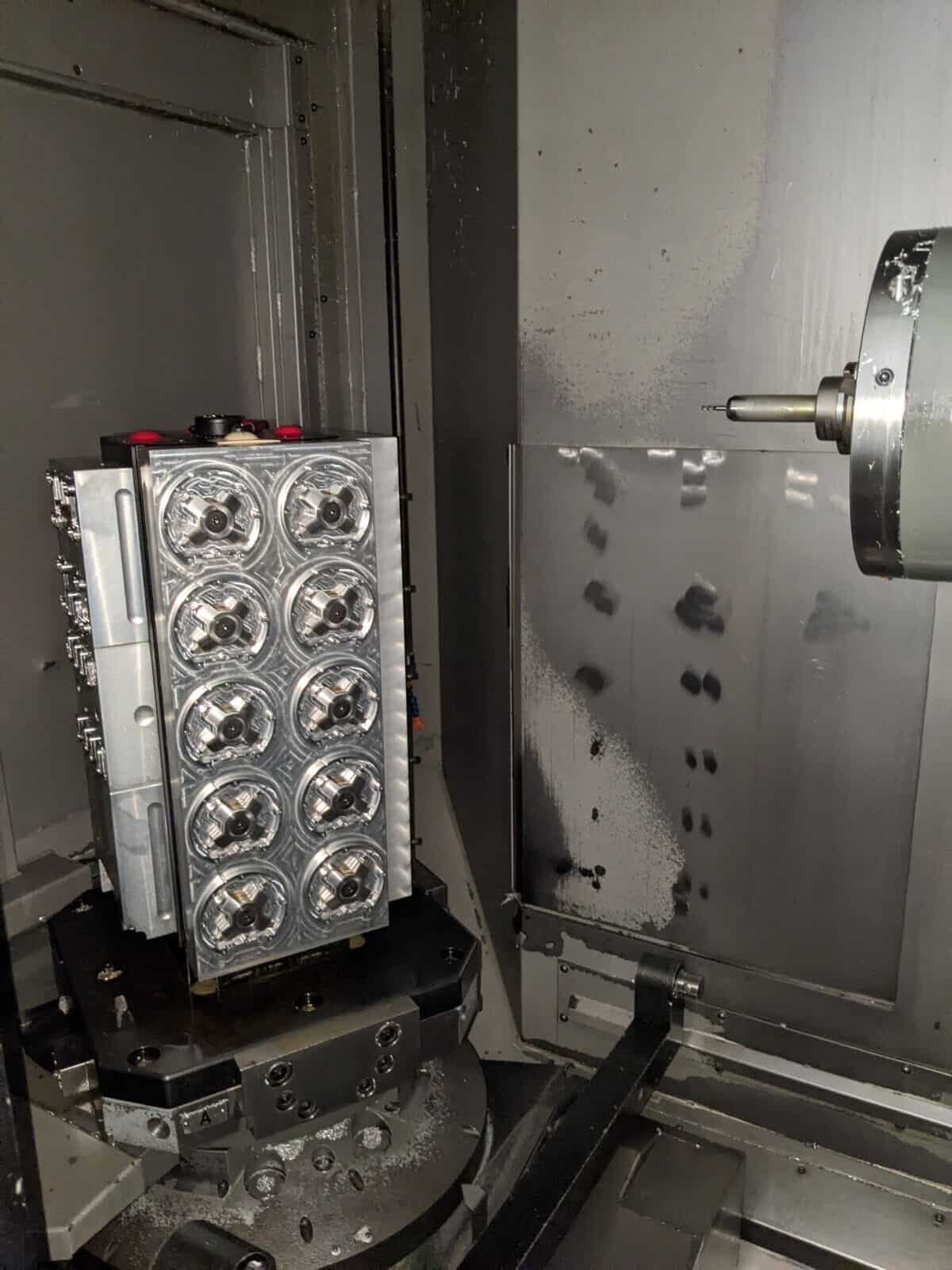

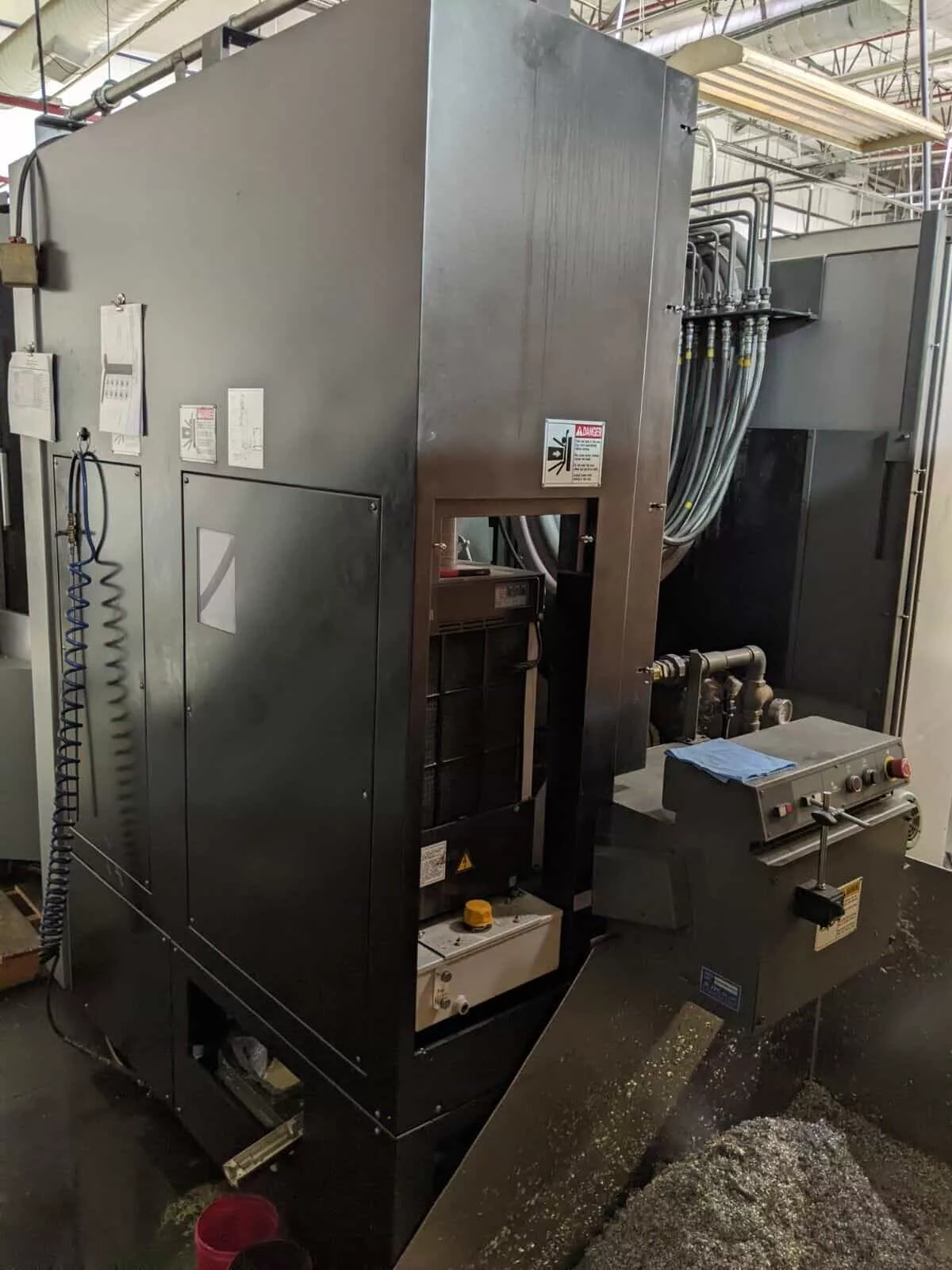

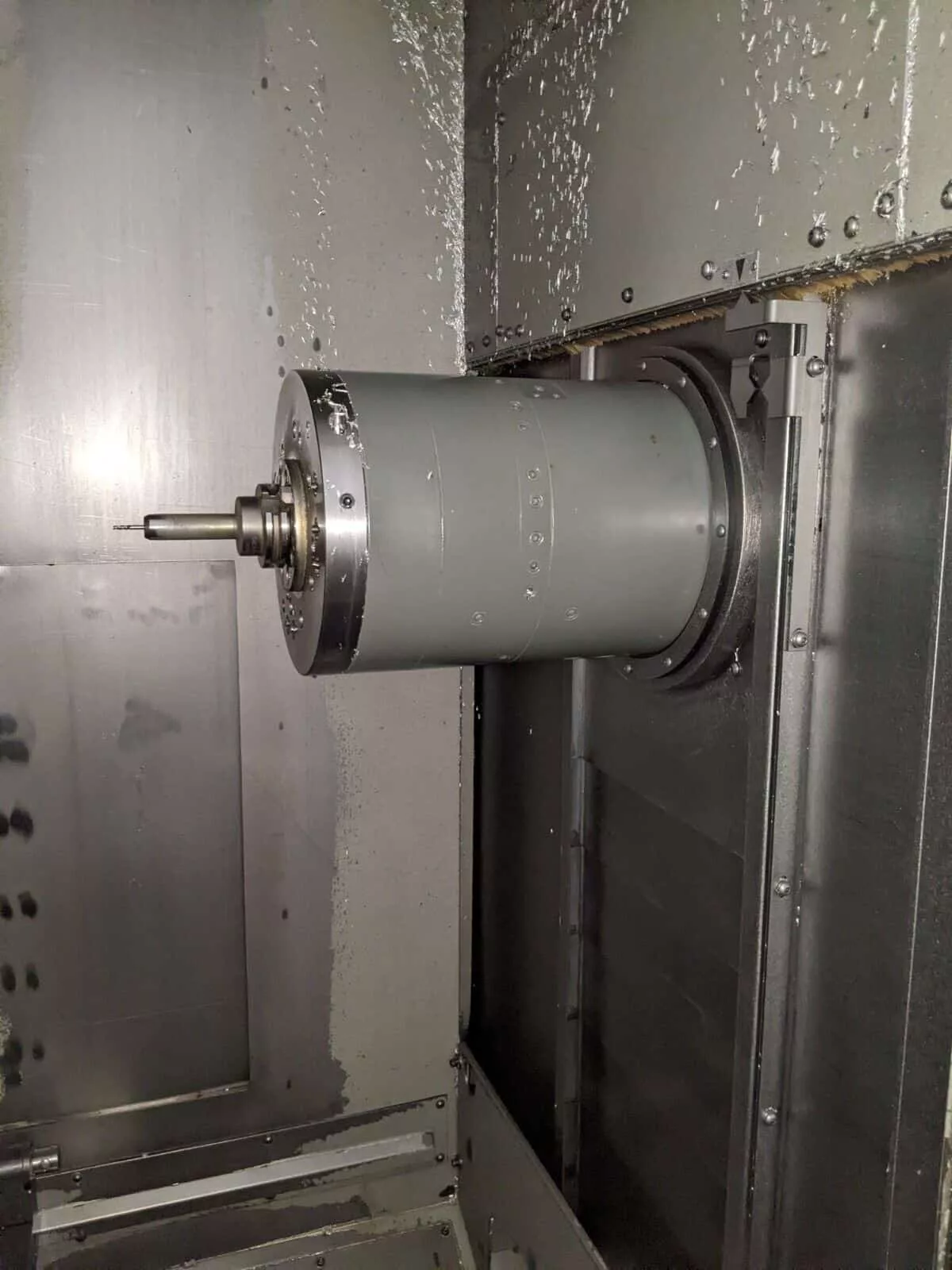

Used Toyoda FH400J (2011) CNC Horizontal Machining Center for Sale. This Toyoda horizontal machining center has a 400 mm pallet measuring 15.75″ x 15.75″ with full 4th axis pallet indexing, and handles a maximum work load of 880 lb, a workpiece swing of 24.8″ and a workpiece height of 35.43″. Travels measure 23.62″ in X, 22.05″ in Y and 24.8″ in Z, with rapid feedrates of 2,362 IPM on all three axes. The 30 HP spindle turns to 15,000 RPM in a CAT 40 taper and delivers 123 ft/lb of output torque, served by a 60-tool ATC and Fanuc CNC control. Floor space is 83″ x 166″, height 108″, net weight 24,200 lb. The machine can be seen under power for an inspection. See more CNC horizontal machining centers, Activate Pricing, or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.75" x 15.75" |
| X-Axis Travel |
23.62" |
| Y-Axis Travel |
22.05" |
| Z-Axis Travel |
24.8" |
| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |
Fanuc CNC |
| Pallet Indexing |
Full 4th Axis |
| Spindle Motor |
30 HP |
| Max Workpiece Swing |
24.8" |
| Max Workpiece Height |
35.43" |
| Max Work Load on Pallet |
880 Lb |
| Spindle Output Torque |
123 Ft/Lb |
| Rapid Feedrate (X,Y,Z-Axis) |
2,362 IPM |
| Standard Floor Space |
83" x 166" |
| Machine Height |
108" |
| Standard Net Weight |
24,200 Lb |
