Year |
2011 |
|---|---|
Make |
Sodick |
Model |
TR180EH2 |
Description |
198 Ton 13.2 oz Shot Size Injection Molding Machine |
Reference # |
8075704 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

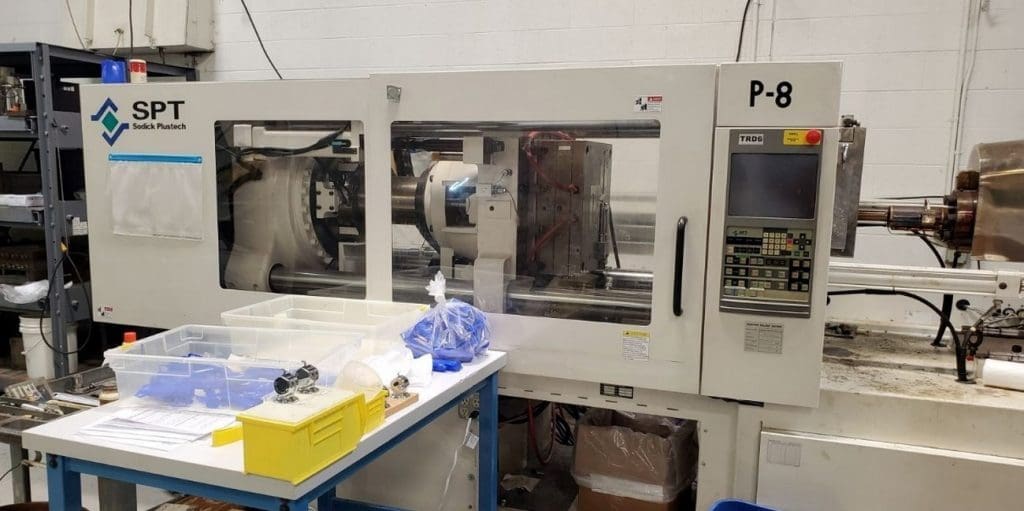

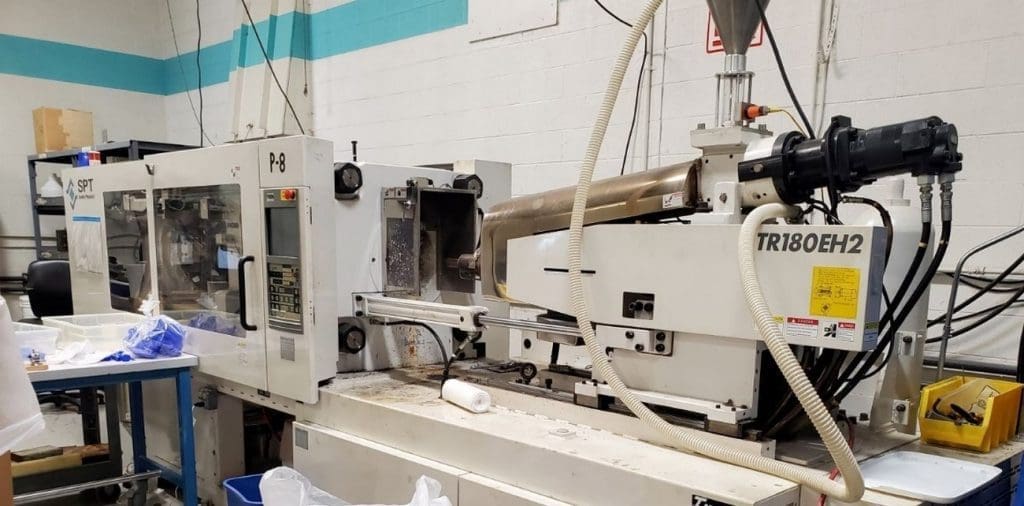

Used Sodick TR180EH2 (2011) Injection Molding Machine for Sale. This pre-owned Sodick plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Sodick Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.

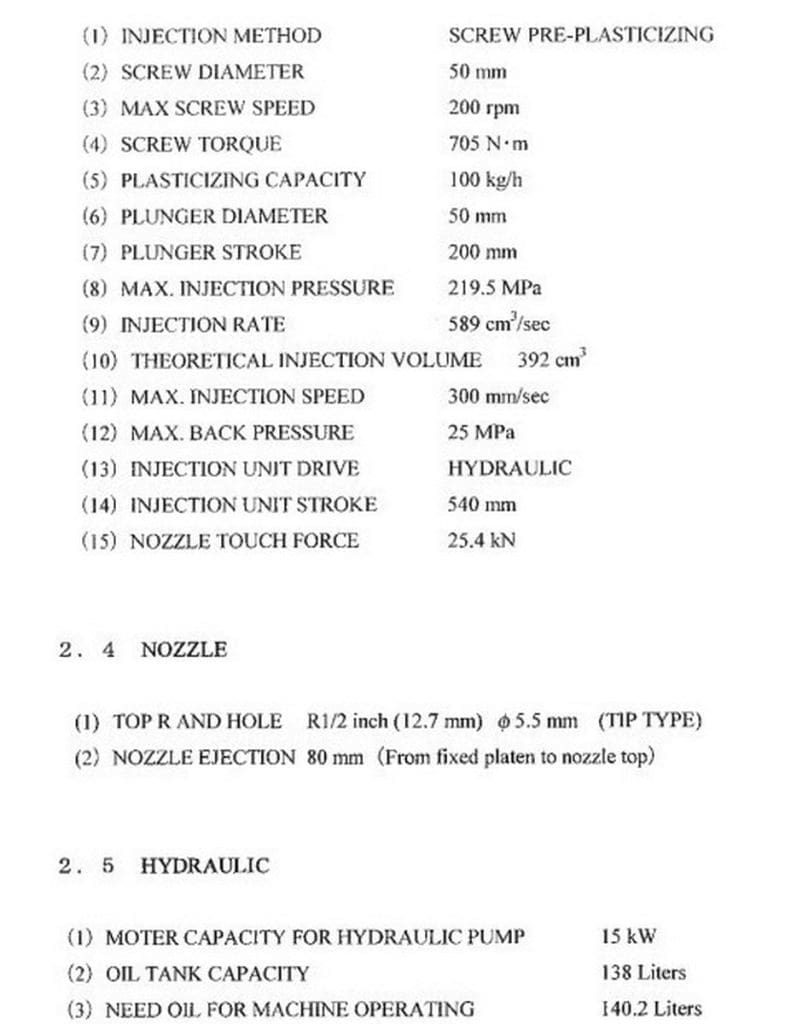

Specifications
| Capacity |
198 Ton |
|---|---|
| Shot Size |
13.2 oz |
| Tie Bar Spacing |
22" x 22" |
| Platen Size |
26.7" x 26.7" |
| Max Daylight |
37.4" |
| Min /Max Mold Height |
11.8"/25.5" |
| Clamp Stroke |
25.5" |
| Control |
TRD6C |
Features
|
Air Eject Circuit "Without Solenoid" |
Core Circuit "Without Solenoid" |
|
Ejector Plate Return Monitor Circuit |
Interface For Rotary Core |
|
SPI Robot Interface |
Under Power |
