Year |
2011 |
|---|---|
Make |
Ficep |
Model |
1001 DFB |
Description |
Beam Angle Drilling and Sawing System |
Reference # |
8076649 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

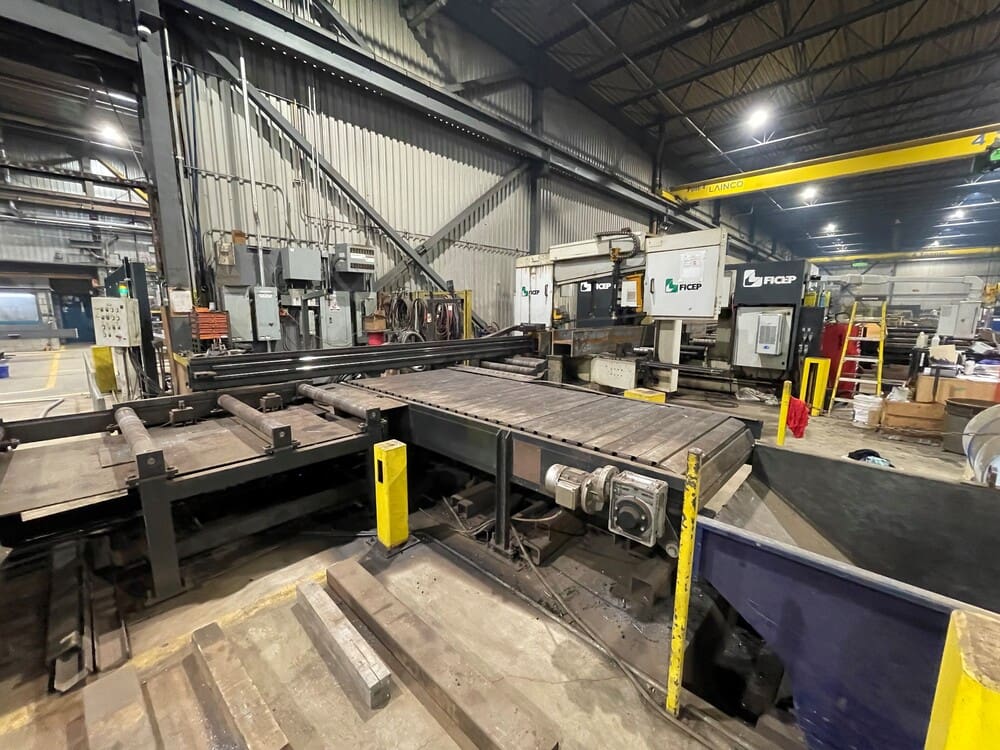

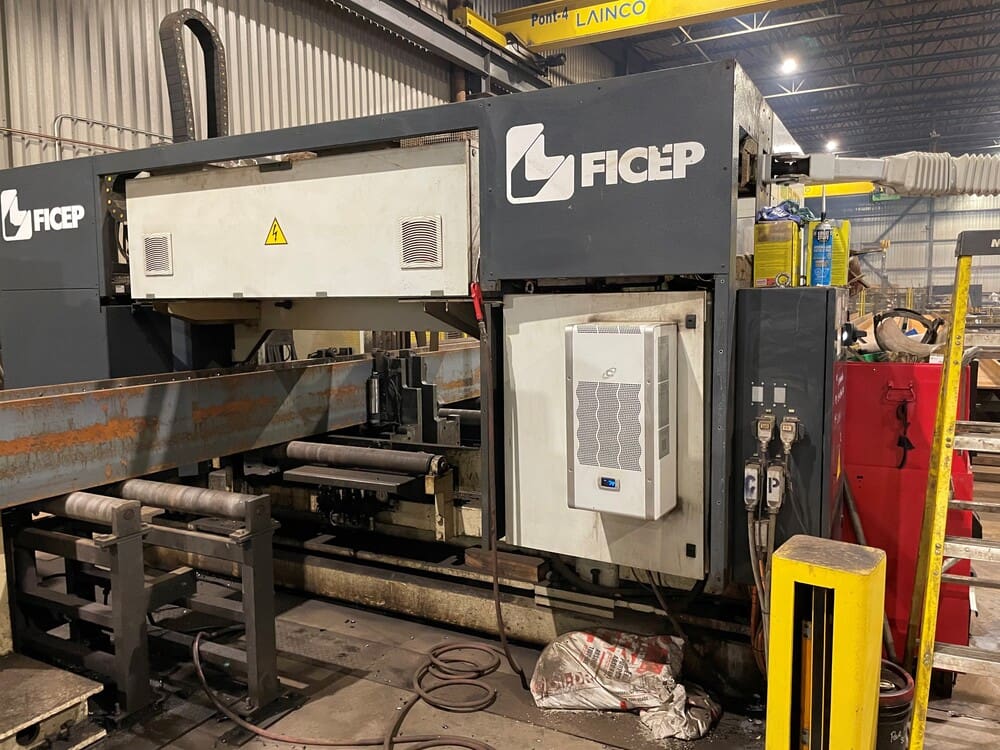

Used Ficep 1001 DFB
Specifications
| Overall Capacity |
44” x 44” x 40’ |
|---|---|
| Max Drilling Thickness |
4” |
| Max Length |
40 ft. (Can be Expanded with Options) |
| Min Length to be Transferred |
98” |
| Min Length to be Transferred in Working Zone (with Saw Rotation +45°/-60°) - Loading Side A |
106" |
| Min Length to be Transferred in Working Zone (with Saw Rotation +45°/-60°) - Loading Side B |
126" |
| Min Length to be Transferred in Working Zone (with Saw Rotation +60°/-60°) - Loading Side A |
126” |
| Min Length to be Transferred in Working Zone (with Saw Rotation +60°/-60°) - Loading Side B |
145" |
| Max Hole Diameter |
1-9/16” (2”) |
| Spindle Motor |
20 HP AC Drive |
| RPM Range |
180 - 2500 RPM |
| Capacity Range at 90° |
3-1/8” x 3/8” Min to 40” x 17-3/4” Max |
| Max Capacity at 60° |
13-3/4” x 13-3/4” |
| Max Capacity at 45° |
24-3/8” x 17-3/4” |
| Saw Blade Size (width x kerf) |
1.61” x 0.051” x 310.24” |
| Saw Band Drive Motor |
7.5 HP |
| Saw Blade Speeds |
65 – 328 FPM (Programmable) |
| I-Beams Depth |
Min 3-1/8” Max: 40” (Saw) Max: 44” (Drill) |
| I-Beams Flange Height Min |
1-5/8” Max: 17-3/4” |
| Channel Depth |
Min 3-1/8” Max: 40” (Saw) Max: 44” (Drill) |
| Flange Height |
Min 1-3/4” - Max 11-3/4” |
| Angle Leg Height (Equal/Unequal Legs) |
Min 3-1/8” x 3-1/8” x 3/8” Max 10” x 10” x 1-9/16” |
| Angle Flats Width Min Saw/Drill |
Min 4” - Max 40” (Saw) / Max 44” (Drill) |
| Square Tubes Sizes |
Min 3-1/8” - Max 17-3/4” |
| Rectangular Tubes Sizes Min/Max |
3-1/8” x 1-9/16” |
| Saw Rectangular Tubes Sizes |
40” x 17-3/4” |
| Drill Rectangular Tubes Sizes |
44” x 17-3/4” |
| Max Section Weight |
11900 Lbs. (Standard) |
| Max Linear Weight of Section |
300 lbs/ft |
| Max Carriage Speed |
164 FPM |
| Passline |
33-1/2” |
| Tool Changer |
6 Tools |
Features
|
(1) Spindle Per Drill Head |
Automatic Web Probing (Top Side) |
|
CNC Double Column |
Conveyor and Transfer Tables Not Included |
|
Drill has New Control/Drill Head/Drive/Engine |
Drill Head on Saw |
|
Gearbox Drive Type |
HSK-A80 Tool Holders |
|
Hydraulic Double-Jaw Vise Assembly |
Infinitely Variable Spindle Speeds |
|
Laser Measuring System |
Layout Marking Capability |
|
Possible to Work Lower Min Lengths with Auxiliary Transfer Device |
Scribing Software & Floating Head Tool Assembly |
|
SCS 100 Sawing Unit |
Short Pieces Unloading Device |
|
Spindle Probing |
Thru Spindle and Flood Coolant System |
|
Unloading Device with Magnet for Short Pieces |
Vertical Hold-Downs |
