Year |
2010 |
|---|---|
Make |
Toshiba |
Model |
EC45N II |
Description |
44 Ton 1.23 oz Shot Size Injection Molding Machine |
Reference # |
8077534 |
Price |
Activate Pricing |

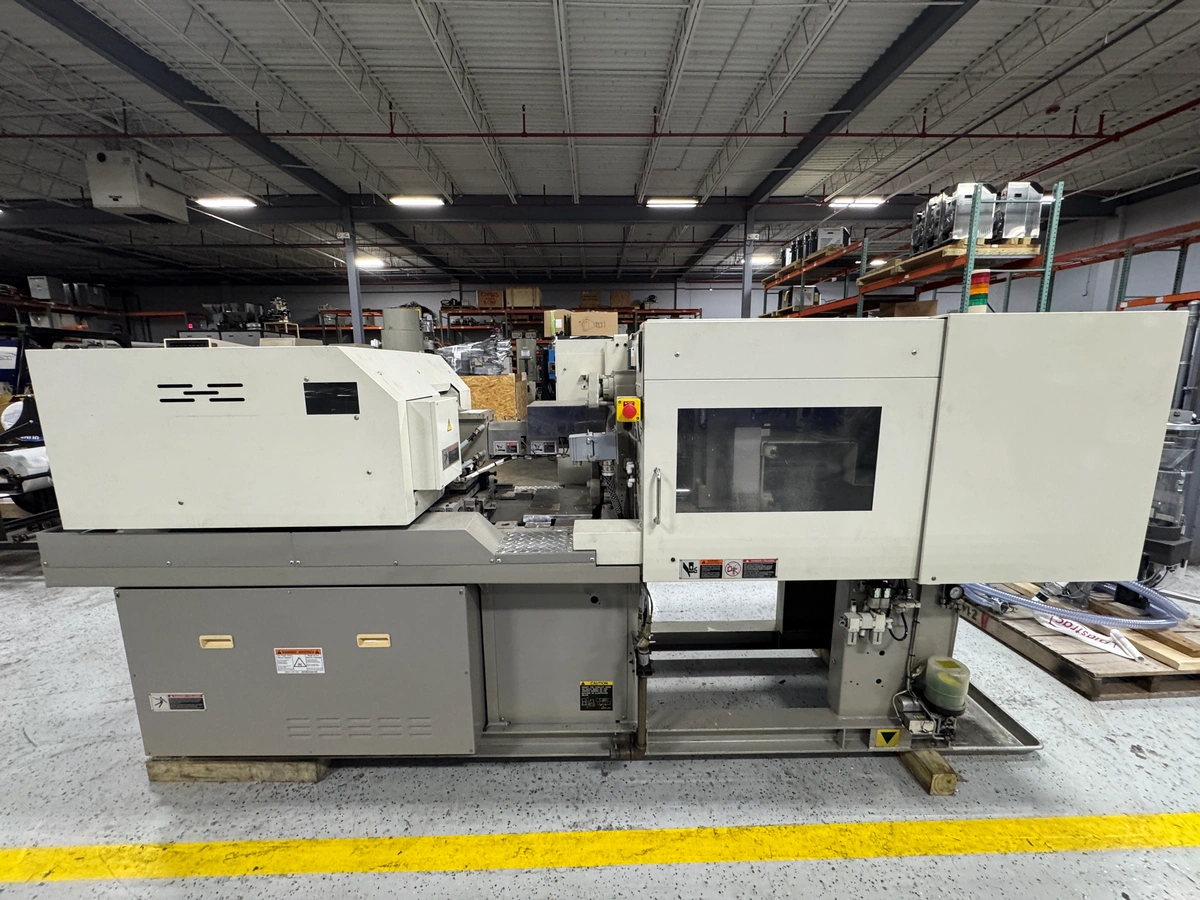

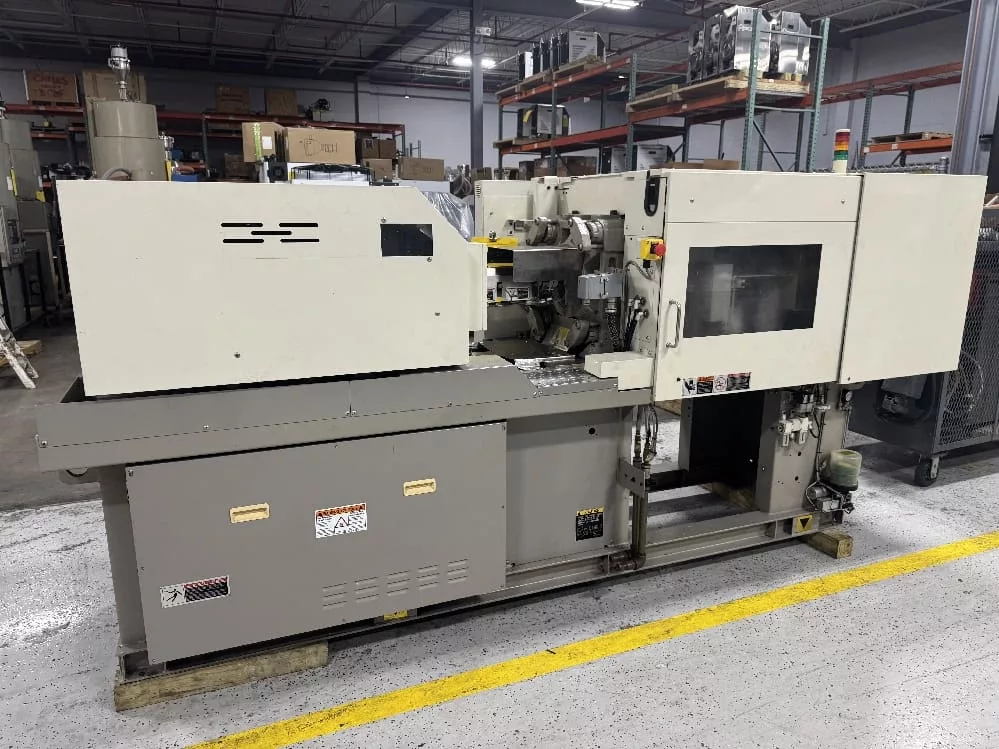

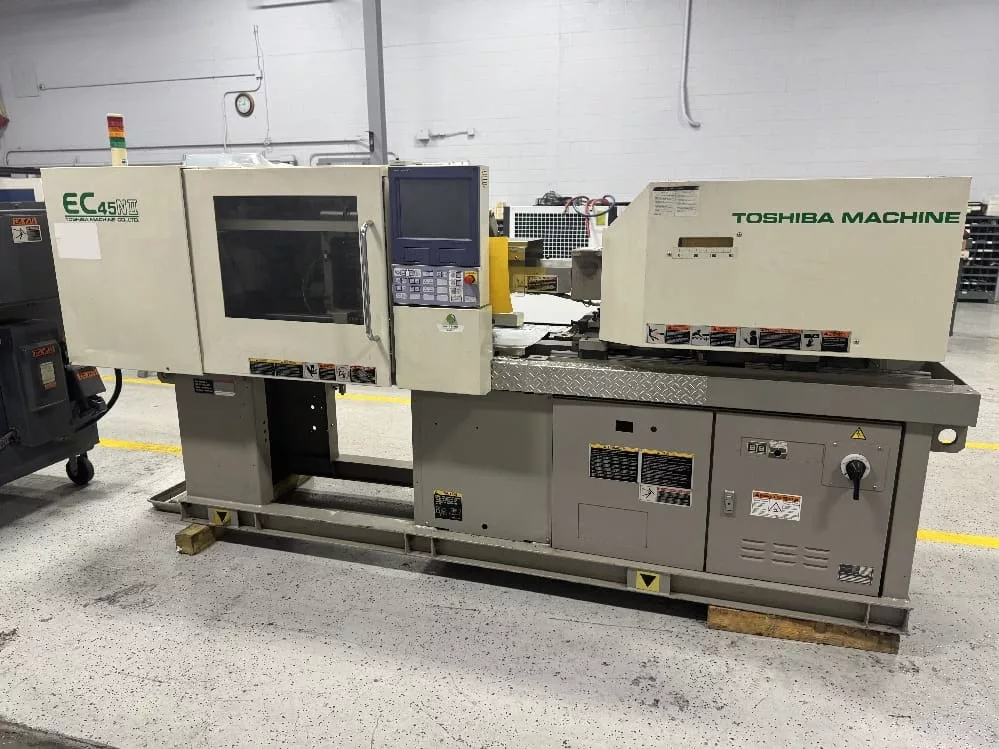

Used Toshiba EC45N II (2010) Injection Molding Machine for Sale. This all-electric press is rated at 44 ton clamping force with a 1.23 oz shot size, making it suited to small part work. Tie bar spacing is 12.6″ x 12.6″ with 18.1″ x 18.1″ platens, 22.4″ maximum daylight, minimum and maximum mold height of 5.9″ and 12.6″, and a 9.8″ clamp stroke. It runs a Toshiba V30 control and requires 220V/3PH/60Hz power. Equipped with air blow. The machine is under power and can be run for inspection before purchase. See more injection molding machines or browse our Toshiba inventory. Use Activate Pricing for current figures, or Request a Quote and we will follow up with details. This machine is located in Massachusetts.
Specifications
| Capacity |
44 Ton |
|---|---|
| Shot Size |
1.23 oz |
| Tie Bar Spacing |
12.6" x 12.6" |
| Platen Size |
18.1" x 18.1" |
| Max Daylight |
22.4" |
| Min /Max Mold Height |
5.9" / 12.6" |
| Clamp Stroke |
9.8" |

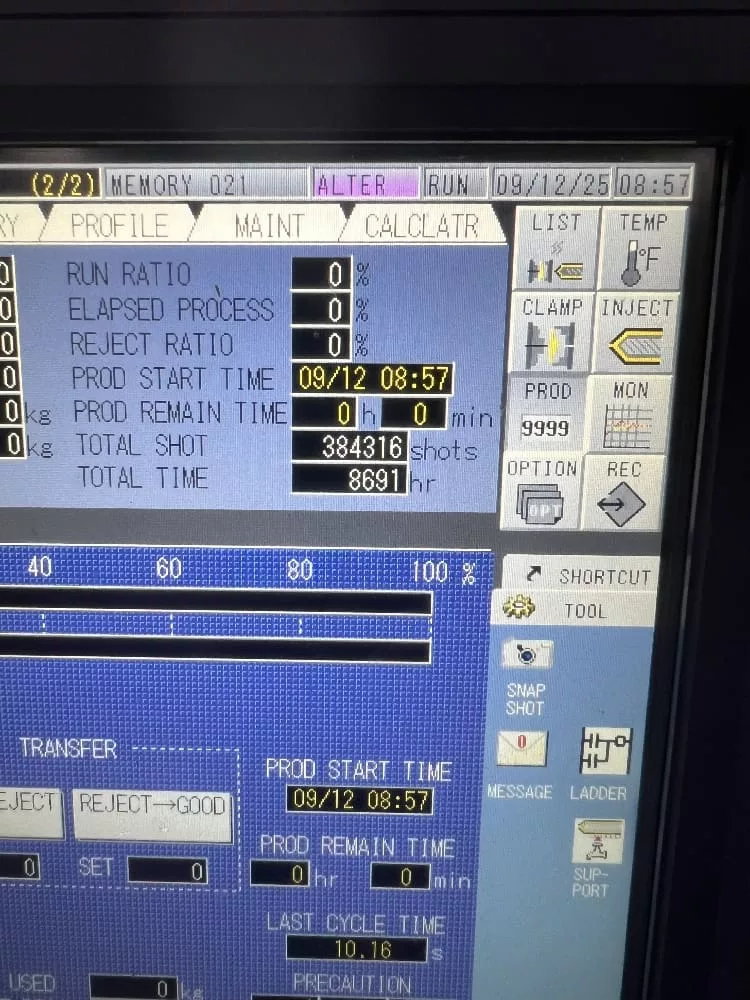

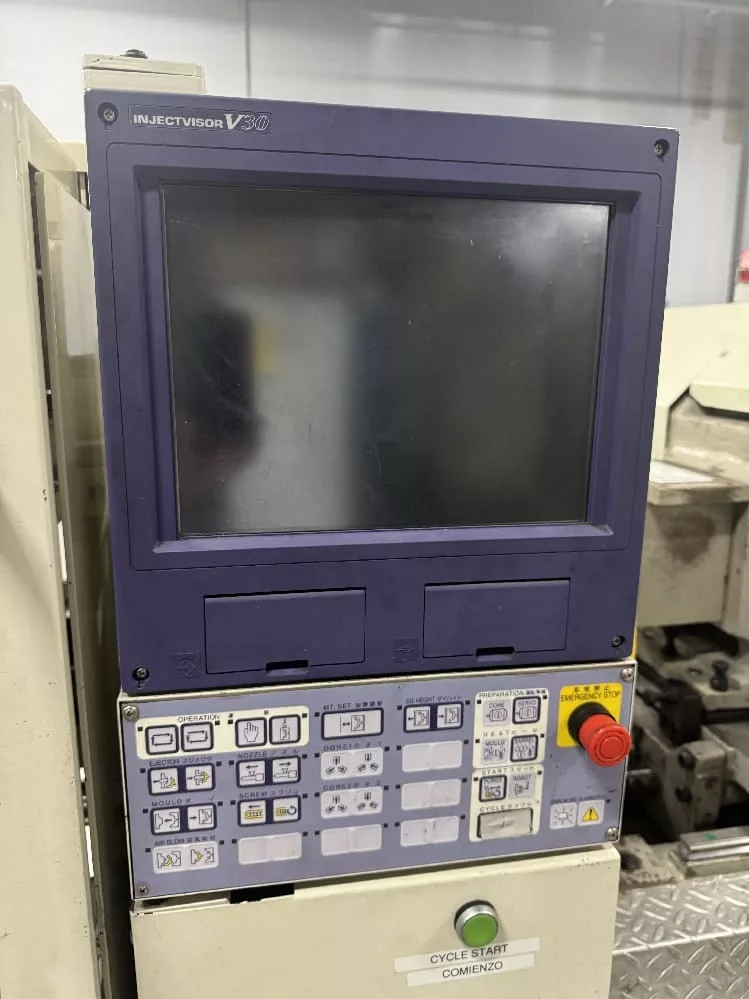

| Control |
V30 |

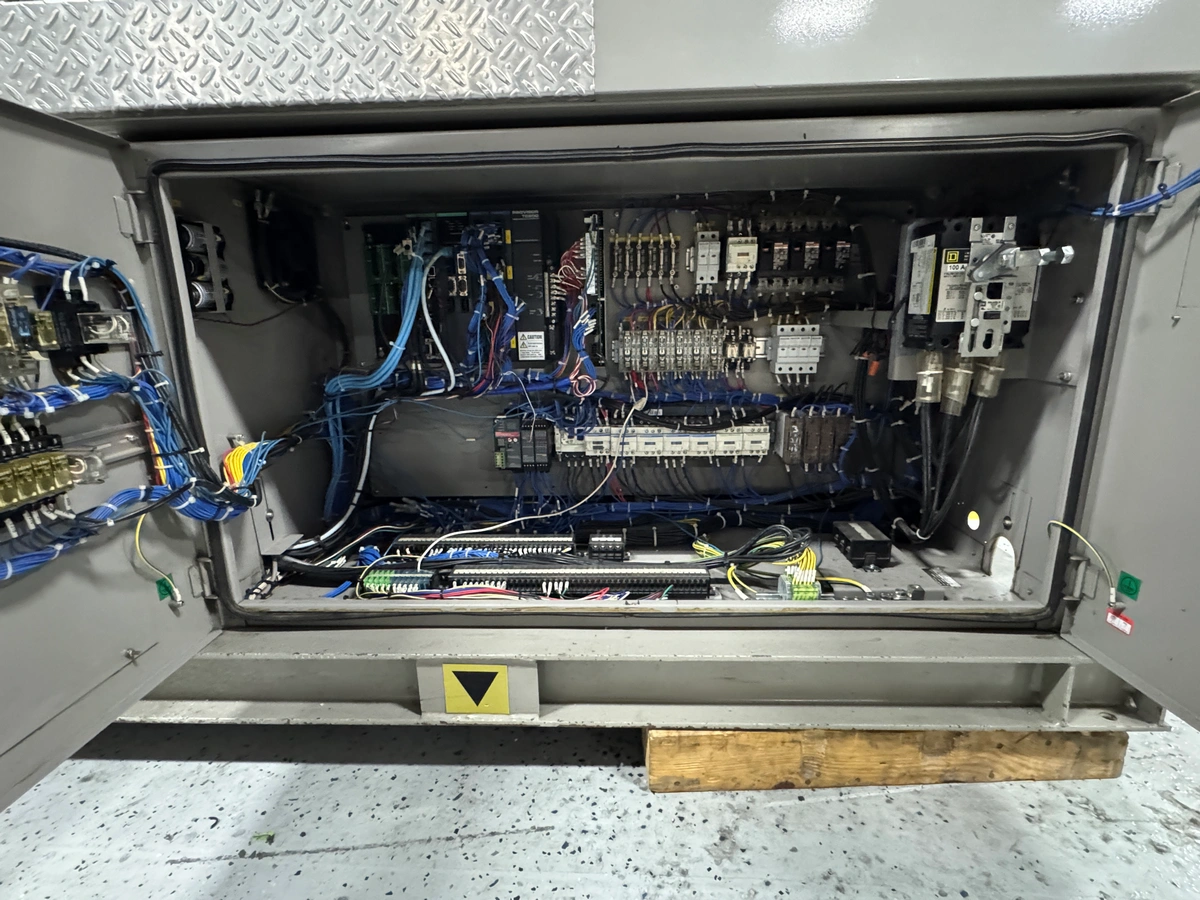

| Power Requirement |
220V/3PH/60Hz |
Features
|
Air Blow |
Under Power |
