Year |
2010 |
|---|---|
Make |
RFE |
Model |
Structural C Purlin |
Description |
Roll Former |
Reference # |
8073549 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

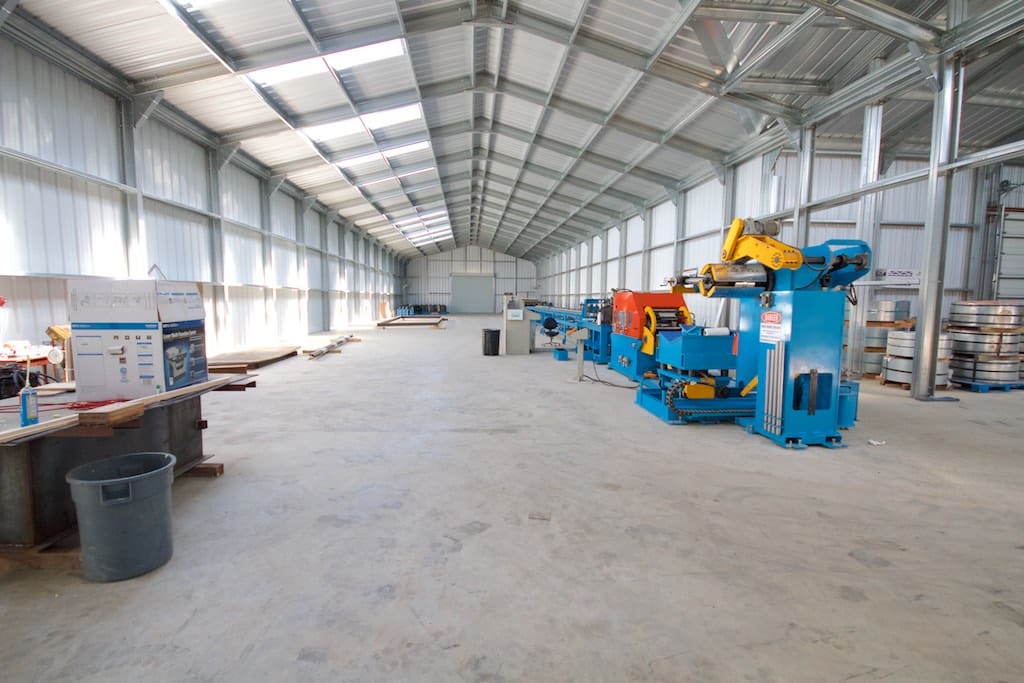

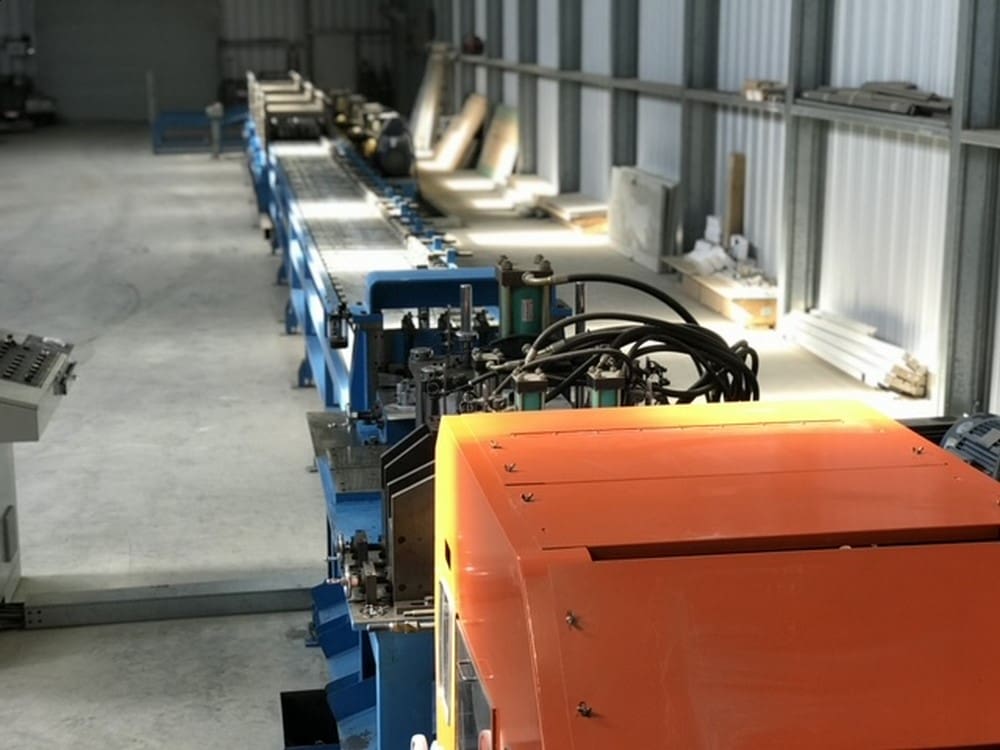

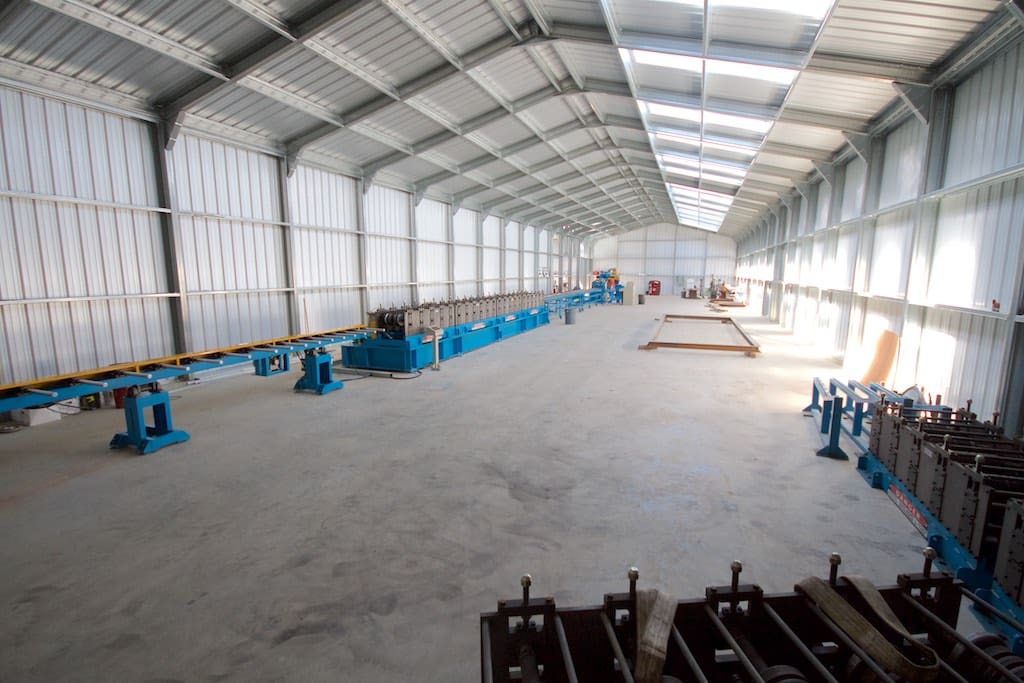

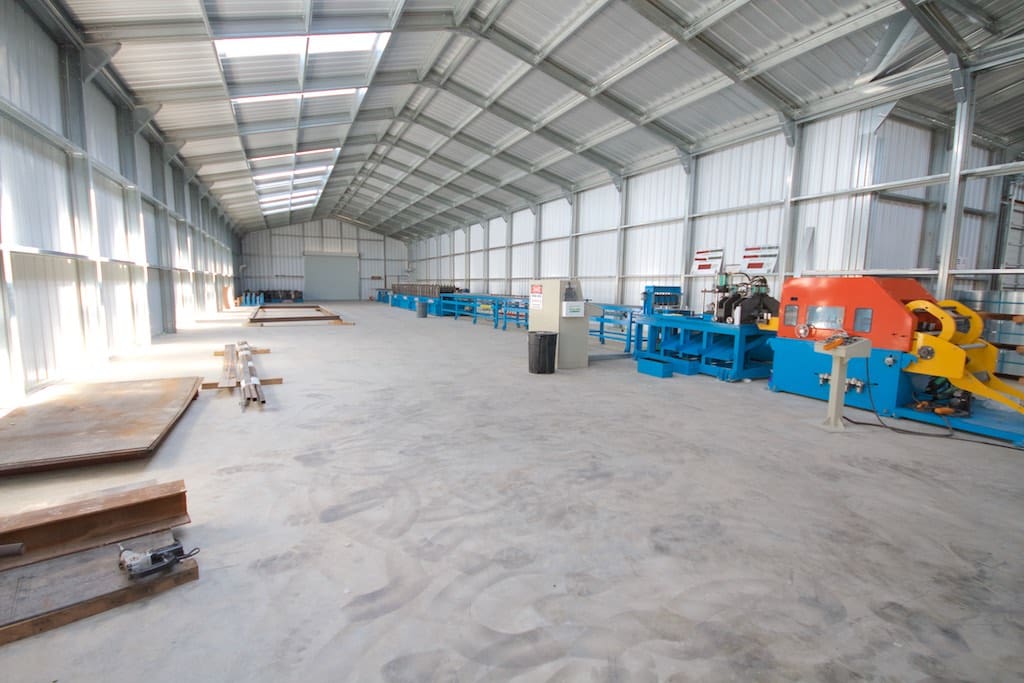

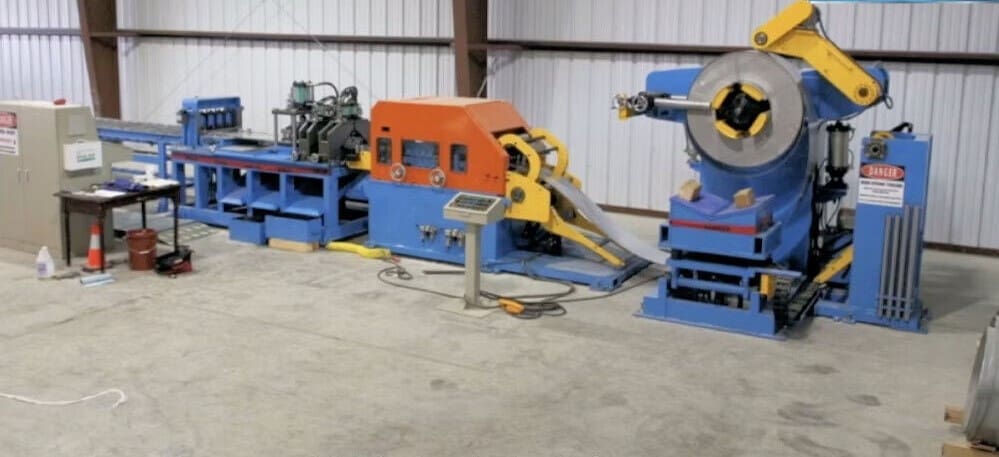

RFE Structural C Purlin
Specifications
| Coil Max Weight |
7,500 kg |
|---|---|
| Coil Max Width |
550 mm |
| Coil Max Outside Diameter |
1,500 mm |
| Running Distance (Y) |
1,000 mm |
| Running Speed (Approx.) |
6 m/min |
| Hydraulic Cylinder Lift |
400 st (1.5m/Min) |
| Drum Open/Close Distance (Approx.) |
570 mm - 620 mm |
| Drum Loading Capacity |
7,500 kg |
| Max Width of Sheet |
500 mm |
| Max Width of Coil |
500 mm |

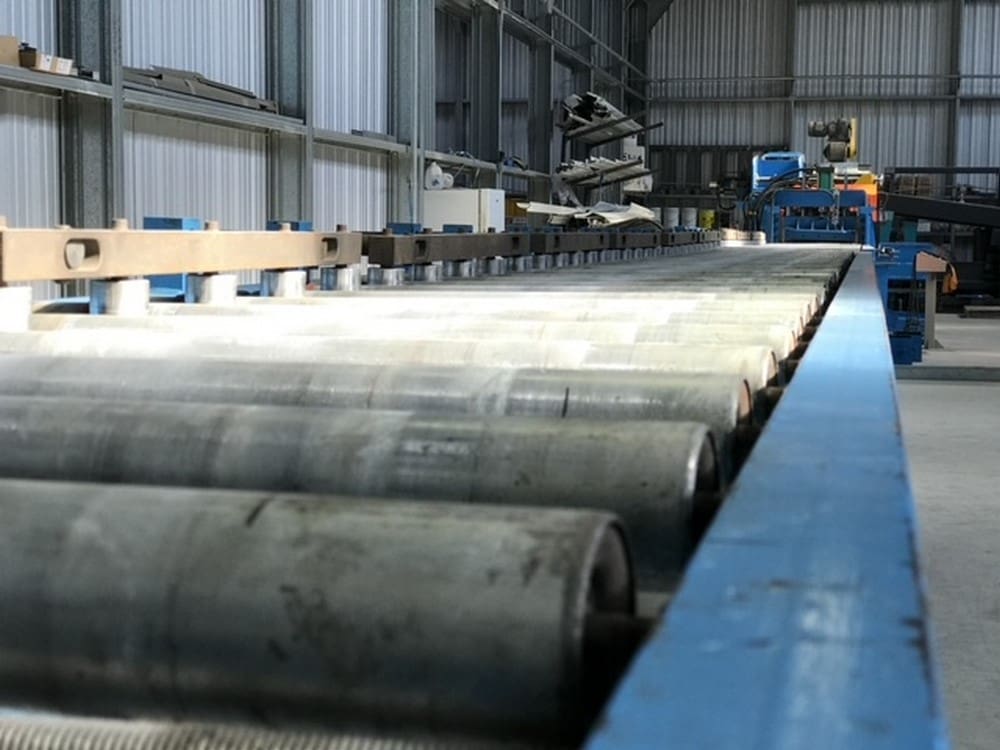

| Width of Conveyor |
600 mm |
| Shipping Dimensions |
430" x 78" x 54"H |
| Shipping Weight |
75,000 Lbs |
| Note |

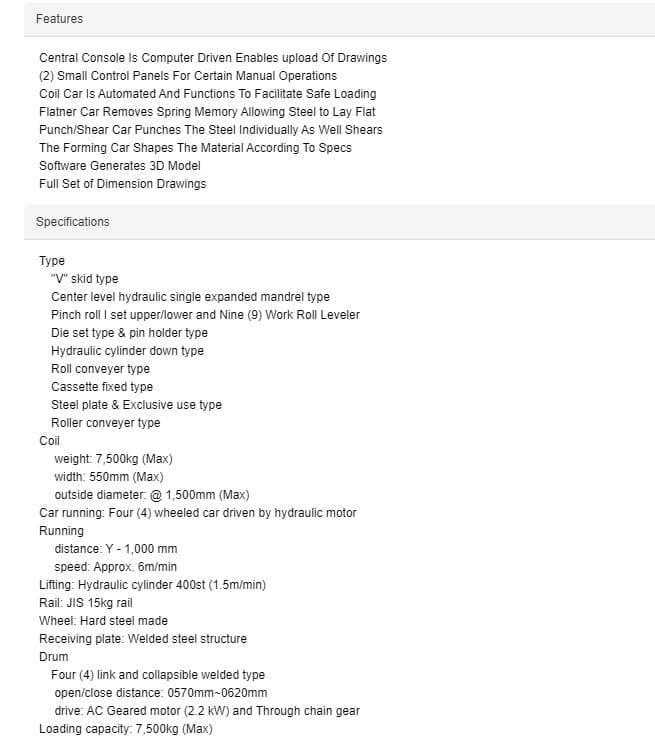

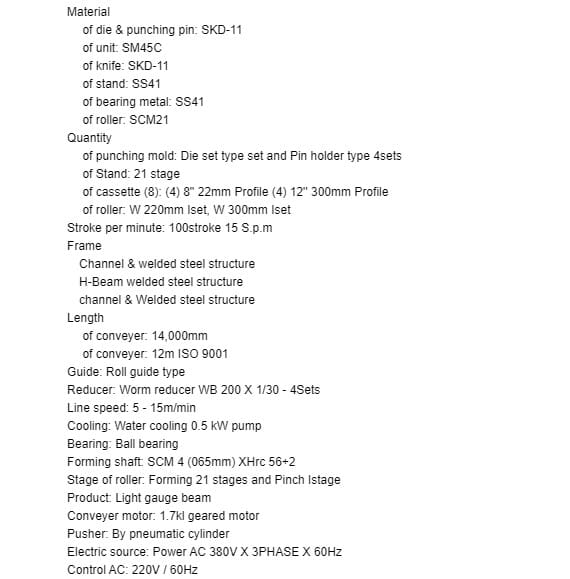

See Photos for More Specs |
Features
|

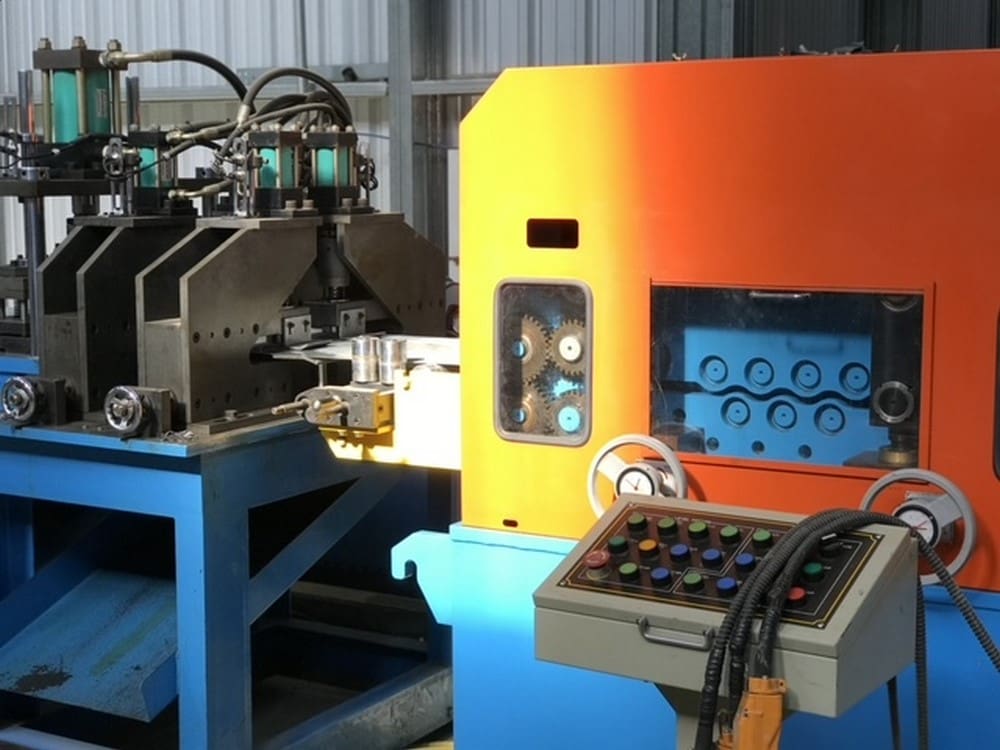

(2) Small Control Panels For Certain Manual Operations |
AC Geared Motor (2.2 Kw) and Through Chain Gear Drive |
|
Central Console Is Computer Driven Enables Upload of Drawings |
Coil Car Is Automated and Functions to Facilitate Safe Loading |
|

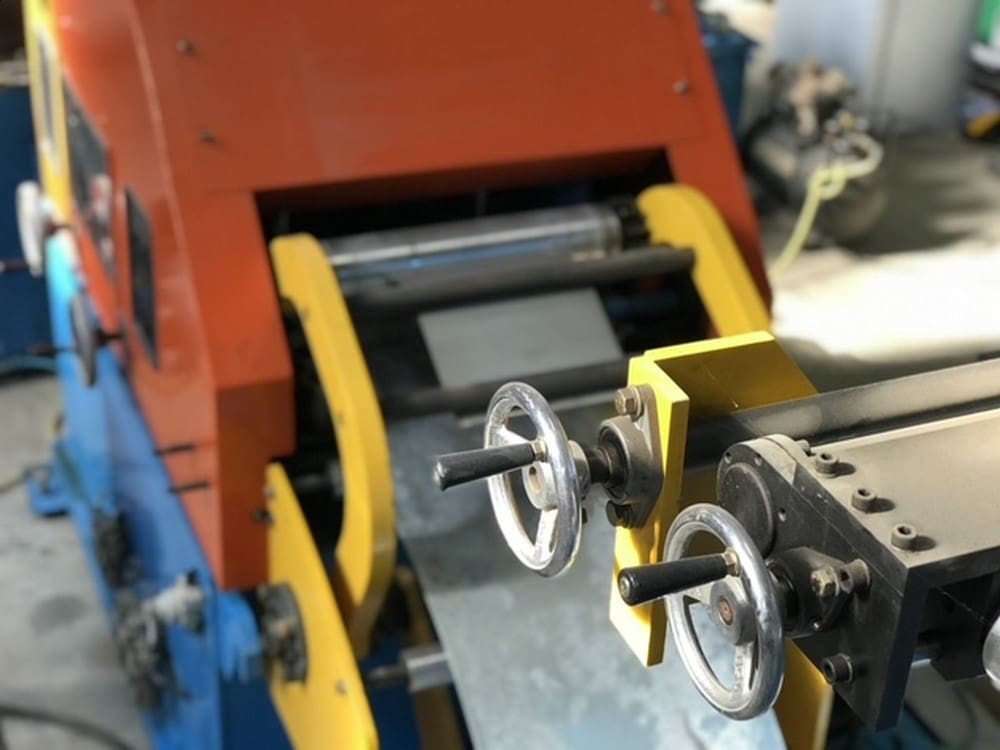

Flatner Car Removes Spring Memory Allowing Steel to Lay Flat |
Four-Link and Collapsible Welded Type Drum |
|
Four-Wheeled Car Driven by Hydraulic Motor |

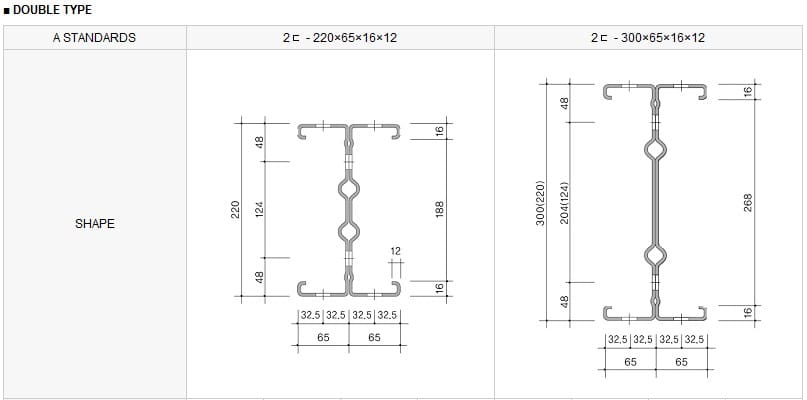

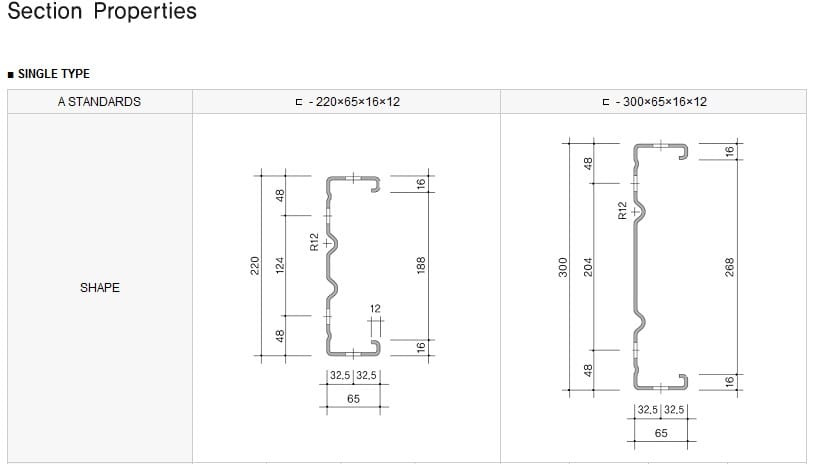

Full Set of Dimension Drawings |
|
Hard Steel Made Wheel |
JIS 15kg Rail |
|

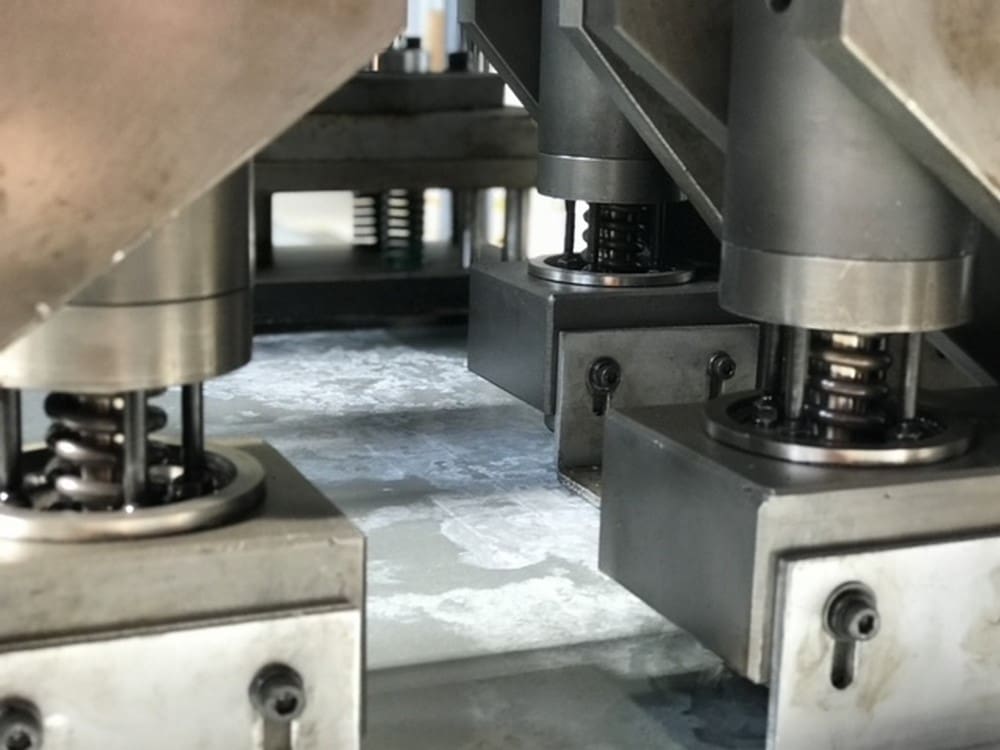

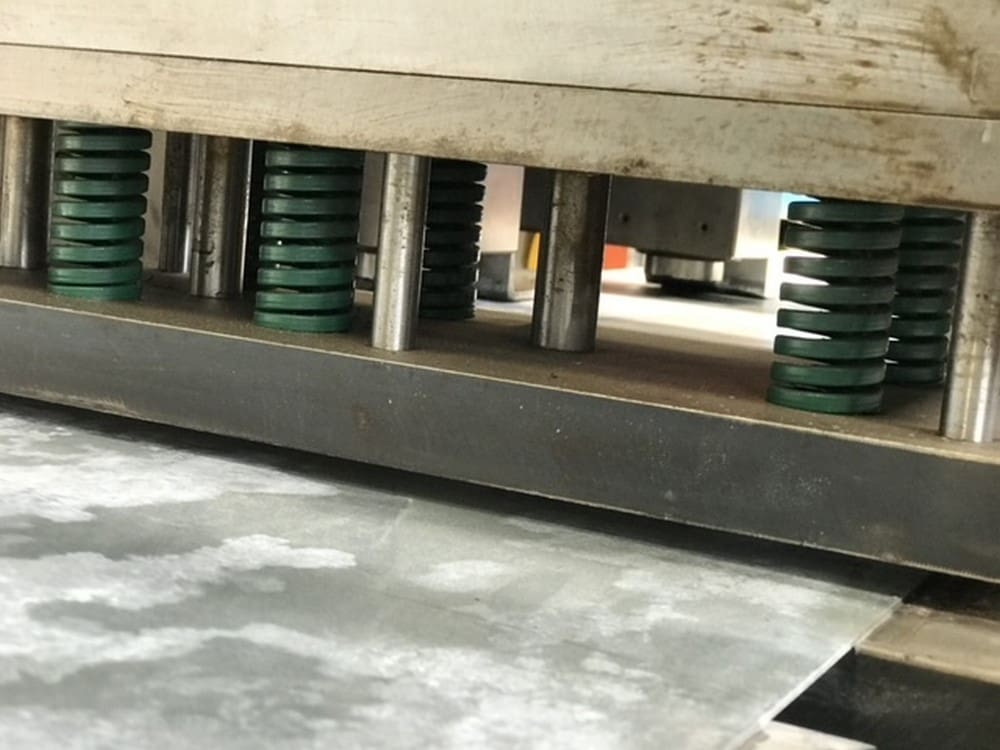

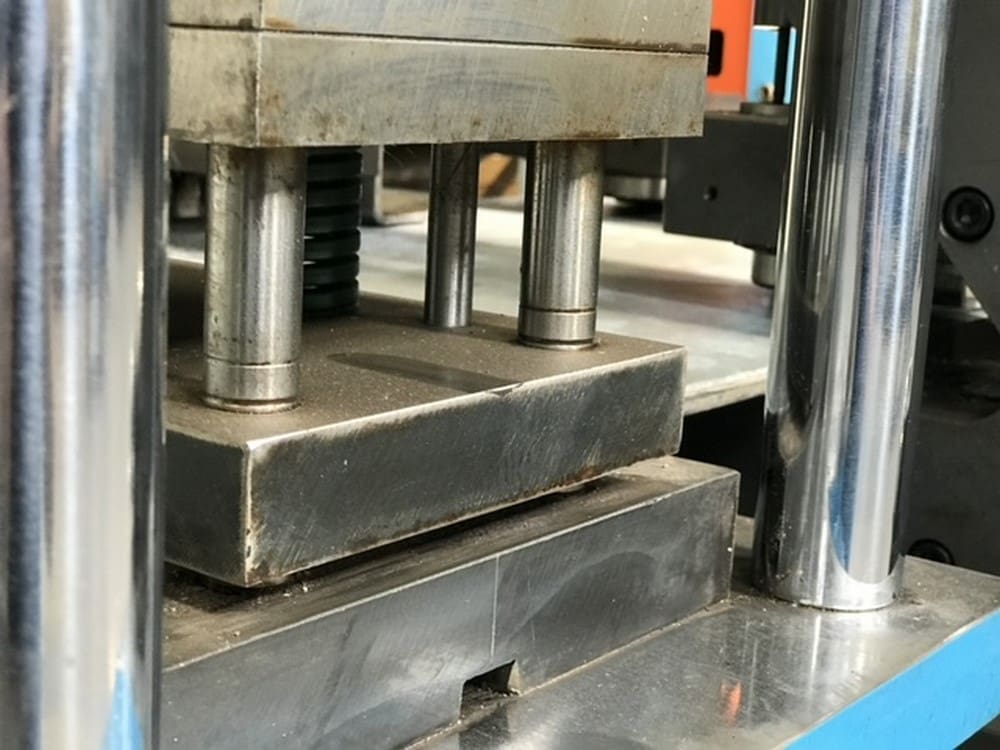

Punch/Shear Car Punches the Steel Individually and Shears |
Software Generates 3D Model |
|

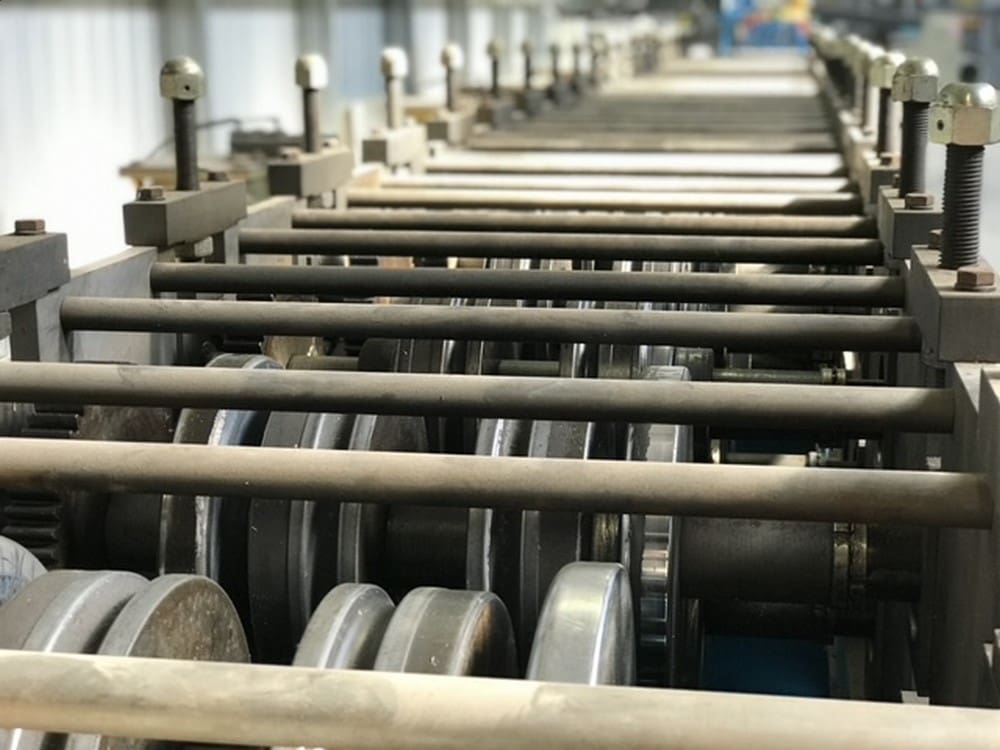

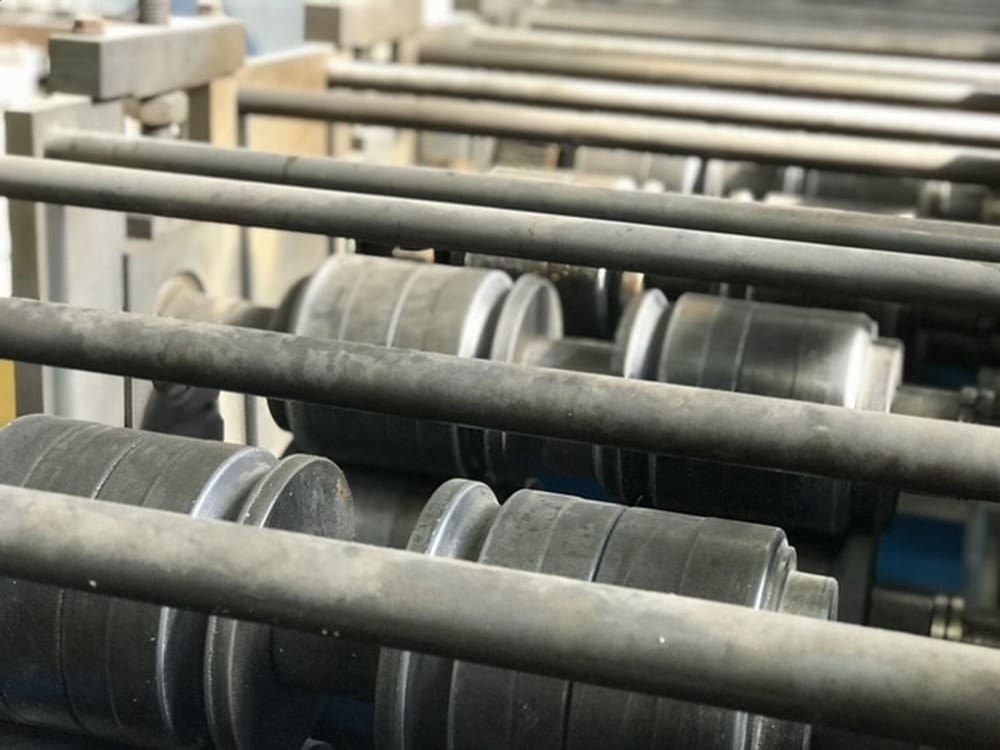

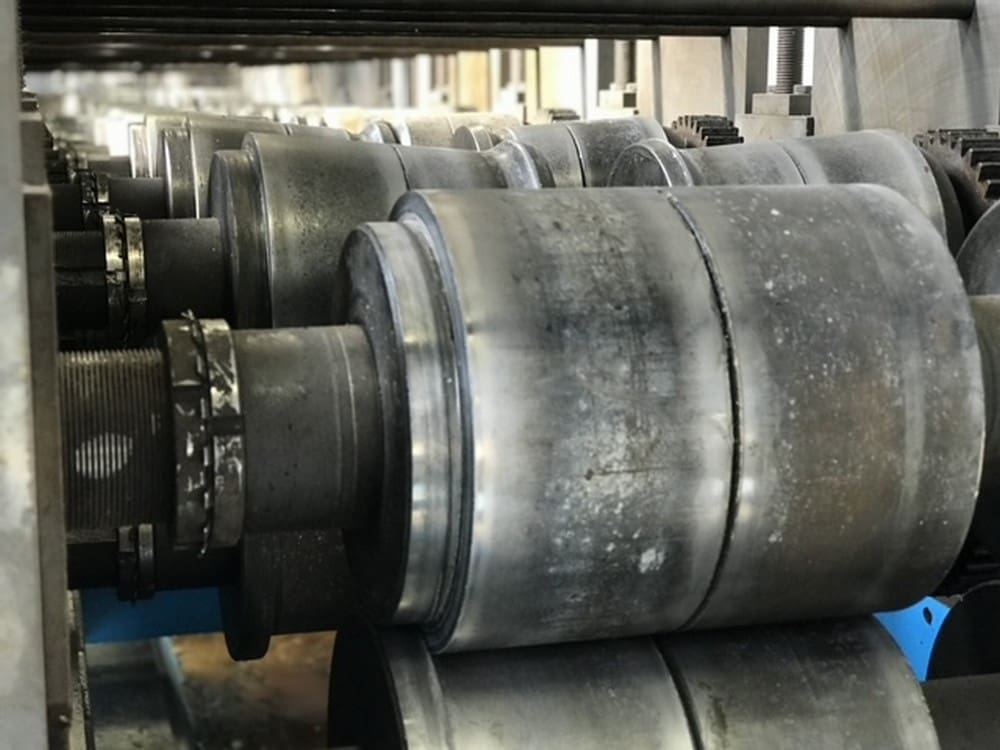

The Forming Car Shapes the Material According to Specs |
Welded Steel Structure Receiving Plate |
