Year |
2010 |
|---|---|
Make |
Horn |
Model |
CNC50TBRE |
Description |
Tube Bender |
Reference # |
8076169 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

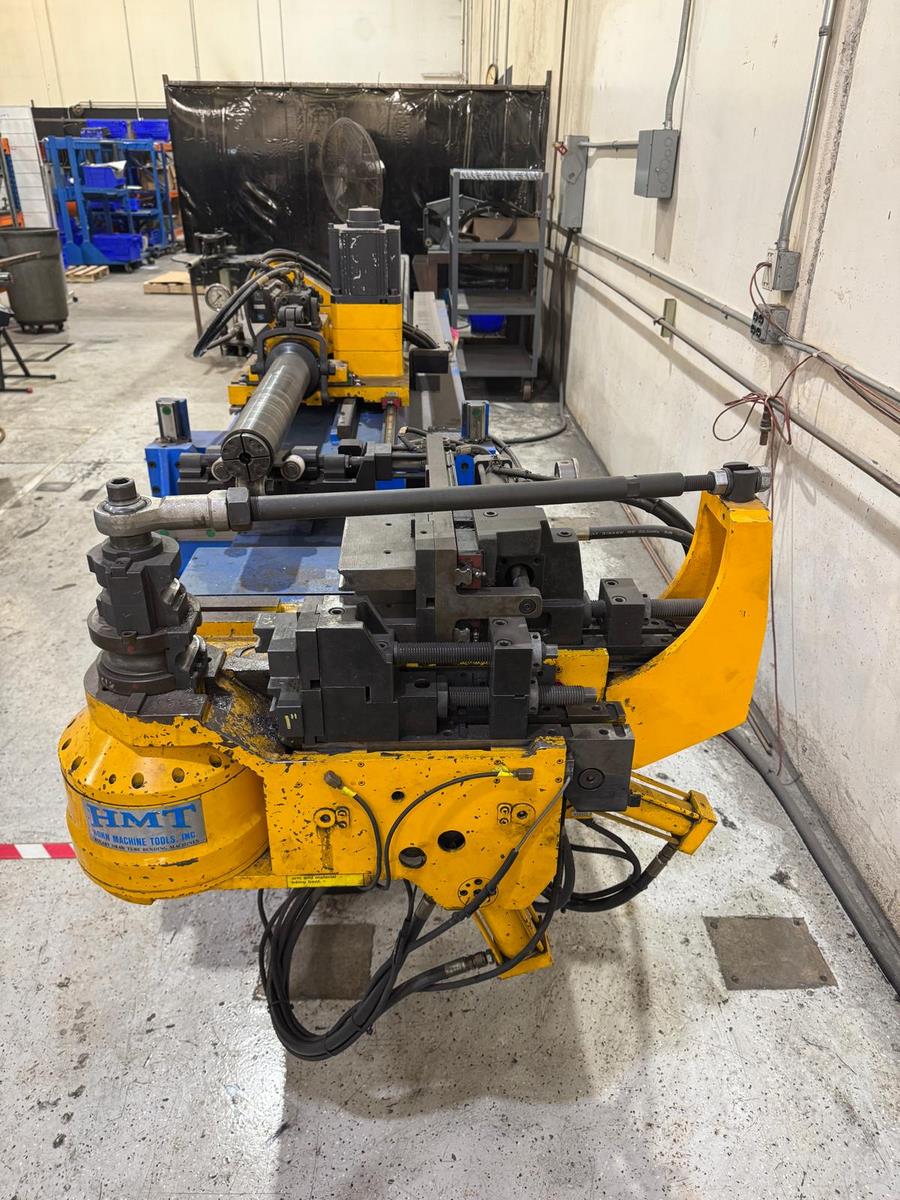

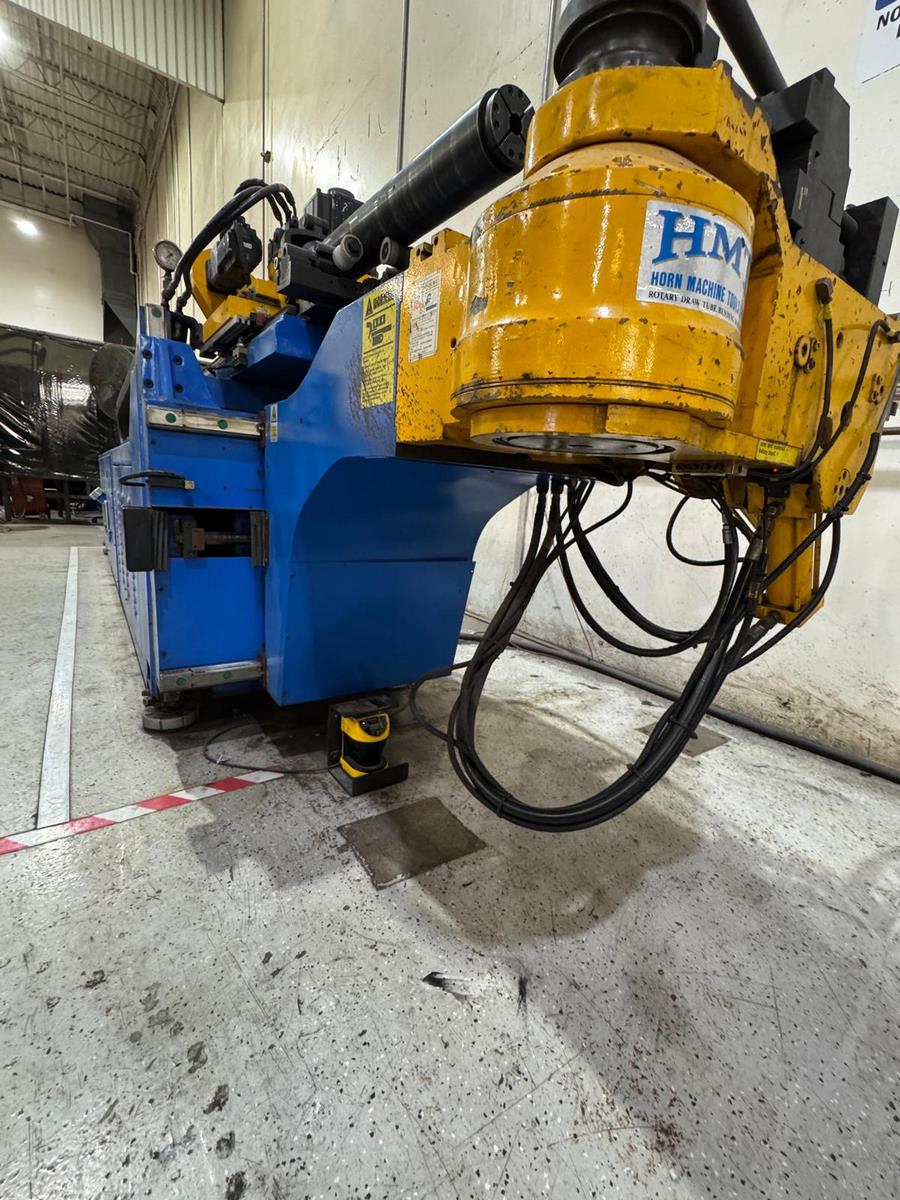

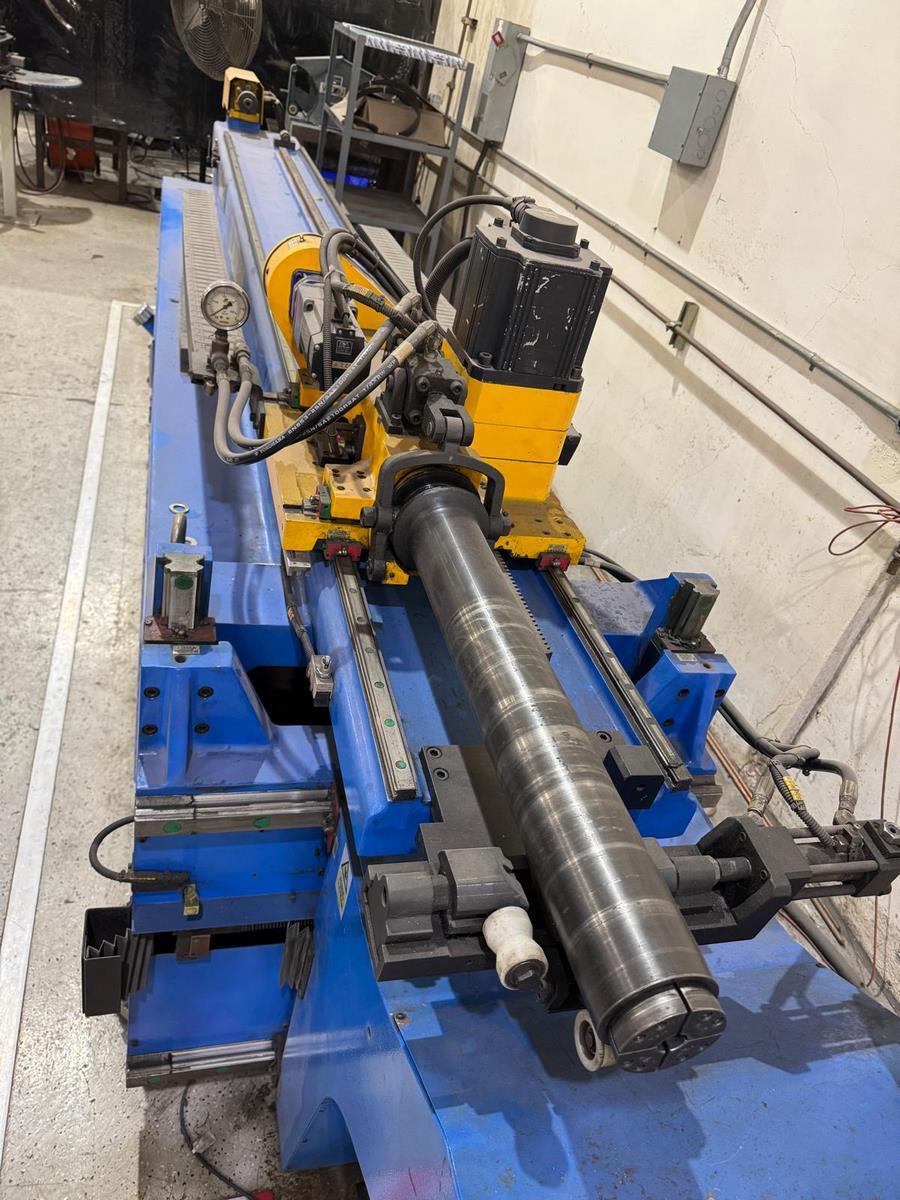

Used Horn CNC50TBRE (2010) Tube Bender for Sale. This pre-owned Horn tube bender is located in The United States. If you have any questions regarding this Horn Tube Bender, please feel free to contact us. You may Activate Pricing to view the price of this Fabrication Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bending/Rolling Capacity (Mild Steel - Round) |
2" x 0.08" |
|---|---|
| Bending/Rolling Capacity (Non-Ferrous - Round) |
2" x 0.14" |
| Bending/Rolling Capacity (Stainless - Round) |
2" x 0.05" |
| Bending/Rolling Capacity (Mild Steel - Square) |
1.57" x 0.08" |
| Bending/Rolling Capacity (Mild Steel - Solid Bar) |
0.98" |
| Max Bending Radius |
1.18" - 8.66" |
| Max Bending Angle |
190° |
| Min Rolling Radius |
7D |
| Max Difference Between Two Radii |
2.56" |
| Max Length over Mandrel |
125.98" |
| Max Pipe O.D. / Repeat Feeding |
2" |
| Working Height |
43.31" |
| Tooling Center Line Height |
1.57" |
| DOB (Bending) Speed |
105° / sec |
| Accuracy of DOB (Bending) |
+/- 0.01° |
| DBB (Feeding) Speed |
1724 IPM |
| Accuracy of DBB (Feeding) |
+/- 0.00" |
| POB (Rotation) Speed |
270° / mm |
| Accuracy of POB (Rotation) |
+/- 0.1° |
| Motor for Hydraulic |
5.1 HP |
| Total Power |
24.1 HP |
| Max Pressure |
308.00 lbsf / c |
