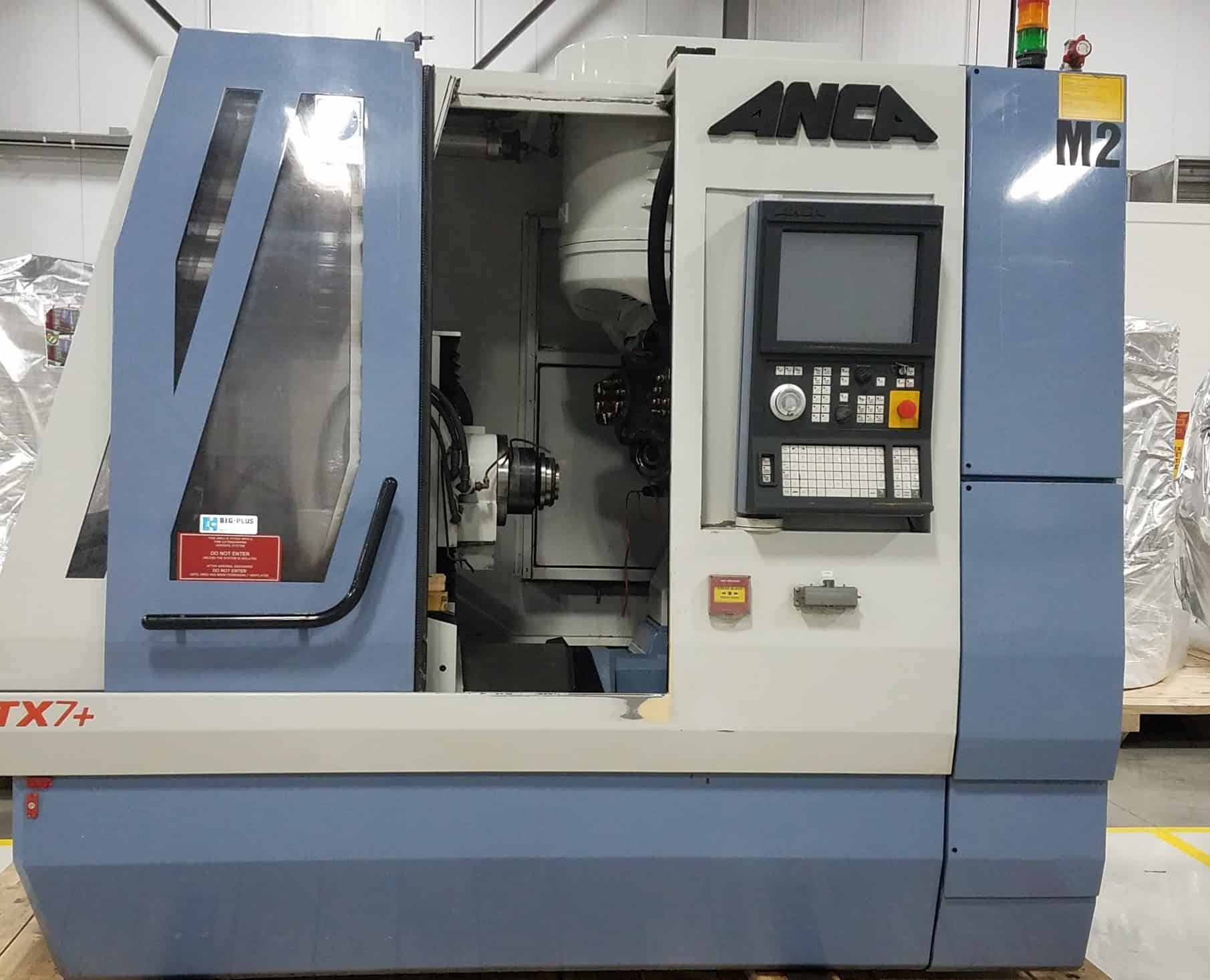

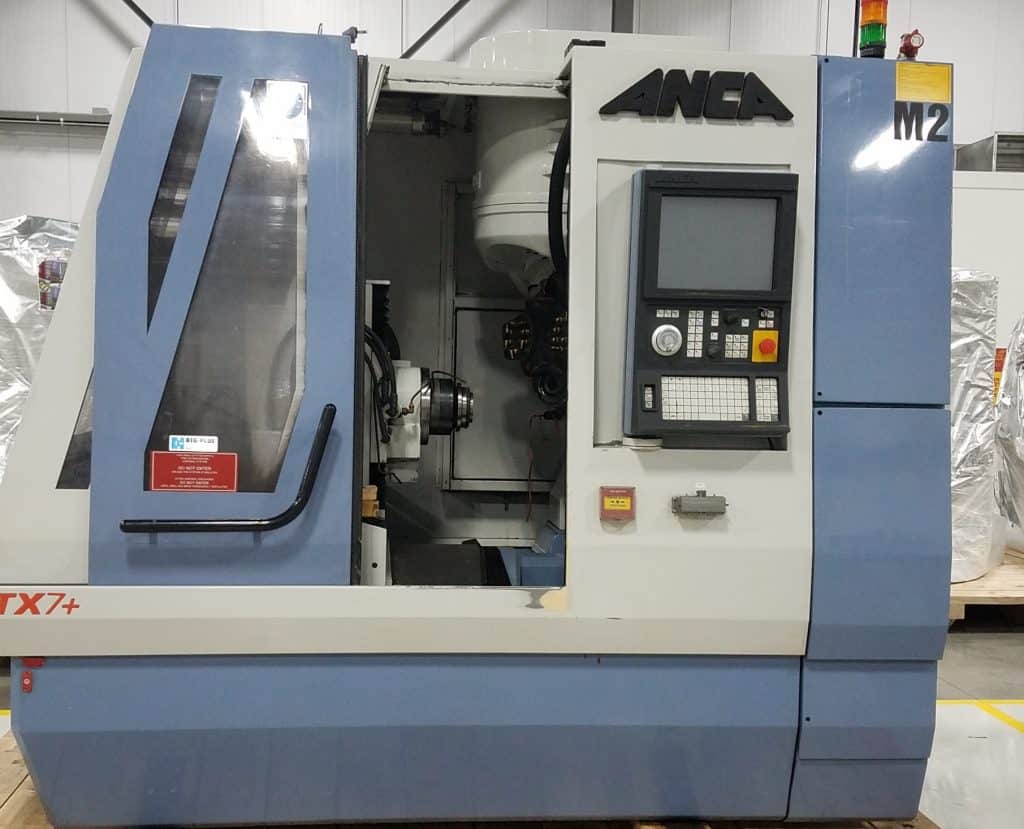

Year |
2010 |
|---|---|
Make |
Anca |
Model |
TX-7 |
Description |
Tool & Cutter Grinder |
Reference # |
8068730 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Travels |
21.9” 16.4” 10.1” 264° 360° |
|---|---|
| Fluting |
1.25" In a Solid Pass, Down to .040" Diameter |
| Position Feedback Resolution |
0.0000039” |
| Programming Resolution |
0.000039” |
| Software Axes |
B, V, U, W. Std software for endmills, drills, and step drills |
| Max Tool Diameter |
8” |
| Spindle Power |
37KW, 49 HP |
| RPM |
10,000 |
| Spindle Type |
ANCA Bi-Directional |
| Spindle Drive |
Integral Direct Drive |
| Nose Taper |
HSK 40F |
| Max. Wheel Diameter |
7.87” |
| Wheel Packs |
2 |
| Electrical Power |
25 KVA |
| RAM |
1 GB |
| Horsepower |
49 |
| Maximum Weight |
55 Lbs |
| Processor Pentium 4 |
2.8 Ghz |
| MB |
512 |
| Floor Layout |
61" x 100" x 89" |
| Weight Approx. |
18,100 lbs |
Features
|
C-Axis |
Renishaw Probe System |
|
Software Axes B |
V |
|
U |
W |
|
Y-Axis |
56 KPBS |
|
Toolroom Software |
A-Axis |
|
All Axes Direct Driven |
Igrind Software Included |
|
Network Ethernet |
X-Axis |
|
Z-Axis |
