Year

2009

Make

Walter

Model

Helitronic Power F

Description

5 Axis Tool & Cutter Grinder

Reference #

8079235

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

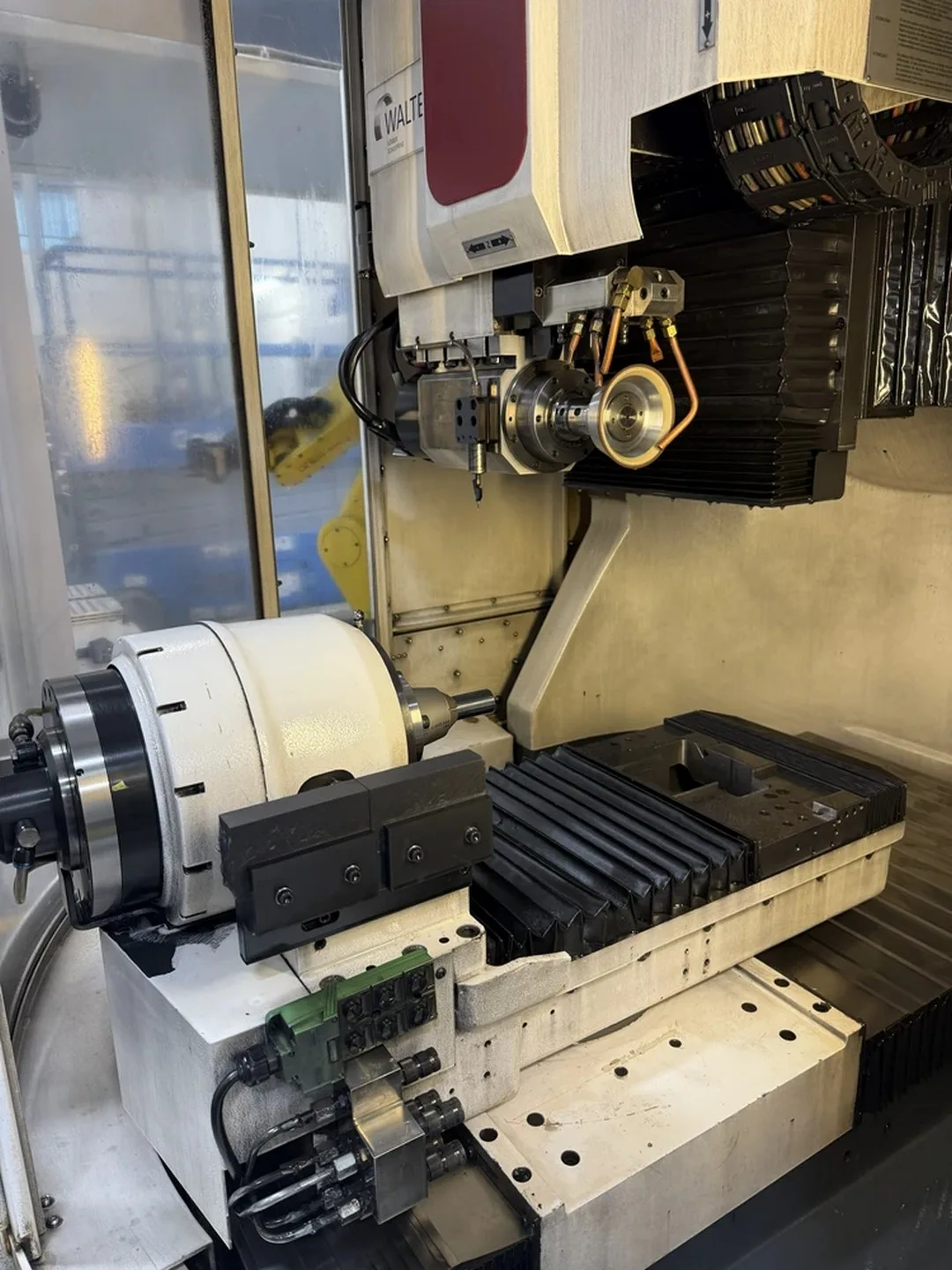

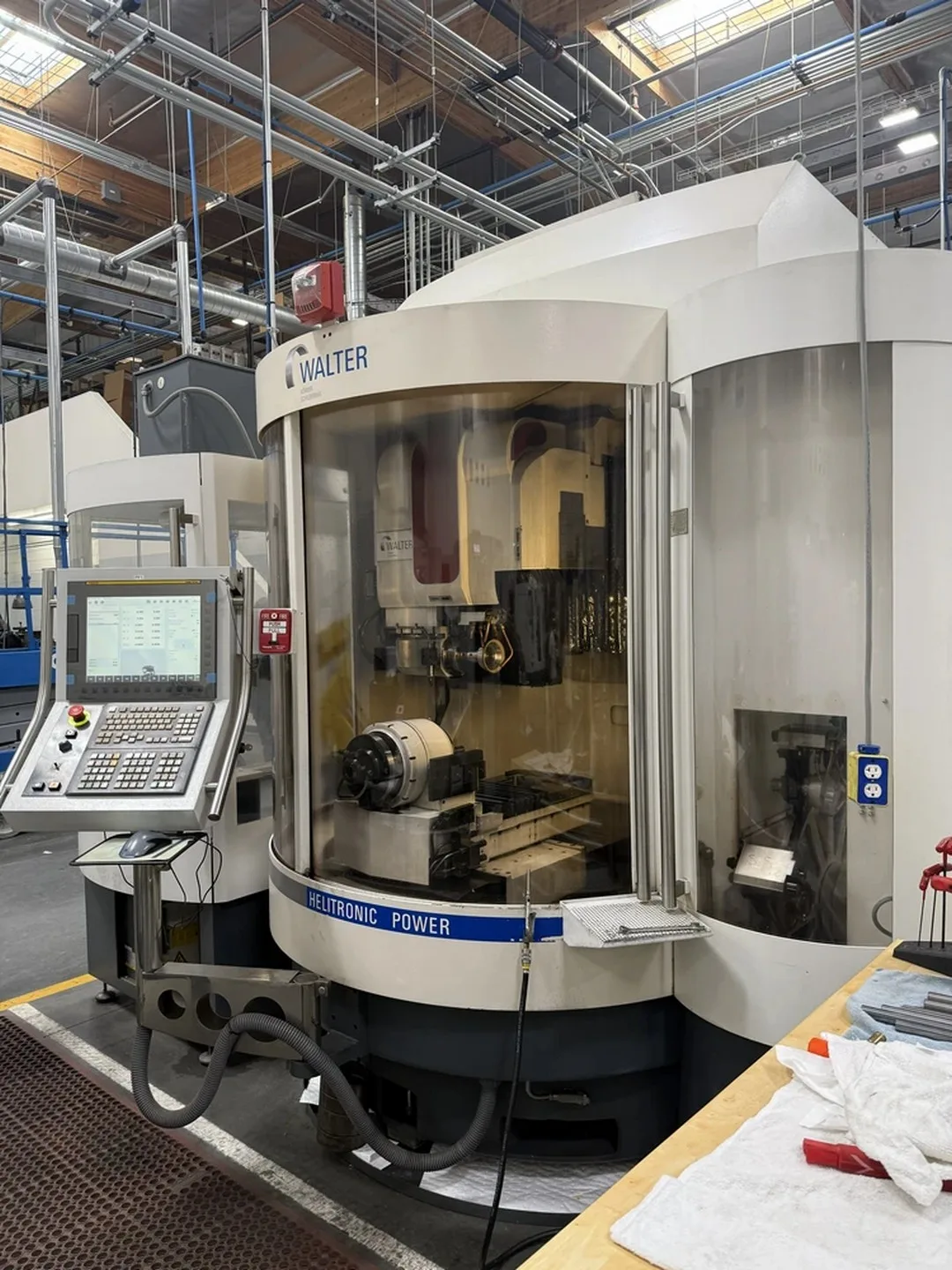

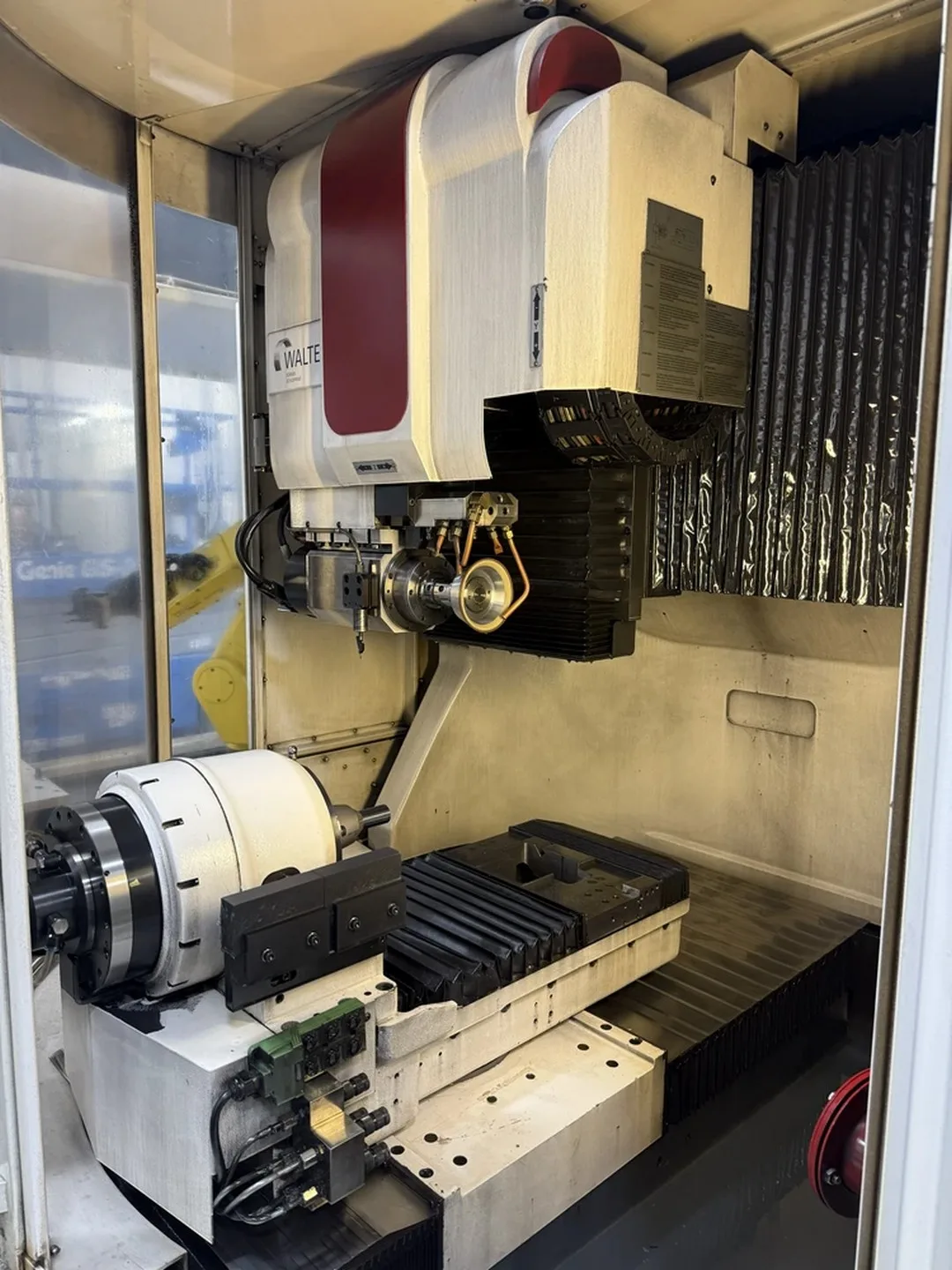

Used Walter Helitronic Power F (2009) 5 Axis Tool & Cutter Grinding Machine for Sale. This tool grinder offers 460 mm (18.1 in) X travel, 320 mm (12.6 in) Y travel and 660 mm (26 in) Z travel, with a C axis of +/- 200 degrees and an A axis hollow shaft motor running 0 to 750 RPM. It runs the Walter HMC 600 control with a 10 kW spindle, 200 mm wheel diameter and max wheel speed of 8,500 RPM. Supply voltage is 400 V, 3 Phase, 50 Hz. Equipped with mist collector, chiller, software updates, Tools Studio, Fanuc robot, loading cell, automatic wheel changer, copper coolant nozzles, probes and a single direct drive grinding spindle with automatic wheel changer. Software is Helitronic Tool Studio Version 3 R4, Build 3.4.134.136, copyright range 2003 to 2023, with SQL Server 2008 database. The machine can be seen under power for an inspection. See our other used grinders, then Activate Pricing or use the Inquire Now button.

Specifications

X travel:

460 mm (18.1 in)

Y travel:

320 mm (12.6 in)

Z travel:

660 mm (26 in)

C axis:

+/- 200 Deg

Control

Walter HMC 600

Spindle power:

10 kW

Max wheel speed:

8,500 RPM

Wheel diameter:

200 mm

A axis:

Hollow Shaft Motor, 0 To 750 RPM

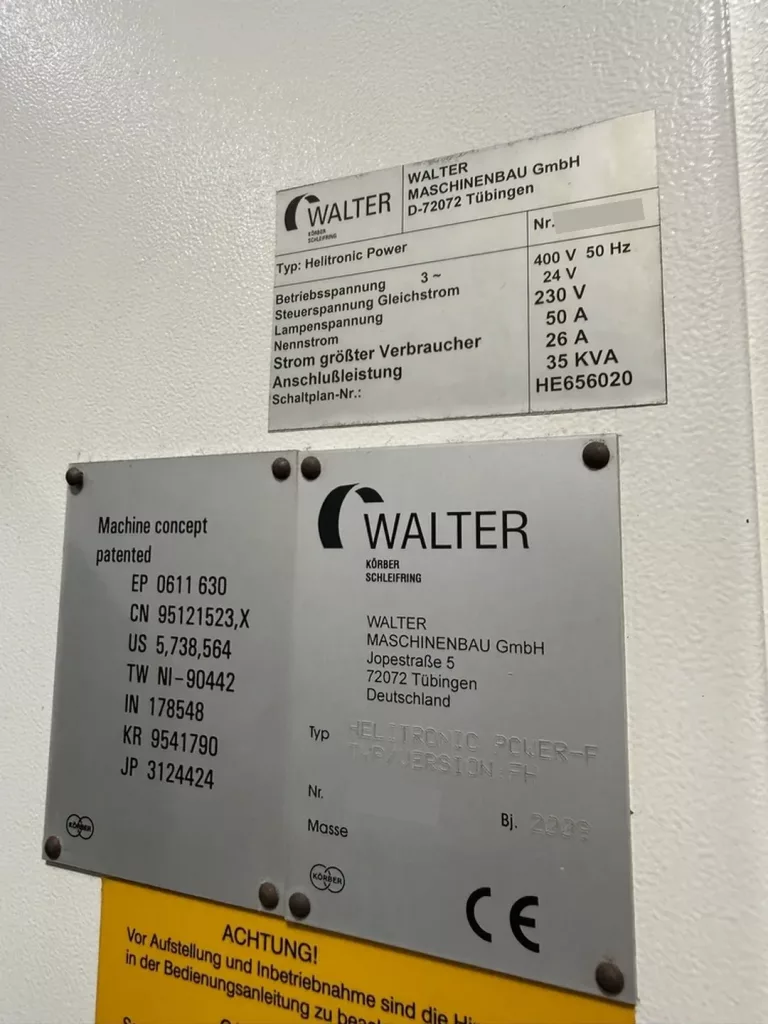

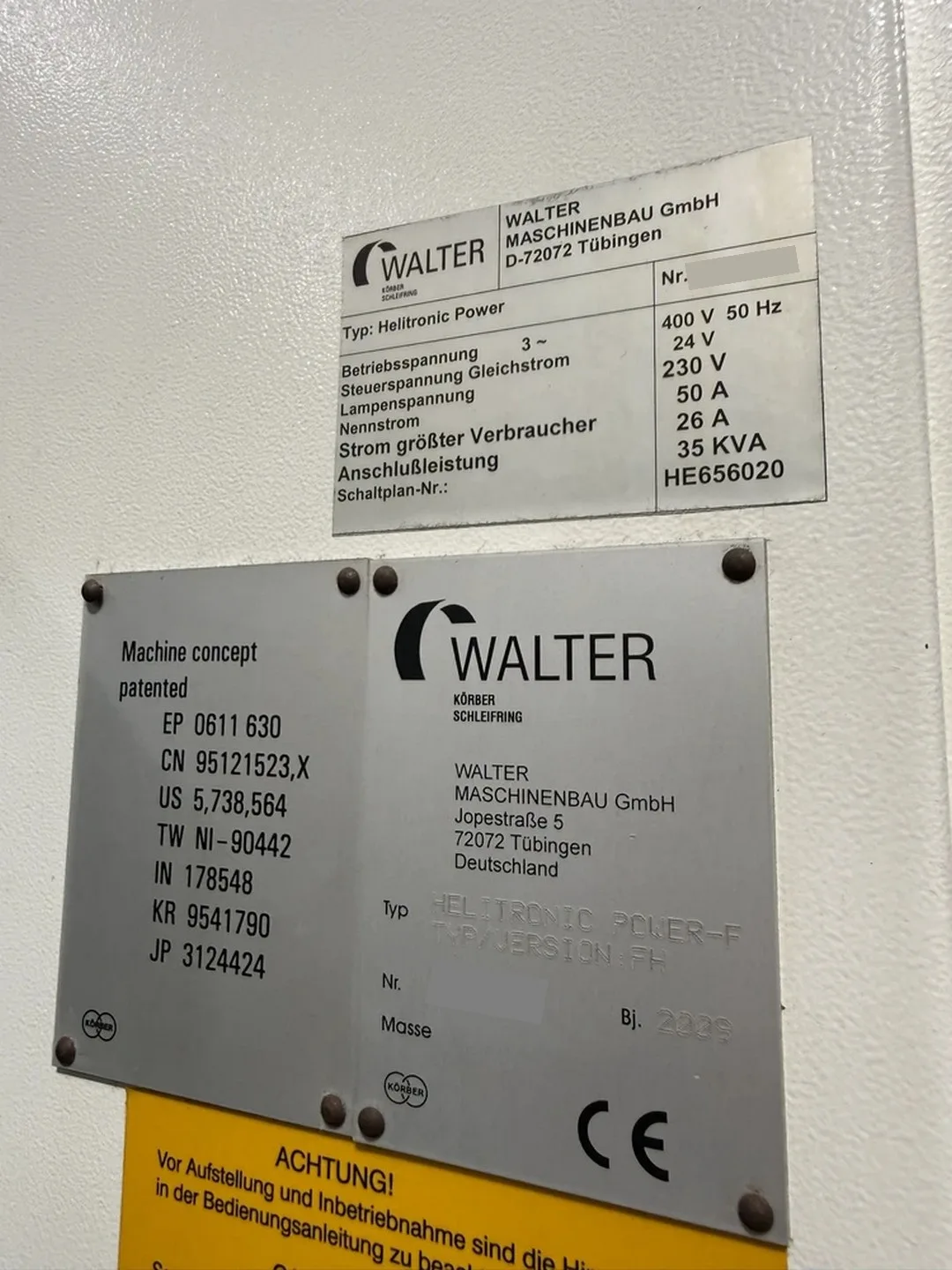

Supply voltage:

400 V, 3 Phase, 50 Hz

Software

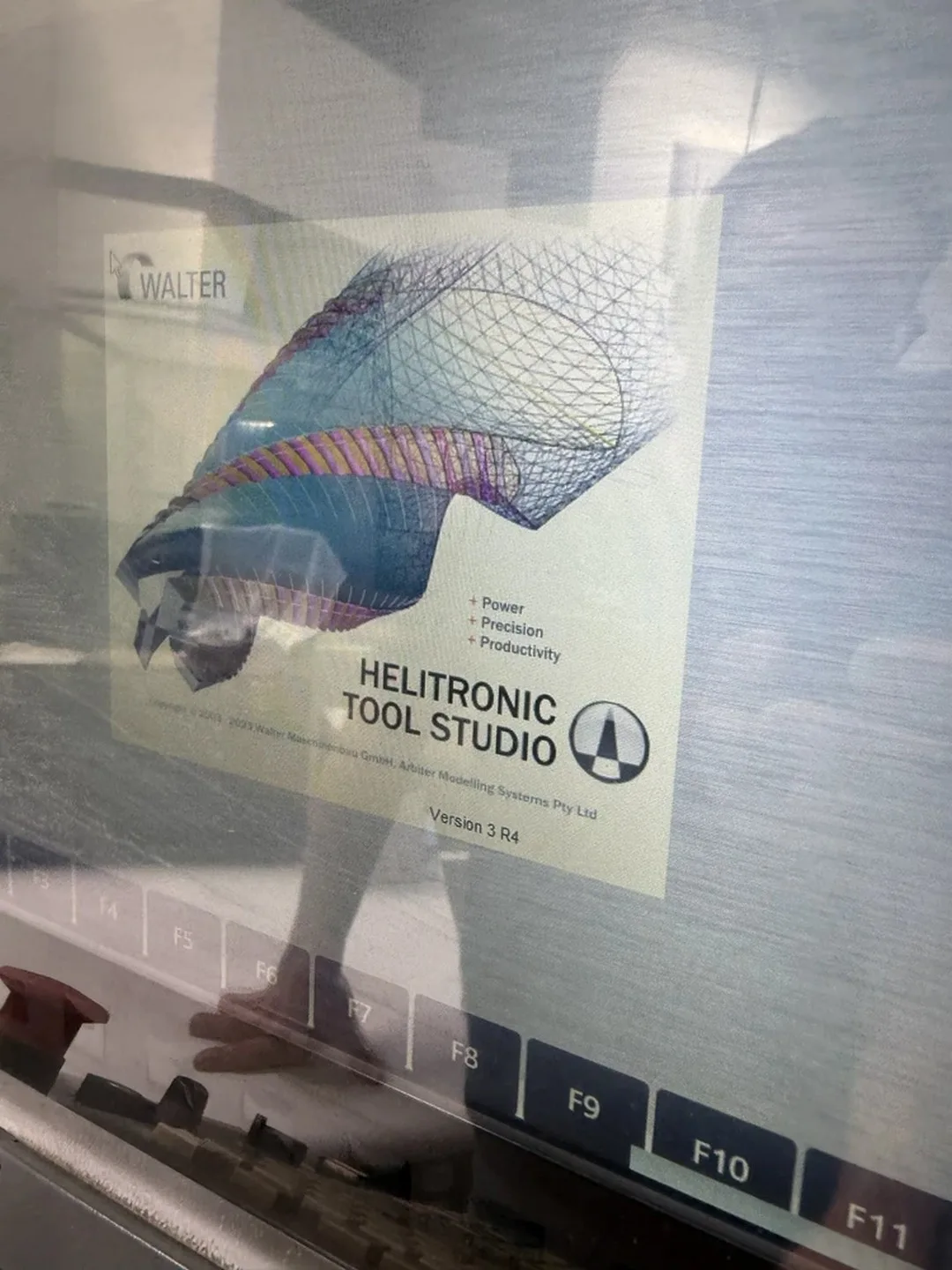

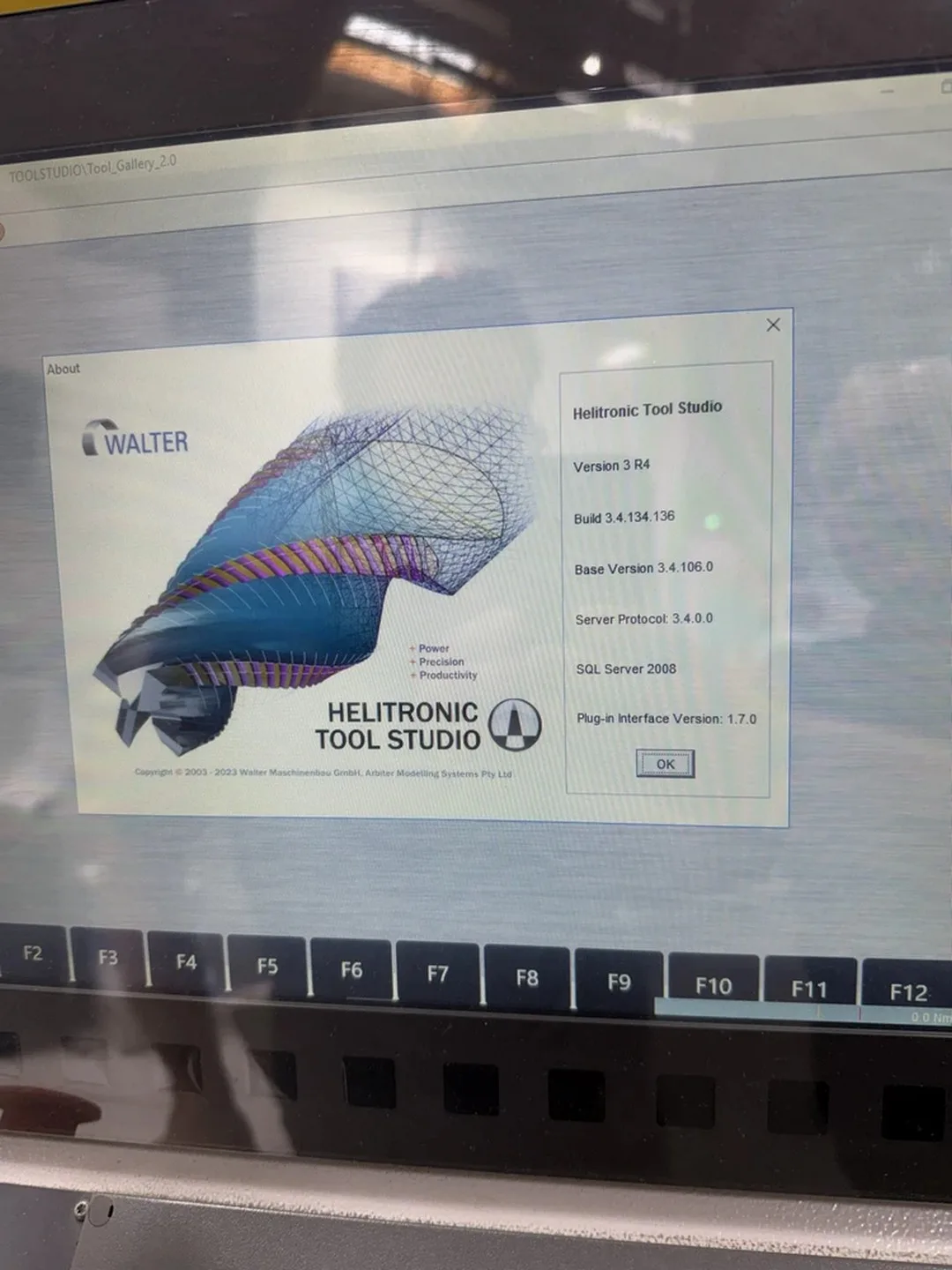

Helitronic Tool Studio Version 3 R4, Build 3.4.134.136

Software copyright range:

2003 To 2023 (Indicates A Recent Update)

Database:

SQL Server 2008

Features

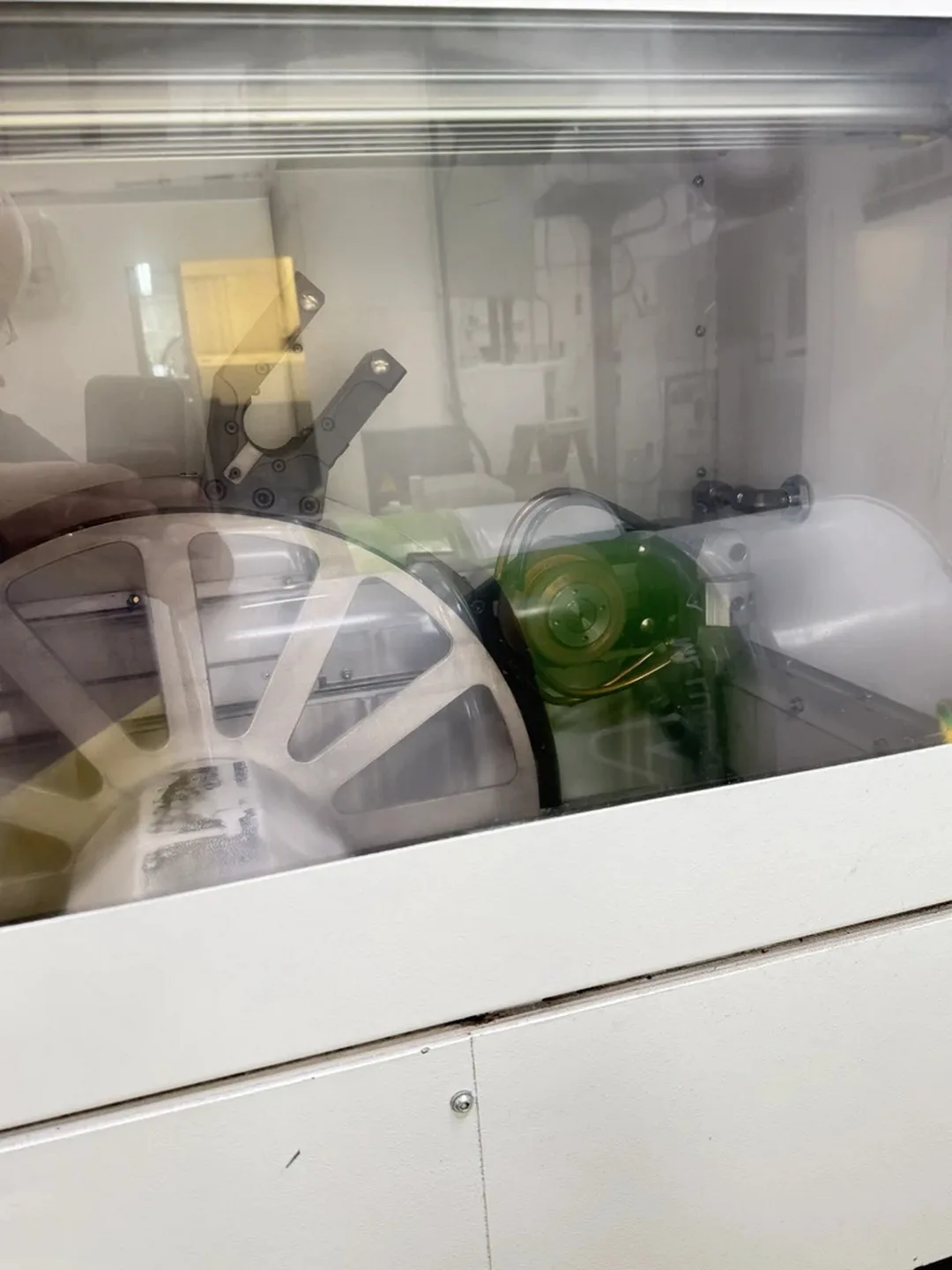

Automatic Wheel Changer

Copper Coolant Nozzles

Loading Cell

Single Direct Drive Grinding Spindle With Automatic Wheel Changer

Software Updates

Tools Studio

Probes

Chiller

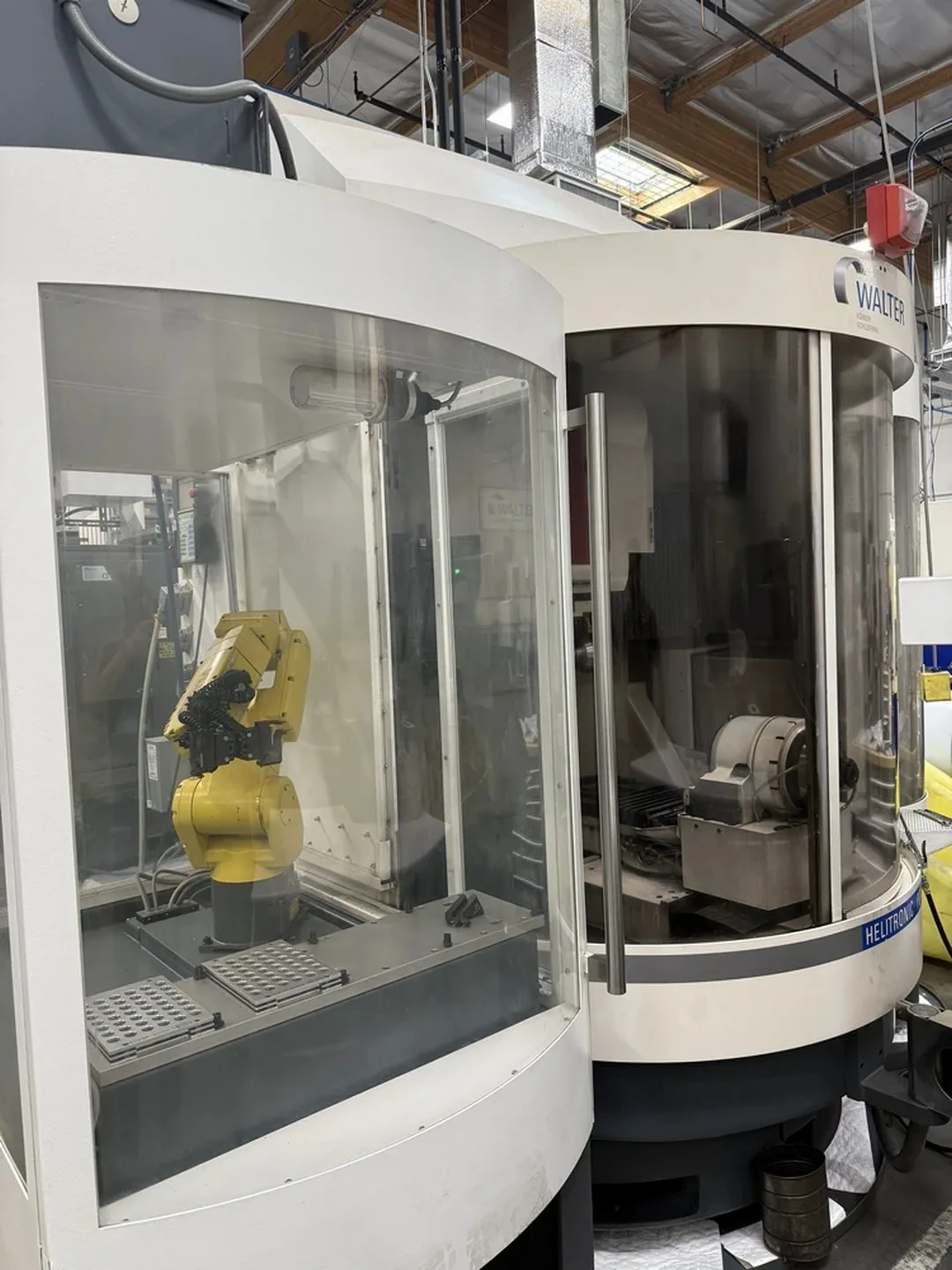

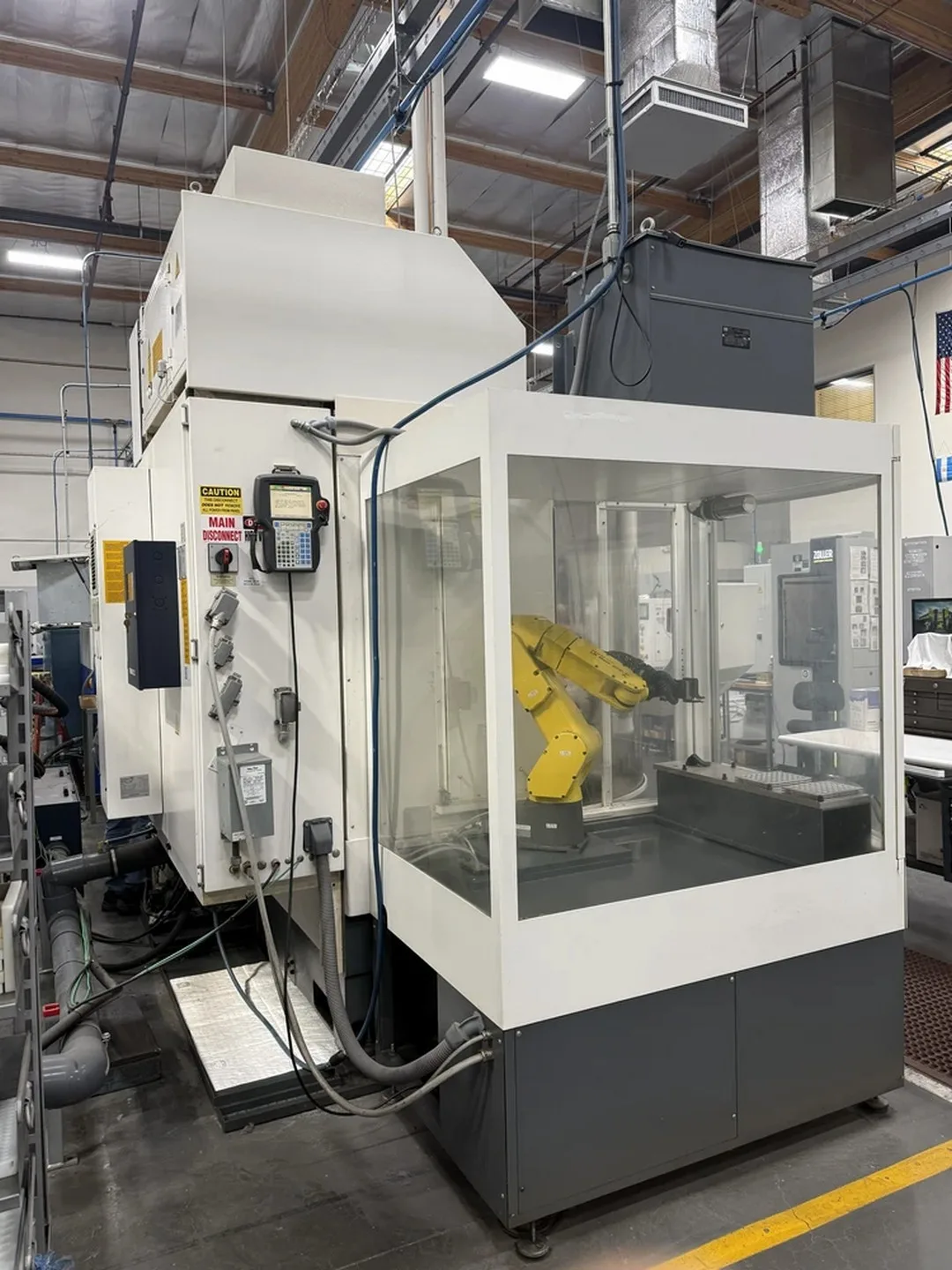

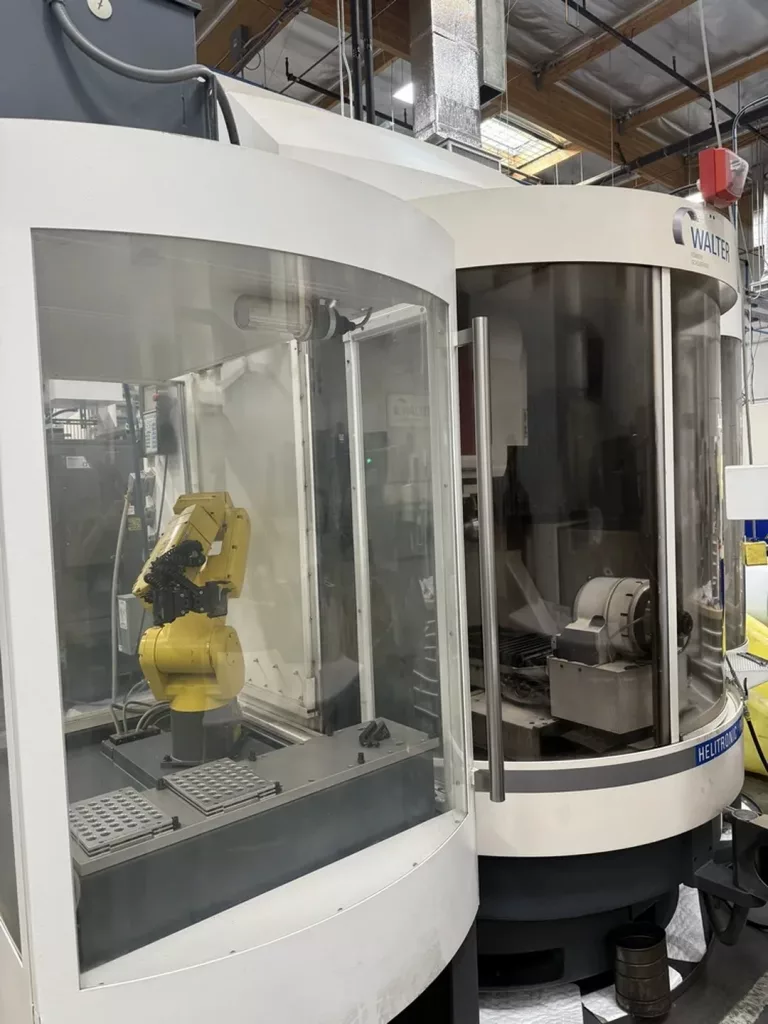

Fanuc Robot

Mist Collector

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
