Year |
2007 |
|---|---|
Make |
Anca |
Model |
TX7+ |
Description |
CNC Grinder |
Reference # |
8078313 |
Price |
Activate Pricing |

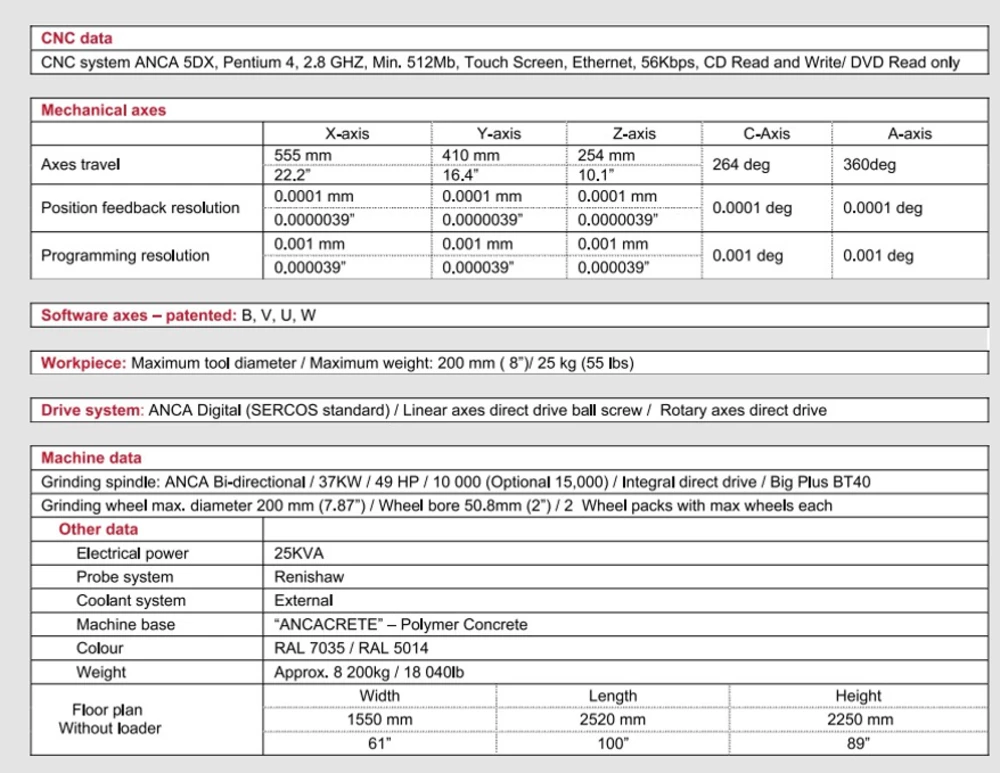

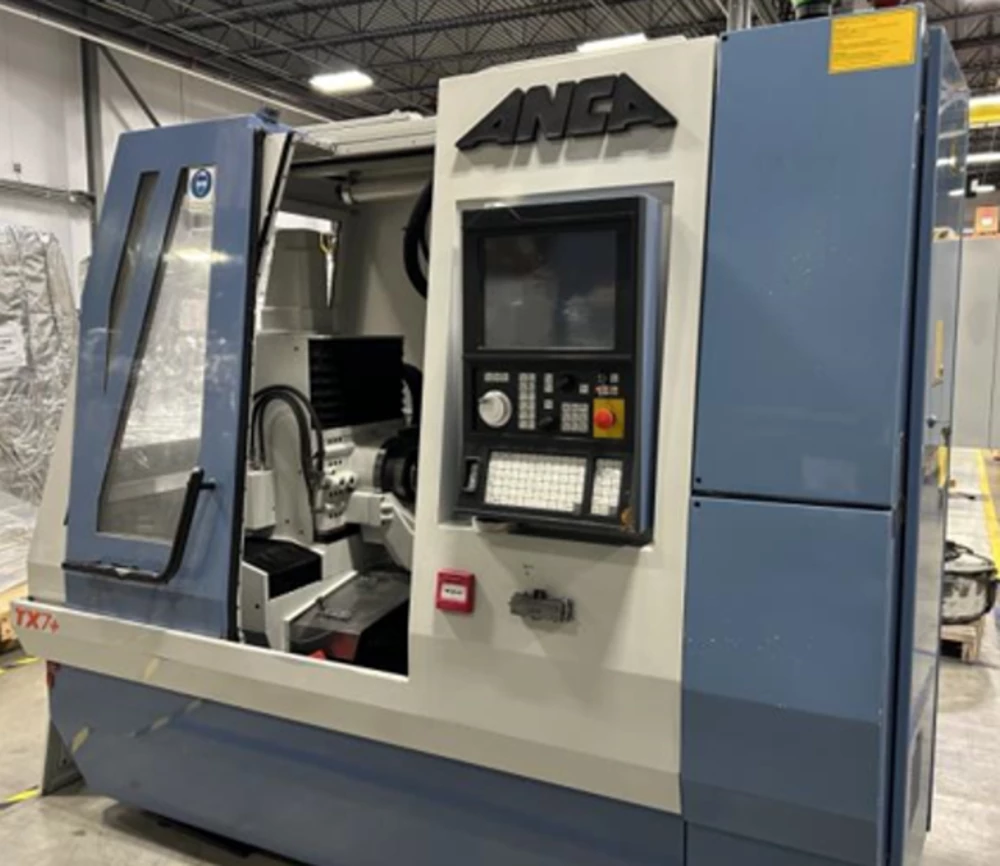

Used Anca TX7+ (2007) Grinder for Sale. This tool and cutter grinder is built around a 49 HP spindle rated to 10,000 RPM, with 22.2″ of X-axis travel, 16.4″ of Y-axis travel and 10.1″ of Z-axis travel. Rotary capability covers 264 degrees on the C-axis and a full 360 degrees on the A-axis, and the machine handles a maximum tool diameter of 8″. It is equipped with a Renishaw probe. Additional specifications can be reviewed in the photos accompanying this listing, so buyers are encouraged to look them over before making an offer. The machine can be seen under power for an inspection by appointment. If this Anca TX7+ suits your grinding requirements, Request a Quote and we will follow up with details.
Specifications
| Spindle Horsepower |
49 HP |
|---|---|
| X-Axis Travel |
22.2" |
| Y-Axis Travel |
16.4" |
| Z-Axis Travel |
10.1" |
| Max Tool Diameter |
8" |
| Spindle Speed |
10,000 RPM |
| C-Axis |
264 Degree |
| A-Axis |
360 Degree |
| Note |
See Photos for More Specs |
Features
|
Renishaw Probe |
