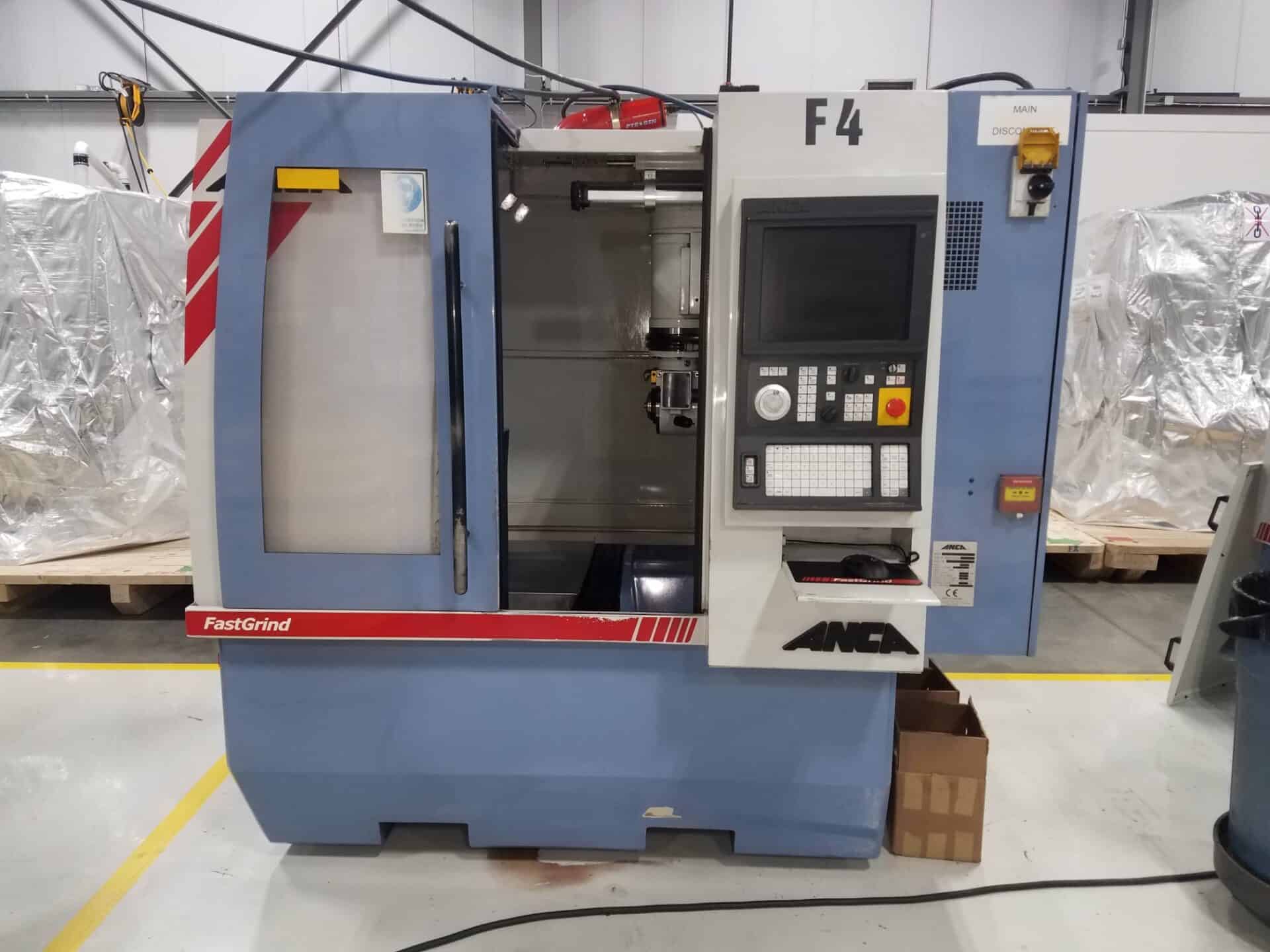

Year |
2010 |
|---|---|
Make |
Anca |
Model |
FastGrind |
Description |
Tool & Cutter Grinder |
Reference # |
8069558 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Travels |
X-17.13”, Y-17.99”, Z-10.83” , C-310°, A-360° |
|---|---|
| Position Feedback Resolution |
X-0.0000039”, Y-0.0000039”, Z-0.0000039”, C-0.0001 Deg, A-0.0001 Deg |
| Programming Resolution |
X-0.0000039”, Y-0.0000039”, Z-0.0000039”, C-0.0001 Deg, A-0.0001 Deg |
| Software Axes |
B, V, U, W |
| Max Tool Diameter |
9.4” |
| Spindle Power |
3.7kw / 5hp (S1) 8kw / 10.7hp |
| RPM |
10,000 |
| Spindle Type |
ANCA Bi-Directional |
| Spindle Drive |
Integral Direct Drive |
| Workpiece Maximum Weight |
44 Lbs |
| Workpiece Maximum Tool Diameter |
8.66” |
| Nose Taper |
HSK 40F |
| Max. Wheel Diameter |
8” |
| Wheel Packs |
2 |
| Drive System |
Anca Digital |
| Drive Type |
X-Axis Y-Axis Z-Axis C-Axis A-Axis |
| Wheel Bore |
31.75 Mm / 1.25” |
| Version Software |
33.1 |
| Electrical Power |
13.2 KVA |
| Weight Approx. |
9,921lb |
Features
|
1 GB Ram |
2.8 Ghz Processor Pentium 4 |
|
Toolroom Software |
All Axes Direct Driven |
|
CNC System ANCA 5DX |
Display LCD Screen |
|
Ethernet Network |
Igrind Software |
*
