Year |
2009 |
|---|---|
Make |
Nissei |
Model |
FNX180-50A |
Description |
200 Ton 21.4 oz Electric Injection Molding Machine |
Reference # |
8078862 |
Price |
Activate Pricing |

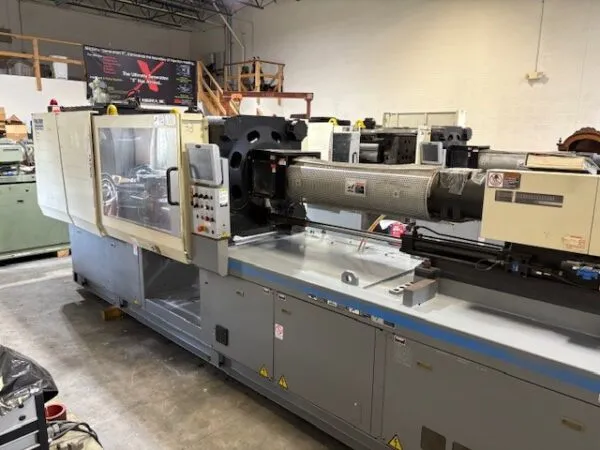

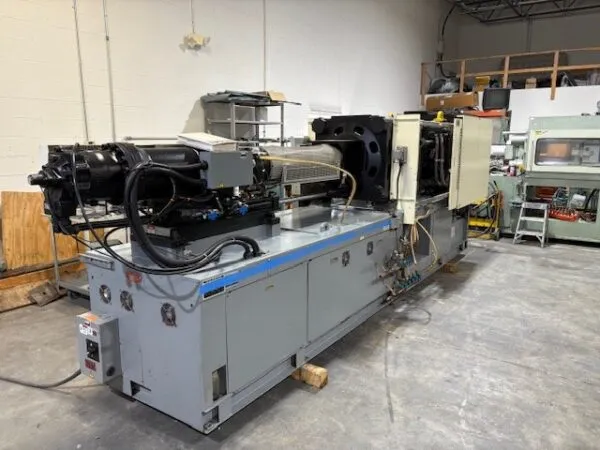

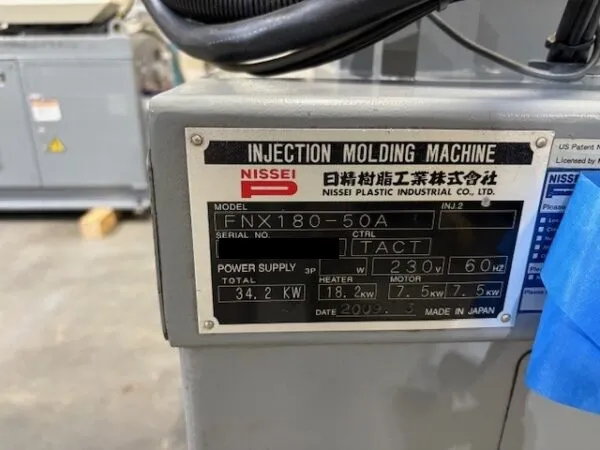

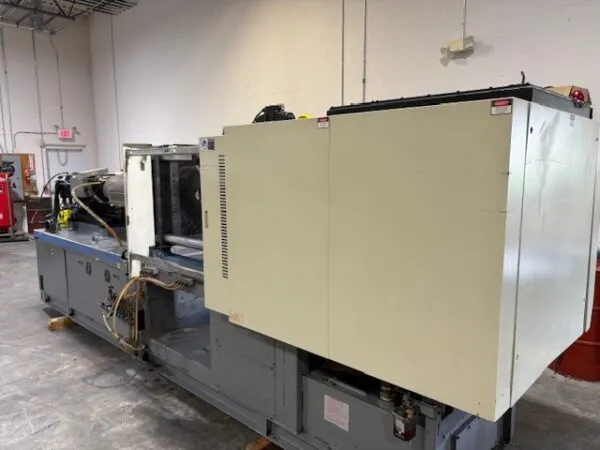

Used Nissei FNX180-50A (2009) Injection Molding Machine for Sale. This all-electric press is rated at 200 tons of clamp force with a 21.4 oz shot size. Tie bar spacing measures 22″ x 22″, with platens of 31.5″ x 31.5″, a maximum daylight of 37.4″ and a minimum mold thickness of 9.8″. Ejector stroke is 4.3″. The machine runs on the Nissei Tact control and requires 230V power. It can be seen under power for an inspection, so you can confirm cycle operation before committing. Additional injection molding machines and other Nissei equipment are available. Activate Pricing to view the figure on this press, or Request a Quote and we will follow up with details.
Specifications
| Capacity |
200 Ton |
|---|---|
| Shot Size |
21.4 oz |
| Tie Bar Spacing |
22" x 22" |

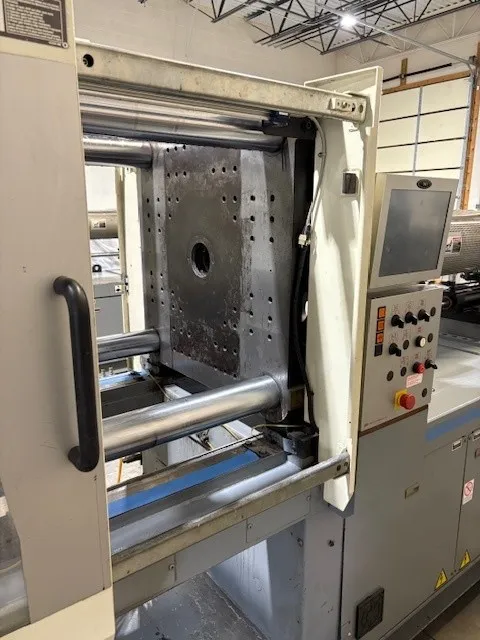

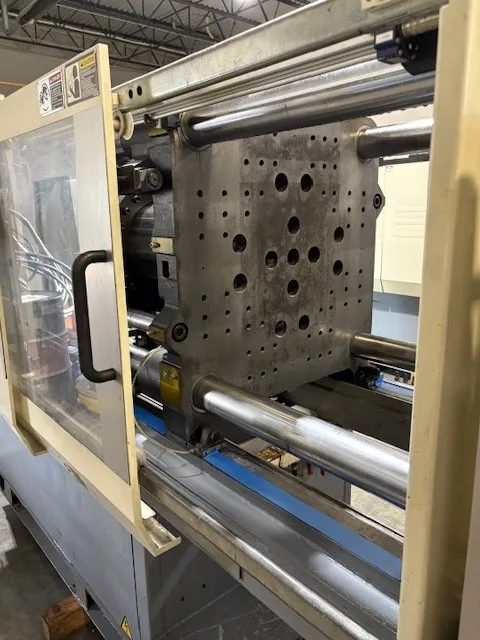

| Platen Size |
31.5" x 31.5" |
| Max Daylight |
37.4" |
| Min Mold Thickness |
9.8" |
| Ejector Stroke |
4.3" |

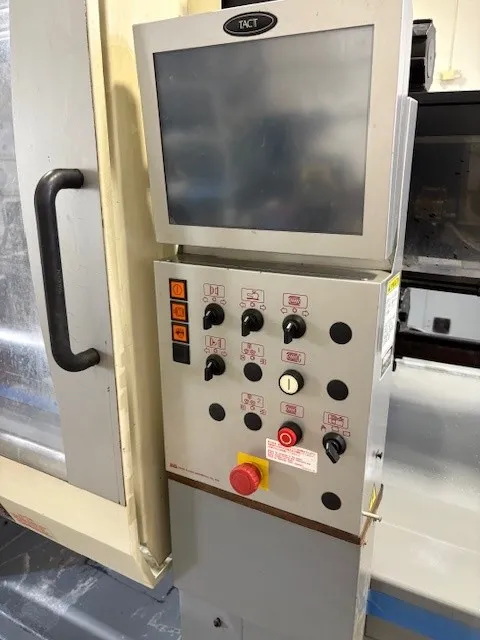

| Control |
Tact |
| Power Requirement |
230V |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
