Year |
2008 |
|---|---|
Make |
Union |
Model |
KCU 150 |
Description |
Horizontal Boring Mill W/ CNC Facing Head |
Reference # |
8070344 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

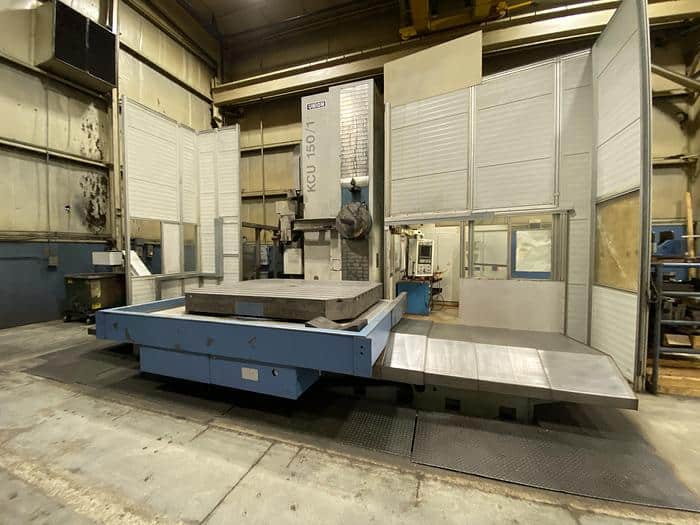

Union KCU 150
Specifications
| Control |
Siemens 840D CNC |
|---|---|
| X Axis Travel |
126" |
| Y Axis Travel |
118" |
| Z Axis Travel |
59" |
| W Axis Travel (Spindle Bar) |
30" |
| U Axis Travel (Facing Slide) |
8" |
| B Axis Travel (Rotary Table) / Inc |
360 Degrees / .001 |
| Rotary Table Size |
79" x 98" |
| Rotary Table Load Capacity |
44,000 Lbs. |
| Spindle Bar Size / Tool Flange |
6" / CAT #50 |
| Spindle Speed: |
3,000 RPM |
| Spindle Torque / Power |
1610 ft-lbs / 62 HP |
| Rapid Traverse Rates (X, Y, Z) |
590 IPM |
| Automatic Tool Changer Capacity |
60 Tools |
Features
|
Roller Guide Axes Bearings |
Coolant Through Spindle |
|
Facing Head Range Up To 48" Diameter |
Facing Head Speed Range From 2.5 to 330 RPM |
|
Heidenhain Scale Feedback |
Integral CNC Facing Head With "Pass Thru" Spindle |
|
Machine Guarding for Chips/Coolant/Chip Conveyor |
*
