Year |
2008 |
|---|---|
Make |
Okuma |
Model |
MacTurn 550W |
Description |
CNC Lathe |
Reference # |
8073224 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

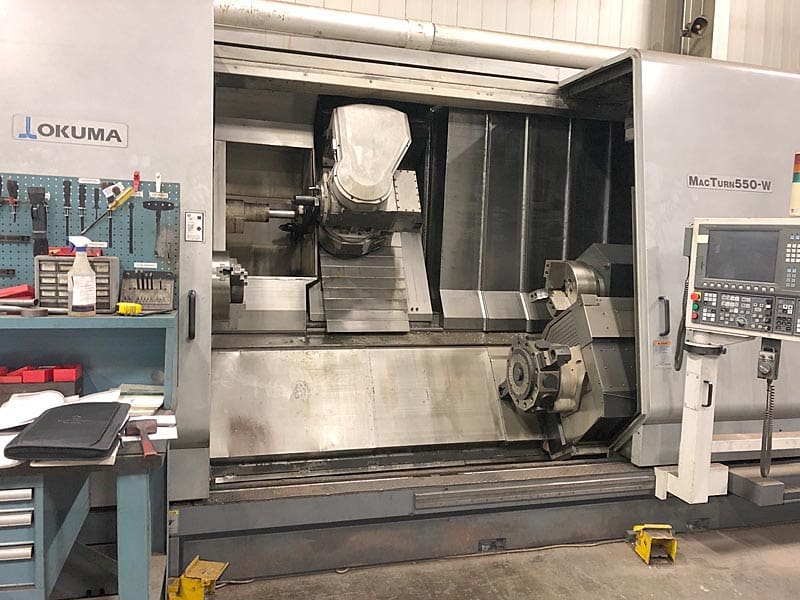

Used Okuma MacTurn 550W (2008) CNC Lathe for Sale. This pre-owned Okuma CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
15" |
|---|---|
| Bar Capacity |
5.12" |
| Swing |
28.34" |
| Turning Diameter |
28.34" |
| Spindle Speed |
3,800 RPM |

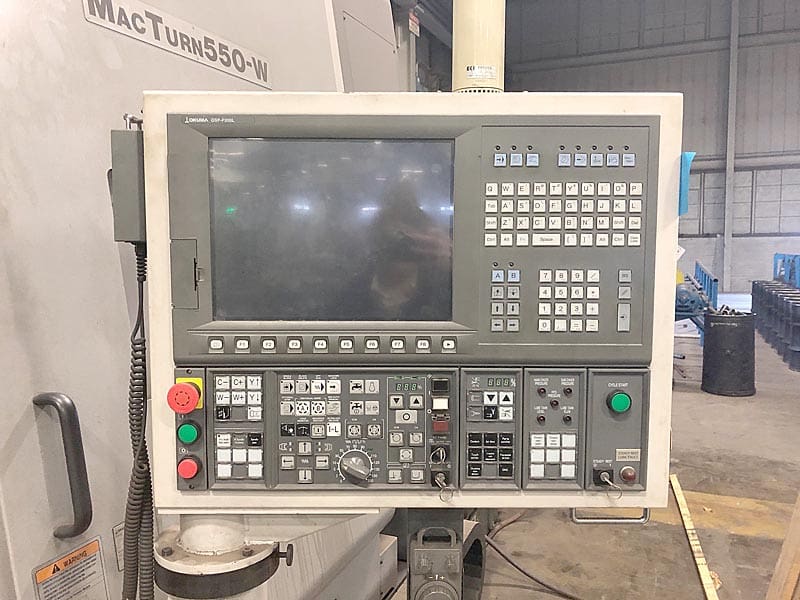

| Control |
OSP P200-LA |
| Distance Between Centers |
88" |
| X-Axis Travel |
25.98" |
| Y-Axis Travel |
9.84" |
| Z-Axis Travel |
87.2" |
| C-Axis |
.001 Degree |
| Turret |
12 Position |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
Heavy Duty Sub-Spindle with 15" Chuck, 40 HP |
| Chip Removal |
Chip Conveyor |
| Approx. Machine Weight |
62,000 Lbs |
| Approx. Machine Dimensions with Conveyor |
281" x 122" x 123"H |
Features
|
Tailstock |
50 Station Automatic Tool Changer |
|
BT-50 Spindle Taper |
Full Contouring B-Axis Universal Head |
|
Kitagawa B-15 15" 3-Jaw Power Chuck |
Lower Turret Lathe Tool Indexing |
|
Programmable Torque Limit |
Servo Link Spindle |
|
Auto Tool Presetter |
Coolant System |
|
Synchronous Tapping |
Tool Life Management |
|
3D Animation |
Tool Setting Probe |
|
Tool Wear Compensation |
Full C-Axis Spindle Rotation |
|
Helical Cutting |
Oil Chiller |
