Year |
2008 |
|---|---|
Make |
Birlik Makina |
Model |
HSM-4 |
Description |
4-Roll Plate Roll |
Reference # |
8078127 |
Price |
Activate Pricing |

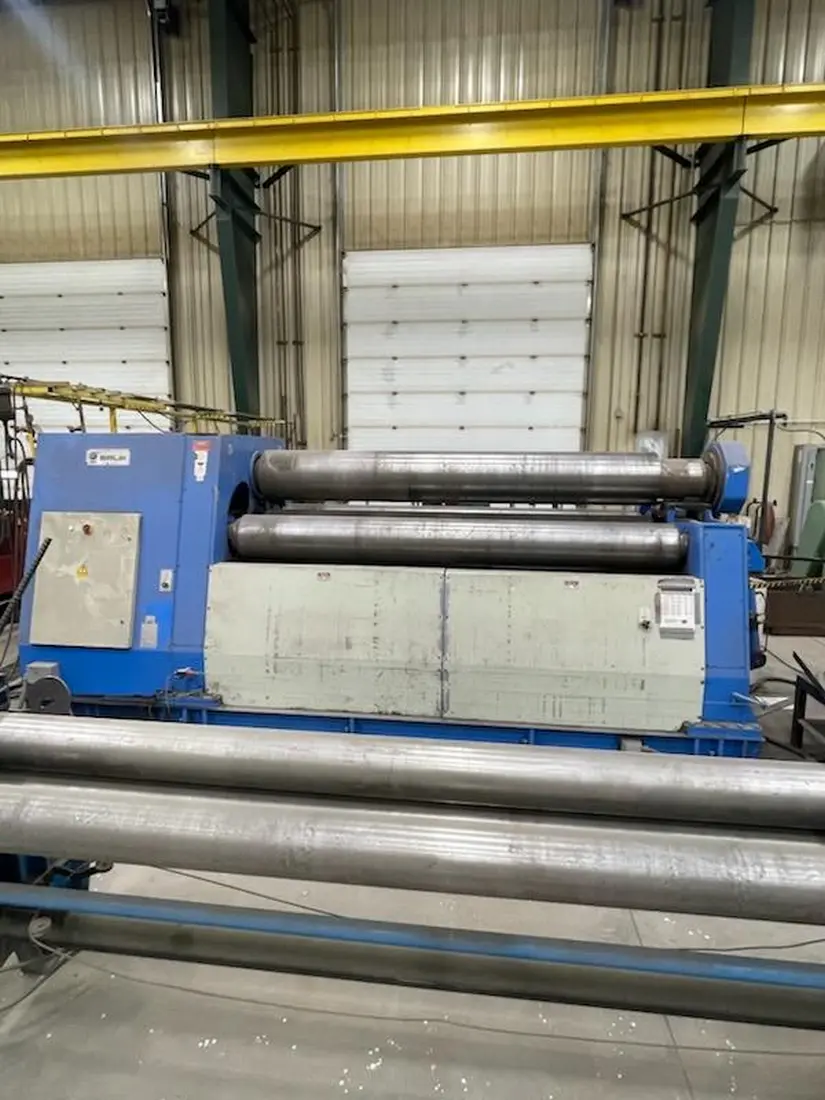

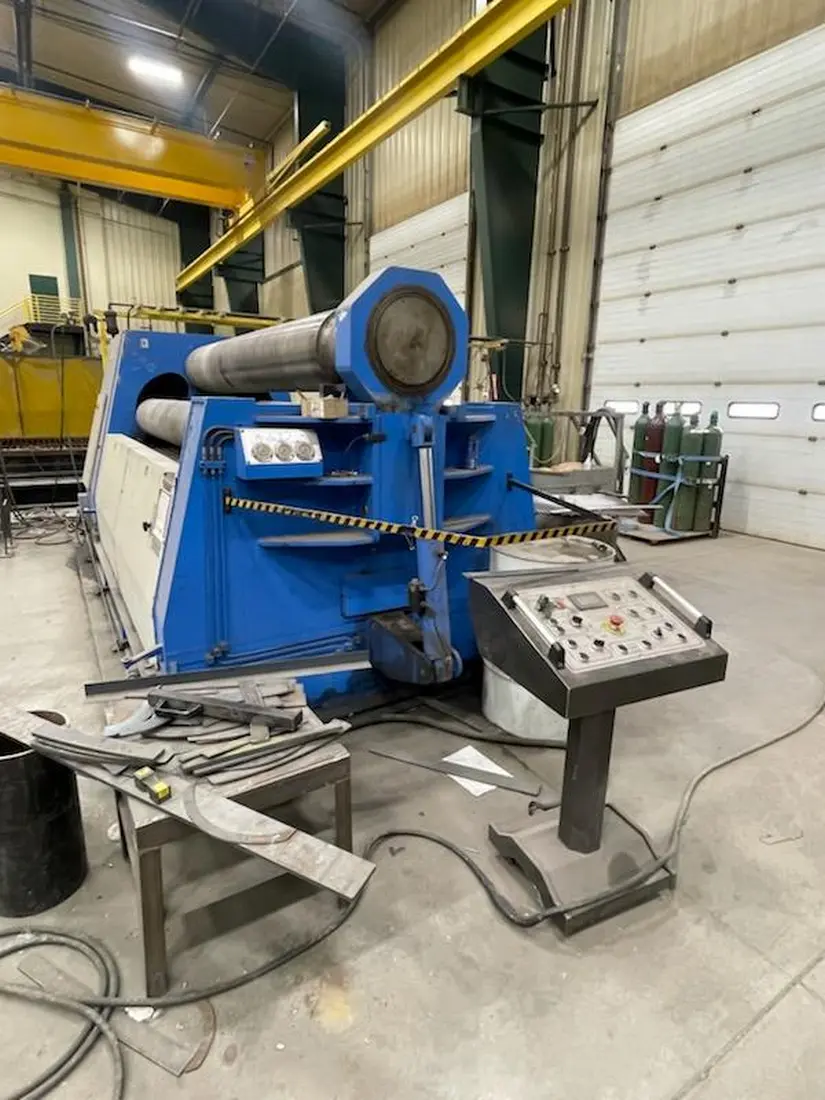

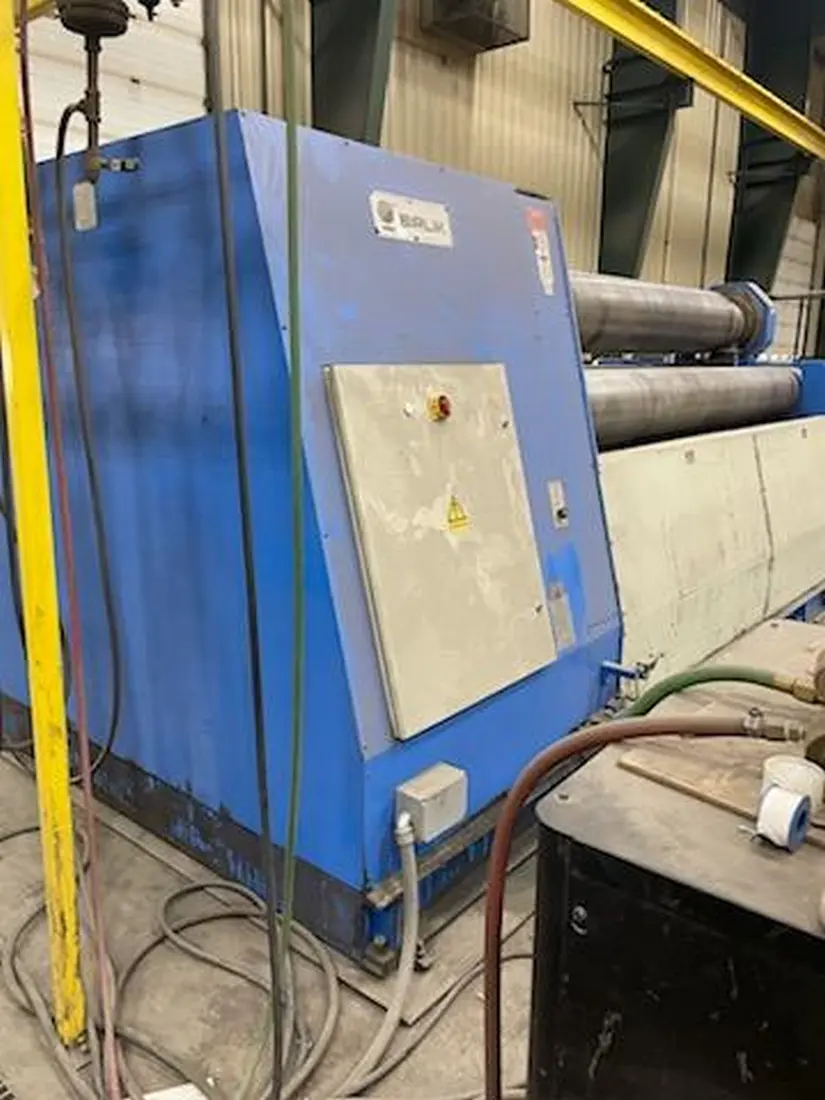

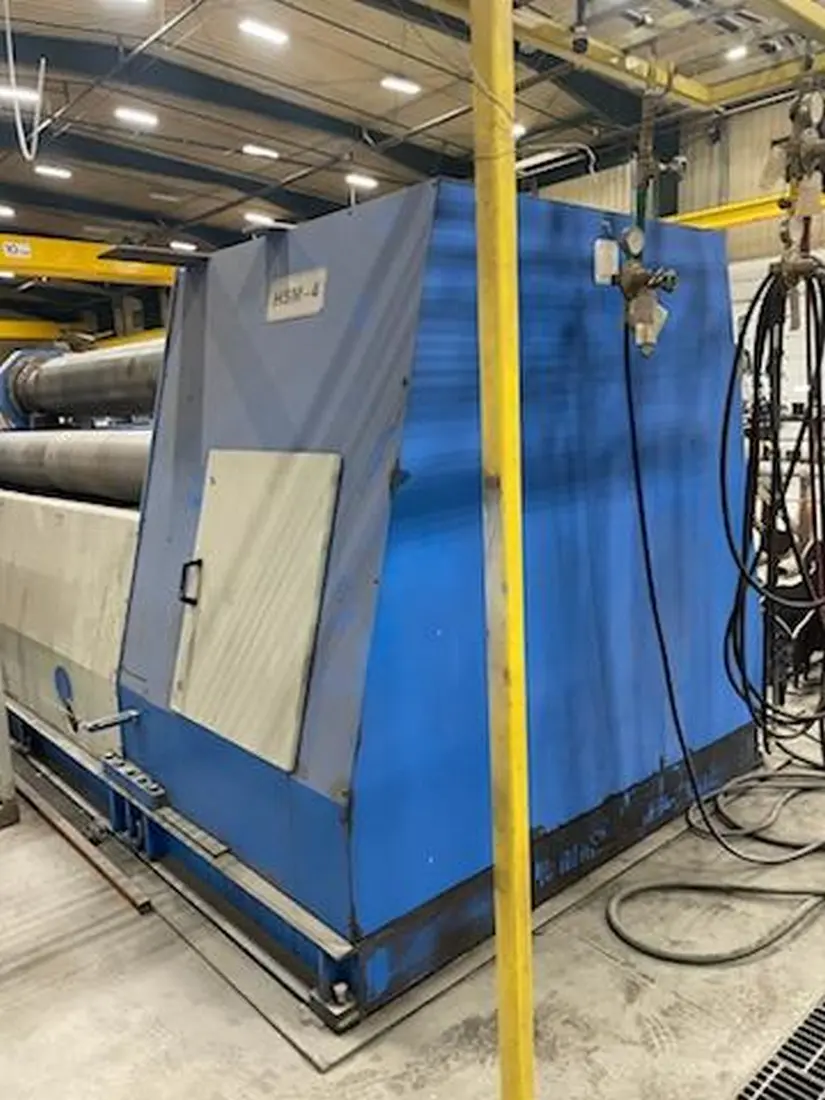

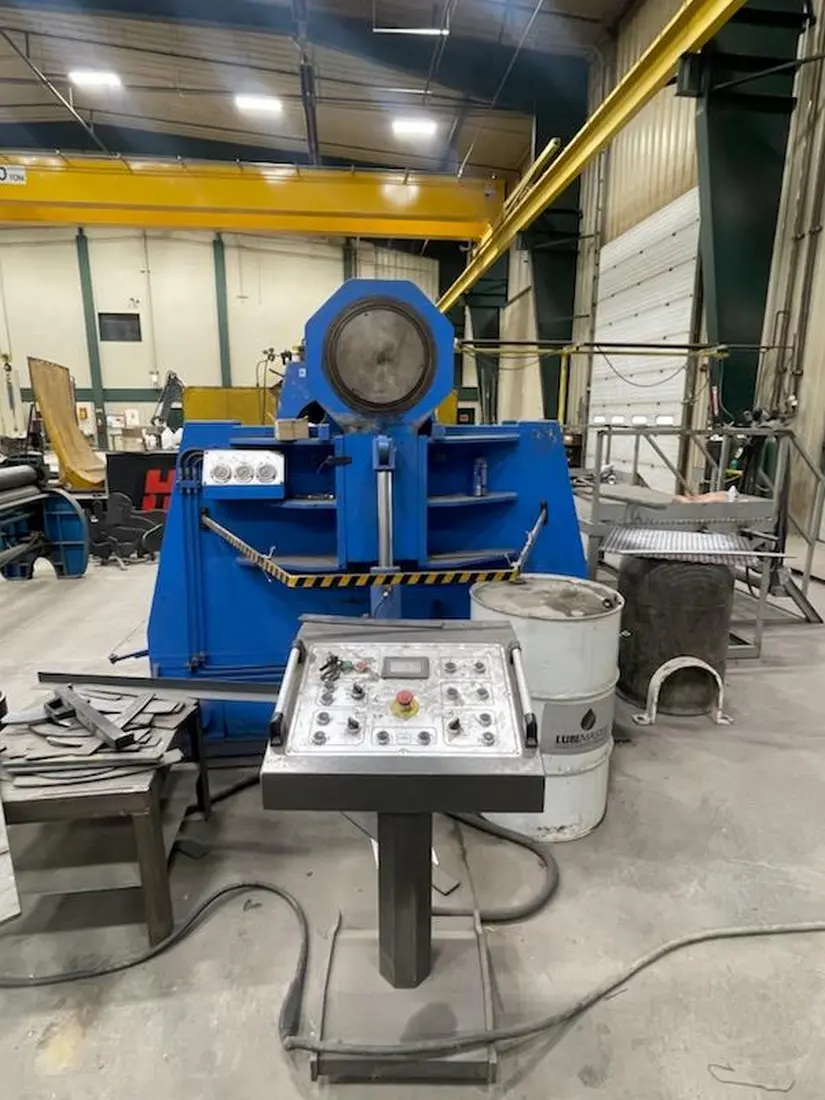

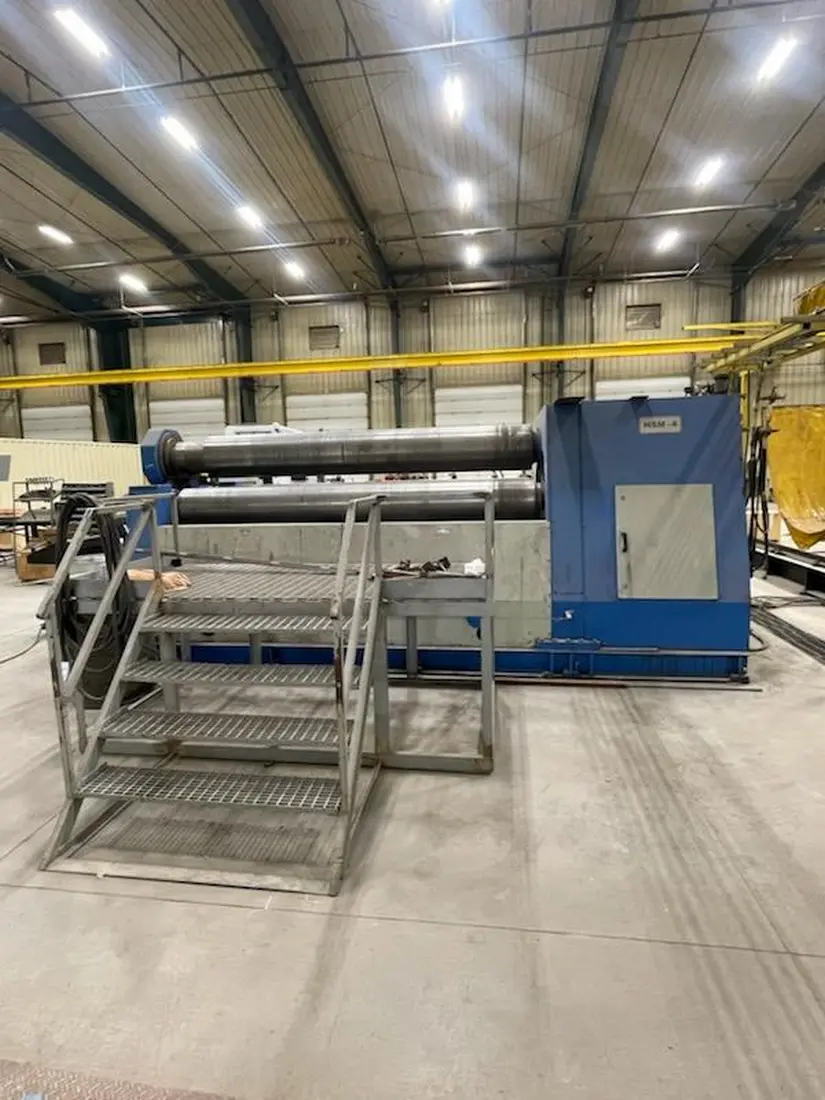

Used Birlik Makina HSM-4 (2008) Plate Rolls for Sale. This four-roll plate bending machine handles a maximum plate width of 10′ with a bending capacity of 1″. The top roll measures 16.5″ in diameter, matched by a 16.5″ bottom roll, with two side rolls at 13″ diameter. The four-roll arrangement supports pre-bending and rolling in a single setup, making it suited to tank, vessel, and general structural plate work. The machine can be seen under power for an inspection, so you can verify roll movement and drive function before committing. Use Activate Pricing to view the current asking price, and Request a Quote for full details, freight estimates, or to arrange an inspection time. This machine is located in Utah.
Specifications
| Maximum Plate Width |
10' |
|---|---|
| Top Roll Diameter |
16.5" |
| Bottom Roll Diameter |
16.5" |
| Side Rolls Diameter |
13" |
| Bending Capacity |
1" |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
