Year |
2008 |
|---|---|
Make |
Arburg |
Model |
470C 1500-400 |
Description |
165 Ton 6.49 oz Shot Size Injection Molding Machine |
Reference # |
8070917 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

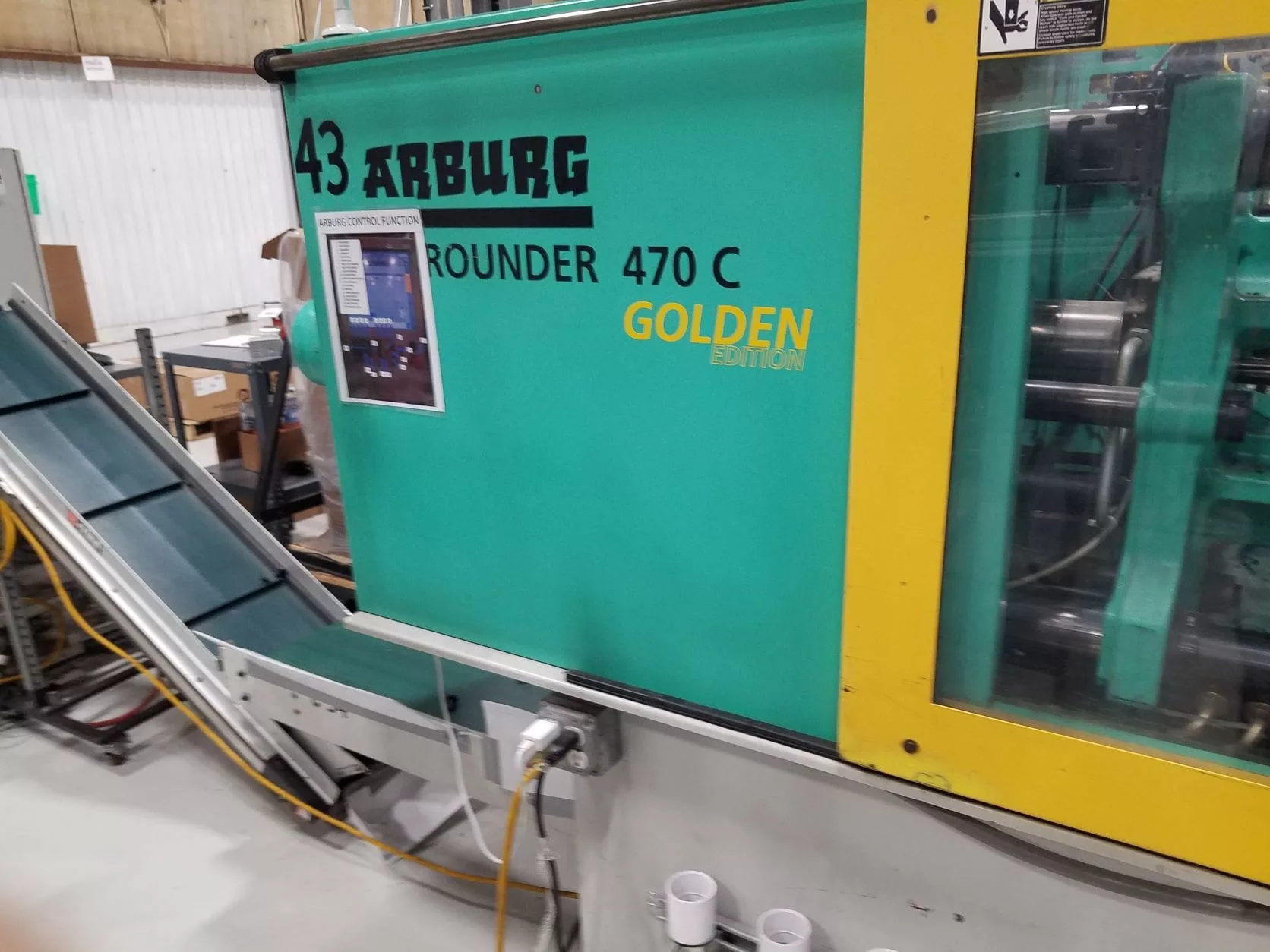

Used Arburg 470C 1500-400 (2008) Injection Molding Machine for Sale. This pre-owned Arburg plastic injection molding machine is located in Michigan and available to be seen under power for an inspection. If you have any questions regarding this Arburg Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
165 Ton |
|---|---|
| Shot Size |
6.49 oz |
| Tie Bar Spacing |
18.5" x 18.5" |
| Platen Size |
25.59" x 25.59" |
| Max Daylight |
29.53" |
| Min /Max Mold Height |
Min 9.84" |
| Ejector Stroke |
6.89" |
| Control |

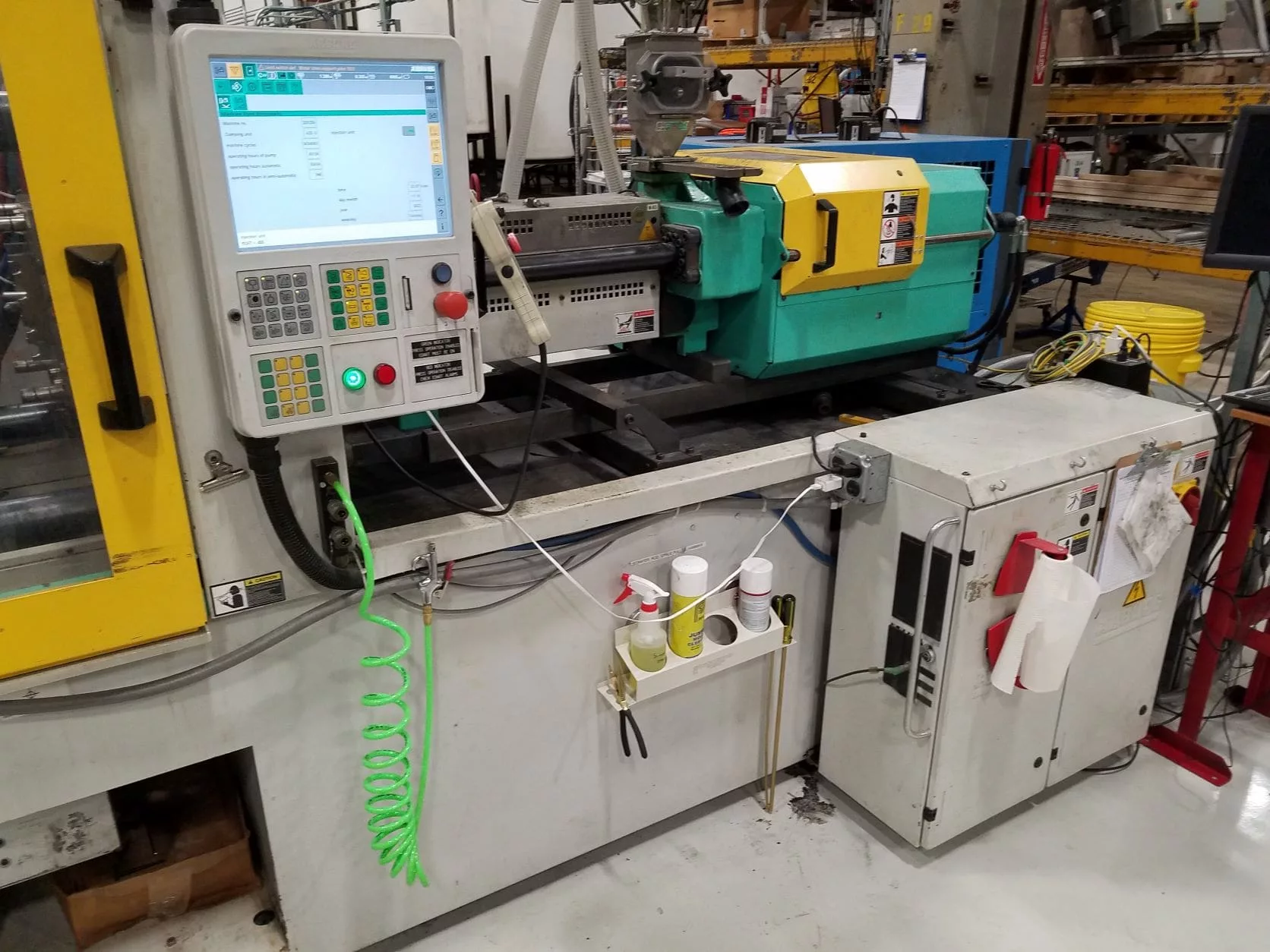

Selogica Control |
| Power Requirement |
460V |
| Hours |
33,694 Operating Hours |
| Machine Dimensions |
175" x 64" x 82" |
| Machine Weight |
10,670 Lbs |
Features
|
Air Blow |
Hydraulic Knockout |
|
Robot Interface |
Under Power |
|
Pneumatic Core Pull |
