Year |
2008 |
|---|---|
Make |
Anca |
Model |
TX7 Xchanger |
Description |
Tool & Cutter Grinder |
Reference # |
8076437 |
Price |
$89,999 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

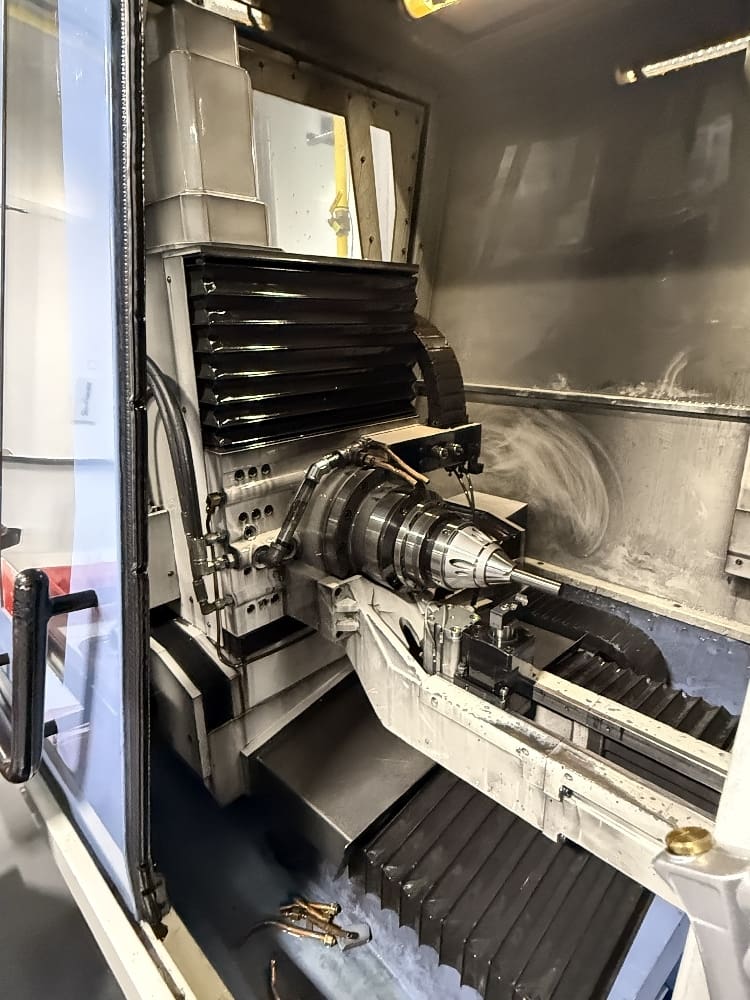

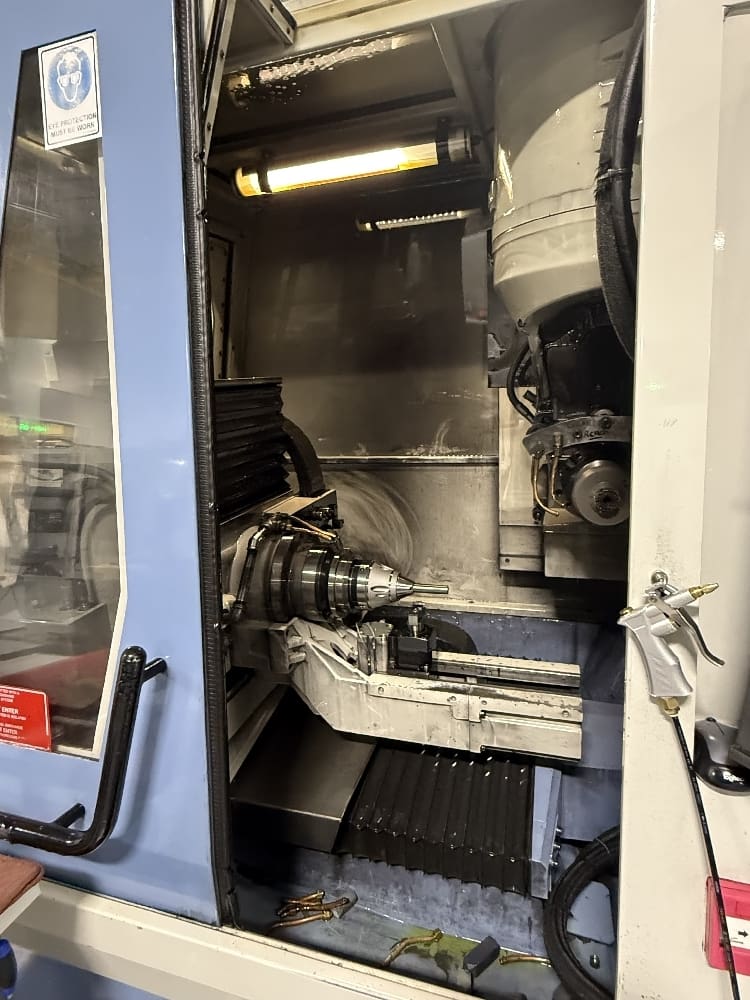

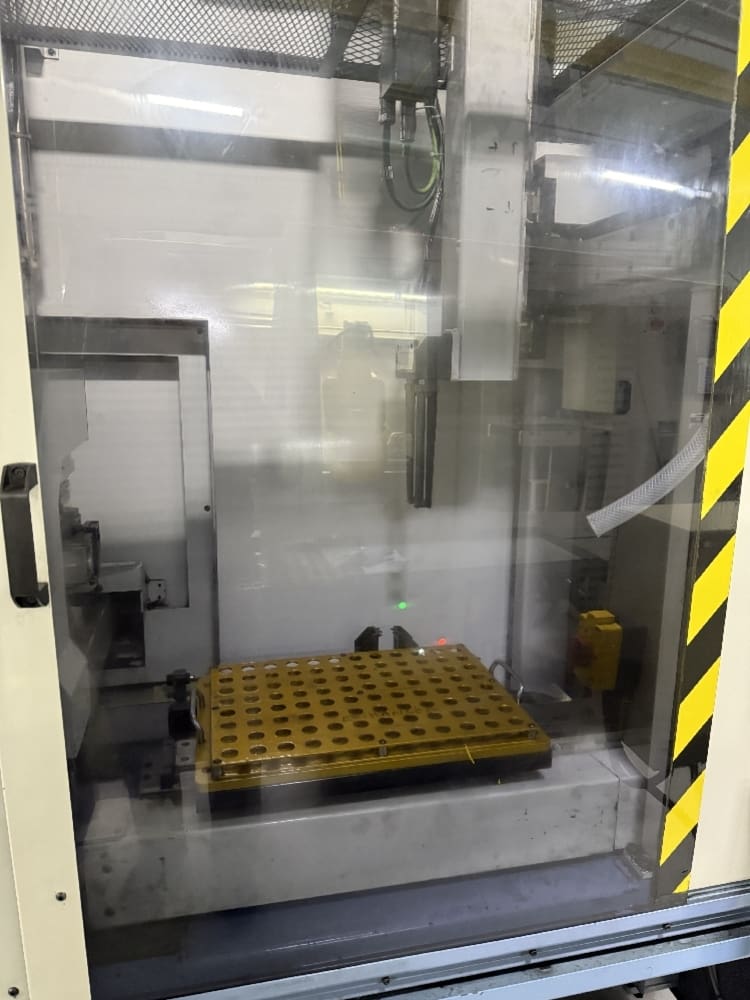

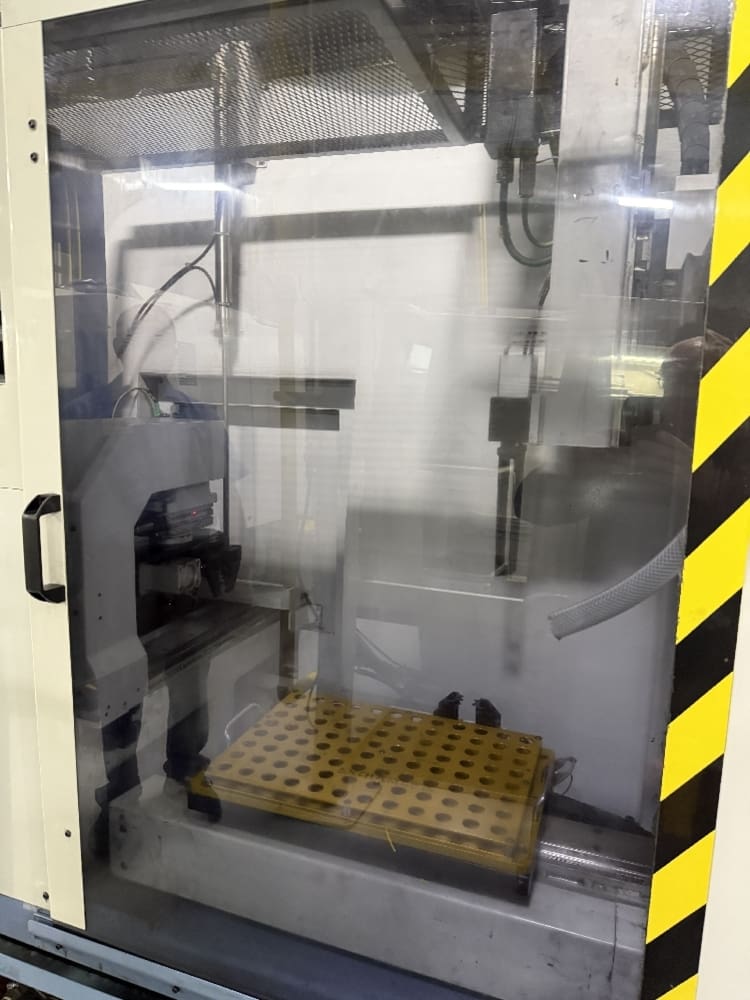

Used Anca TX7 Xchanger (2008) Tool & Cutter Grinder for Sale. This pre-owned Anca CNC grinder is located in California. If you have any questions regarding this Anca Tool & Cutter Grinder, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Tool Diameter |
12" |
|---|---|
| Max Tool Length |
16" |
| Max Tool Weight |
55 Lbs |
| Max Grindle Spindle Speed |
10,000 RPM |
| Grindle Spindle Power - Peak |
49 HP |
| Grindle Spindle Taper |
Big-Plus BT40 |
| Max Grinding Wheel Diameter |
8" |
| Grinding Wheel - Bore |
2" |
| Xchanger Positions |
26 |
| X-Axis Travel |
21.9″ |
| Y-Axis Travel |
16.4" |
| Z-Axis Travel |
10.1" |
| C-Axis |
264 Degrees |
| A-Axis |
360 Degrees |
| Position Feedback (X,Y,Z) |
0.00000399" |
| Position Feedback (C,A) |
0.0001 Degrees |
| Programming (X,Y,Z) |
0.0000039" |
| Programming (C,A) |
0.0001 Degrees |
| Approx. Machine Footprint w/ Robot Loader |
138″ x 112″ x 93″ (H) |
| Machine w/o Robot Loader – Catalog |
18,710 Lbs. |
| Approx. Robot Loader |
4,000 Lbs. |
| Approx. Coolant Filtration System |
4,000 Lbs. |
| Control |
Anca 5DX Control |
| Note |
Two Axis Linear Tool Loader needs the Servo Motors replaced or repaired |
Features
|
RN34 Software w/ Extra Drill & Profile Software Packages |
Xchanger Integrated Tool Changer System with (26) Wheel Packs and Currently Supporting 13 Larger Wheel Packs |
|
Mist Collectors |
Renishaw Probe |
