Year |
1974 |
|---|---|
Make |
Blanchard |
Model |
32D-60 |
Description |
Vertical Rotary Surface Grinder |
Reference # |
8078985 |
Price |
Activate Pricing |

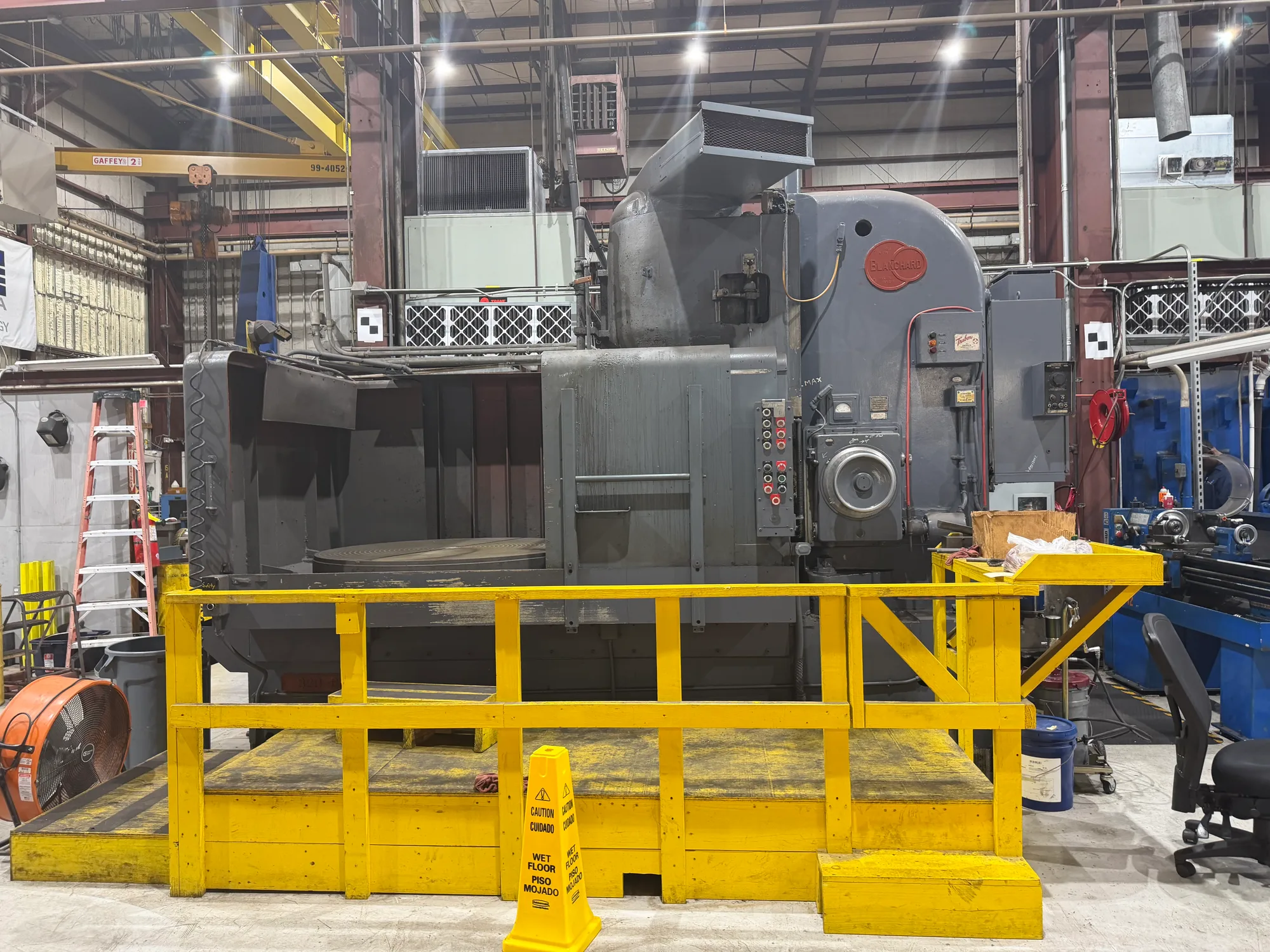

Used Blanchard 32D-60 (1974) Rotary Surface Grinder for Sale. This vertical spindle grinder carries a 60″ chuck diameter with a 32″ grinding wheel and 66″ swing inside guards, allowing 24″ of height under the wheel. Table speeds are 5.6, 8.7, 12.9 and 20.7 RPM, with wheel speed at 500 RPM, driven by a 100 HP motor. Approximate weight is 34,000 lbs, and overall dimensions measure 186″ L x 84″ W x 134″ tall. The machine can be seen under power for an inspection, so buyers are welcome to arrange a viewing before committing. Additional machines of this class are listed with our other used grinders. Activate Pricing to see the figure, or use the Inquire Now button to reach us directly with your questions.
Specifications
| Chuck Diameter |
60" |
|---|---|
| Grinding Wheel Diameter |
32" |
| Swing Inside Guards |
66" |
| Height Under Wheel |
24" |
| Table Speeds |
5.6, 8.7, 12.9, 20.7 RPM |
| Wheel Speed |
500 RPM |
| Motor |
100 HP |
| Approx. Weight |
34000 Lbs |
| Dimensions |
186" L X 84" W X 134" Tall |
