Year |
2008 |
|---|---|
Make |
AgieCharmilles |
Model |

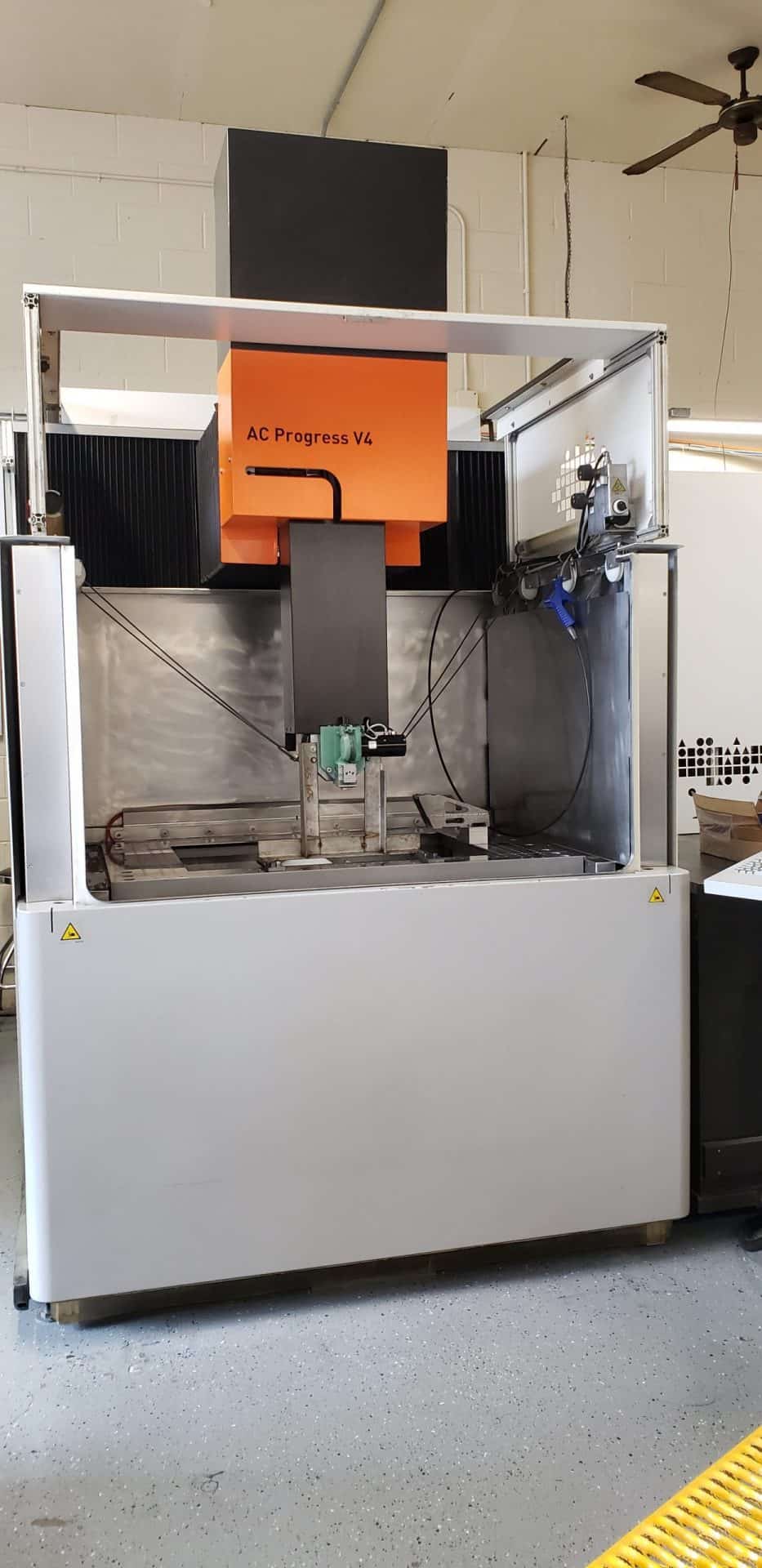

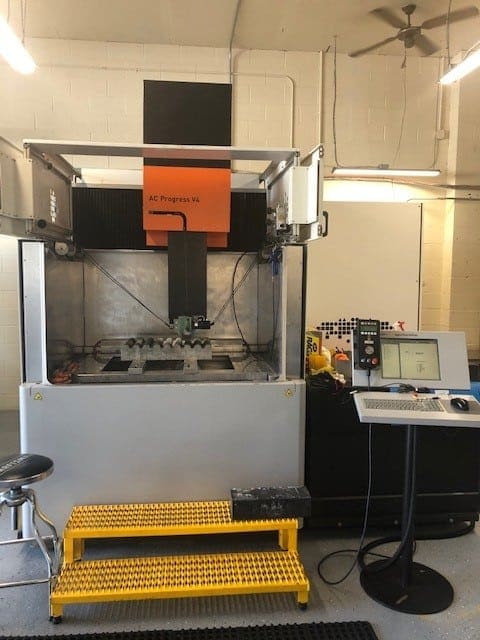

AC Progress V4 |
Description |
EDM Wire |
Reference # |
8068998 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
31.5" |
|---|---|
| Y-Axis Travel |
21.65" |
| Z-Axis Travel |
20.67" |
| Control |
Agievision 5 |
| U/V Axis Travel |
31.5" x 21.65" |
| Degree Taper Cutting |
30 deg @ 21.65" |
| Inside Tank Dimensions |
51.9" x 39.3" |
| Power Requirement |
380/3/60 |
| Glass Scale Feedback |
X,Y,U,V |
| Upper Head to Table Surface |
6.25" - 26.92" |
| Axis Drive (X, Y, U, V) |
Servo Motor Encoder, Glass Scales |
| Axis Drive (Z axis) |
AC Servo Motor |
| Rapid Traverse |
118" / Min |
| Wire Diameter Range |
0.006" - 0.012" |
| With Optional Wire Guides |
0.0027" - 0.0039" |
| Wire Spool Size |
Up To 55 lbs. |
| Wire Threading Distance |
26.92" Maximum Height |
| Approx Dimensions (LxWxH) |
83" x 110" x 92" |
| Approx Machine Weight |
13,228 lbs |
| Rated Cutting Speed |
47" sq/hr |
| Maximum Workpiece Size |
51.9" x 39.3" x 26" |
| Maximum Workipiece Weight |
6,614 lbs |
| Note |
Threads and Cuts 26" Tall Parts |
Features
|
(2) USB Drives |
Electric Chiller |
|
Transformer |
Wire Chopper |
|
AC Setup 3D Set Up Probe |

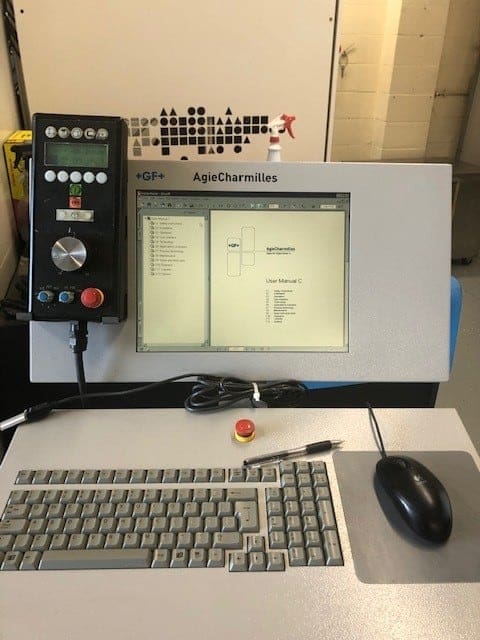

Agie Jogger with LED Display Handheld Pendent |
|

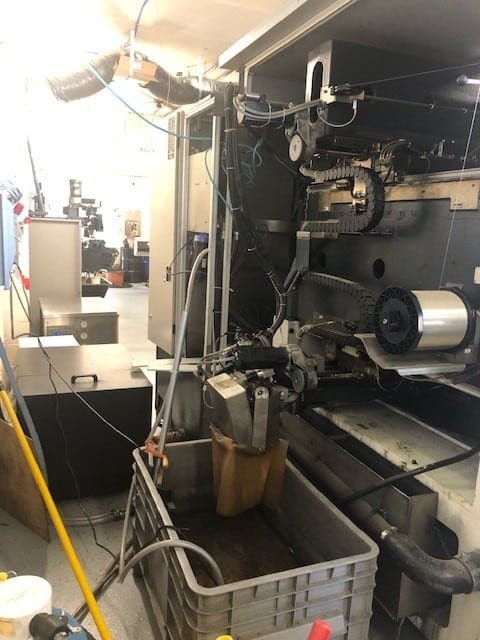

Agiejet Auto Threader |
CD ROM |
|
Dual Measuring for X & Y Axis (Scales & Encoders) |
Ethernet |
|
IPG Digital Generator Rated 47" Sq/hr |
Windows Operating System |
*
