Year |
2006 |
|---|---|
Make |
Van Dorn |
Model |
650HT-4300 |
Description |
650 Ton 89.6 oz Shot Size Injection Molding Machine |
Reference # |
8078750 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

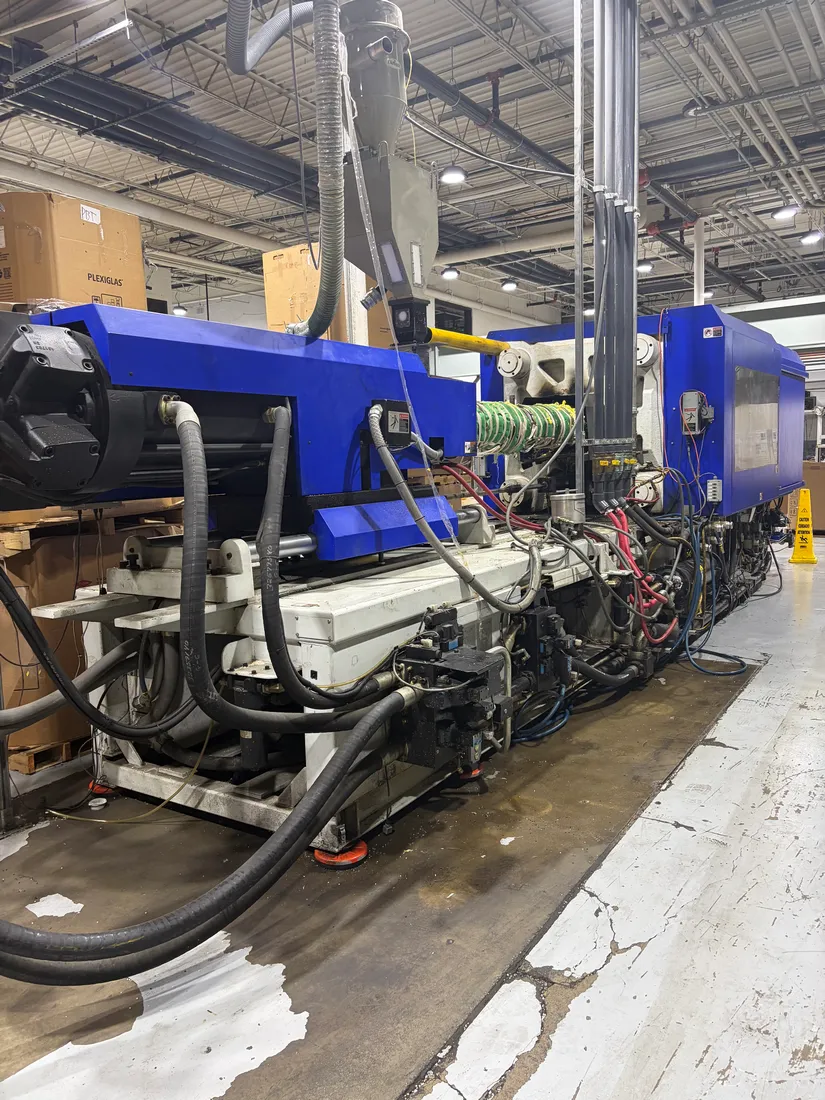

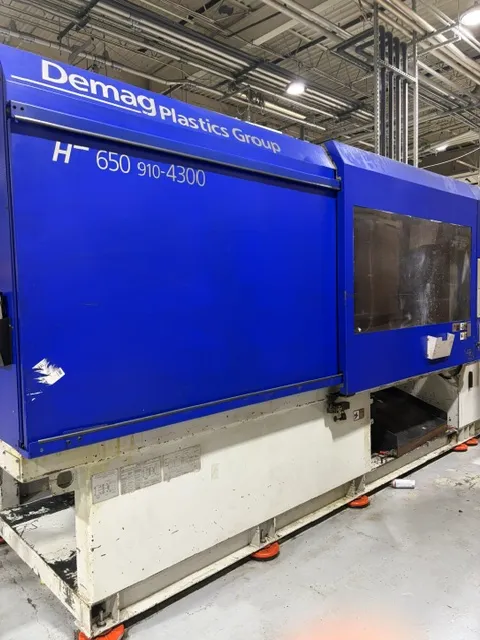

Used Van Dorn 650HT-4300 (2006) Injection Molding Machine for Sale. This machine has a 650 ton clamp capacity with an 89.6 oz shot size. Tie bar spacing is 36″ x 36″ with 53″ x 53″ platens, 69.5″ maximum daylight, minimum and maximum mold height of 12″ and 34″, and a 35.5″ clamp stroke. Control is a Pathfinder 5000. Overall dimensions are 35’5″ L x 7’8″ W x 8’3″ H. Equipped with core pull and hydraulic knockout. The machine is under power and can be seen running for an inspection. See more injection molding machines or browse our other Van Dorn equipment. Activate Pricing to view the price, or Request a Quote for full details and availability. This machine is located in Michigan.
Specifications
| Capacity |
650 Ton |
|---|---|
| Shot Size |
89.6 oz |
| Tie Bar Spacing |
36" x 36" |
| Platen Size |
53" x 53" |
| Max Daylight |
69.5" |
| Min /Max Mold Height |
12"/34" |
| Clamp Stroke |
35.5" |

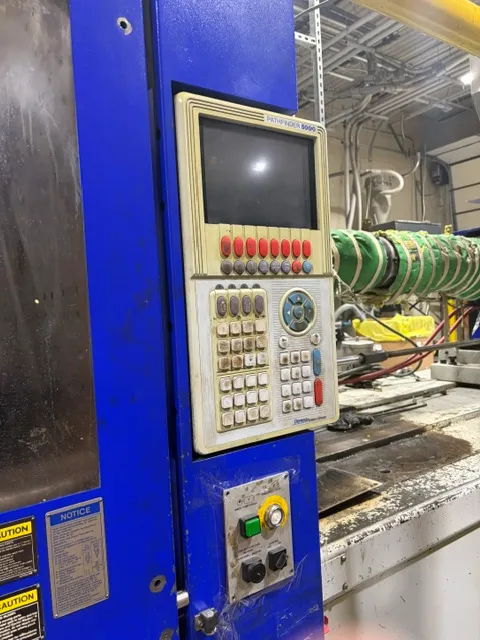

| Control |
Pathfinder 5000 |
| Dimensions |
35'5" L X 7'8" W X 8'3" H |
Features
|
Core Pull |
Hydraulic Knockout |
|
Under Power |
