Year |
2006 |
|---|---|
Make |
Nakamura-Tome |
Model |
WT-300 |
Description |
CNC Lathe |
Reference # |
8071684 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

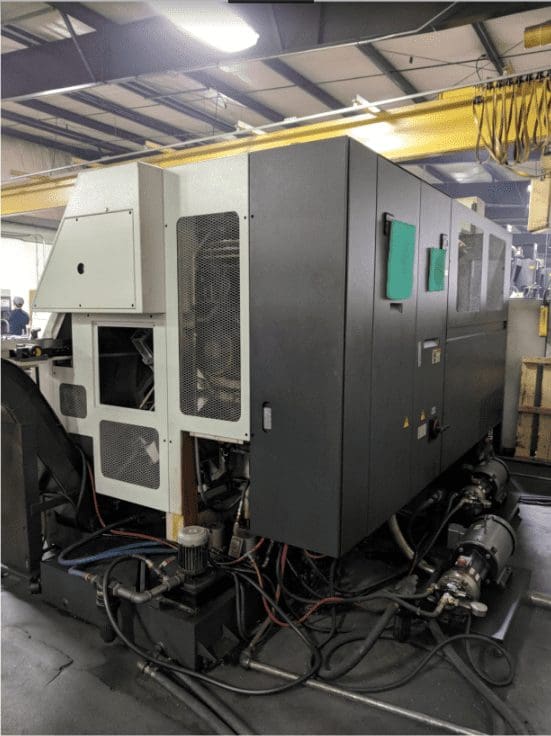

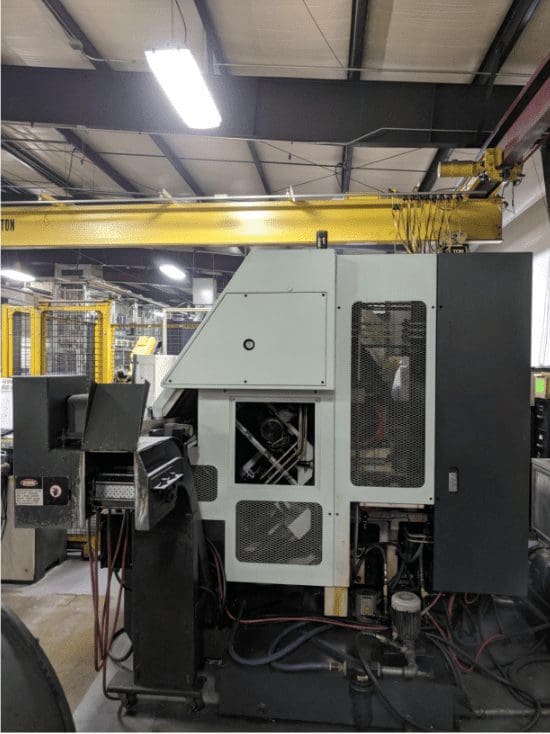

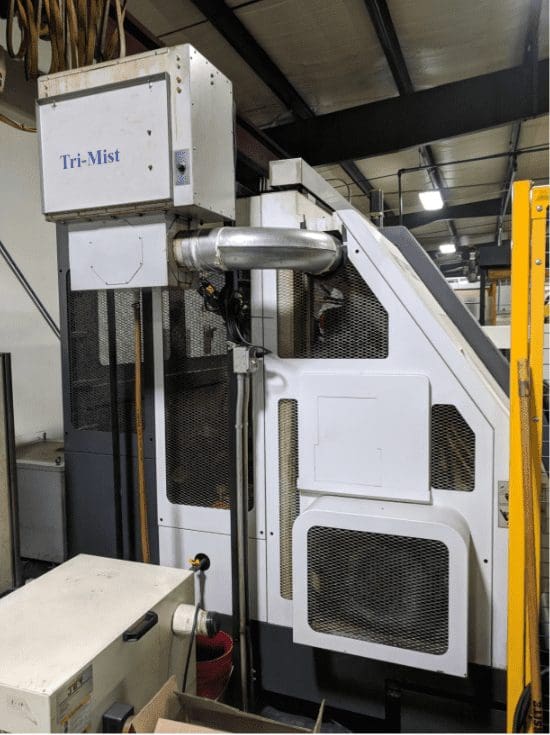

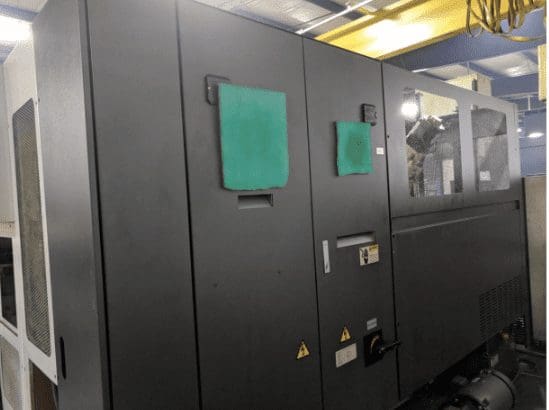

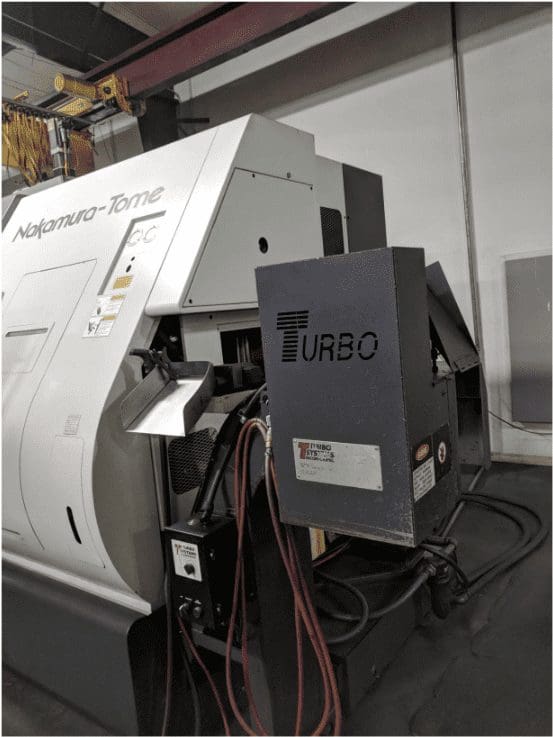

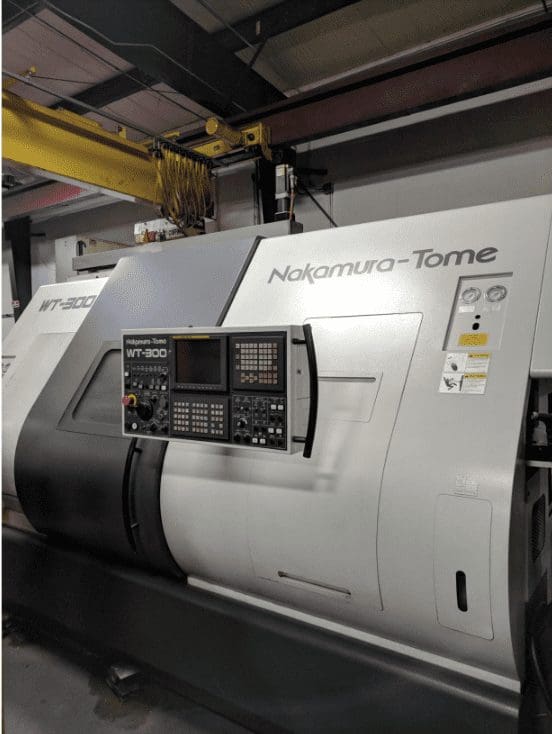

Used Nakamura-Tome WT-300 (2006) CNC Lathe for Sale. This pre-owned Nakamura-Tome CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Nakamura-Tome Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
2.55" |
| Swing |
12.2" |
| Turning Diameter |
10.6" |
| Spindle Speed |
4,500 RPM |

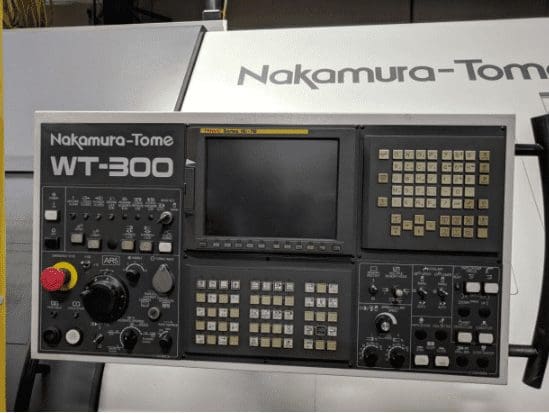

| Control |
Fanuc 18L-TB |
| Distance Between Centers |
30.7" |
| Live Tooling |
C-Axis Live Tooling |
| Number of Turrets |
2 |
| Upper Turret |
7.6"/30.7" |
| Lower Turret |
7.6"/30.77" |
| Y-Axis Travel (Upper Turret Only) |
2.36" |
| B-Axis Sub Spindle Slide |
33.46" |
| C-Axis on Both Spindles |
.001 Degree |
| Spindle Bore |
3.1" |
| Live Tooling |
5 HP |
| Number of Stations on Each Turret |
24 |
| Tool Positions on Each Turret |
12 |
| Machine Dimensions |
166″ x 100″ x 89″ H (Approx.) |
| Machine Weight |
28,000 Lbs (Approx.) |
Features
|
Sub Spindle |
A2-6 Spindle Nose |
|

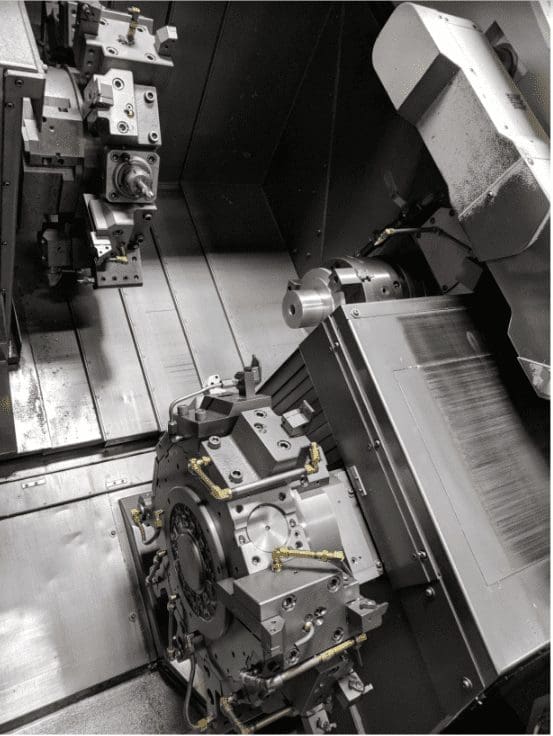

Twin Spindle/Twin Turret |
*
