Year |
2005 |
|---|---|
Make |
Mitsubishi |
Model |
FA10S |
Description |
EDM Wire |
Reference # |
8073566 |
Price |
$27,995 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

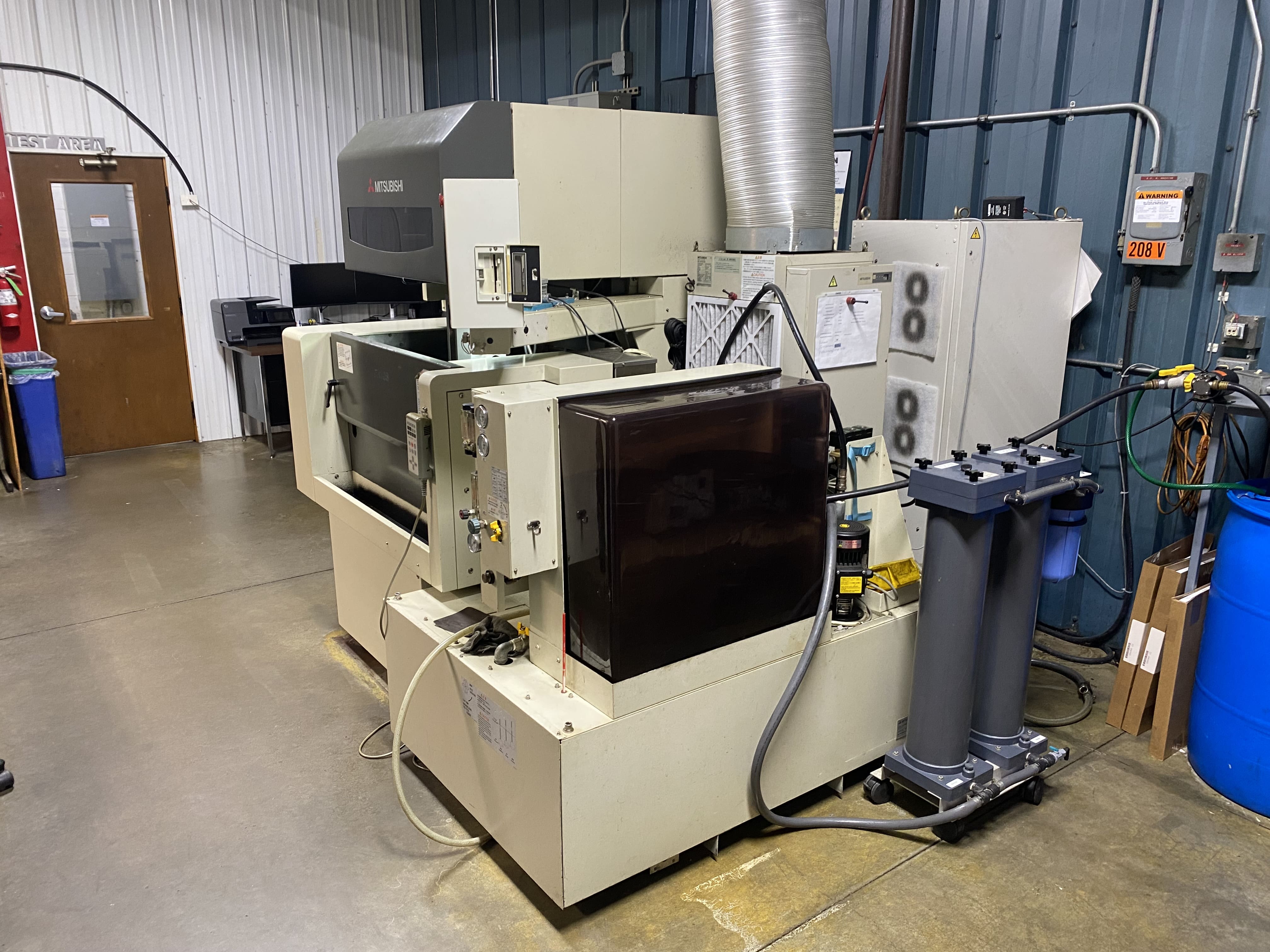

Used Mitsubishi FA10S (2005) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in Minnesota and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.7" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |

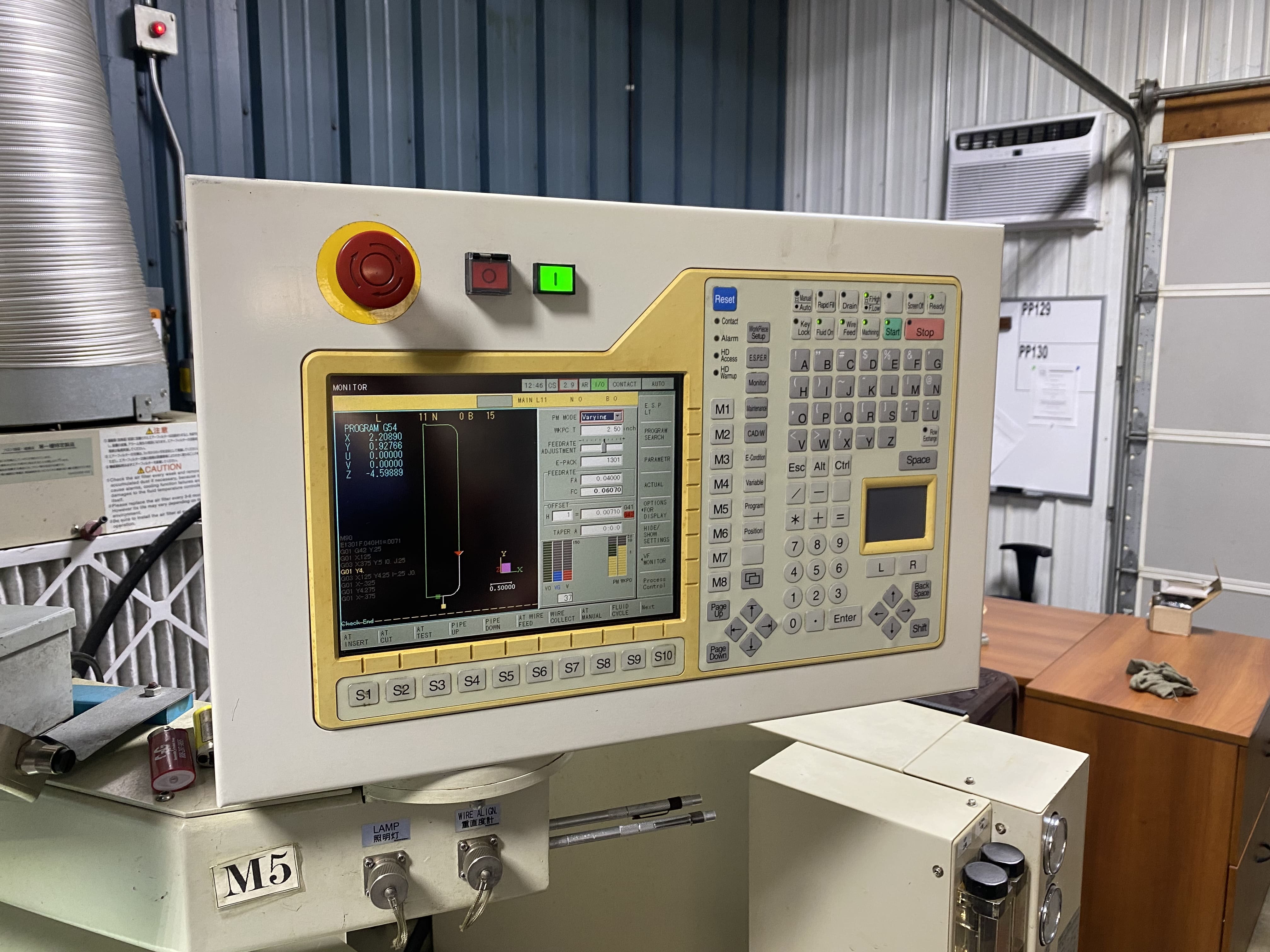

| Control |
64-Bit Industrial PC CNC |
| U/V Axis Travel |
1.25"/1.25" |
| Degree Taper Cutting |
15 @ 4" |
| Inside Tank Dimensions |
31.4" x 23.6" |
| Power Requirement |
200-230/3/60 |
| Wire Diameter |
.012" |
| Submerged Cutting |
Up to 8.6" |
| Filter Tank Capacity |
116 Gallons |
| Table Dimensions |
23.2" x 20.2" |
| Max Workpiece Dimensions |
31.4" x 23.6" x 8.4" |
| Machine Dimensions |
62" x 65.6" x 75.9" |
| Machine Weight |
6,000 Lbs |
Features
|
16 Step Programmable Flushing Control |
Auto Oiler |
|
Auto Power Recovery |
Auto Wire Threading |
|
Chiller |
Direct Drive 25mm Ball Screws |
|
Fast Fill Pump |
Glass Scale Feedback |
|
Rotary Glass Encoders |
2 Millionths Resolution Encoder |
|
Servo Closed Loop Torque Control With Wire Tensioning System |
22 Lb Wire Spool |
|

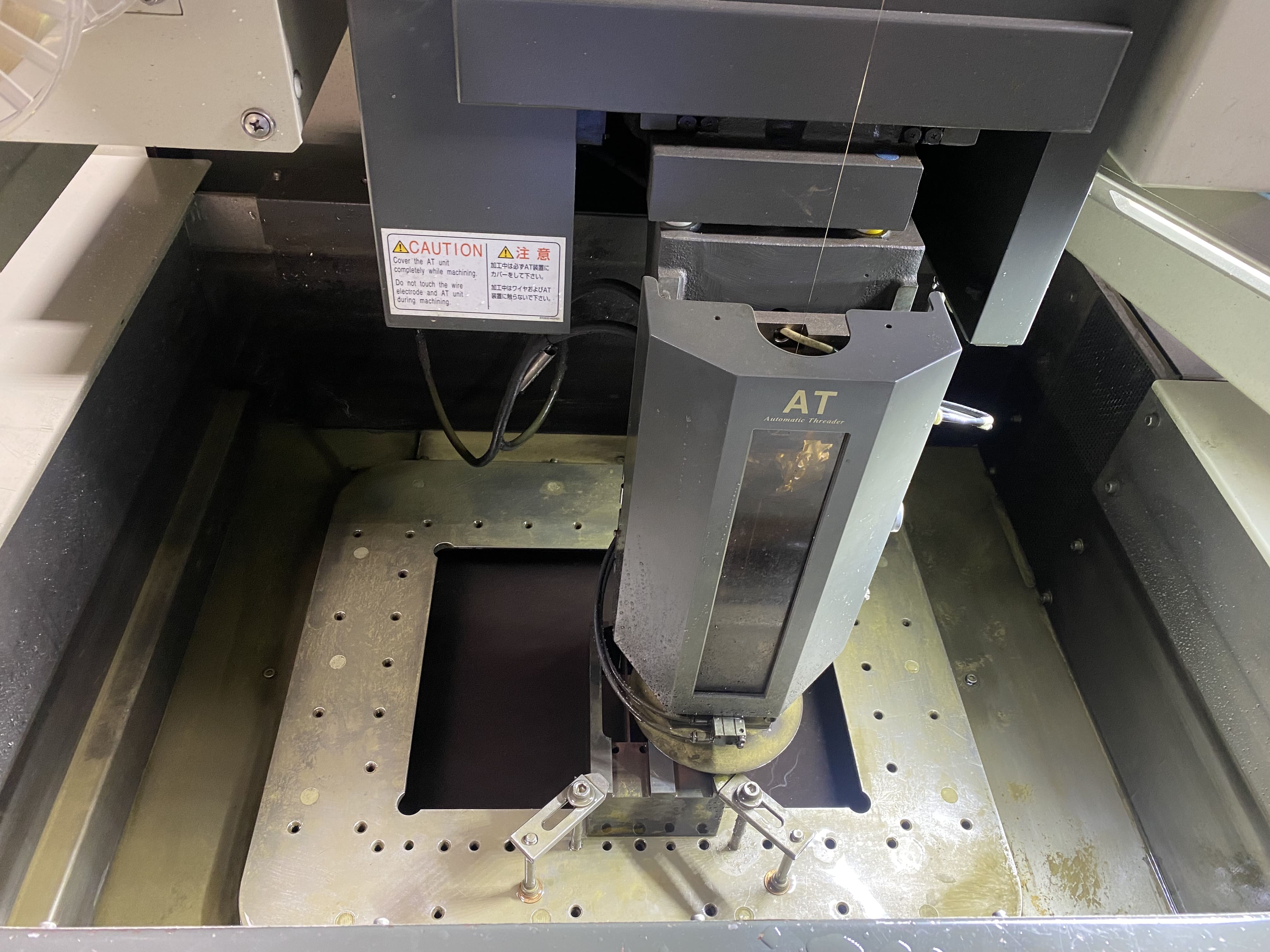

4 Sided Table One Piece |
Wire Chopper |
|
Submerged Threading & Insert At Break Point |
Upper & Lower Power Feeds |
|
Vertical Movement Machining Tank Door |
Automatic Level Control |
|
Digital AC Servo Drive System |
Fine Hole Insert |
|
Fine Surface Machining |
Linear Motion Guide Ways Support X/Y/Z Axes |
