Year |
2005 |
|---|---|
Make |
AVT |
Model |
3-R PAVT |
Description |
Thick Gauge (3) Station Rotary Pressure Former |
Reference # |
8076882 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

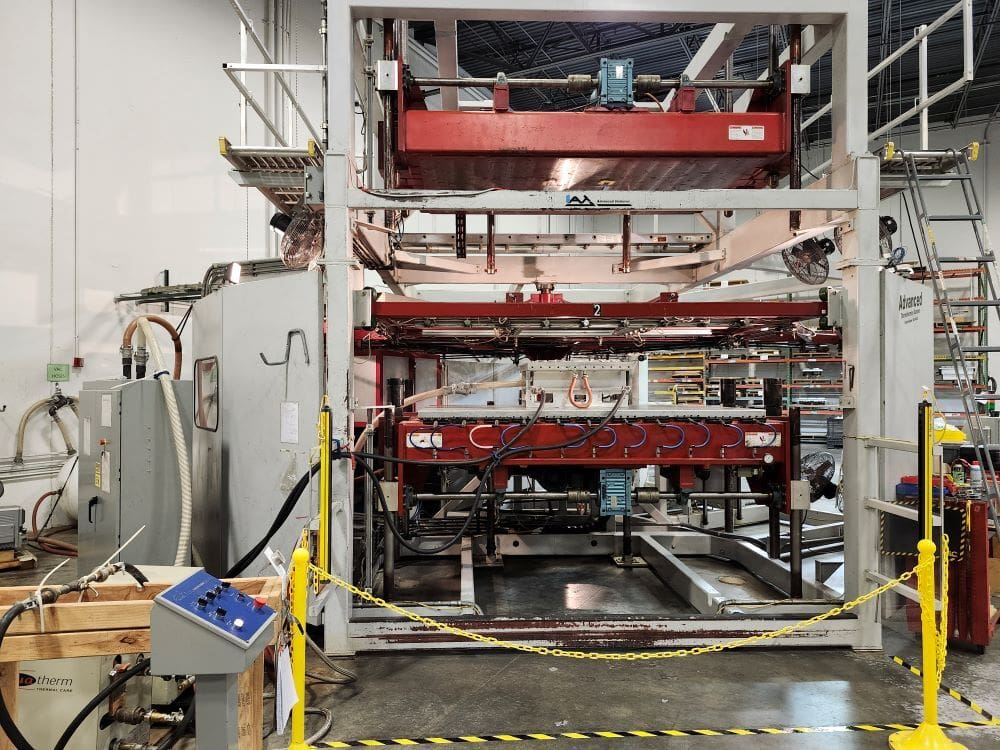

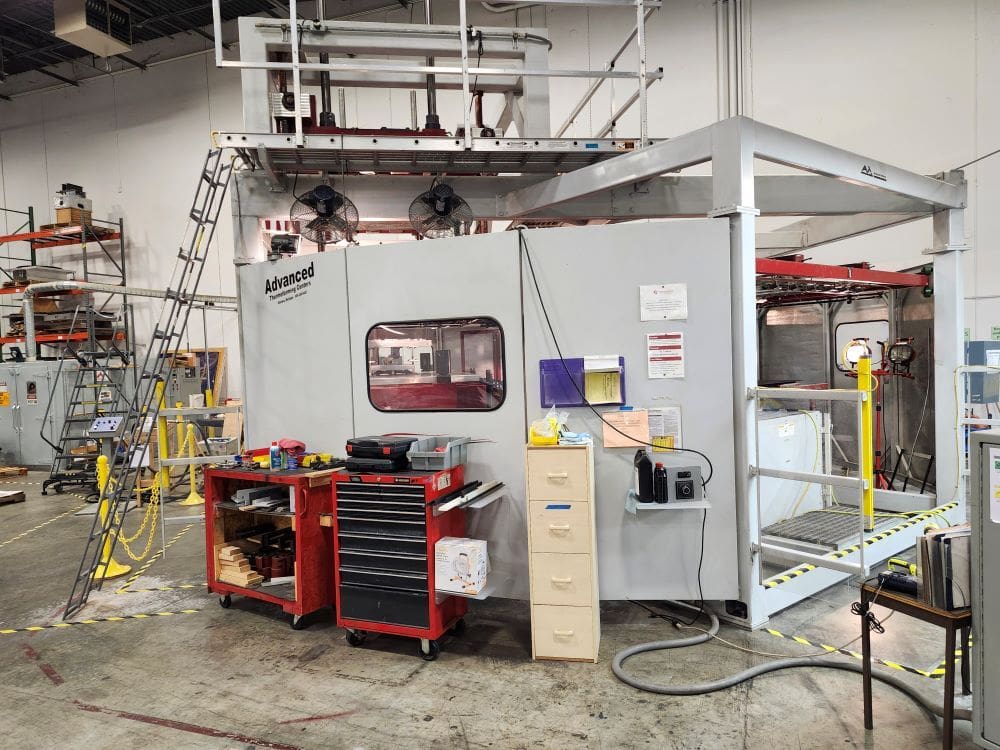

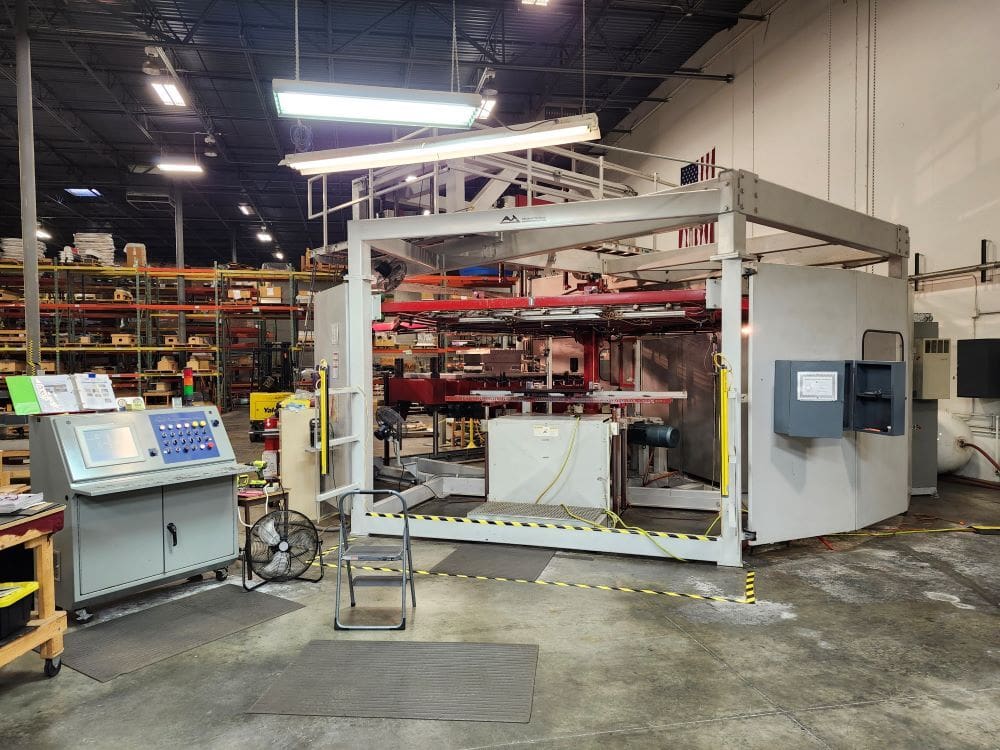

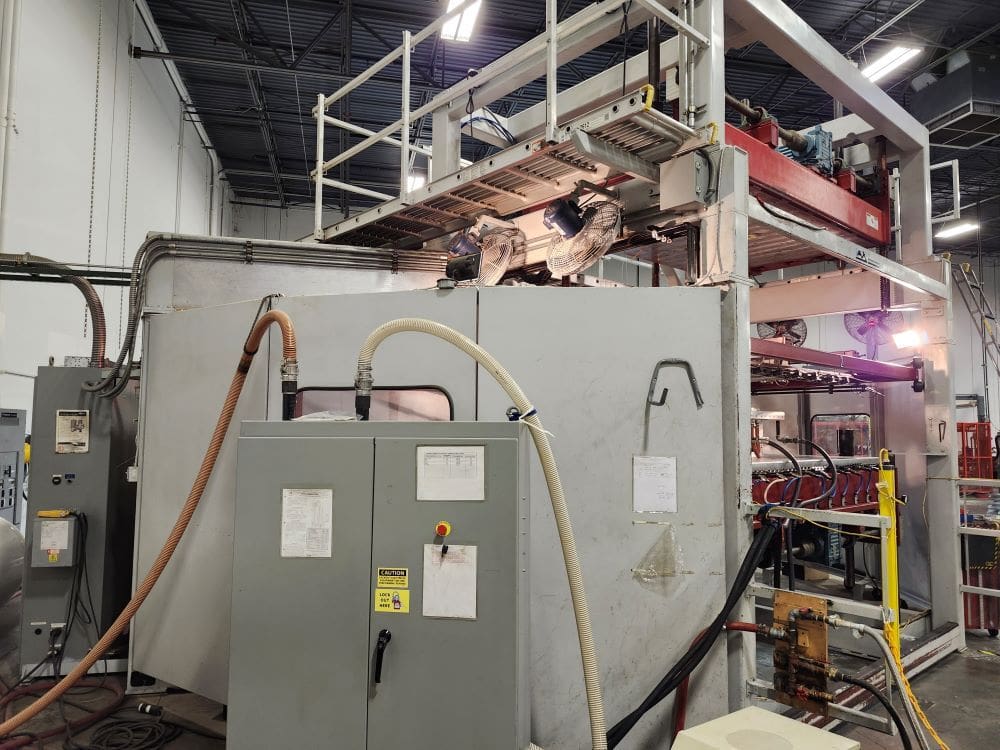

Used AVT 3-R PAVT (2005) Thermoformer for Sale. This pre-owned AVT thermoformer machine is located in The United States. If you have any questions regarding this AVT Thermoformer, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Forming Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Mold Size |
60" x 96" (Max Height 25") |
|---|---|
| Max Sheet Size Capacity |
64" x 100" |
| Top Oven |
Ceramic |
| Top Oven Zones |
70 Zones |
| Bottom Oven |
Ceramic |
| Bottom Oven Zones |
70 (Includes Safety Screen) |
| Oven Sensor Sag Control |
Photo Eye for Sag Detection |
| Top Platen Stroke |
50" |
| Bottom Platen Stroke |
50" |
| Platen Drives |
TWIN Synchronized 12.5 HP Geared Motors |
| Sheet Carriage Rotate |
High Load 12 HP Geared Motor Indexing |
| Max. Mold Weight Capacity |
3800 Lbs. |
| Pressure Forming PSI |
Up to 50 PSI Maximum |
| Four Point |
3" Diameter Locking Platen-Locking Rods |
| Control |
Siemens PLC Controller |
| Operating System |
Windows NT 2000 Operating System |
Features
|
Monitoring System - Cycle Counter |
Safety Gate System |
|
Vacuum Pump (1000 Gallon Reservoir) & Tank |
