Year |
2004 |
|---|---|
Make |
Mitsubishi |
Model |
EA12V |
Description |
EDM Sinker |
Reference # |
8075368 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

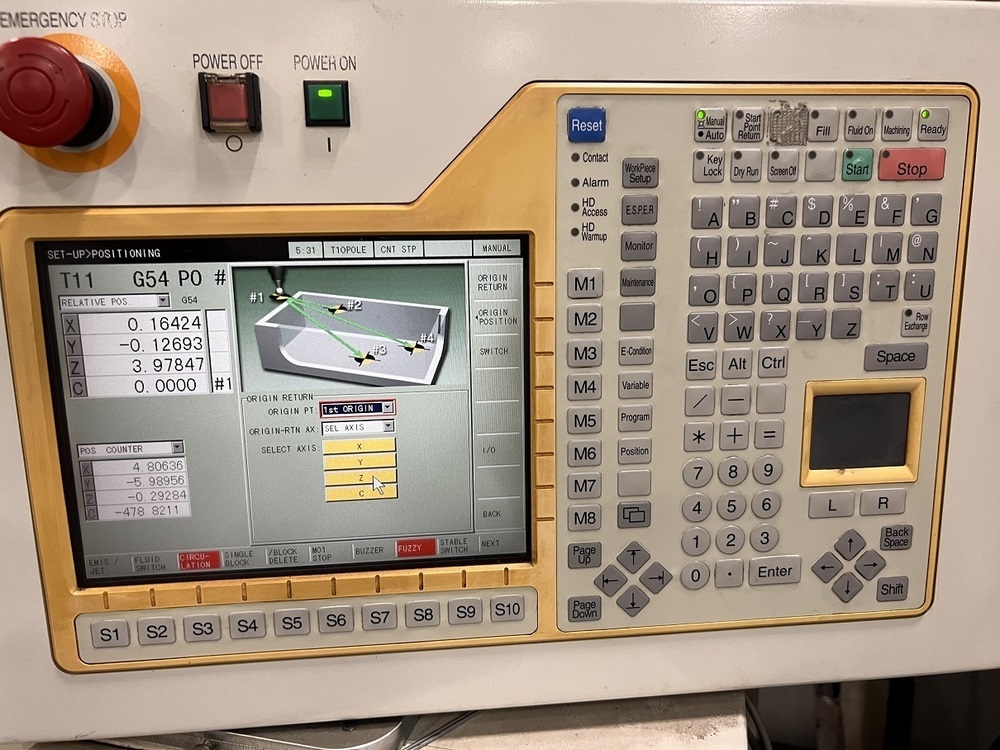

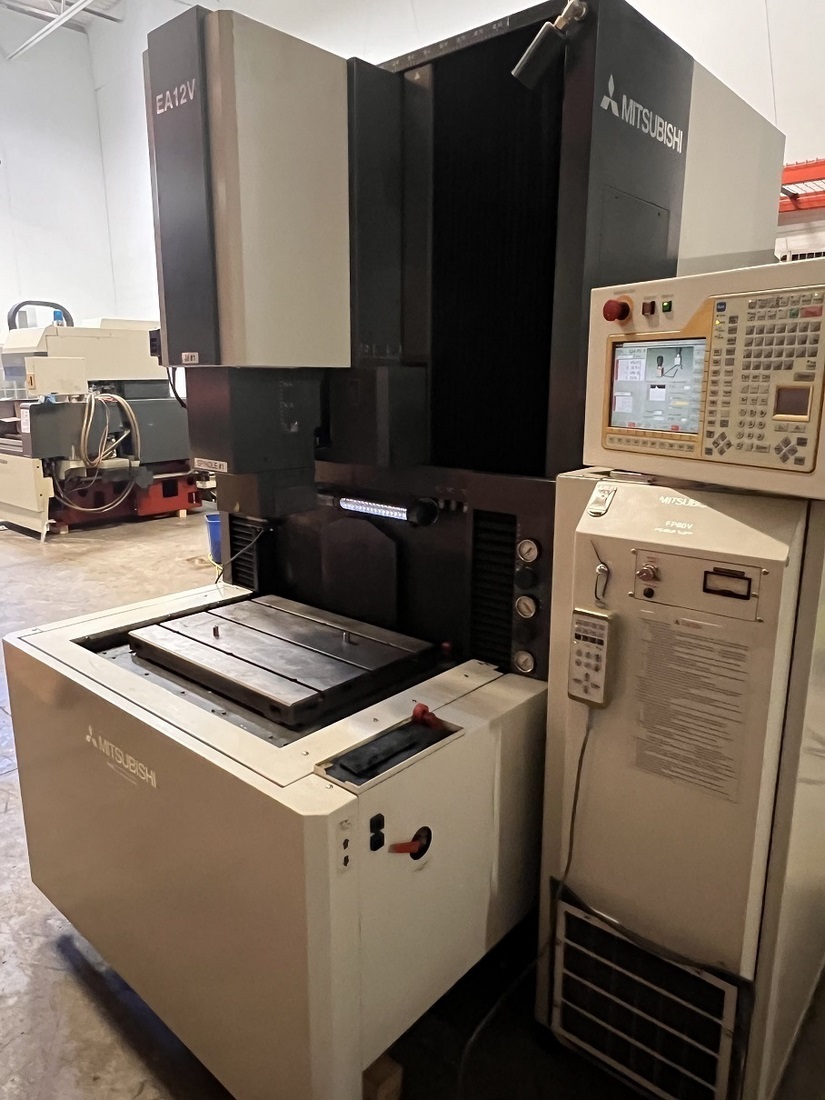

Used Mitsubishi EA12V (2004) EDM for Sale. This sinker EDM offers 15.7″ of X-axis travel with 11.8″ in both Y and Z, a 28″ x 20″ table, and 6″ x 17.8″ chuck to table clearance with a 3R chuck. It runs a Mitsubishi M700 PC based CNC control with touchscreen monitor and an FP80V power supply on an 80 AMP power source. Equipment includes a 360 degree C-axis in .001 increments, automatic drop tank design with tank type 3-sided drop tank, dual feedback construction with glass scales and encoders on X/Y/Z, chiller, remote hand controller, 10MB user program storage on hard drive, and Ethernet / DNC / FTP connections. Shipping dimensions are 84″ x 56″ x 94″ at 9,365 lbs. Available for inspection under power. See more EDM machines and Mitsubishi equipment, Activate Pricing, or Request a Quote.
Specifications
| X-Axis Travel |
15.7" |
|---|---|
| Y-Axis Travel |
11.8" |
| Z-Axis Travel |
11.8" |
| Control |
Mitsubishi M700 |
| Power Source |
80 AMP |
| C-Axis |
360 Degree (.001 Increments) |
| Chuck |
3R |
| Chuck to Table Clearance |
6" x 17.8" |
| Table Size |
28" x 20" |
| Machine Shipping Dimensions |
84'' x 56'' x 94'' |
| Machine Total Weight |
9,365 Lbs |
Features
|
Automatic Drop Tank Design |
Dual Feedback Construction with Glass Scales and Encoders (X/Y/Z) |
|
PC Based CNC Control With Touchscreen Monitor |
C-Axis |
|

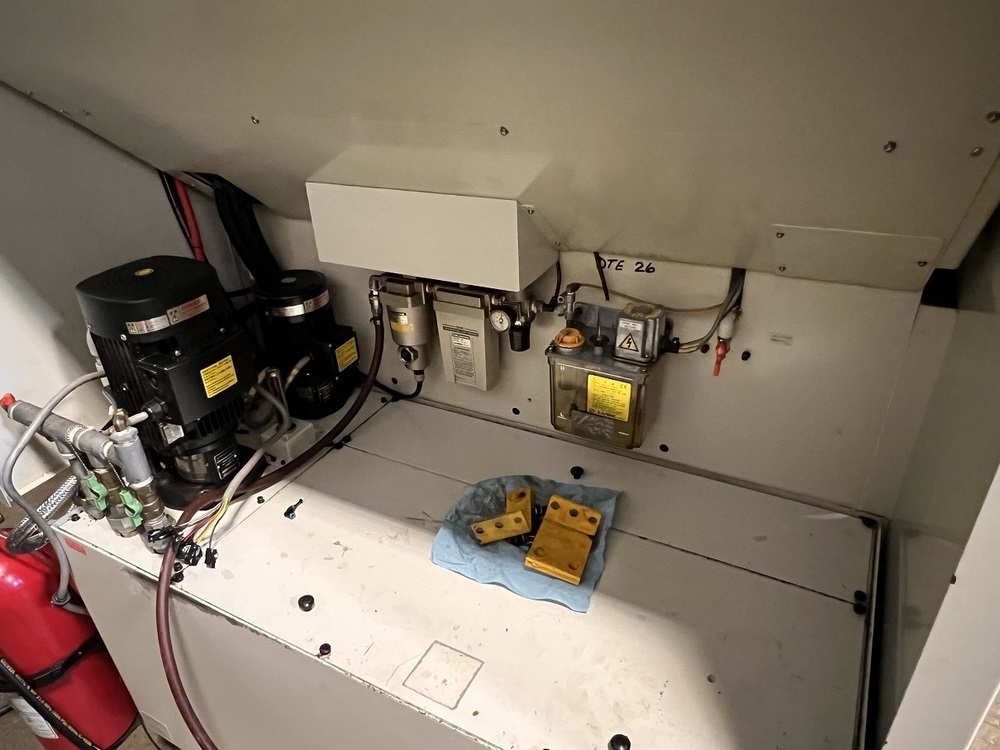

Chiller |
Glass Scale Feedback |
|
10MB User Program Storage On Hard Drive |

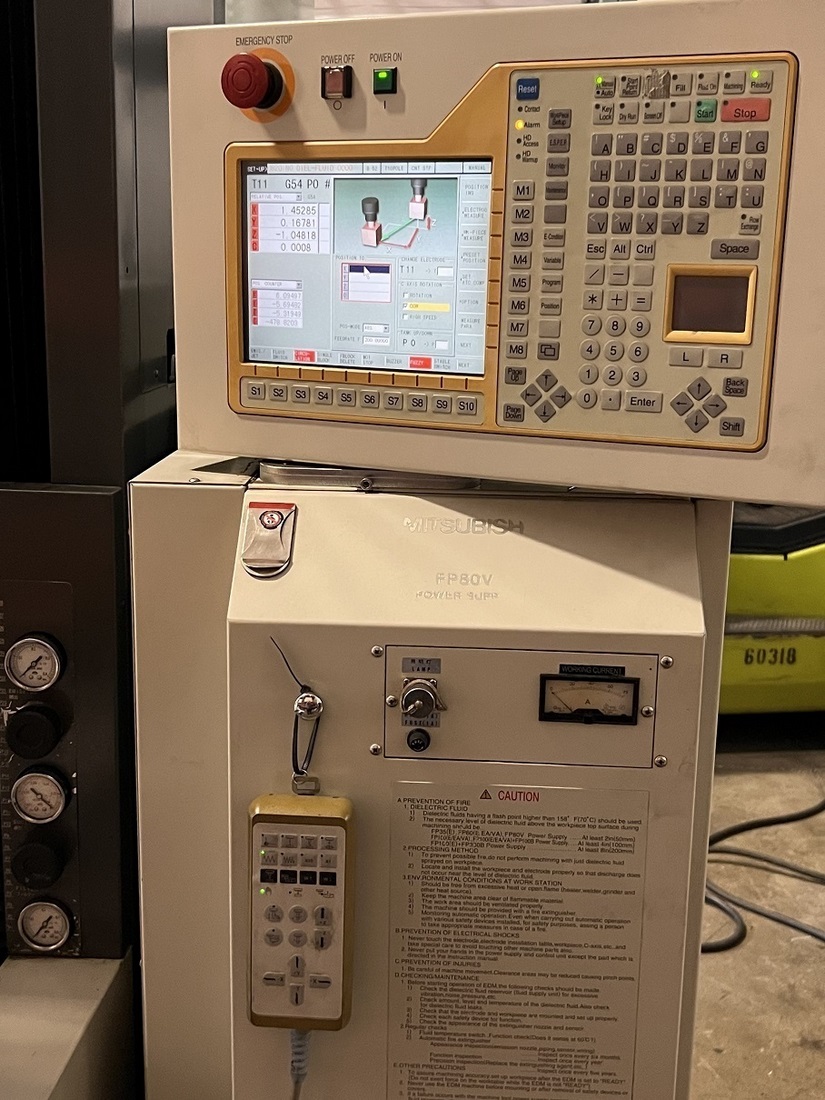

Remote Hand Controller |
|

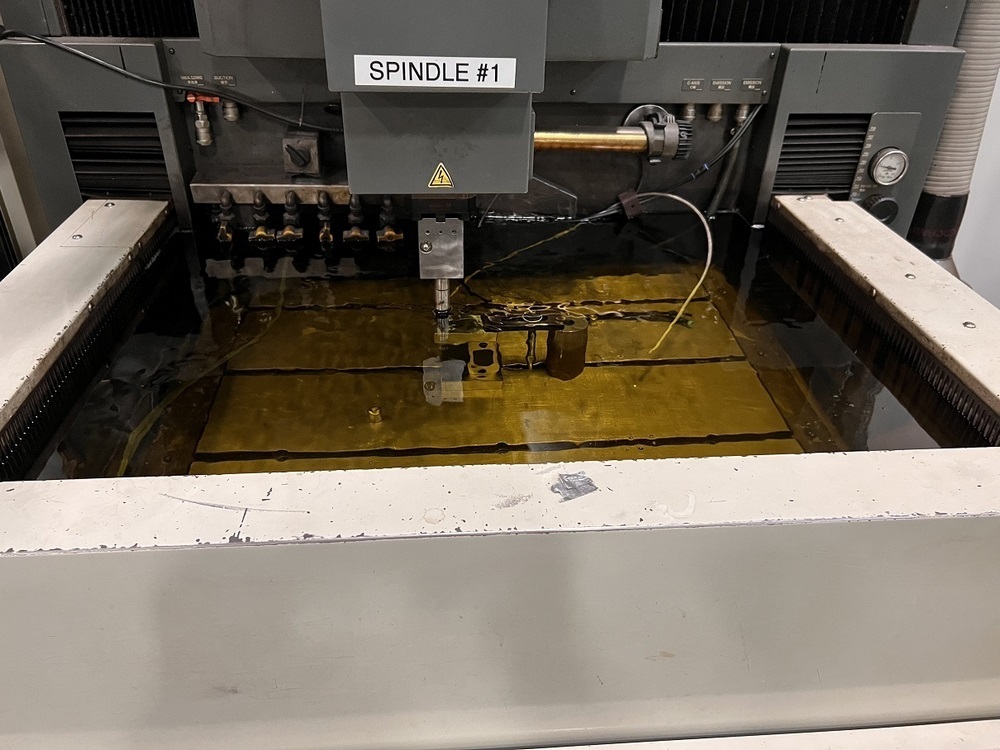

Tank Type 3-Sided Drop Tank |
Ethernet / DNC / FTP Connections |
|
FP80V Power Supply |
