Year |
2003 |
|---|---|
Make |
Mitsubishi |
Model |
EA12E |
Description |

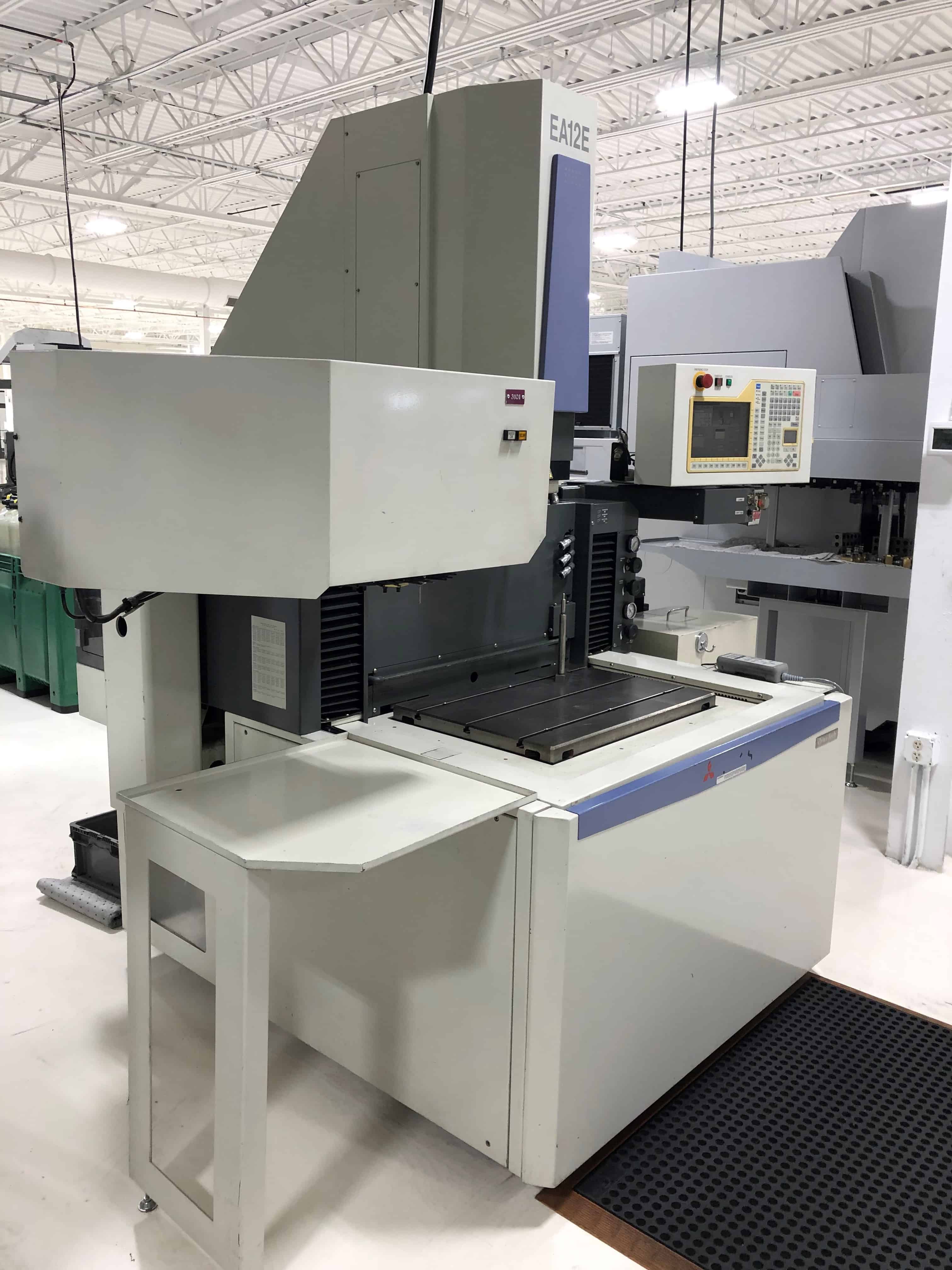

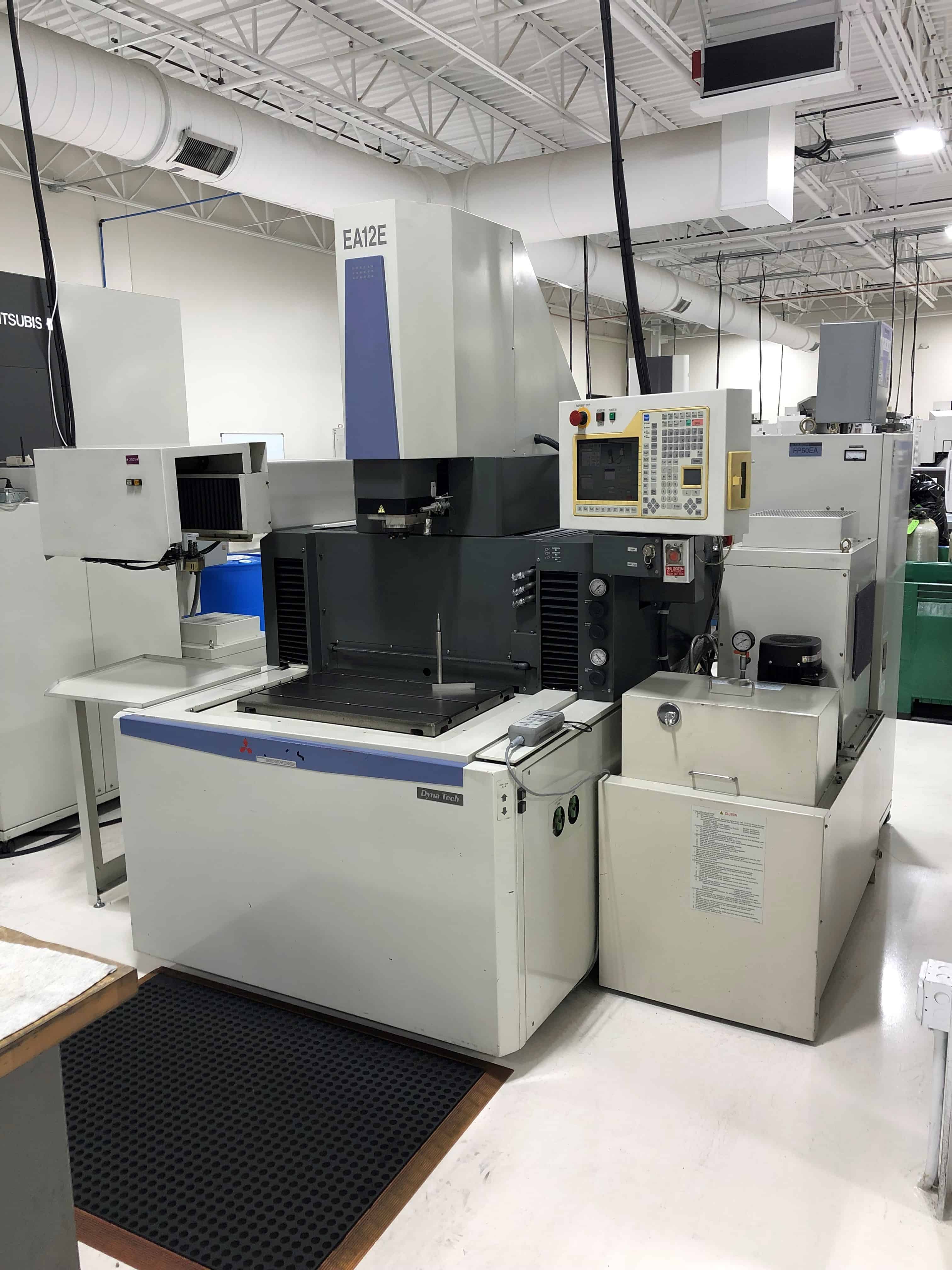

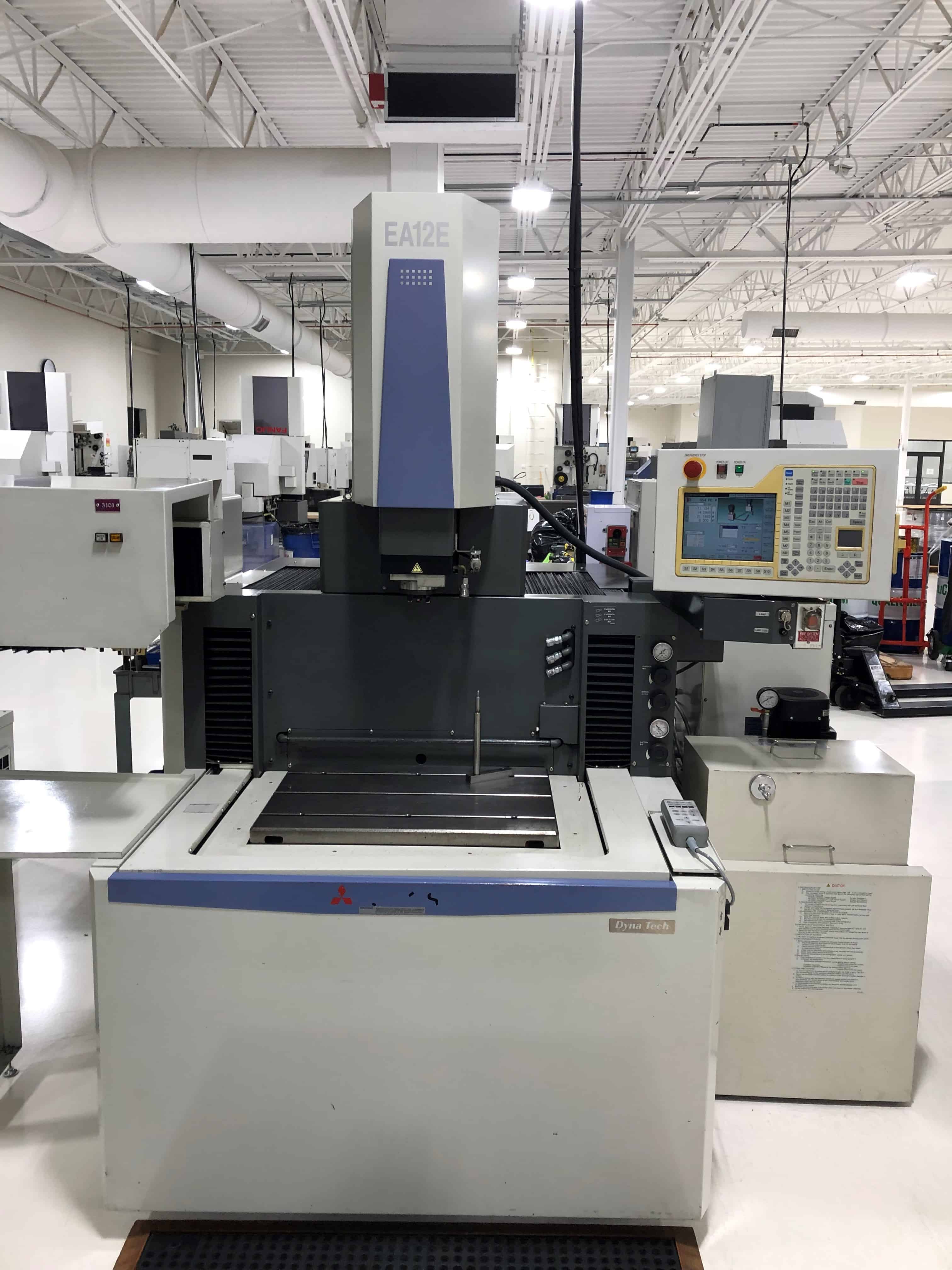

EDM Sinker |
Reference # |
8070643 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
15.75" |
|---|---|
| Y-Axis Travel |
11.81" |
| Z-Axis Travel |
11.81" |
| Control |
Mitsubishi |

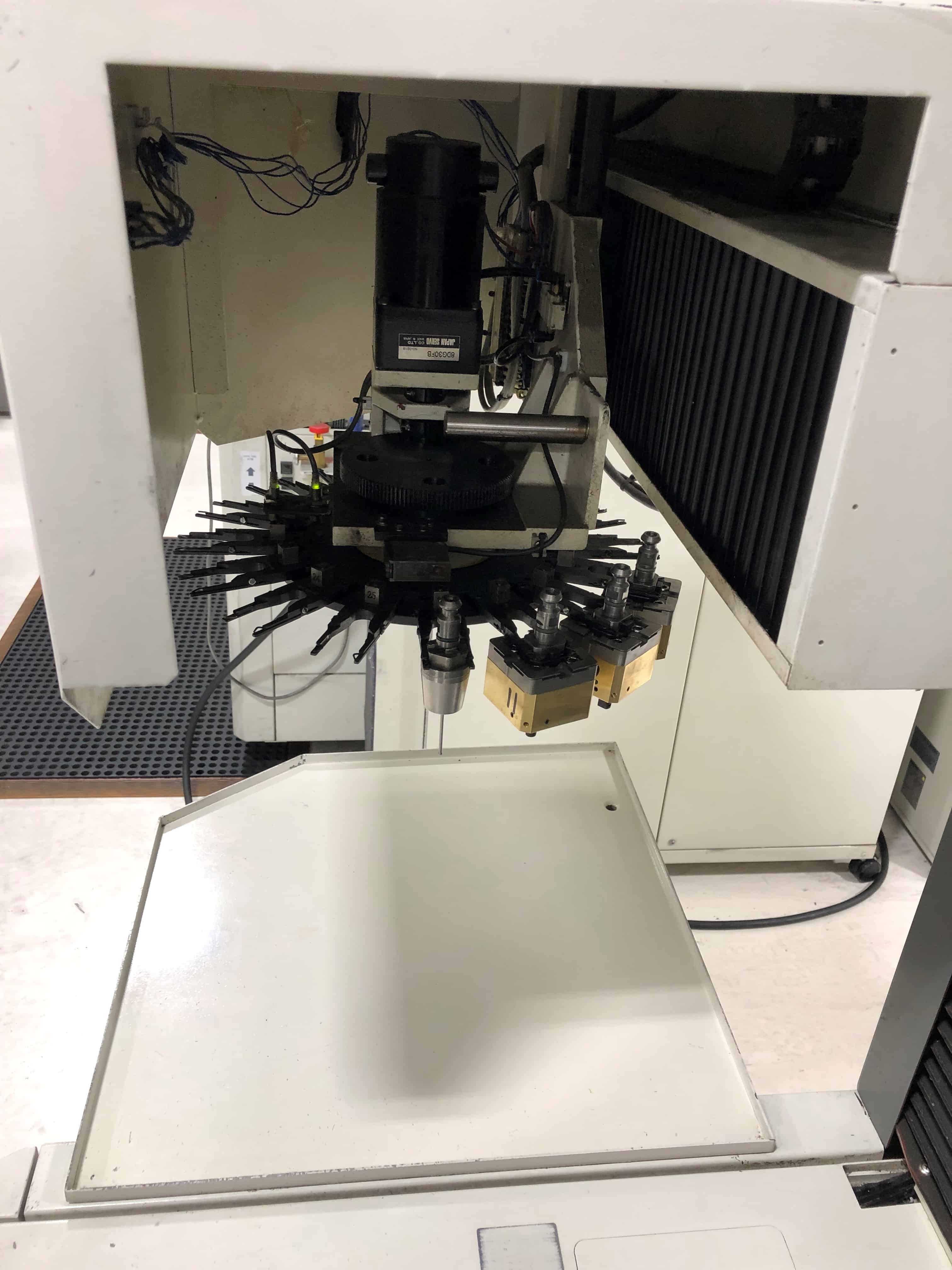

| Tool Changer |
16 |
| Power Source |
80 AMP |
| C-Axis |
Yes |

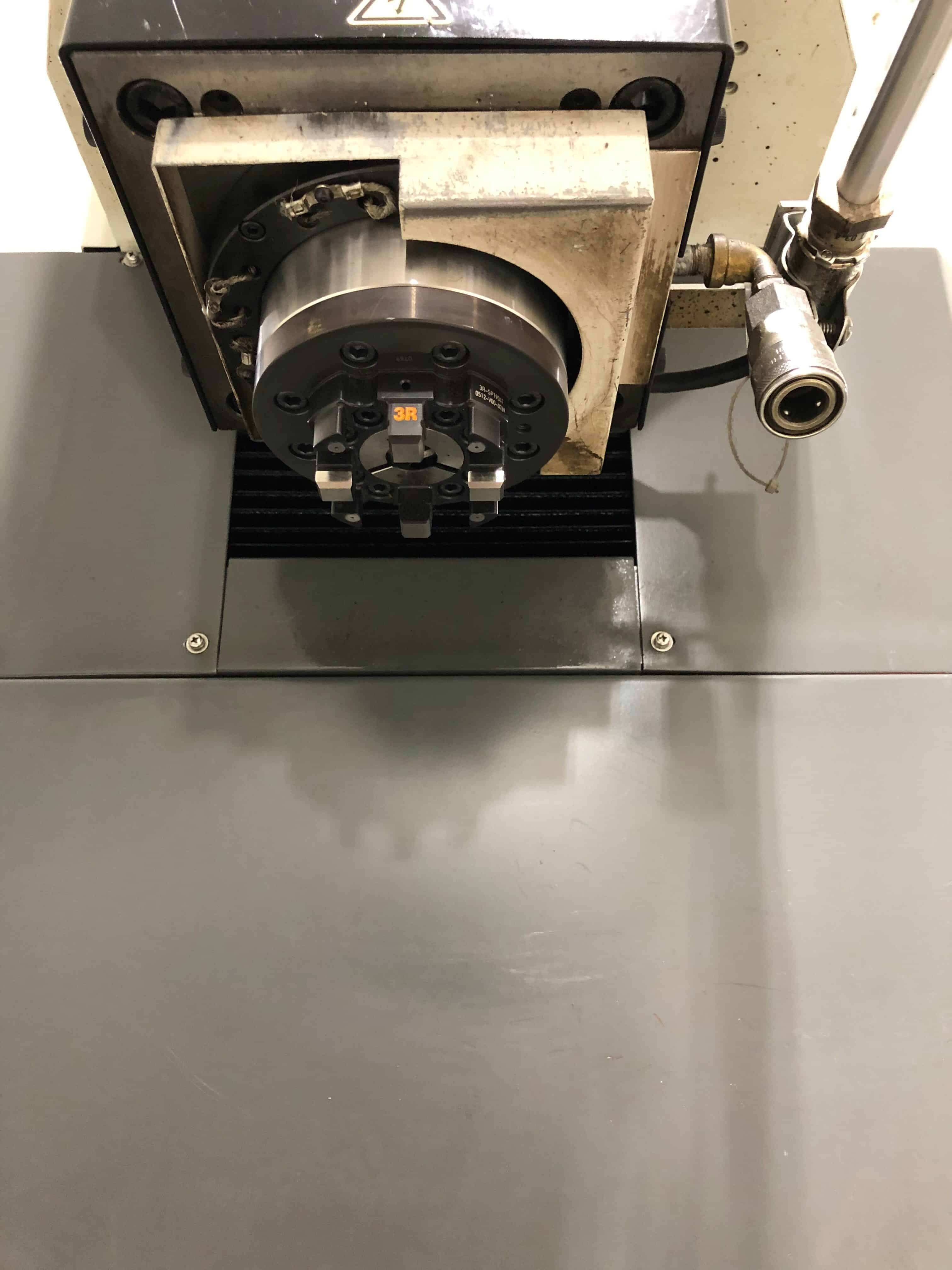

| Chuck |
3R |
| Power Requirement |
200/220/3/60 |
| Glass Scale Feedback |
Rotary Encorder/Scale on Z-Axis |
| Work Tank Dimensions |
33.46" x 23.62" x 13.78" |
| Table to Platen |
7.8" x 19.6" |

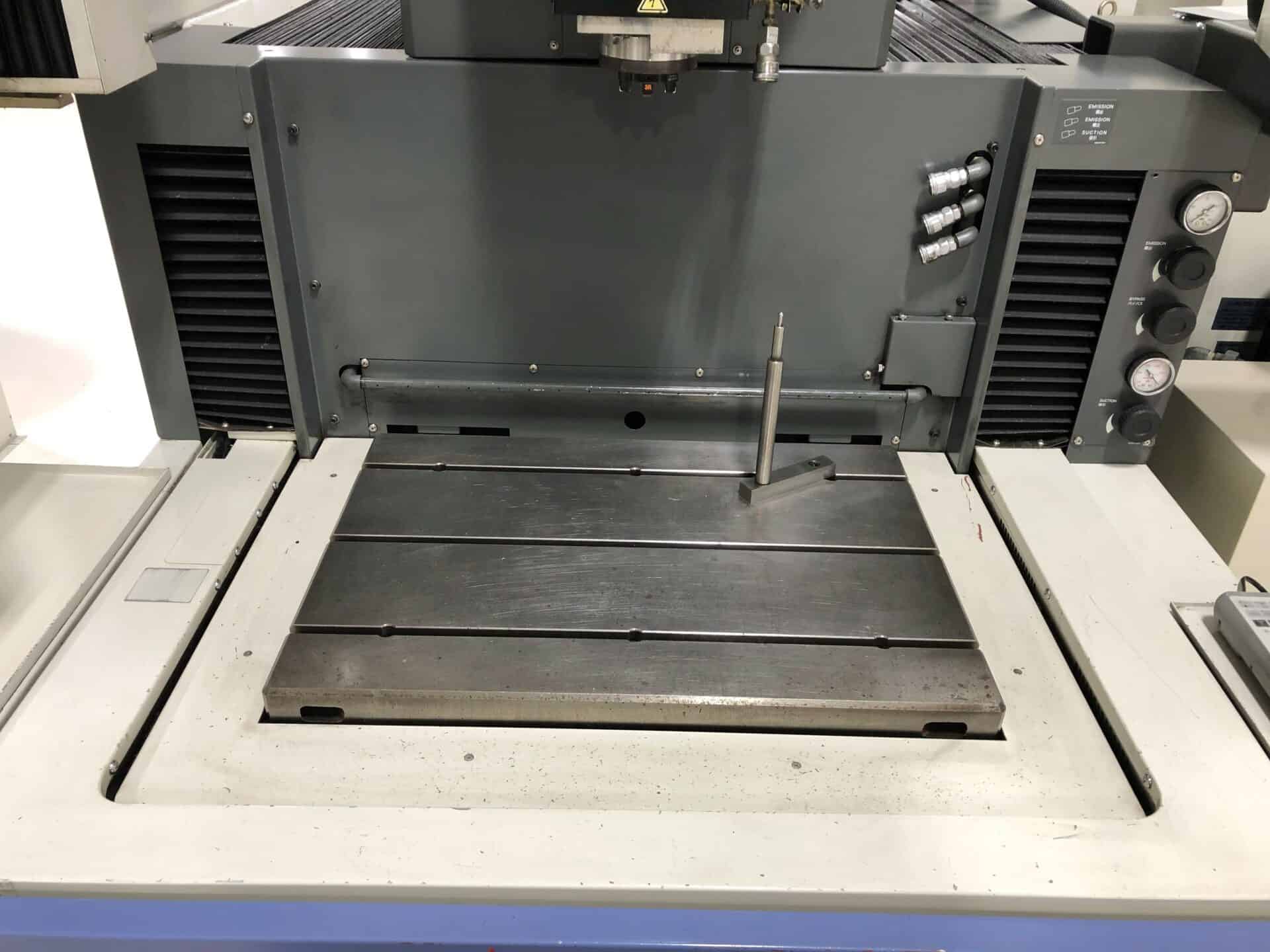

| Table Dimensions |
23.62" x 17.71" |
| Max Workpiece Weight |
1,543 Lbs |
| Max Electrode Weight |
110 Lbs |
| Minimum Input |
.00001" |
| Minimum Drive Resolution |
.000002" |
| Machine Dimensions |
100.6" x 120.5" |
| Machine Weight |
5,000 Lbs |
Features
|
C-Axis |

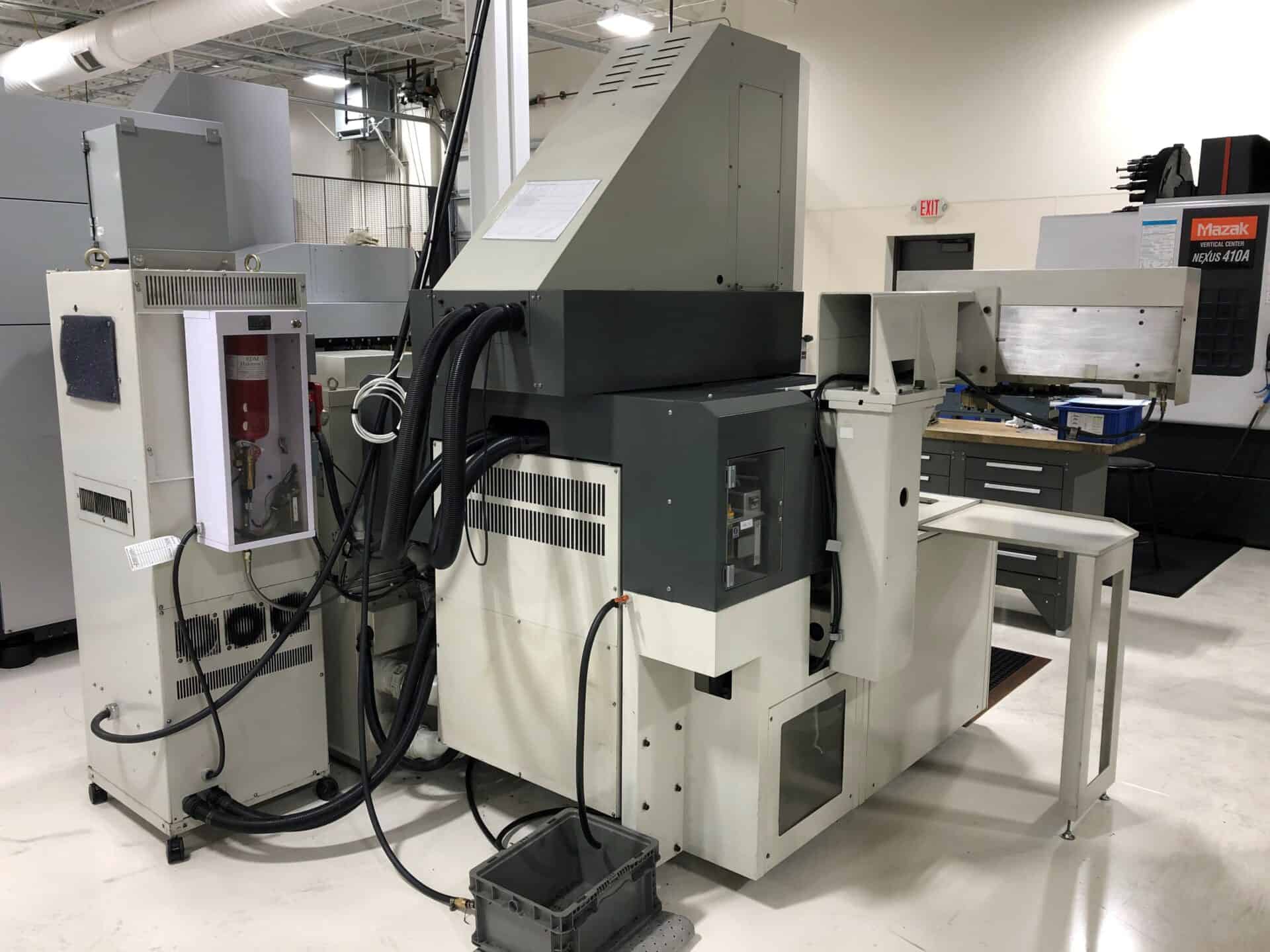

Chiller |
|
Glass Scale Feedback |
10.4" TFT Color LCD |
|
Saddleless Moving Column Design Allows Greater Workpiece Weight Capability and Easier Loading / Unloading of Workpieces |
3-Sided Drop Tank |
|
The Newly Designed AC Smart Servo Drive System Allows Unexcelled Cutting Accuracy and High-Speed Positioning With a 0.05µm Motor Resolution |
Combi C-Axis Macro and Mini |
|
Direct Drive Ball Screws Ensure Accurate Head Movement |
Fine Resolution Encoder Feedback Promotes Higher Accuracy Machine Positioning and Improved part Accuracy |
|
Fuzzy Pro3" Control System Offers Unparalleled Jump Speed and Ease of Operation |
Linear Motion Guide Ways Support X / Y and Z-Axis |
|
Z-Axis Incorporates a New Linear Scale to Provide Excellent Positioning Accuracy During High-Speed Jump Machining |
