Year

2001

Make

Hydmech

Model

M-20A

Description

Saw

Reference #

8079259

Price

Activate Pricing

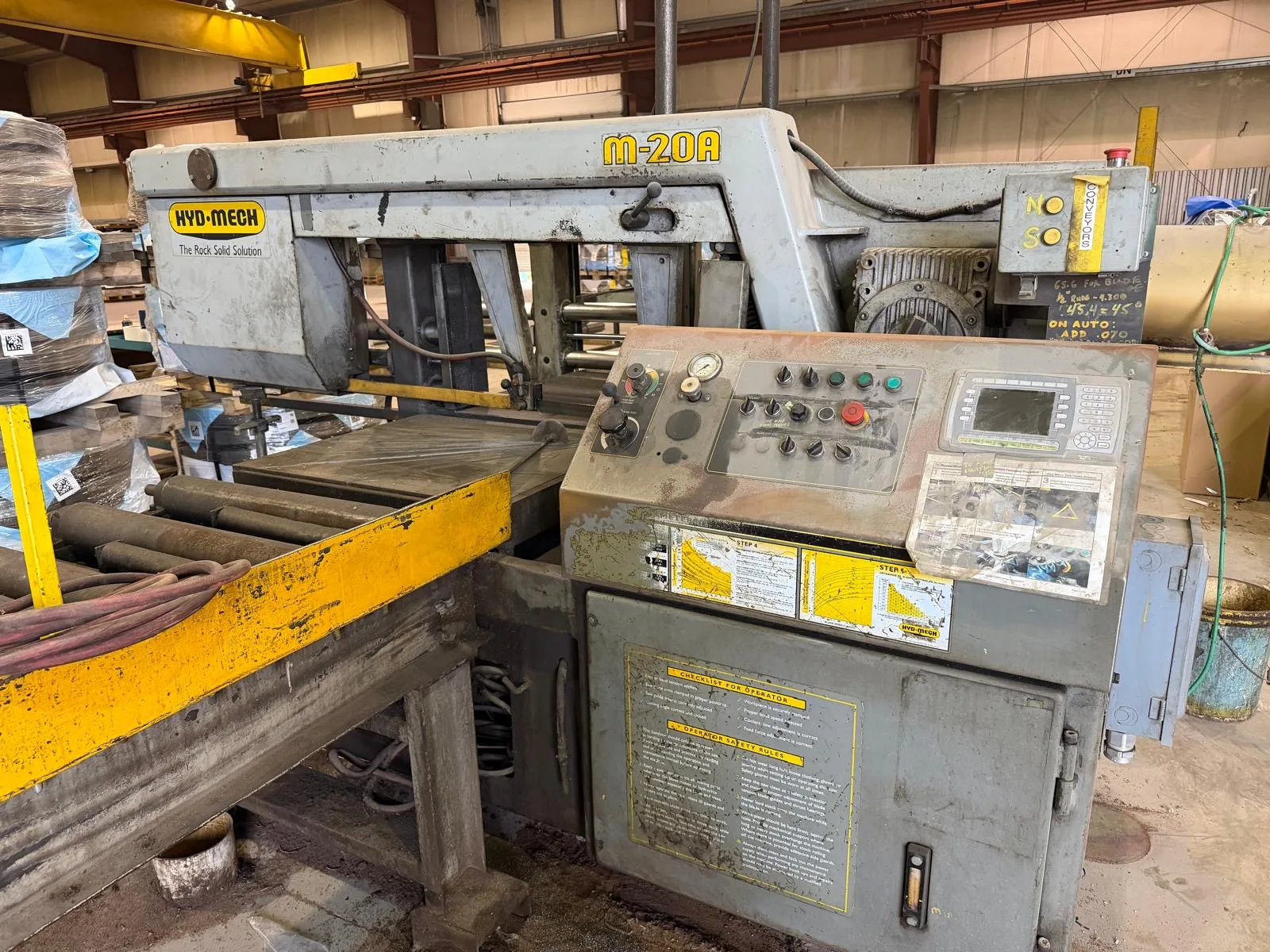

Used Hydmech M-20A (2001) Saw for Sale. This dual-column horizontal bandsaw cuts 20″ x 30″ rectangular and 20″ round at 90 degrees, 18″ x 20″ rectangular and 20″ round at 45 degrees, and 12″ x 20″ rectangular and 14″ round at 30 degrees. It runs a 22″ blade wheel diameter with a 10 HP blade drive motor and a 3 HP hydraulic motor. Table height is 32″, work load capacity is 8,000 lbs., and overall dimensions are 130″ x 90″ x 66″, with machine dimensions listed at 129″ x 90″ x 110″. The saw can be seen under power for an inspection. Compare it against the rest of our used saws, then Activate Pricing or use the Inquire Now button to reach us.

Specifications

Capacity @ 90°

20" x 30" Rectangular / 20" Round

Capacity @ 45°

18" x 20" Rectangular / 20" Round

Capacity @ 30°

12" x 20" Rectangular / 14" Round

Blade Wheel Diameter

22"

Blade Drive Motor

10 HP

Hydraulic Motor

3 HP

Table Height

32″

Overall Dimensions

130" x 90" x 66"

Work Load

8,000 Lbs.

Dimensions

129" x 90" x 110"

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
