Year

2016

Make

Pat Mooney

Model

PMI-20 24

Description

Semi-Auto Miter Upcut Saw w/ Conveyor

Reference #

8078674

Price

Activate Pricing

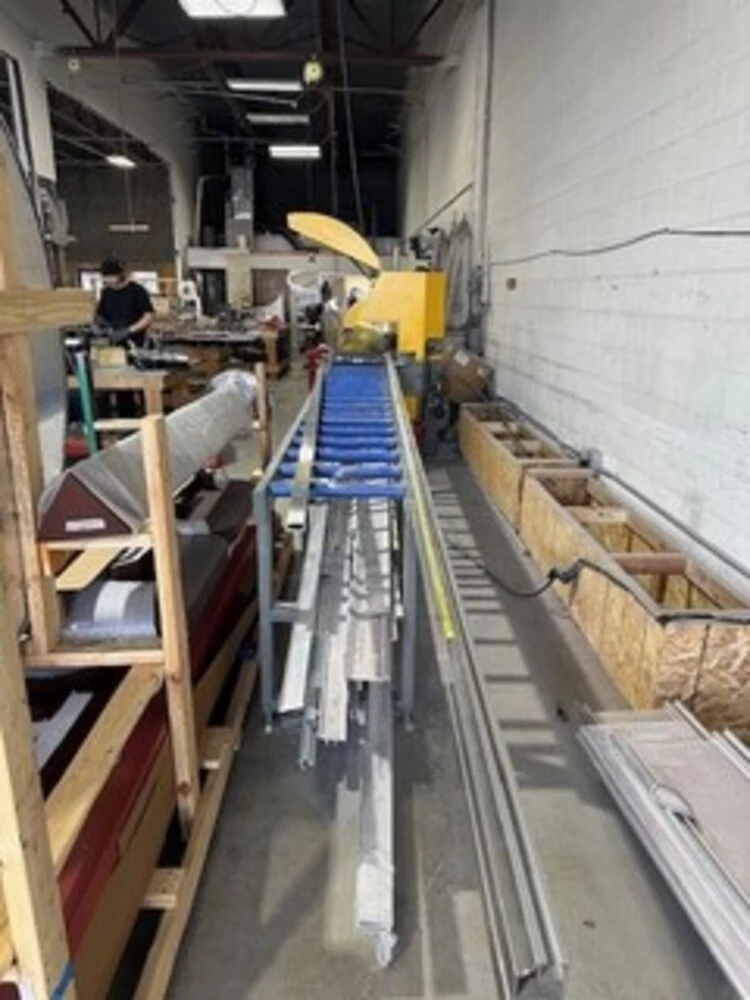

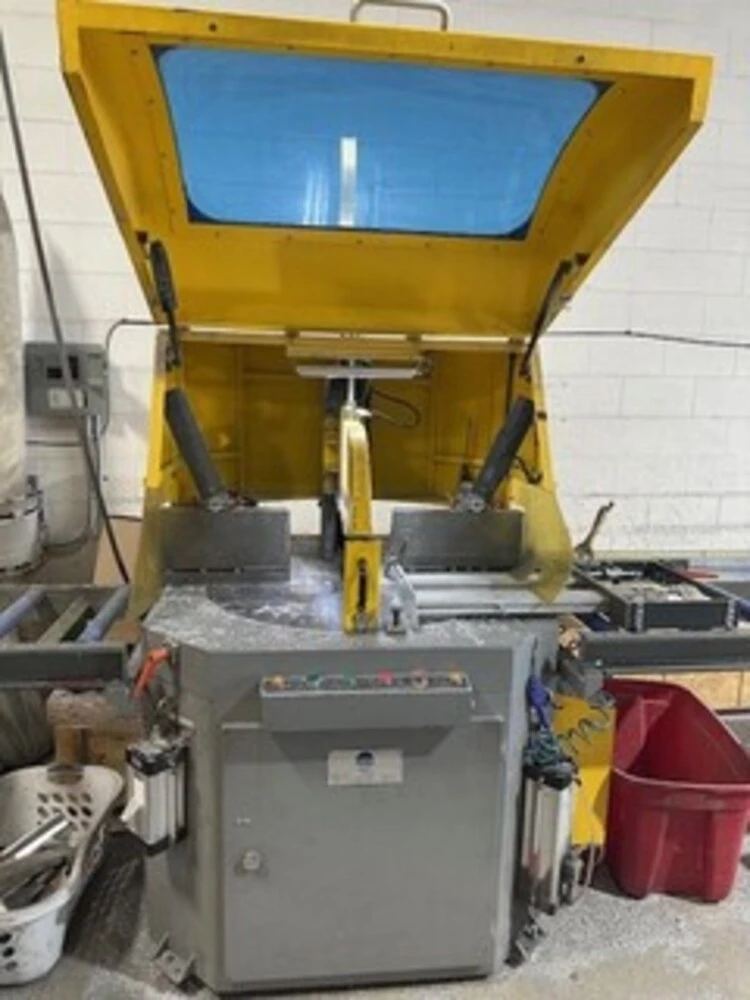

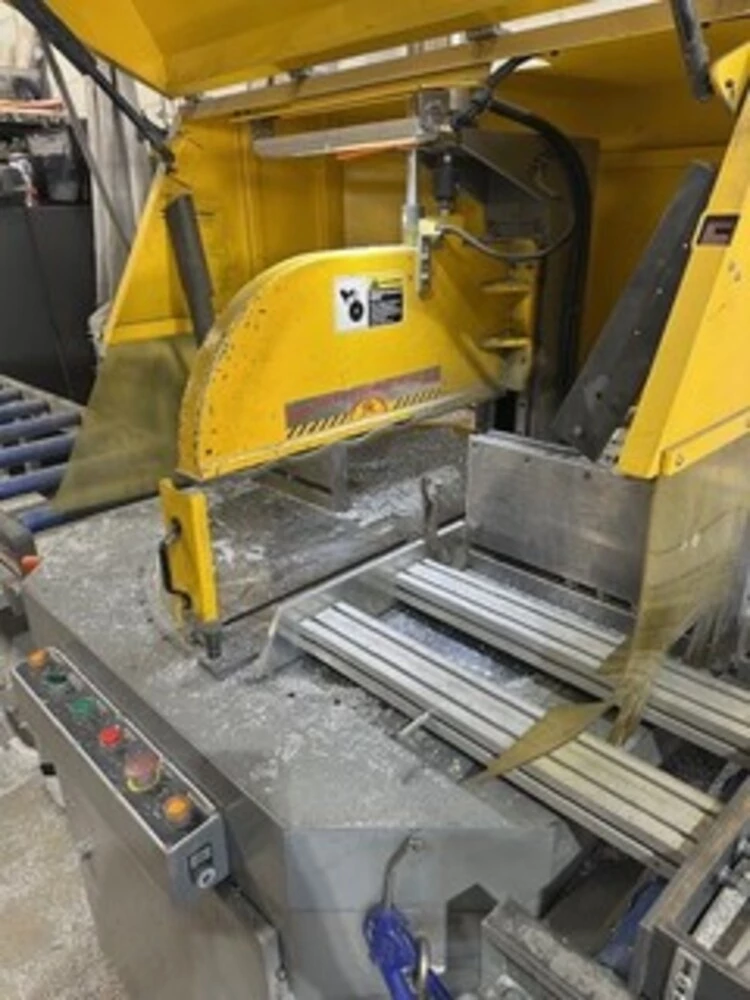

Used Pat Mooney PMI-20 24 (2016) Other Equipment for Sale. This upcut saw runs a 7.5 HP saw motor with a 24″ diameter blade turning at 2000 RPM. It performs double miter cuts at 60 degrees left and right, with a maximum sawing height of 7.8″ and a maximum sawing width of 14.6″. The machine is equipped with adjustable clamping pressure, vertical and horizontal clamping, and full control of the feed rate through an air over oil feed system, making it suited to non-ferrous materials. A conveyor is included. The saw can be seen under power for an inspection so you can verify operation before purchase. If this machine fits your requirements, Request a Quote and we will follow up with details.

Specifications

Saw Motor

7.5 HP

Double Miter

60 Degrees Left and Right

Saw Blade Speed

2000 RPM

Diameter Saw Blade

24”

Maximum Sawing Height

7.8”

Maximum Sawing Width

14.6"

Features

Adjustable Clamping Pressure

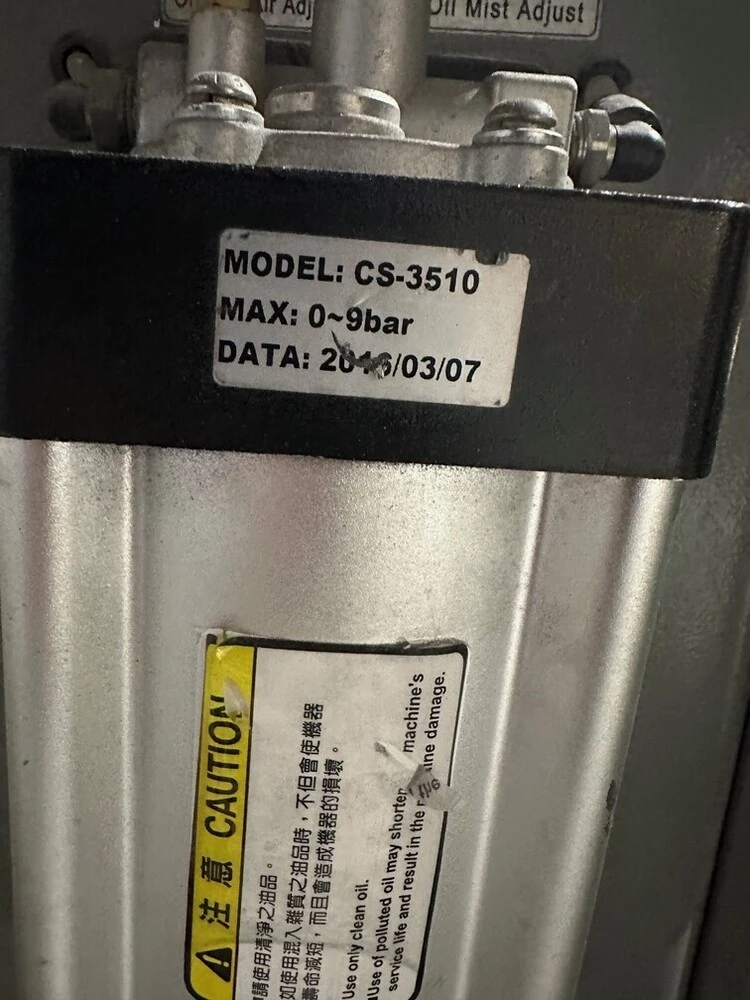

Full Control of the Feed Rate – Air over Oil Feed System

Ideal for Non-ferrous Materials

Vertical and Horizontal Clamping

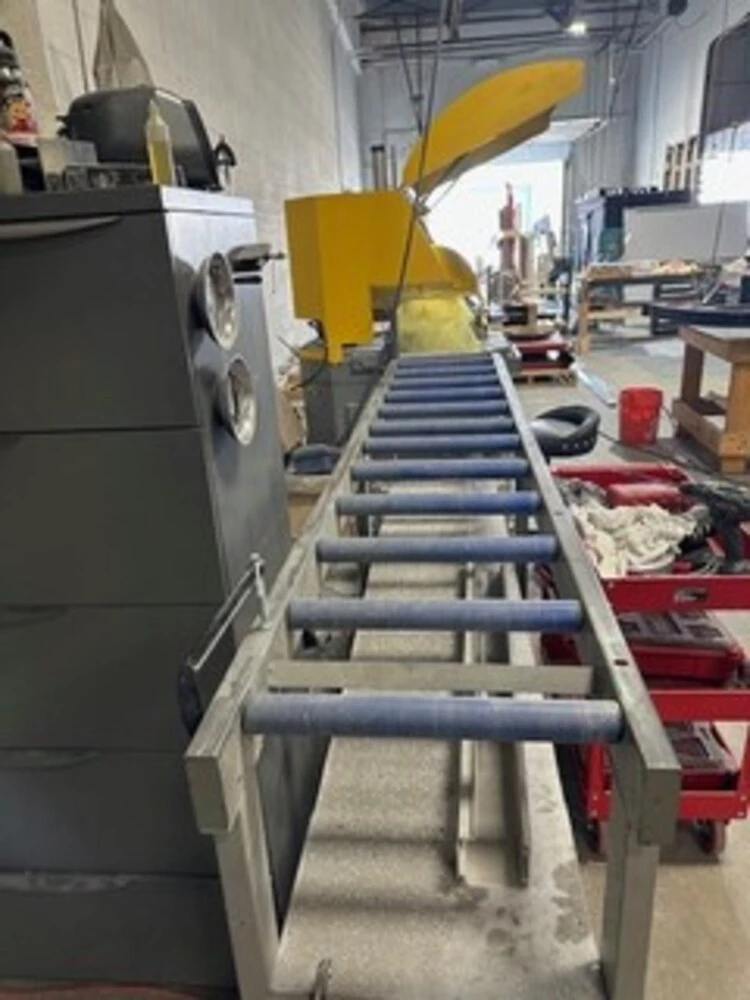

Conveyor Included

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
