Year |
1999 |
|---|---|
Make |
Van Dorn |
Model |
500HT-4300 |
Description |
500 Ton 89 oz Shot Size Injection Molding Machine |
Reference # |
8078627 |
Price |
Activate Pricing |

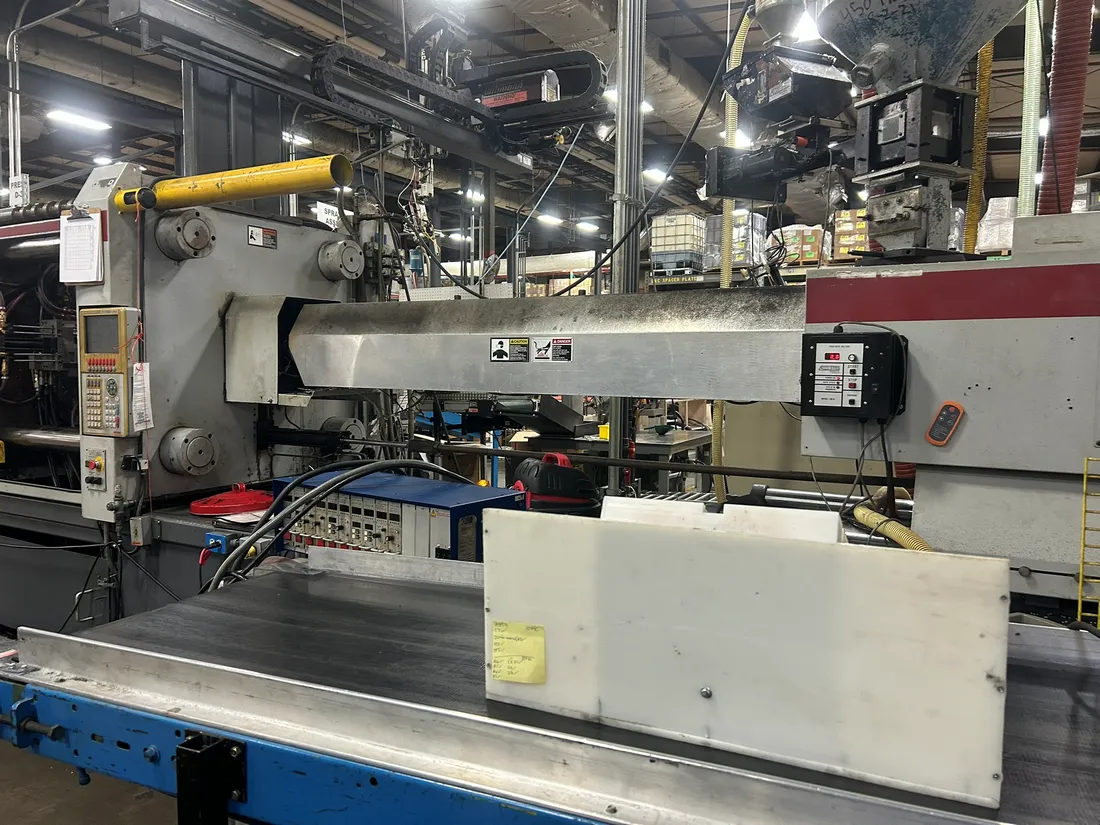

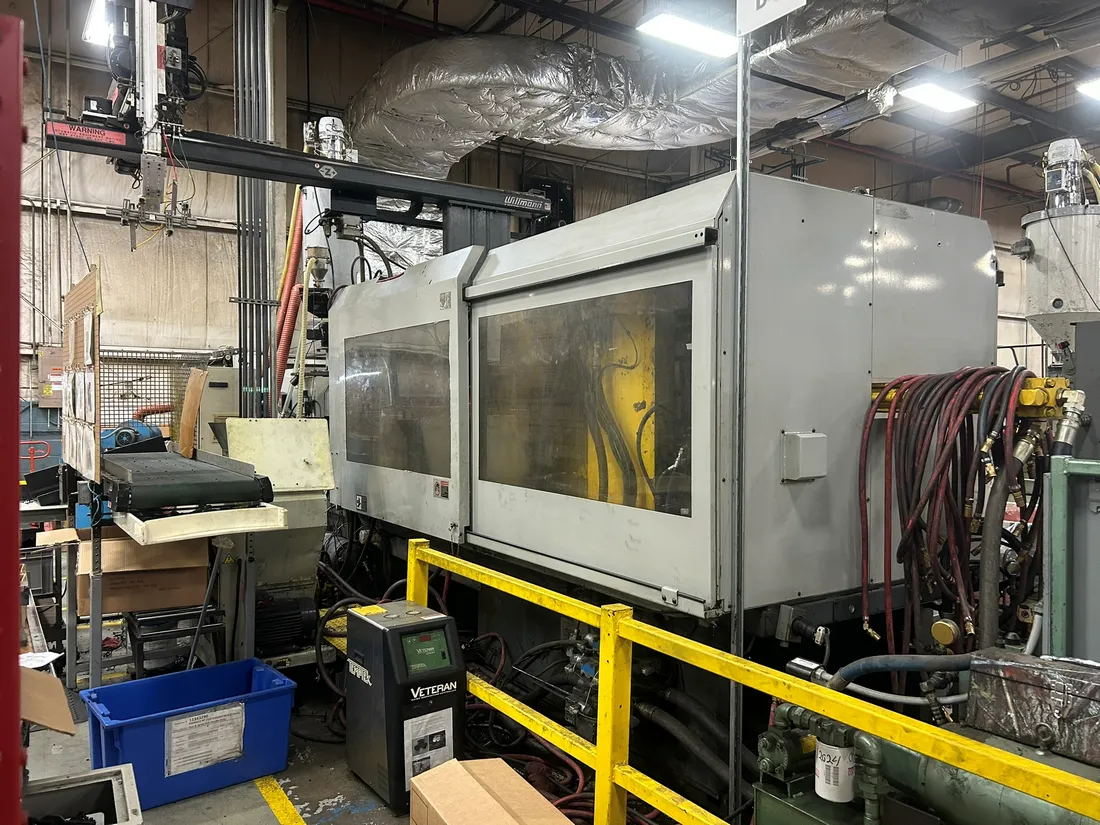

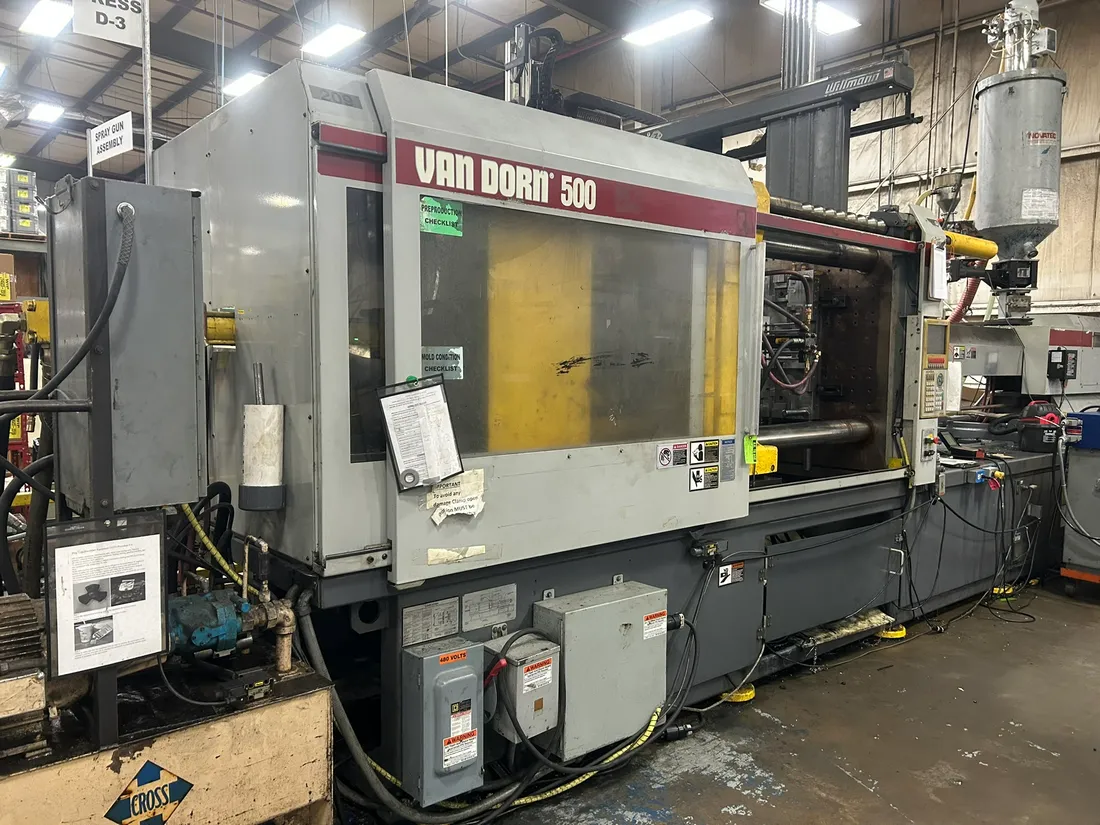

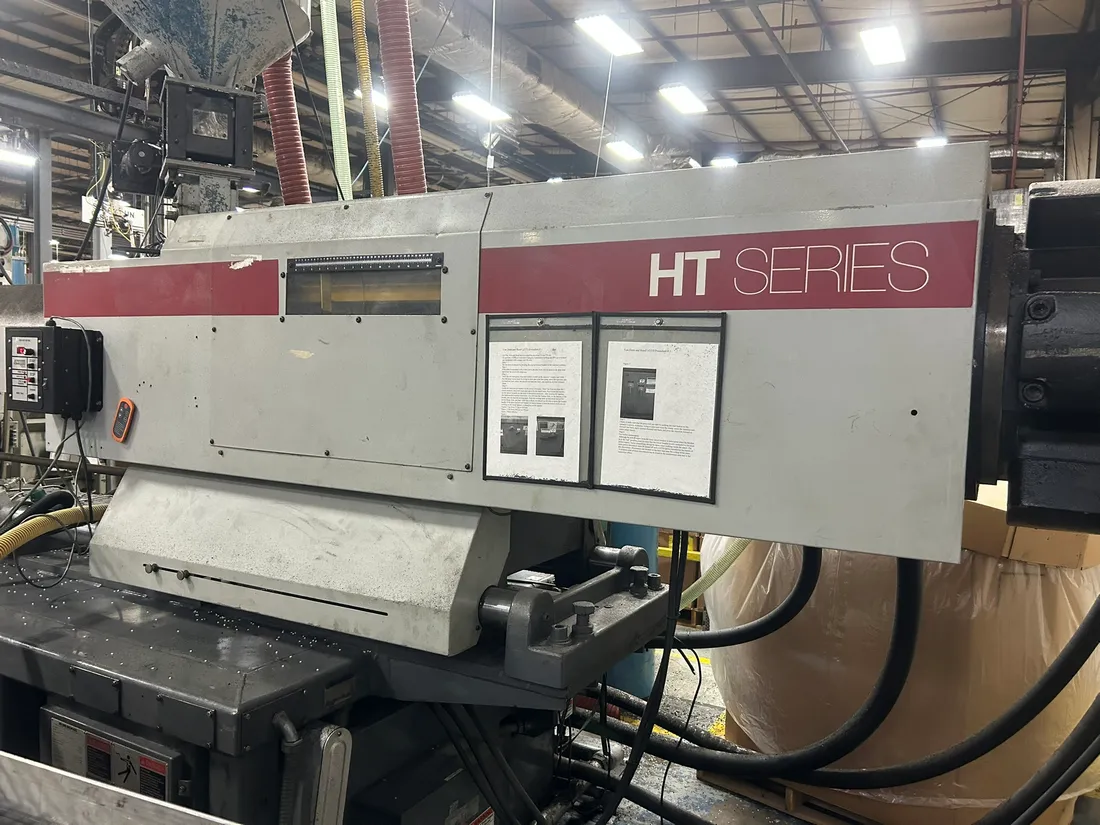

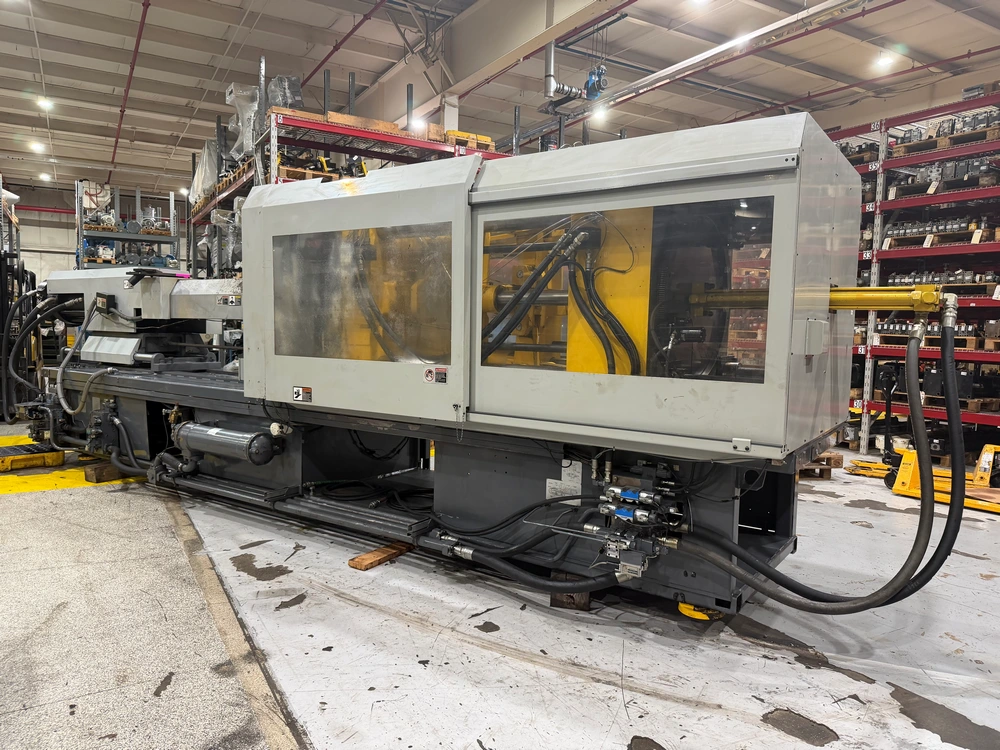

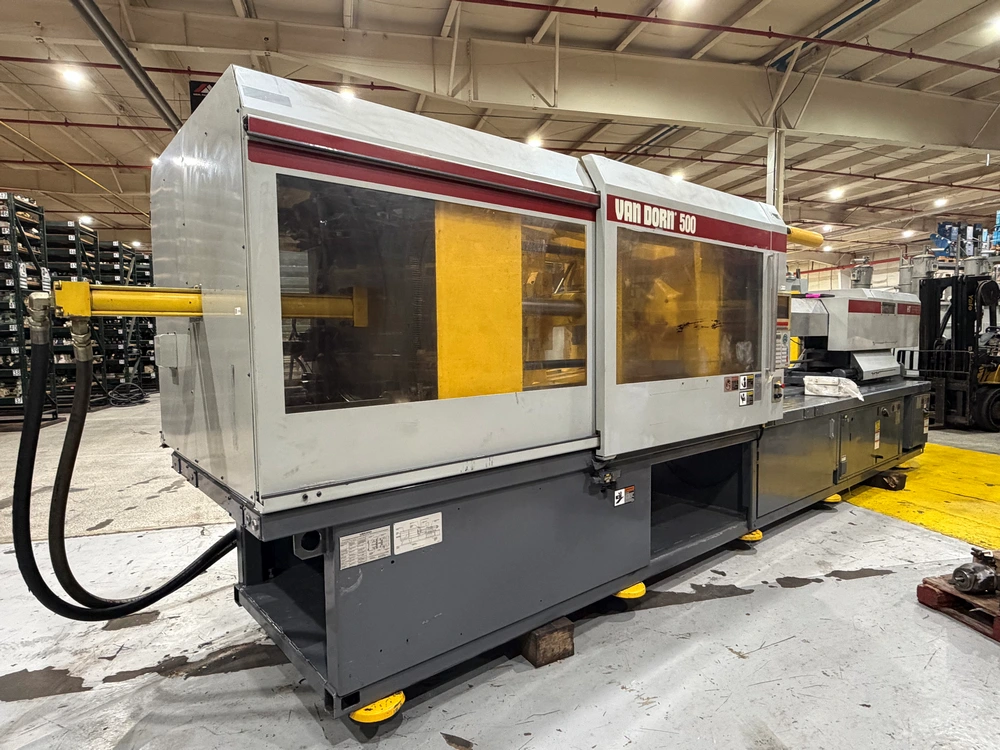

Used Van Dorn 500HT-4300 (1999) Injection Molding Machine for Sale. This 500 ton press has an 89.6 oz shot size and a 95 mm screw diameter, with tie bar spacing of 32.5″ x 32.5″ and platen size of 47.8″ x 47.8″. Max daylight is 61″, clamp stroke 30″, minimum mold height 10″, and ejector stroke 6″. Controls are Pathfinder 5000, power requirement 460/3/60. The machine measures 29′ x 6’5″ x 7’7″ and weighs 52,000 lbs. Equipped with core pull, air blow, and hydraulic knockout. It is under power and can be demonstrated for an inspection. See more injection molding machines or browse our Van Dorn inventory. Activate Pricing or Request a Quote for details. This machine is located in Michigan.
Specifications
| Capacity |
500 Ton |
|---|---|
| Shot Size |
89.6 oz |
| Tie Bar Spacing |
32.5" x 32.5" |
| Platen Size |
47.8" x 47.8" |
| Max Daylight |
61" |
| Clamp Stroke |
30" |
| Min Mold Height |
10" |
| Screw Diameter |
95 mm |
| Ejector Stroke |
6" |

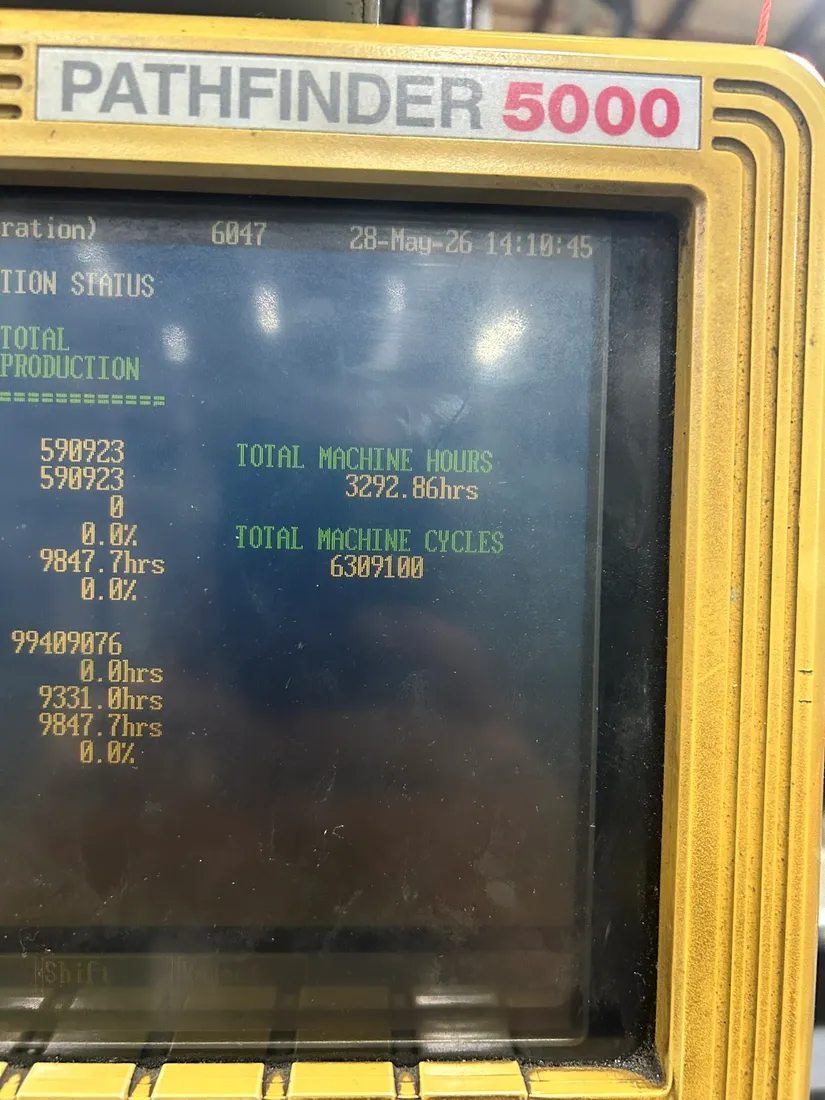

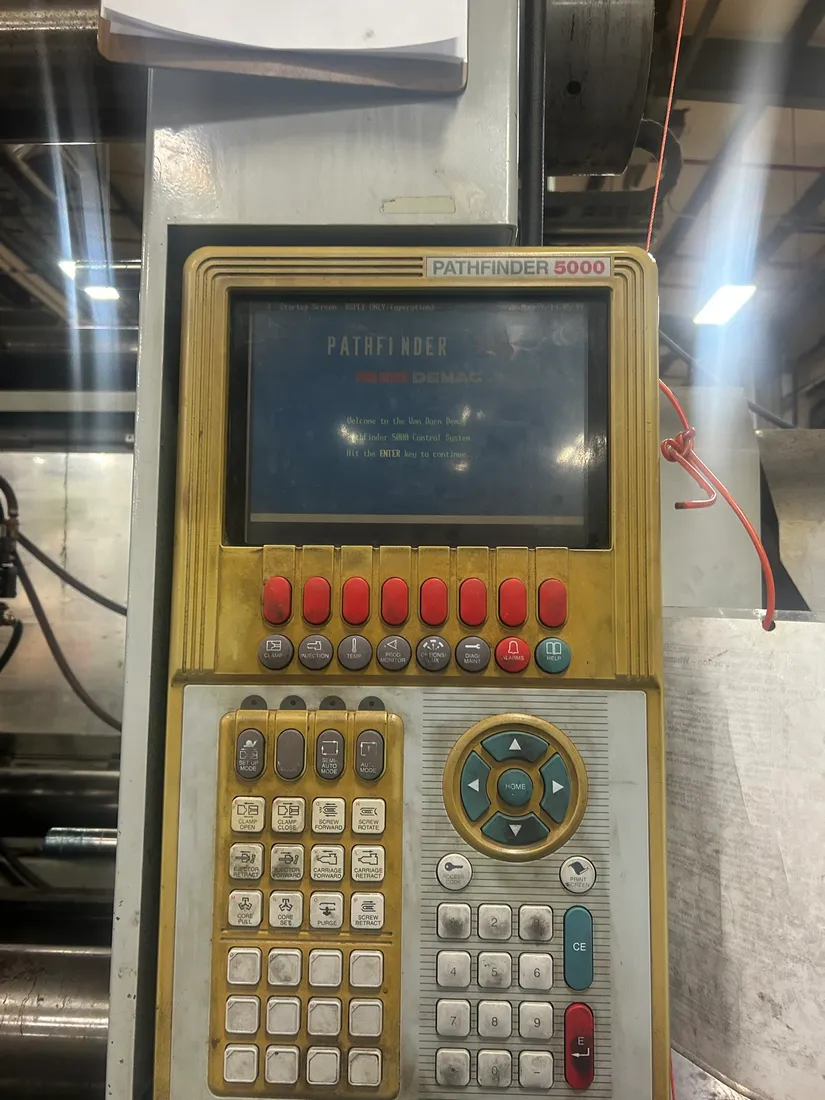

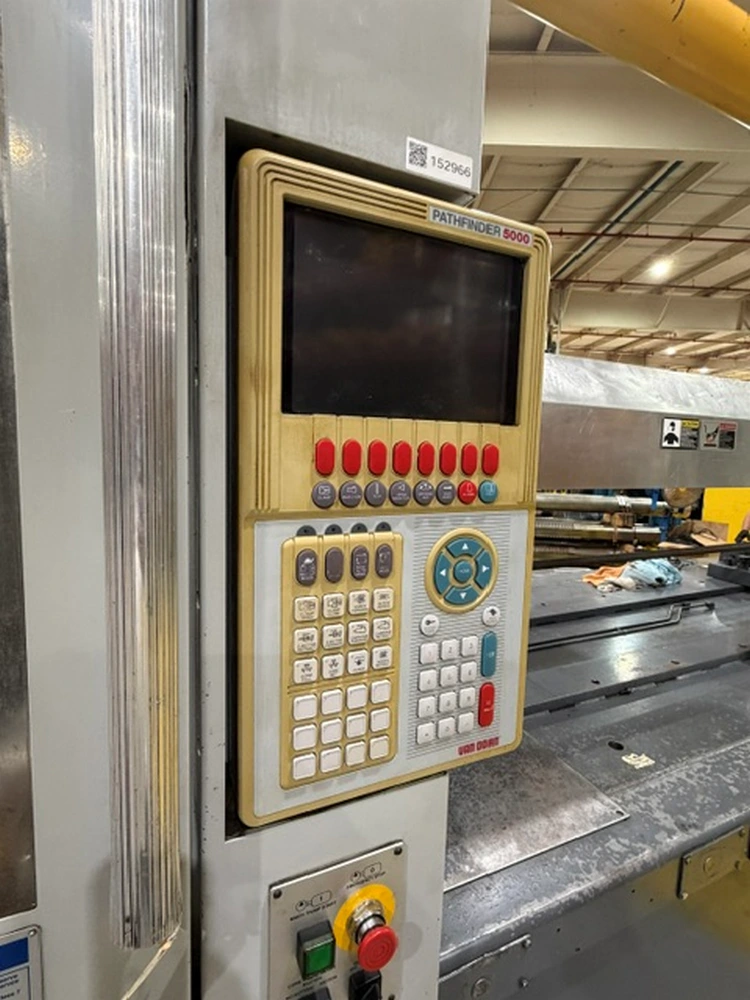

| Control |
Pathfinder 5000 |
| Power Requirement |
460/3/60 |
| Machine Dimensions |
29' x 6'5" x 7'7" |
| Machine Weight |
52,000 Lbs |
Features
|
Core Pull |
Air Blow |
|
Hydraulic Knockout |
Under Power |
